GMARLNAMA U.S., INC:.
INSTRUCTION MANUAL

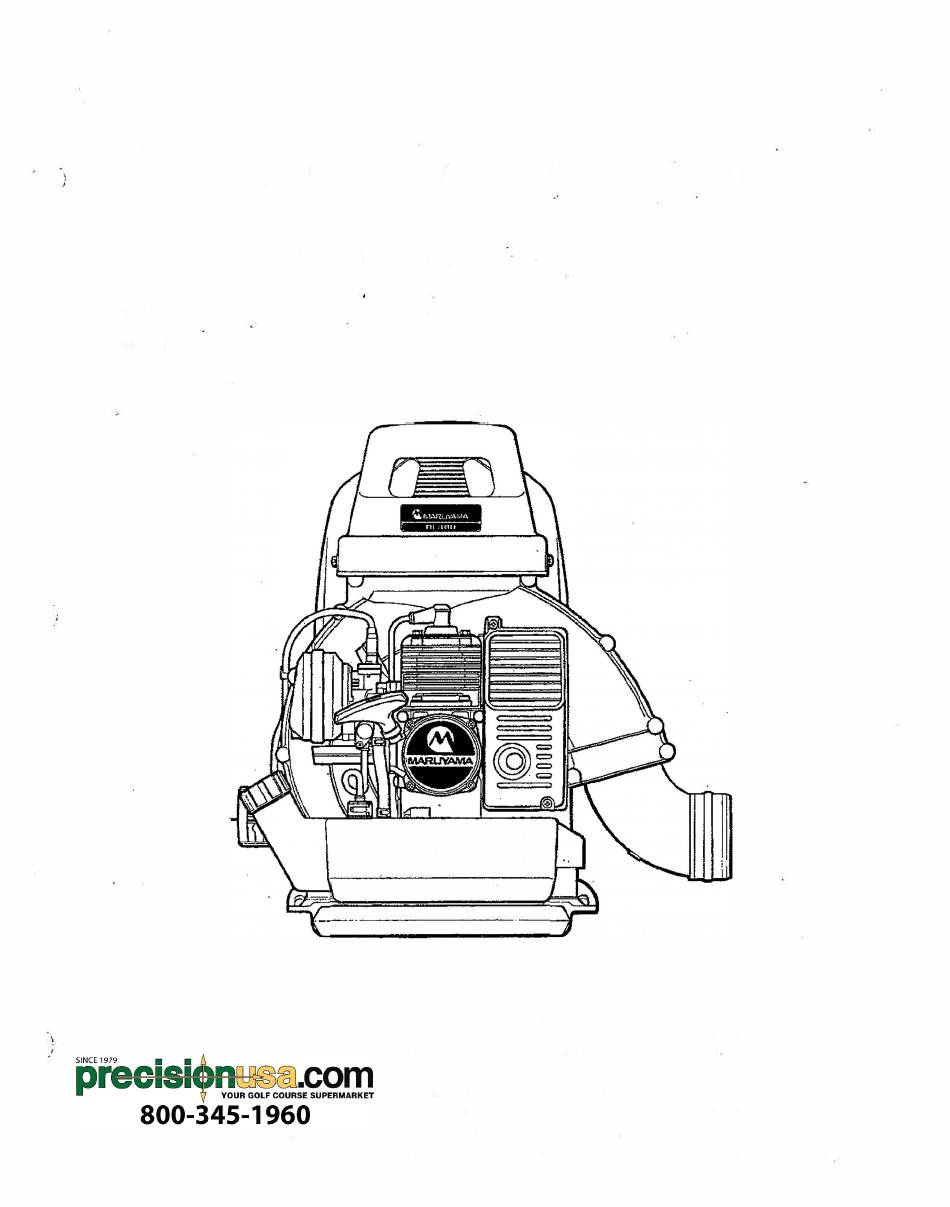

FOR BACKPACK POWER BLOWER
MODEL: BL400/BL480
DODDDDDOODO
It is essential that any operator of a
MARUYAMA Backpack Power Blower reads and
understands the contents of this manual
before the engine is started.
Important safety instructions will
be identified by the safety symbol ...
Failure to comply with the instructions in
t-hi!=:t m;:11n11;::il
m:::.v r&1ci:nlt-
in
c:u:aririncz
I).
it"l--i,i-,..u
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Maruyama BL400
Summary of Contents for Maruyama BL400
- Page 1 FOR BACKPACK POWER BLOWER MODEL: BL400/BL480 DODDDDDOODO It is essential that any operator of a MARUYAMA Backpack Power Blower reads and understands the contents of this manual before the engine is started. Important safety instructions will be identified by the safety symbol ...
-
Page 2: Table Of Contents
Safety provide d throughout the Instruction Manual, For additional· assistance, contact any local authorized .Maruyama d eal er, or Mar uya ma U.S ., I n c., 30 1-3 0th St. NE, S u ite ll , WA 9 8 0 0 2. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS l .Read and understand this Instruction Manual before using the power blower. Be thoroughly familiar with the proper use of the power blower. 2 .Never allow children to operate the power blower. It is not a toy. Never allow adults operate the unit without first reading the Instruction Manual. -
Page 6: O Per A Ti Ng In S T R Uc T Io N
The lowest position of the lever is the asTOPPED" setting, and the highest position is.the UFULL THROTTLE" setting (maximum R.P.M.). BL400 BL480 The handle of the throttle control lever slides in or out for the convenience of the operator. -
Page 7: Starting Procedure
When the engine has started, slowly move "CHOKE LEVER" fully downward to the open position. Allow engine to "WARM-UP" at less than 1/2 speed. If a MARUYAMA engine fails to start after following the above procedures, contact an authorized MARUYAMA dealer. - 6 -... -
Page 8: Blower Operation
BLOWER OPERATION When the engine has warmed-up, the power blower can be positioned on the back of the operator. First slip the right arm through the right shoulder strap, then put the left a,rm through the left shoulder strap and connect the triangle-ring to the hook. (Note: For easier access, the triangle-ring/hook... -
Page 9: Regular Maintenance
REGULAR MAINTENANCE Before each use, the power blower should be inspected for proper assembly and fitness of all components. All fasteners should be checked for correct tightness. Always inspect for fuel leaks. CAUTION-Do not attempt to start or operate a power blower that indicates a fuel leak. -
Page 10: Fuel Filter
FUEL FILTER The fuel filter should be cleaned and inspected for damage after each fifty· (50) hours of use. The fuel filter is attached to the fuel pickup tube inside the fuel tank. Loosen the clamp and take out the fuel filter. WEIGHT CLAMP FUEL TUBE... -
Page 11: Muffler And Exhaust Ports
An AUTHORIZED MARUYAMA DEALER should be contacted for this service. GENERAL CLEANING AND TIGHTENING The MARUYAMA power blower will provide maximum performance for many, many hours if it is maintained properly. Good maintenance includes regular checking of all fasteners for correct tightness, and cleaning the entire machine. - Page 12 �MARLJYAMA U.S., INC. LIMITED WARRANTY STATEMENT All Maruyama products are warranted to the origi n al purchaser to be free from defects in material and workmanship for a period of two (2) years from the date of purchase when appfied to residential use, or six (6) months !l'Om the date of purchase when applied to commercial use.
