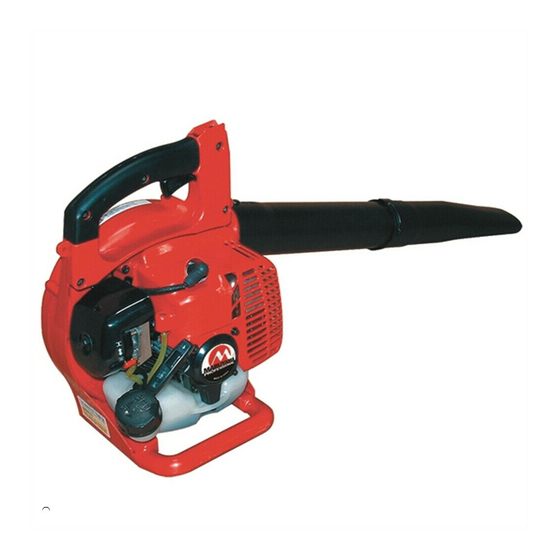

Hand-held blower
Hide thumbs Also See for BL3200:

Advertisement

BL3200
Owner's/Operator's Manual
Completely read and understand this manual before using this product.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BL3200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Maruyama BL3200

  • Page 1 BL3200 Owner’s/Operator’s Manual Completely read and understand this manual before using this product.
  • Page 2: Table Of Contents

    Important safety instructions will be identified by the following safety symbol: Failure to comply with the instructions in this manual may result in serious injury or death. For additional assistance, contact any local authorized Maruyama dealer. TABLE OF CONTENTS Foreword······················································ 1 Starting and stopping procedure ··············· 10 Specifications ··············································...
  • Page 3: Product Description

    PRODUCT DESCRIPTION MODEL:BL3200 THROTTLE SETTING LEVER THROTTLE TRIGGER HANDLE STOP SWITCH PIPE A FAN COVER PIPE B AIR INTAKE SCREEN ENGINE AIR CLEANER SERIAL NUMBER (ON THE TOP OF CRANKCASE) RECOIL STARTER FUEL TANK — 2 —...
  • Page 4: Marking

    MARKING q MODEL NAME w SERIAL No. (STAMPED) See SYMBOL EXPLANATION r SOUND PRESSURE LEVEL See SYMBOL EXPLANATION SYMBOL EXPLANATION Read and understand this Owner’s/Operator’s Manual before using this product. Fire Danger: Gasoline is highly flammable. Never add fuel to the Hand-held Blower with a running or hot engine.
  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS The warning system in This manual identifies potential hazards and has special safety messages that help you and others avoid personal injury, even death. are signal words to identify the level of hazard. • DANGER • WARNING • CAUTION : signals an extreme hazard that will cause serious injury or death if the recom- •...
  • Page 6 “Maintenance” section, beginning on page 13. 4. Use the correct accessories. Never use replacement parts that are not approved by Maruyama. 5. Shut off the engine before performing maintenance or working on the machine. 6. If running problems or excessive vibration occur, stop immediately and inspect the unit for the cause.
  • Page 7 OPERATING SAFETY 1. THIS HANDHELD BLOWER CAN CAUSE SERIOUS INJURIES. Read the instructions care- fully. Be familiar with all controls and the proper use of the Handheld Blower. 2. Avoid using the Handheld Blower near rocks, gravel, stones and similar materials which can become dangerous projectiles.
  • Page 8: Assembly

    8. Watch out for children, pets, open windows, or freshly washed cars and blow debris safely away. 9. After using blowers and other equipment, CLEAN UP! Dispose of debris in trash receptacles. ASSEMBLY BLOWER PIPES INSTALLATION WARNING Stop the engine before installing or removing blower pipes. 1.
  • Page 9: Before Operation

    BEFORE OPERATION FUELING WARNING! The following precautions will lessen the risk of fire. WARNING POTENTIAL HAZARD • Gasoline contains gasses that can build up pressure inside a gas tank. WHAT CAN HAPPEN • Fuel can be sprayed on you when removing fuel tank cap. HOW TO AVOID THE HAZARD •...
  • Page 10 FUEL; MIXING GASOLINE AND OIL IMPORTANT: The engine used on this Handheld Blower is of a 2-cycle design. The internal mov- ing parts of the engine, i.e., crankshaft bearings, piston pin bearings and piston to cylinder wall contact surfaces, require oil mixed with the gasoline for lubrication. Failure to add oil to the gasoline or failure to mix oil with the gasoline at the appropriate ratio will cause major engine damage which will void your warranty.
  • Page 11 STARTING AND STOPPING PROCEDURE BEFORE STARTING THE ENGINE: Fill the fuel tank as instructed in the BEFORE OPERATION section of this manual (page8). Rest the Handheld Blower on the ground. Make sure that the area is clear of any broken glass, nails, wire, rocks or other debris. Keep all bystanders, children and ani- mals away from the working area.
  • Page 12 Procedure section (page10). If the engine fails to start after you follow the above procedures, contact an authorized Maruyama dealer. NOTE: 1. Don't pull the starter cord out completely. 2. Do not rerease the starter cord from the fully extended position.
  • Page 13: Carburetor Adjustment

    Idle Speed If idle speed adjustment is necessary, Adjuster Screw and after adjustment the engine stalls, stop using the Handheld Blower imme- diately! Contact your local authorized Maruyama Dealer for assistance and servicing. — 12 —...
  • Page 14 Maruyama, The use of parts that are not equivalent in performance and dura- bility to authorized parts may impair the effectiveness of the emission control system and may have a bearing on the outcome of a warranty claim.
  • Page 15: Fuel Filter

    4. Clean the foam element and filter screen with air blow or warm soapy water. 5. Reassemble the filter screen and foam element to the air cleaner body. Foam element must be located as the felt side face to the cleaner cover. 6.
  • Page 16: Spark Plug

    SPARK PLUG Maintenance Interval • The spark plug should be removed from the engine and checked after each 25 hours of operation. • Replace the spark plug after every 100 hours of operation. Spark Plug Maintenance 1. With the engine at ambient (room) tempera- TIPS 0.6 - 0.7 mm (0.024 - 0.02 inches) ture, twist the high tension lead boot on the...
  • Page 17: Engine Screen

    ENGINE SCREEN Maintenance Interval The screen should be cleaned and inspect- ed each time the Handheld Blower is used. Screen Cleaning Clean all dirt and debris from the screen. Screen SPARK ARRESTER WARNING POTENTIAL HAZARD • Muffler surface becomes hot when Handheld Blower is in operation and remains hot for some time after the engine is shut off.
  • Page 18: Exhaust Muffler

    6. Reinstall the spark arrester and tail onto the muffler, then reinstall and tighten the two screws. The hole of tail must be located in left (refer to the pic- ture.) 7. Reinstall the topcover and the cleaner cover. Hole of Tail EXHAUST MUFFLER Maintenance Interval The muffler should be inspected and cleaned after each 100 hours of use.
  • Page 19 • Always turn off your Handheld Blower before you clean or perform any maintenance on it. The Maruyama Handheld Blower will provide maximum performance for many, many hours if it is maintained properly. Good maintenance includes regular checking of all fasteners for correct tight- ness, and cleaning the entire machine.
  • Page 20: Troubleshooting

    Clogged spark arrester or exhaust port. Clean spark arrester or exhaust port. Blower pipes clogged, loos or damaged. Unclog or tighten or replacee If further assistance is required, contact your local authorized Maruyama service dealer. MAINTENANCE PERIOD Every Every Every...
  • Page 21 P/N 286172-00 09.08 TAP/M...
