WIRELESS 433 MHz PROJECTION CLOCK
INTRODUCTION:
Congratulations on purchasing this fancy Projection clock with wireless 433MHz transmission of outdoor
temperature and humidity and display of indoor temperature and humidity. It is further acting as a DCF-
77 radio controlled clock with date display and two alarms. With the totally 24 different weather forecast
icons featured by "weather man", users can easily observe the forecast weather condition and will no
longer worry the sudden weather change. This innovative product is ideal for use in the home or office.
FEATURES:

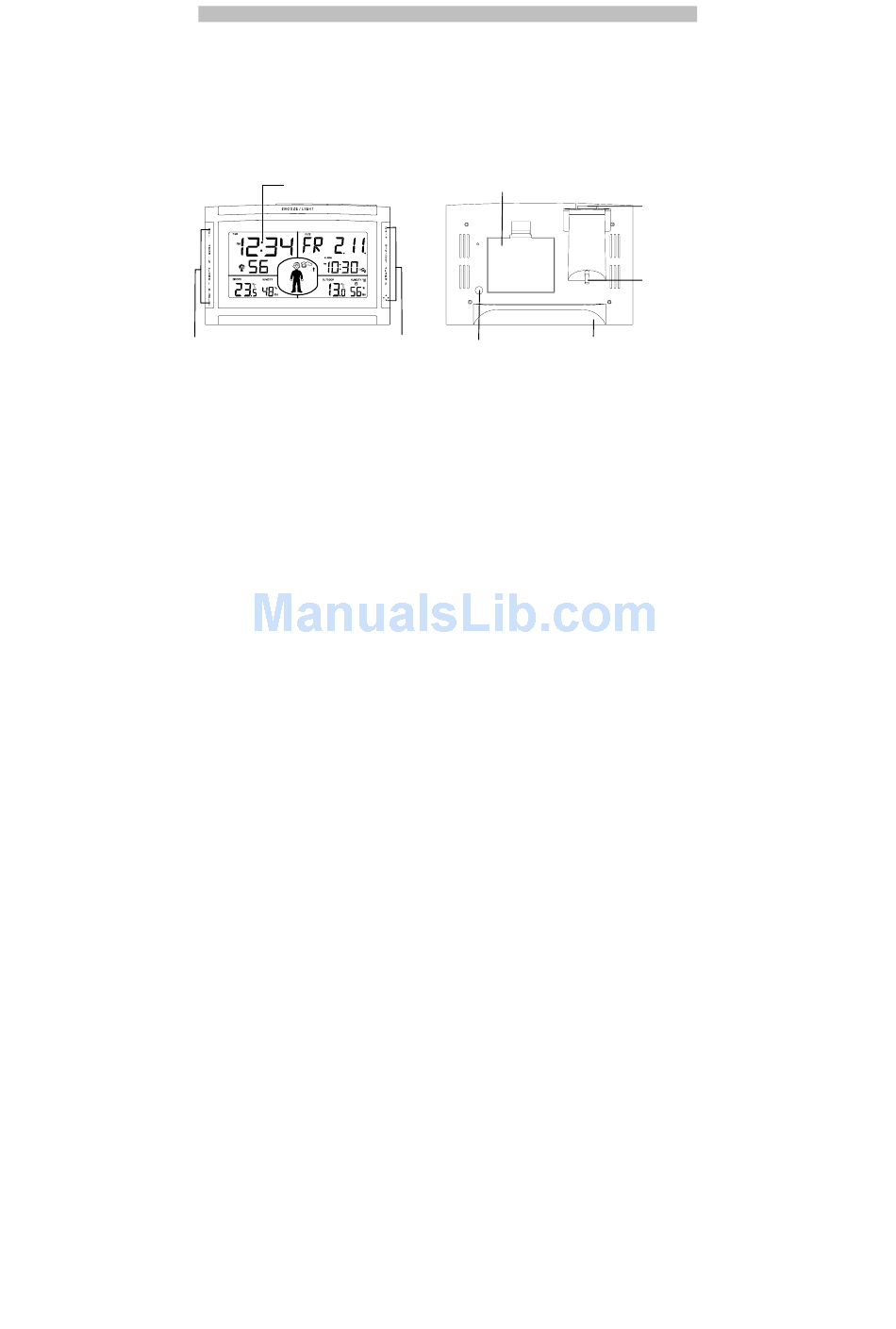

The Projection clock
LCD Display
Function Keys
Instruction Manual
Battery
compartment cover
Function Keys
Adapter socket
39
Projector
Projection
angle adjuster
Stand
Advertisement
Table of Contents
Related Manuals for Technoline 9520
Summary of Contents for Technoline 9520
- Page 1 WIRELESS 433 MHz PROJECTION CLOCK Instruction Manual INTRODUCTION: Congratulations on purchasing this fancy Projection clock with wireless 433MHz transmission of outdoor temperature and humidity and display of indoor temperature and humidity. It is further acting as a DCF- 77 radio controlled clock with date display and two alarms. With the totally 24 different weather forecast icons featured by "weather man", users can easily observe the forecast weather condition and will no longer worry the sudden weather change.
- Page 2 DCF-77 Radio controlled time with manual setting options Time reception ON/OFF 12/24 hour display Hour, minute and second time display Calendar (weekday, date, month display) Time zone option ±12hours Features 2 alarms with snooze function Snooze setting Weather forecasting with 24 easy-to-read weather forecast signs featured by weather man Weather forecasting icon sensitivity setting Temperature display in degrees Celsius (°C) or Fahrenheit (°F) selectable Indoor and outdoor temperature display with MIN/MAX recording...
- Page 3 The Outdoor Thermo-Hygro Transmitter Remote transmission of outdoor temperature and humidity to Temperature Station by 433 MHz Shower proof casing Wall mounting case Mounting at a sheltered place. Avoid direct rain and sunshine HOW TO INSTALL AND REPLACE BATTERIES IN THE PROJECTION CLOCK The Projection clock uses 3 x AA, IEC LR6, 1.5V batteries.
-
Page 4: Powered With The Use Of Ac/Dc Adapter
In addition or instead of inserting batteries, the AC adapter can be used: Connect the power adapter to a wall socket Insert the adapter into the jack at the bottom of the clock The Projection clock will now start receiving the DCF time signal. After approximate 3 to 5 minutes, the DCF time will be displayed (Also see "SETTING UP"... - Page 5 HOW TO INSTALL AND REPLACE BATTERIES IN THE THERMO-HYGRO TRANSMITTER The Thermo-Hygro transmitter uses 2 x AAA, IEC LR3, 1.5V batteries. To install and replace the batteries, please follow the steps below: Remove the battery cover with an appropriate screwdriver. Insert the batteries, observing the correct polarity (see marking).
- Page 6 Within 3 minutes of activating the Projection clock, place the batteries into the transmitter (see “How to install and replace batteries in the Thermo-Hygro outdoor transmitter“). After inserting the batteries into the transmitter, the Projection clock will start receiving data from the transmitter.
-
Page 7: Battery Change
received time. (Please refer also to notes on “DCF-77 Radio controlled Time” and “Manual Time Setting”). BATTERY CHANGE: It is recommended to replace the batteries in all units on an annual basis to ensure optimum accuracy of these units. Please participate in the preservation of the environment. Return used batteries to an authorised depot. - Page 8 directional button. There is no display on the LCD that signifies the direction. The projector case can be tilted for about 60 to help to orient the projected data.
-
Page 9: Function Keys
FUNCTION KEYS: Projection clock: The projection clock has nine easy to use function keys. SNOOZE/ LIGHT key SET key CH/ + key HOUR/IN key MIN/ OUT key ALARM 1 key ALARM 2 key DISPLAY key Projection Direction... - Page 10 SET key (Setting): To enter the set mode for the following functions: LCD contrast, Time zone, Time Reception ON/OFF, 12/24 hour display, Manual time, Year, Date, snooze time duration, °C/°F, and Weather forecast sensitivity settings. Note: The year can be displayed in the set mode (not displayed in normal mode) To stop the alarm To switch on the backlight HOUR/ IN key (Indoor)
- Page 11 To stop the alarm To switch on the backlight CH/ + key To toggle between the Thermo-Hygro outdoor transmitters 1, 2 and 3 (if more than 1 transmitter is used) To adjust LCD contrast, time zone, Time Reception ON/OFF, 12/24 hour display, hour, year, month, day, snooze time duration, °C/°F and weather forecasting icon sensitivity in setting modes To stop the alarm To switch on the backlight...
- Page 12 DISPLAY key To toggle between the projection of current time (M0), remote temperature (M1), or alternating between time and outdoor temperature (M2) To stop the alarm To switch on the backlight SNOOZE/ LIGHT key To activate the snooze function for the alarm To exit manual setting mode and alarm setting mode To switch on the backlight To switch on the projection...
-
Page 13: Lcd Screen And Settings
LCD SCREEN AND SETTINGS: Low battery Weather indicator Tendency icon Calendar Time Alarm time Alarm symbol DCF Tower Icon (for time Outdoor reception) Reception Signal Indoor Number showing Temperature Transmitter unit in °C Indoor Relative Outdoor Relative Weather Forecast Outdoor Humidity % Humidity % icon (Weather... -
Page 14: Section 1 - Time
Section 1 - TIME In normal mode display of radio controlled time. A reception tower symbol in LCD 1 of the display indicates that the DCF-77 time signal is scanned for (flashing) or received (steady). In setting mode display of manual setting values. Section 2 - CALENDAR, ALARM 1 OR ALARM 2 TIME Display date and month, weekday and date, Alarm 1 time or Alarm 2 time. -
Page 15: Section 5 - Outdoor Temperature And Humidity
Section 5 - OUTDOOR TEMPERATURE AND HUMIDITY In normal mode, on the left, display of the current outdoor temperature. In normal mode, on the right, display of the current outdoor relative humidity. By pressing the MIN/ OUT key, display of the stored MIN/MAX outdoor temperature and humidity with simultaneous display of a MIN or MAX symbol in the upper center. -
Page 16: Manual Settings
Recommended distance to any interfering sources like computer monitors or TV sets is a minimum of 1.5 - 2 metres. Within ferro-concrete rooms (basements, superstructures), the received signal is naturally weakened. In extreme cases, please place the unit close to a window and/or point its front or back towards the Frankfurt transmitter. -
Page 17: Lcd Contrast Setting
LCD CONTRAST SETTING LCD (flashing) The LCD contrast can be set to 8 different levels to suit the users needs (default LCD contrast setting is LCD 5). To set the desired contrast level: The above display will be seen. Press the CH/ + key to select the level of contrast desired. Press the SET key to confirm and enter the “Time Zone setting”... - Page 18 The time zone default of the Projection clock is 0. To change to another time zone: Press the SET key after completing the LCD contrast setting in order to enter the time zone setting (flashing). Using the CH/ + key, set the time zone. The range runs from 0 to +12 and then runs from -12 back to 0 in consecutive 1hour intervals.
-
Page 19: Manual Time Setting
Note: If the Time Reception function is turned OFF manually, the clock will not attempt any reception of the DCF time as long as the Time Reception OFF function is activated. The Time Reception and DCF icons will not be displayed on the LCD. 12/24 HOUR TIME DISPLAY SETTING flashing After setting time reception ON/OFF, press the SET key, “12h”... - Page 20 Minutes (flashing) Hours (flashing) To set the clock: The hour and minute digits start flashing in the time display section. Use the CH/ + key to adjust the hours and then press SET key to go to the minute setting. The minute will be flashing.
-
Page 21: Calendar Setting
CALENDAR SETTING "Date. Month." (for 24h time display) "Month. Date." (for 12h time display) Year The date default of the Projection clock is 1. 1. of the year 2003 after initial set-up. Once the radio- controlled time signals are received, the date is automatically updated. However, if the signals are not received, the date can also be set manually. -
Page 22: Snooze Setting
SNOOZE SETTING: Snooze time flashing The snooze time can be set OFF or to a maximum time of 30 minutes (default is 10 minutes): The alarm icon will be flashing. Use the CH/ + key to set the snooze time (minute). Each pressing of the key will increase the snooze time by 5 minutes. -
Page 23: C/°F Temperature Unit Setting
°C/°F TEMPERATURE UNIT SETTING Flashing The default temperature reading is set to °C (degree Celsius). To select °F (degree Fahrenheit): The “°C” will be flashing, use the CH/ + key to toggle between “°C” and “°F”. Once the desired temperature unit has been chosen, confirm with the SET key and enter the “Weather Forecast Icon Sensitivity setting”... - Page 24 Digit flashing Using the CH/ + key to set the weather sensitivity level. There are 3 levels of setting: 1, 2 and 3; level 1 is the most sensitive setting, level 3 is the least sensitive setting (default setting is "2"). Confirm with the SET key and exit the Manual settings.
-
Page 25: Alarm Setting
ALARM SETTING: There are two alarms available in the projection clock and user may set two different alarm times. Alarm icon Alarm time To set alarm: Press and hold down the AL1 key (for setting Alarm 1) for about 3 seconds until the alarm time display flashes. - Page 26 SNOOZE SETTING AND STOPPING THE ALARM: When the alarm is sounding, press the SNOOZE/ LIGHT key to activate the snooze function. The alarm will stop and re-activate after the snooze interval of 5 minutes (for example). The snooze function can be set when the alarm is ringing by pressing the SNOOZE/ LIGHT key. However the snooze will only be activated when the snooze time is set other than OFF in snooze setting.
- Page 27 10.0 to 21.0 to 15.0 to 8.0 to 4.0 to 0.0 to 25.9 C <0.0 C 14.9 C 25.9 C 20.9 C 9.9 C 7.9 C 3.9 C Sunny Sunny Cloudy Cloudy Rainy For every sudden or significant change in the air pressure, the weather icons will update accordingly to represent the change in weather.
-
Page 28: The Weather Tendency Indicator
mean that the product is faulty because it is not raining. It simply means that the air pressure has dropped and the weather is expected to get worse but not necessarily rainy. Note: After setting up, readings for weather forecasts should be disregarded for the next 12-24 hours. This will allow sufficient time for the Projection clock to collect air pressure data at a constant altitude and therefore result in a more accurate forecast. - Page 29 Therefore, user may see how the weather has changed and is expected to change. For example, if the indicator is pointing downwards together with cloudy icons, it means that the last noticeable change in the weather was when it was sunny (the sunny icon only). Therefore, the next change in the weather will be the cloudy icons since the indicator is pointing downwards.
- Page 30 Once to show the maximum temperature and humidity values with time and date recorded Twice to show the minimum temperature and humidity values with time and date recorded Three times to return to the current time, date, temperature and humidity levels. Note: The Time/date shown is corresponding to the MIN/ MAX temperature value, not the MIN/ MAX humidity value.
-
Page 31: El Back-Light
TOGGLING AND RESETTING THE OUTDOOR RECORDINGS: To toggle between the outdoor current, minimum and maximum temperature and humidity data and the times at which they were recorded, press the OUT key: Once to show the maximum temperature and humidity values with time and date recorded Twice to show the minimum temperature and humidity values with time and date recorded Three times to return to the current time, date, temperature and humidity levels Note: The time/date shown is only corresponding to the MIN/ MAX temperature value, not the humidity... -
Page 32: 433Mhz Reception
THERMO-HYGRO TRANSMITTER: The range of the Thermo-Hygro transmitter may be affected by the temperature. At cold temperatures the transmitting distance may be decreased. Please bear this in mind when placing the transmitter. 433MHz RECEPTION The Projection clock should receive the temperature and humidity data within 15 minutes after set-up. If the temperature and humidity data is not being received 15 minutes after setting up (the display shows “- - -”... -
Page 33: Care And Maintenance
POSITIONING THE THERMO-HYGRO TRANSMITTER: The Thermo-hygro transmitter can be placed onto any flat surface or wall mount using the bracket which doubles as a stand or wall mount base. To wall mount: Secure the bracket onto a desired wall using the screws and plastic anchors. -
Page 34: Specifications
When cleaning the display and casings, use a soft damp cloth only. Do not use solvents or scouring agents as they may mark the LCD and casings. Do not submerge the unit in water. Immediately remove all low powered batteries to avoid leakage and damage. Replace only with new batteries of the recommended type. -
Page 35: Liability Disclaimer
AC adapter (included) INPUT 230V AC 50Hz; OUTPUT: DC 4.5V (use the provided AC/DC adapter only) Thermo-Hygro transmitter 2 x AAA, IEC, LR3, 1.5V Battery life cycle Approximately 12 months (Alkaline batteries recommended) Dimensions (L x W x H) Projection clock 169.6 x 74.4 x 110.2 mm Thermo-Hygro transmitter : 56 x 24.9 x 80 mm (stand excluded) - Page 36 This product is not a toy. Keep out of the reach of children. No part of this manual may be reproduced without written authorization of the manufacturer. R&TTE Directive 1999/5/EC Summary of the Declaration of Conformity : We hereby declare that this wireless transmission device does comply with the essential requirements of R&TTE Directive 1999/5/EC.
