Technoline WS-8118 Instruction Manual

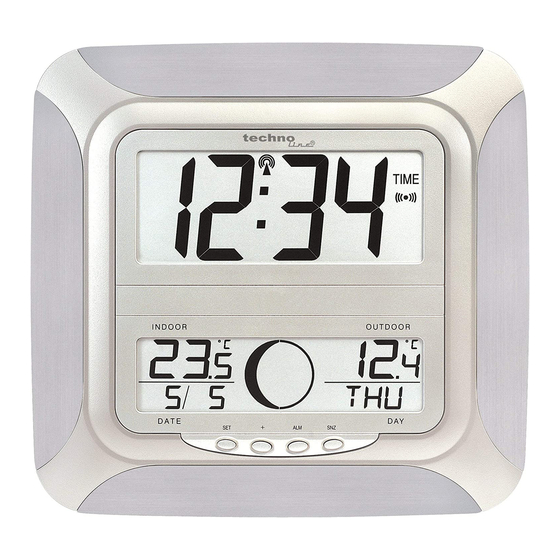

Moonphase wall clock
Hide thumbs Also See for WS-8118:
Table of Contents

Advertisement

Quick Links

Enlarged version
MOONPHASE WALL CLOCK
Instruction Manual
FEATURES:
MOONPHASE WALL CLOCK:
LCD1
display
LCD2
display
Function keys
DCF-77 Radio controlled time with manual setting option
•
12/24 hour time display
•
Time display: hour, minute, second
•
Alarm setting with snooze function
•
Calendar display
•
Weekday display (4 languages to choose from: German, English, French, and Spanish)
•
Display 12 Moon phases throughout the year
•
Time zone setting
•
ºC or ºF temperature display selectable
•
Indoor temperature display
•
Outdoor temperature display via 433MHz transmission
•
Wall mount or freestanding
•
OUTDOOR TEMPERATURE TRANSMITTER:
Holder
Hanging holes
Battery cover
Foldable stand
• Remote transmission of outdoor
temperature to Temperature Station by
433MHz signals
Wall mounting case
•
14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WS-8118 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Technoline WS-8118

Summary of Contents for Technoline WS-8118

  • Page 1 MOONPHASE WALL CLOCK Instruction Manual FEATURES: MOONPHASE WALL CLOCK: Hanging holes LCD1 display Battery cover LCD2 display Function keys Foldable stand DCF-77 Radio controlled time with manual setting option • 12/24 hour time display • Time display: hour, minute, second •...
  • Page 2 TO INSTALL AND REPLACE BATTERIES IN THE MOONPHASE WALL CLOCK The Moonphase wall clock uses 2 x AA, IEC LR6, 1.5V batteries. To install and replace the batteries, please follow the steps below: Insert finger or other solid object in the space at the bottom center of the battery compartment and lift up to remove the cover.

  • Page 3: Function Keys

    transmitter in suitable location outdoors. In order to ensure sufficient 433MHz transmission however, this should under good conditions be no more than 100 meters from where the Moonphase wall clock will be finally positioned (see notes on “Positioning” and “433MHz Reception”).

  • Page 4: Manual Settings

    Radio reception icon Alarm icon DCF time Indoor temperature Outdoor temperature display Date Weekday Moonphase display MANUAL SETTINGS Note: If the Moonphase wall clock has already successfully received the DCF time signal and displays the correct time and date, then the Manual settings can be skipped. After completion of the above described procedures in “Setting up”...

  • Page 5: Time Zone Setting

    The quality of the reception depends greatly on the geographic location. In normal cases, there should be no reception problems within a 1500km radius of Frankfurt. Once the outdoor temperature is displayed on the Moonphase wall clock, the DCF tower icon in the clock display will start flashing in the upper left corner.

  • Page 6: Year Setting

    Set the desired hours by pressing and releasing the + key followed by pressing the SET key. Now the minute digits will start flashing. Set the desired minutes by pressing and releasing the + key . If the + key is held, the units will increase by 5.
  • Page 7 °C OR °F TEMPERATURE SETTING The characters “°C” or “°F” will start flashing on LCD1 (Default setting °C). By use of the + key select “°C” for temperature display in degrees Celsius or “°F” for degrees Fahrenheit. Press and release the SET key to exit the setting mode and switch back to the normal display mode.

  • Page 8: Moon Phase

    MOON PHASE The Moonphase wall clock will also display all 12 Moon phases throughout the year accordingly to the set calendar: New Moon Small Waxing Large Waxing First Quarter Small Waxing Large Waxing Crescent Crescent Gibbous Gibbous FullMoon Large Waning Small Waning Last Quarter Large Waning...
  • Page 9 the contacts and force a false reset. Should this happen accidentally then reset all units (see Setting up above) otherwise transmission problems may occur. The maximum transmission range is 100 meters from the outdoor temperature transmitter to the moonphase wall clock (in open space). However, this depends on the surrounding environment and interference levels.

  • Page 10: Wall Mounting

    POSITIONING THE MOONPHASE WALL CLOCK: There are two possible ways to mount the Moonphase wall clock: use of the foldout table stand, or • wall mounting • FOLDOUT TABLE STAND Simply unfold the 2 stands at the back of the clock and place on a flat surface WALL MOUNTING 1) Using a straightedge, horizontally space at 60 mm three screw positions on a wall.

  • Page 11: Care And Maintenance

    There is also double sided tape included with the wall mount. On smooth surfaces this can be used instead of drilling holes. The mounting surface can, however, affect the transmission range. If for example the unit is att/ached to a piece of metal, it may then either reduce or increase the transmitting range.

  • Page 12: Batteries Change

    Transmission distance : maximum 100 meters in open field, depending upon surrounding structures, mounting location and possible interfering sources Power source (Alkaline batteries recommended) Moonphase wall clock : 2 x AA, IEC LR6, 1.5V batteries Transmitter : 2 x AAA, IEC LR3, 1.5V batteries Battery life : about 12 months Dimensions (L x W x H)
  • Page 13 No part of this manual may be reproduced without written consent of the manufacturer. • R&TTE DIRECTIVE 1999/5/EC Summary of the Declaration of Conformity : We hereby declare that this wireless transmission device does comply with the essential requirements of R&TTE Directive 1999/5/EC.
