1
PANEL DESCRIPTION
NOTE: If GPS data is interrupted for 30 sec. the "GPS" indi-
cation disappears. The terminal unit retains the most recent
data in such cases.

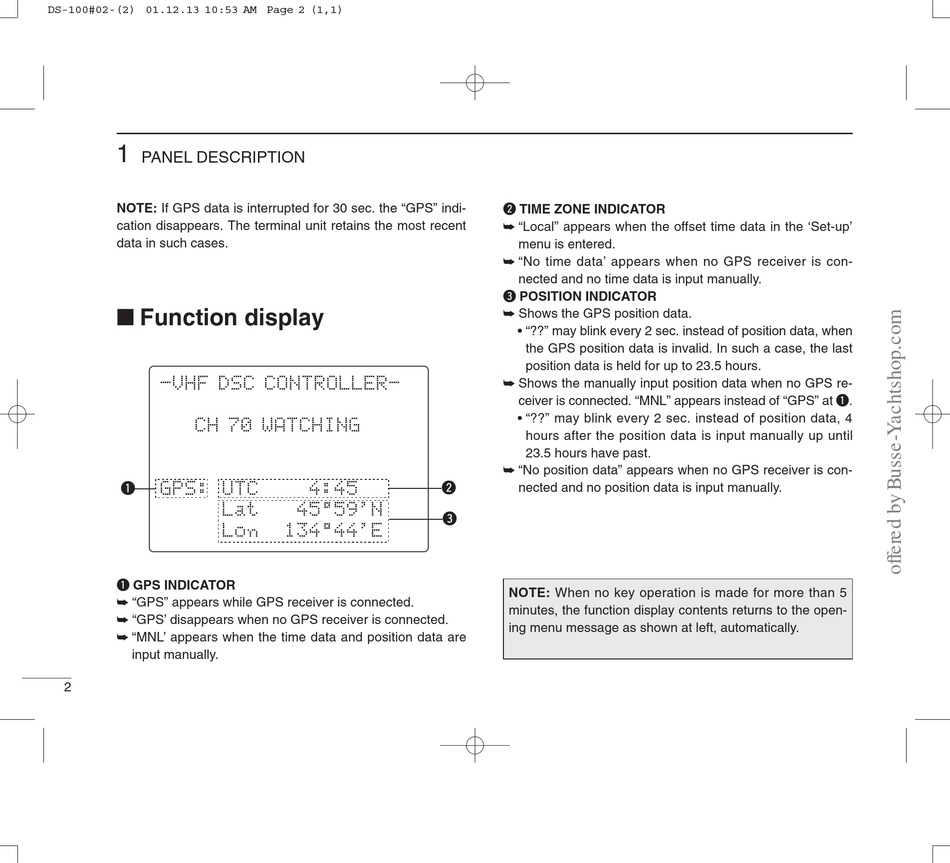

I Function display

-VHF DSC CONTROLLER-
CH 70 WATCHING
GPS: UTC 4:45
q
Lat 45 59'N
Lon 134 44'E
q GPS INDICATOR
➥ "GPS" appears while GPS receiver is connected.
➥ "GPS' disappears when no GPS receiver is connected.
➥ "MNL' appears when the time data and position data are
input manually.
2
w TIME ZONE INDICATOR
➥ "Local" appears when the offset time data in the 'Set-up'
menu is entered.
➥ "No time data' appears when no GPS receiver is con-
nected and no time data is input manually.
e POSITION INDICATOR
➥ Shows the GPS position data.
• "??" may blink every 2 sec. instead of position data, when
the GPS position data is invalid. In such a case, the last
position data is held for up to 23.5 hours.
➥ Shows the manually input position data when no GPS re-
ceiver is connected. "MNL" appears instead of "GPS" at q.
• "??" may blink every 2 sec. instead of position data, 4
hours after the position data is input manually up until
23.5 hours have past.
➥ "No position data" appears when no GPS receiver is con-
w
nected and no position data is input manually.
e
NOTE: When no key operation is made for more than 5
minutes, the function display contents returns to the open-
ing menu message as shown at left, automatically.
