Pro-Form PFTL39509.0 User Manual page 8

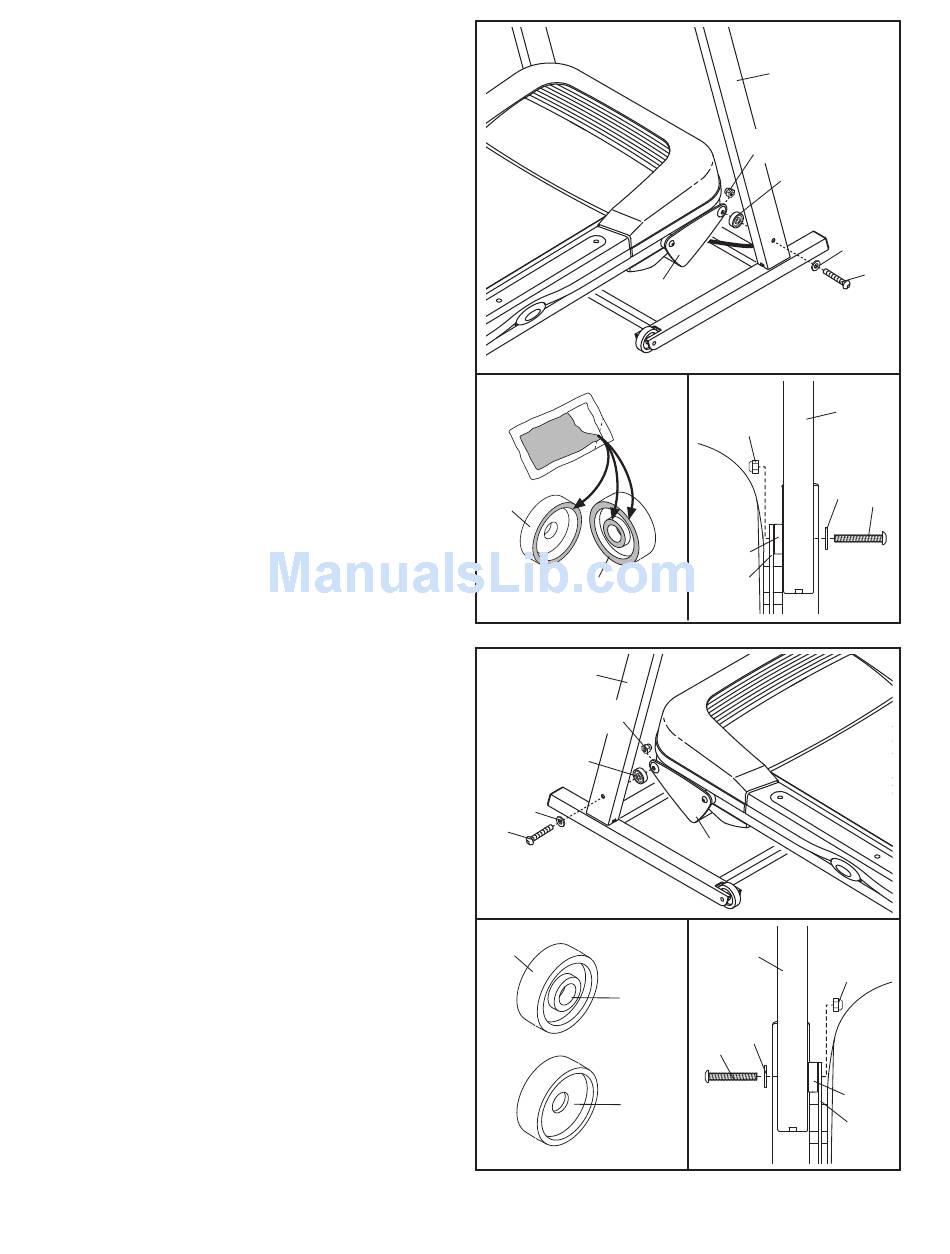

5. See the left inset drawing. Identify the two
Frame Spacers (34). Open the included grease
packet, and apply grease to both sides of both
Frame Spacers. Then, identify the outer side of
each Frame Spacer.
Hold a Frame Spacer (34) between the Right
Upright (36) and the Lift Frame (59), with the
outer side of the Frame Spacer facing the
Right Upright. Attach the Right Upright to the
Lift Frame with a 3/8" x 2 1/2" Bolt (32), a 3/8"
Flat Washer (33), and a 3/8" Nut (47); do not
tighten the Bolt yet.
6. See the left inset drawing. Identify the outer
side of the remaining Frame Spacer (34).
Hold the Frame Spacer (34) between the Left
Upright (31) and the Lift Frame (59), with the
outer side of the Frame Spacer facing the
Left Upright. Attach the Left Upright to the Lift
Frame with a 3/8" x 2 1/2" Bolt (32), a 3/8" Flat
Washer (33), and a 3/8" Nut (47); do not
tighten the Bolt yet.
5
59
34
Outer
Side
6
31
47
34
33
32
34
Outer
Side
Inner
Side
8
36
47
34
33
32
36
47
33
32
34
59
59
31
47
33
32
34
59
