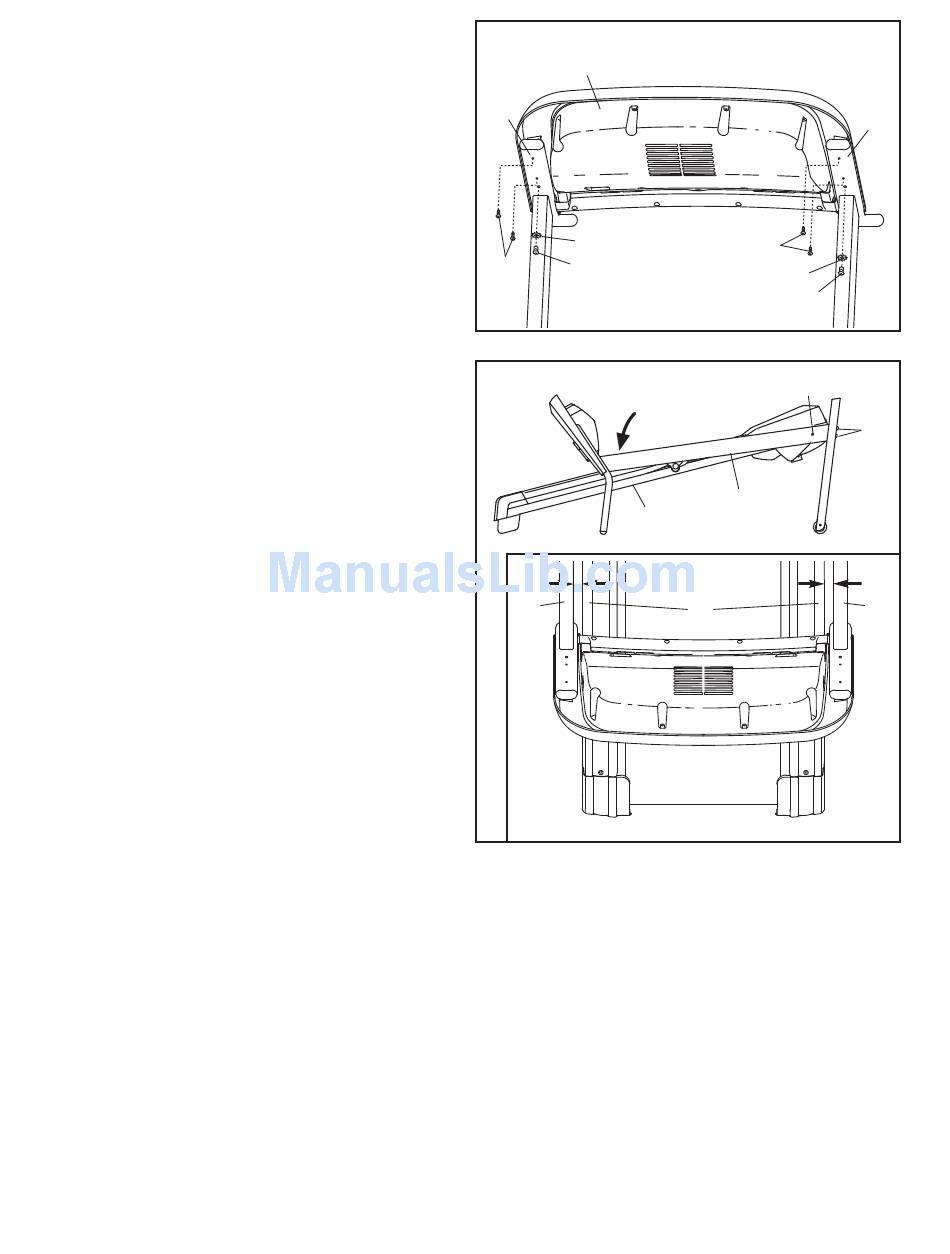

10. Insert the wires into the Console Base (26) as
you set the Console Base on the Handrails (18).
Be careful not to pinch the wires. Next, thread
two 1/4" x 1/2" Bolts (22) with 1/4" Star Washers
(21) into the Handrails and the Console Base;
do not tighten the Bolts yet.
Attach the Console Base (26) to the Handrails
(18) with four #8 x 3/4" Screws (2). Then,
tighten the two 1/4" x 1/2" Bolts (22).
Remove the plastic tie from the right Handrail
(18).
11. Lower the Uprights (31, 36) as shown.
See the inset drawing. Position the Uprights
(31, 36) so that the treadmill Frame (74) is cen-
tered between the Uprights.
Firmly tighten the 3/8" x 2 1/2" Bolts (32) and
then the 3/8" x 2 1/4" Bolts (5) on each side of
the treadmill. Do not overtighten the 3/8" x 2
1/2" Bolts.
