Pro-Form PFTL39509.0 User Manual page 7

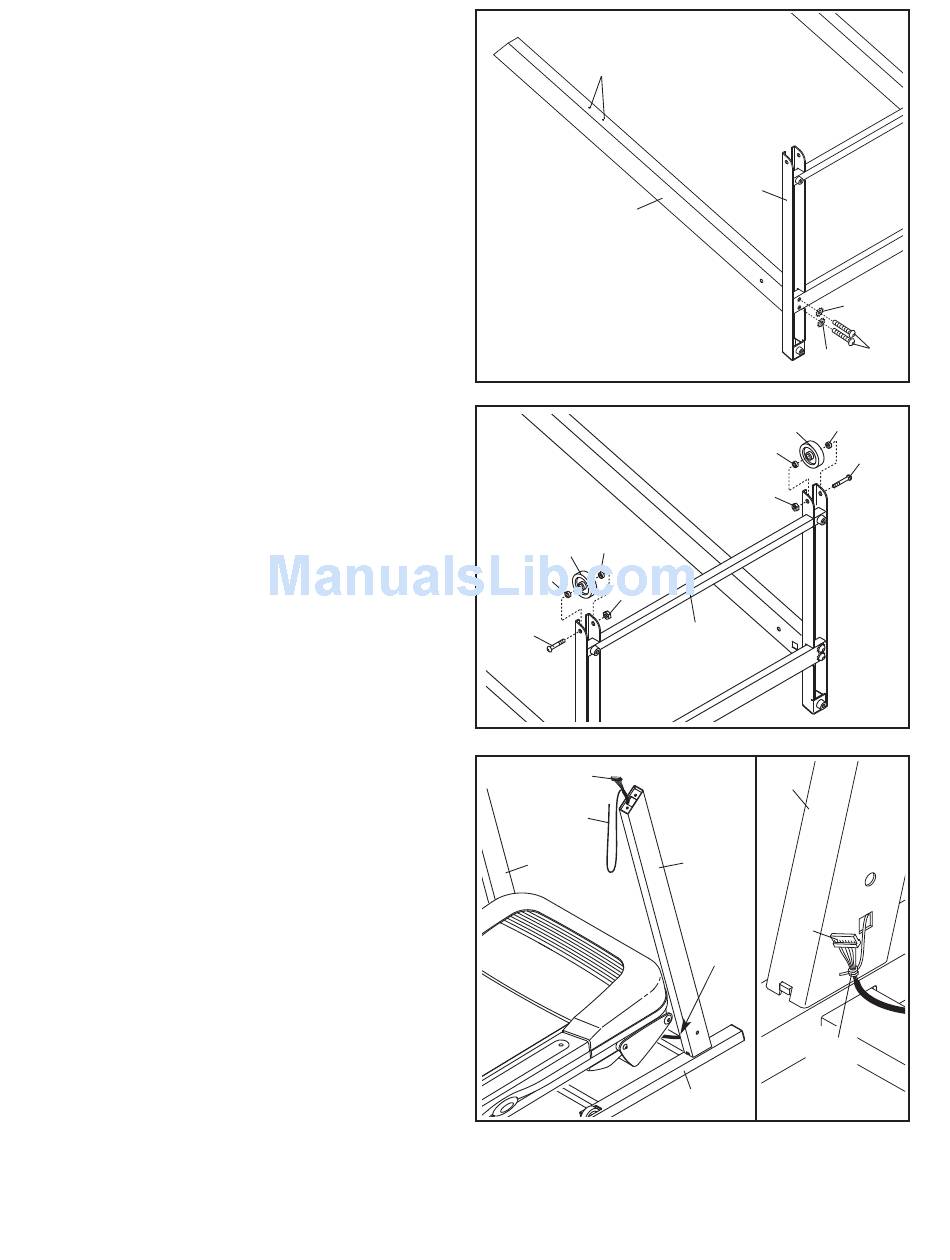

2. Orient the Left Upright (31) as shown, and at-
tach it to the Base (48) with two 3/8" x 2 1/4"
Bolts (5) and two 3/8" Star Washers (39); do
not tighten the Bolts yet.
3. Attach a Wheel (45) to each side of the Base
(48) with a 3/8" x 2 1/4" Bolt (5), two Wheel
Spacers (44), and a 3/8" Nut (47) as shown. Do
not overtighten the Bolts; the Wheels should
turn freely.
4. Raise the Uprights (31, 36) so that the Base (48)
is flat on the floor and positioned as shown.
Cut the tie holding the Upright Wire (28) in a bun-
dle.
See the far right drawing. Wrap the wire tie in
the Right Upright (36) around the end of the
Upright Wire (28). Then, pull the other end of the
wire tie until the Upright Wire is extending from
the upper end of the Right Upright.
Make sure that the end of the Upright Wire
(28) does not fall into the Right Upright (36).
