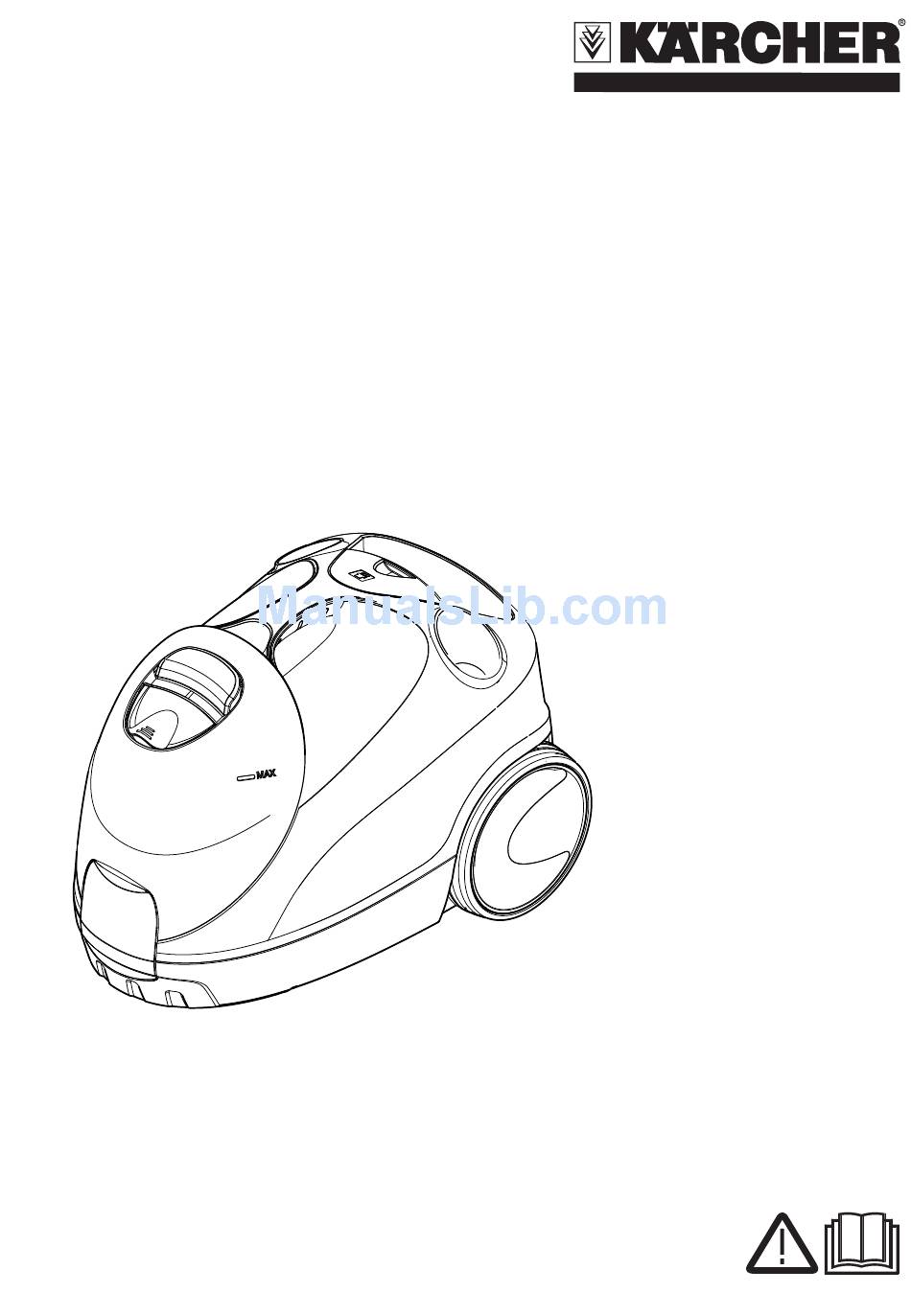

SC 4.100 CB

Operating Instructions

Before first use of the unit read these operating
instructions and act in accordance with them
59645060 09/12


   Also See for Kärcher SC 4.100 CB

   Summary of Contents for Kärcher SC 4.100 CB

  • Page 1: Operating Instructions

    SC 4.100 CB Operating Instructions Before first use of the unit read these operating instructions and act in accordance with them 59645060 09/12...
  • Page 2 Quick reference...
  • Page 5: Table Of Contents

    Contents Symbols on the machine Steam General information ..CAUTION - Danger of scalding Safety instructions... . CAUTION – Please read the op- Description of the appliance .
  • Page 6: Safety Instructions

     In wet rooms, e.g. bathrooms, connect Safety instructions the appliance to sockets with a series connected RCD adapter. Danger  The appliance may not be used in areas  Unsuitable extension cables can be where a risk of explosion is present. hazardous.
  • Page 7: Safety Devices

    Caution Safety devices  Make sure that the power cable or ex- tension cables are not damaged by run- Caution ning over, pinching, dragging or similar. Safety devices protect the user and must Protect the power cable from heat, oil, not be modified or bypassed.
  • Page 8: Description Of The Appliance

    Description of the appliance Quick reference These operating instructions describe the  Illustrations on page 2 maximum equipment. Depending on the 1 Fill the water reservoir up to the "MAX" model, there are differences in the scopes marking. of delivery (see packaging). 2 Insert the steam plug into the appliance ...
  • Page 9 Removing the accessories Turning on the appliance Danger Hot water may drip out of the accessory  Place the unit securely on a firm sur- parts while you are detaching them! Never face. detach accessory parts while steam  Insert the mains plug into a socket. streams out - risk of scalding! ...
  • Page 10: How To Use The Accessories

     Wrap the steam hose around the exten- Adjusting the steam quantity sion pipes and insert the steam pistol Use the selector switch for the steam vol- into the floor nozzle. ume to regulate the discharged steam. The  Stow away the mains cable in the ac- selector switch has three positions: cessory holder for the mains cable.
  • Page 11 Steam gun Floor nozzle You can use the steam gun without any ad- Suited for all washable walls and floor cov- ditional accessories, e.g.: erings, e.g. stone floors, tiles and PVC to remove odours and wrinkles from floors. Work slowly on very dirty surfaces to –...
  • Page 12  Adjust the temperature control of the Steam iron steam iron within the notched range (•••/MAX). Danger  The steam pressure iron must not be  As soon as the indicator lamp of the used if it has been dropped, shows vis- heater of the iron switches off, you can ible signs of damage or if it leaks.
  • Page 13: Maintenance And Care

    Dry ironing Descaling the steam boiler Note: Even if you iron without steam, there must be water in the boiler. As limes cale builds up on the boiler walls,  Adjust the temperature of the iron ac- we recommend to de scale the boiler in the cording to the garment you want to iron.
  • Page 14: Troubleshooting

    Warning Long heating-up time Do not screw the maintenance lock onto the appliance during the decalcifying. Steam boiler is decalcified Do not use the steam cleaner as long as  Descale the steam boiler. there is decalcifying agent in the boiler. No steam ...
  • Page 15: Technical Specifications

    Performance data Heating output 1800 W Heating output steam 700 W iron New Zealand Operating pressure 0,35 MPa Karcher Ltd. max. 12 Ron Driver Place Heating time 3 Minutes East Tamaki, Aukland Steam volume Continuous steaming 50 g/min (09) 274-4603 Steam push max.
  • Page 16: Special Accessories

    Special accessories Order number Microfibre cloth set, bath 2.863-171 2 soft floor cloths made of plush velour, 1 abrasive cover for the hand nozzle, 1 polishing cloth for the mirrors and fixtures Microfibre cloth set, kitchen 2.863-172 2 soft floor cloths made of plush velour, 1 soft cover made of plush velour, 1 cloth for the streak-free cleaning of stainless steel surfaces...
