The engines have wet replaceable cylinder liners which
are cooled by fresh water.
The turbo-compressor supplies fresh air to the engine
during the induction stroke. Air is supplied under pressure,
resulting in a greater degree of volumetric efficiency. The
cylinders thus receive a greater quantity of air and conse-
quently more oxygen per stroke. In consequence the
amount of fuel injected can also be increased, which leads
to increased output.
The turbo-compressor is lubricated from the engine lubrica-
ting system and cooled from the fresh water cooling sys-
tem.

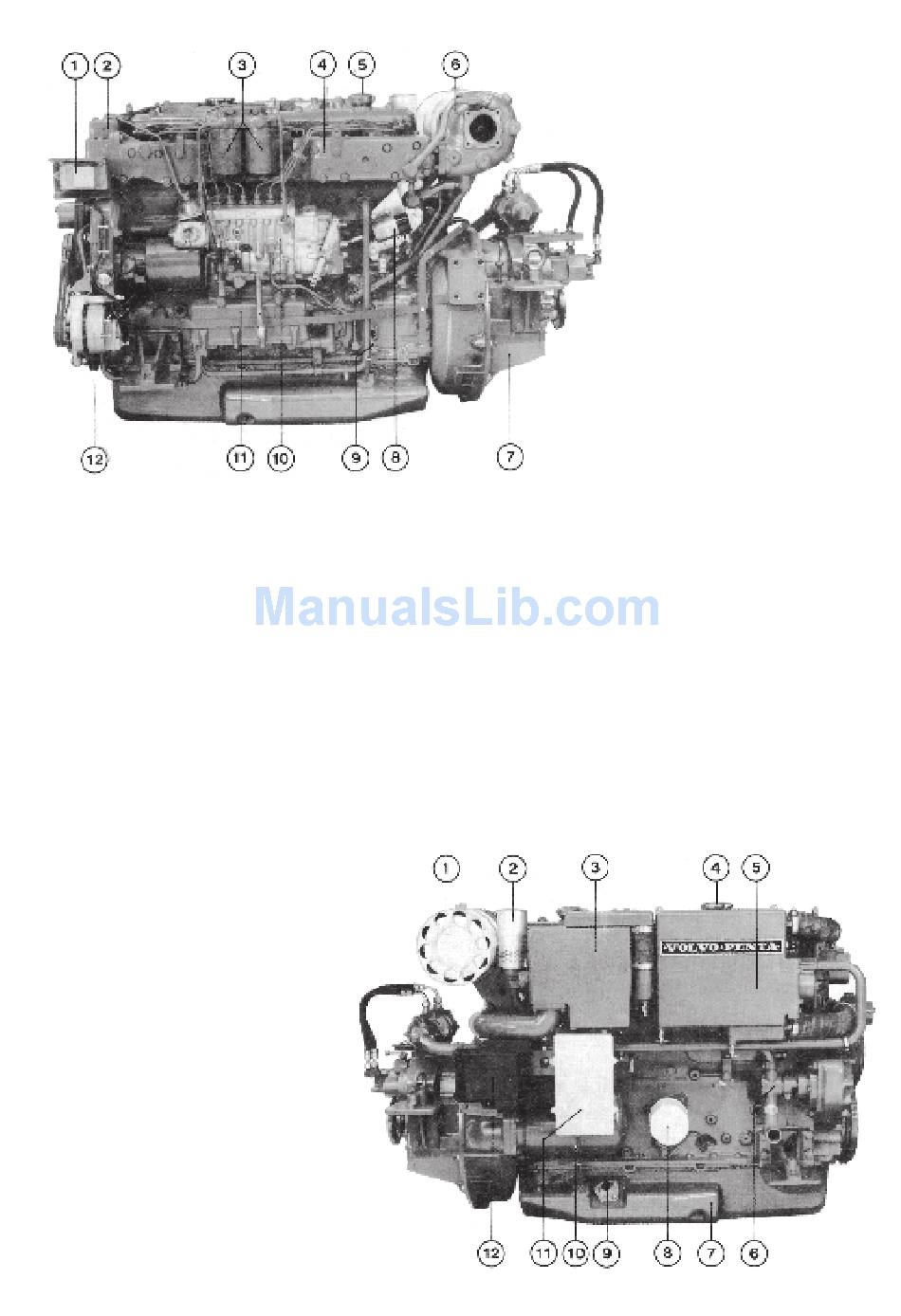

Fig. 6. Engine TAMD70D
1. Air cleaner
2. Crankcase ventilation filter
3. After-cooler
4. Coolant filler cap
5. Heat exchanger
6. Seawater pump
7. Oil sump
8. Oil filter
9. Level indicator, lubricating oil
(extra equipment)
10. Oil dipstick (alternative location)
11. Relay box for air pre-heater
12. Electric connection box with fuses
Fig. 5. Engine TAMD70D
10. Fuel injection pump
11. Oil cooler
12. Alternator
In order to further increase the supply of oxygen, the air to
the engine is cooled down by an after-cooler located after
the compressor at the intake manifold.
The Aquamatic models are provided with a hydraulic pump
and a special connection flange at the reverse gear. Other-
wise they are similar to the inboard engines. The hydraulic
pump, fitted at the rear side of the engine auxiliary drive
gear casing, close to the fuel injection pump coupling,
supplies oil under pressure to the power cylinder acting on
the lower, steerable part of the outboard drive. This results
in easy and effortless steering of the boat.
1. Voltage regulator
2. Thermostat housing
3. Fuel fine filters
4. Water-cooled exhaust manifold
5. Oil filler cap
6. Turbo-compressor
7. Reverse gear TD MG506
8. Stop solenoid
9. Oil dipstick
