Rear Panel - NetComm V422 Quick Start Manual

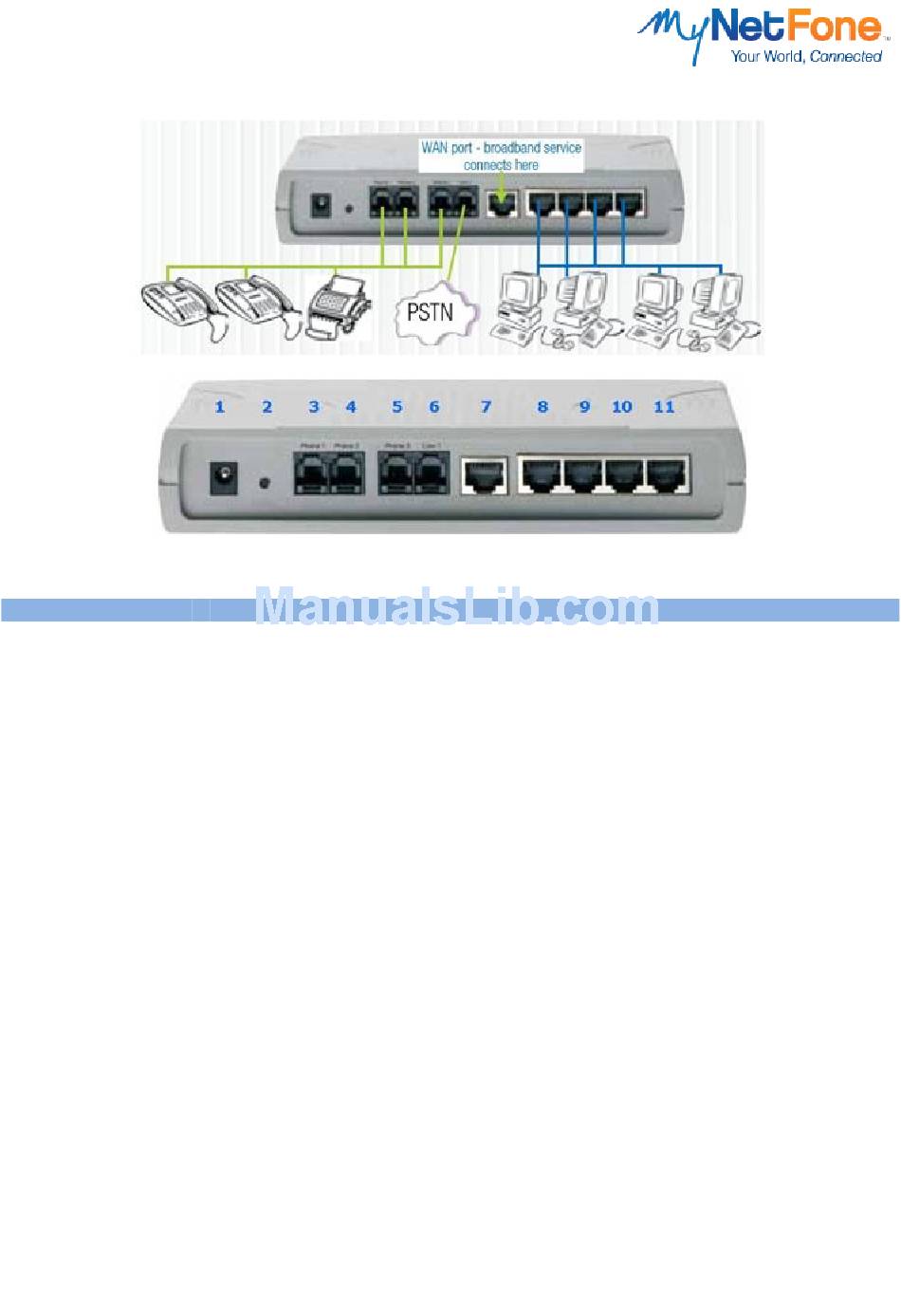

Rear Panel

Number
1
2
3,4 (For V431, up to 5)
5, 6 (For V431 – Only 6)
7
8 ~ 11
©
Copyright 2012. All Rights Reserved.
Label
Power
Reset
Phone 1 ~ 2 (For V431
– Phone 3)
Line 1, Line 2 (For
V431 – Line 1)
WAN
LAN 1 ~ 4
For connecting to the power adapter
To reset your V422 or V431 to its factory default settings. Press
and hold for 10 seconds.
(All customised settings that you have saved will be lost.)
RJ-11 port for connecting to an analogue phone
RJ-11 port for connecting to your PSTN Line
10/100Base-T Ethernet Port (RJ-45) for connecting to your
broadband modem, router or switch.
10/100Base-T Ethernet Port (RJ-45) for connecting to your PCs
(Ethernet ports) or a hub / switch.
6
Description
