Summary of Contents for Haiku K3150-X0

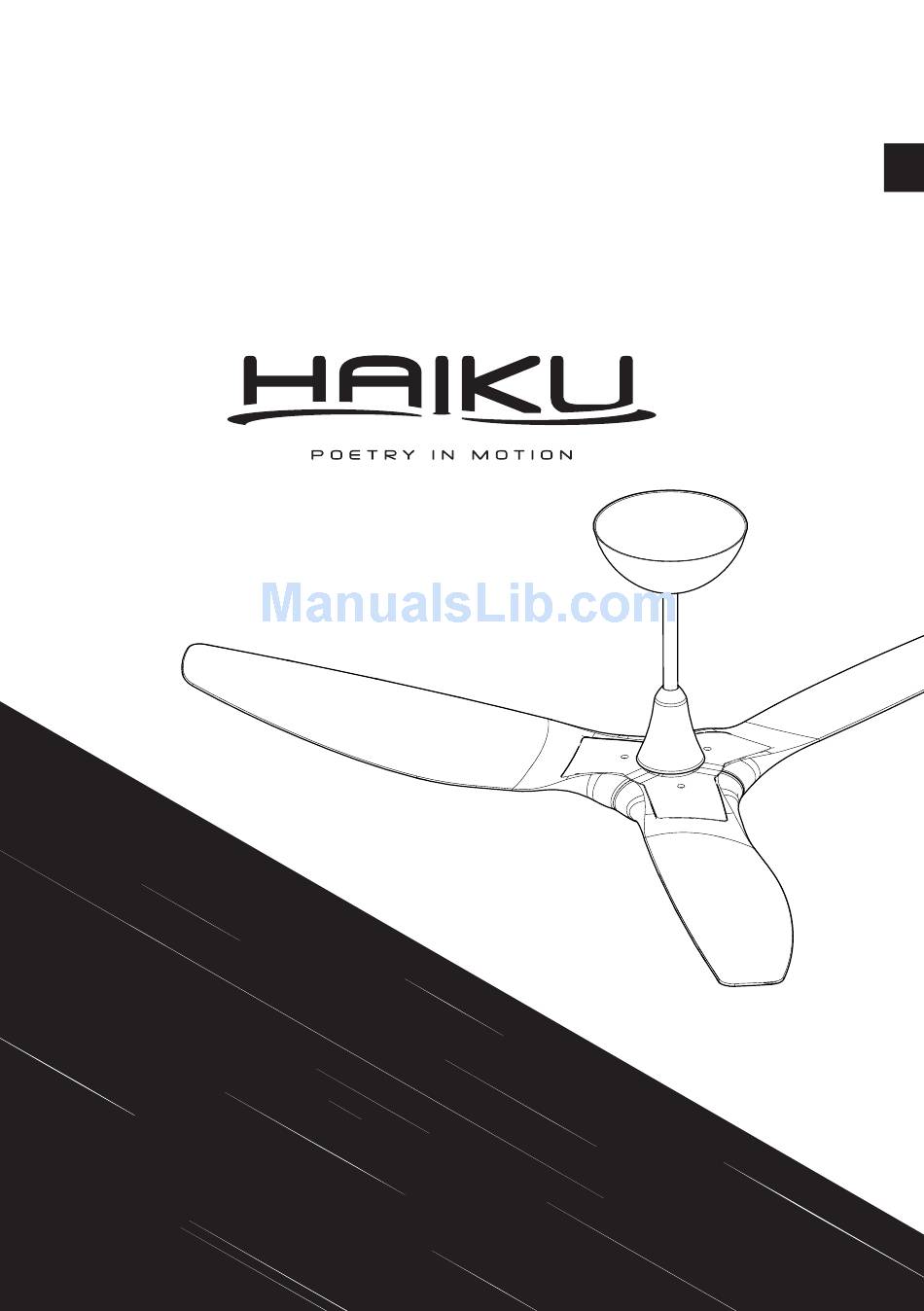

- Page 1 Installation Guide...
- Page 2 Australian Registered Design No. 325331, 328015; U.S. Pat. Nos. D612476 and D614757; Malaysian Registered Design No. MY09-00255-0101, MY09-00973-0101; and Singapore Registered Design No. D2008/951/E and D2009/235/G. Haiku and the Haiku logo are trademarks of Delta T Corporation, registered in the United States and/or other countries.
-
Page 3: Troubleshooting
C o nt en t s ELECTRICAL INTRODUCTION Wire color chart About Haiku Wiring diagram Technical specifications Parts and hardware Fan diagram OPERATION Powering the fan Replacing remote battery PREPARATION Changing fan speed Unpacking your fan Sleep mode Determining fan location... -
Page 4: Important Safety Instructions
WARNING: Before installing or servicing the fan, ensure power is disconnected. CAUTION: Haiku (K3150-X0) is rated for use in damp environments and can be operated indoors or outdoors. Haiku Bamboo (S3150-X0) is not rated for damp environments and must be operated indoors only. -
Page 5: Technical Specifications
In troduc tio n Thank you for your Haiku purchase and congratulations on your selection of an elegant, efficient, and cost-effective way to stay cool! We are proud to assure you that the fan you have chosen is backed by extensive research, thorough testing, and quality manufacturing. -
Page 6: Parts And Hardware
INTRODUCTION (CONT.) Parts and hardware If you are missing any parts or hardware required for the installation or operation of your Haiku, contact Haiku Technical Service. Note: Drawings below are not to scale. Mounting bracket Canopy Mounting Ball & wedge... -
Page 7: Tools Needed
Refer to the fan diagram and the Parts and Hardware section for a list of components. If you are missing a part required for installation, contact Haiku Technical Service. If you ordered multiple fans, be sure to keep the components of each fan together! Certain fan components are not interchangeable. -
Page 8: Installation
I nstallation Review the safety guidelines. If you are not completely comfortable or have questions about any aspect of the installation process, consult a structural engineer or electrical contractor or contact Haiku Technical Service for assistance. Step 1. Installing the airfoils Position the fan upside-down. -
Page 9: Step 2. Installing The Lower Cover
For Haiku Bamboo, simply snap the lower cover to the bottom of the fan hub. Lower Cover ® Haiku For Haiku, position the lower cover, and then place both hands flat on the cover and turn clockwise to lock the lower cover into place. Lower Cover HAIKU ®... - Page 10 INSTALLATION (CONT.) Step 3. Installing the extension tube With the fan placed carefully in the upright position, loosely Extension secure the motor brackets to the motor with M6 x 28 mm Tube bolt (A). Install the extension tube with the M6 x 32 mm bolt (B).
-
Page 11: Step 7. Installing The Mounting Bracket
Install the fan on a switched circuit so that you can turn off the fan using a wall switch in addition to using the Mounting remote control. Bracket HAIKU ® by Big Ass Fans... -
Page 12: Step 9. Hanging The Fan
INSTALLATION (CONT.) Step 9. Hanging the fan Raise the fan to the mounting bracket. Match the slot in the mounting ball to the rib in the mounting bracket, and then let the fan hang freely. Gently twist the mounting ball to ensure it is properly seated tip! and will not move during fan operation. -
Page 13: Step 12. Installing The Canopy
Secure the canopy to the mounting bracket with the (4) painted M4 x 6 mm screws. Ensure no wires or the safety cable are showing. Test the fan. Canopy HAIKU ® by Big Ass Fans... -
Page 14: Wire Color Chart
Ele c tr ic al WARNING: Disconnect power to the fan location before wiring the fan! Install the fan on a switched circuit so that you can turn off the fan using a wall switch in addition to the remote control. Do not use the fan with a dimmer switch. -
Page 15: Operation
Ope rati on Before using the Haiku remote control, remove the plastic tab in the battery tray. The fan mode indicators are located on the bottom of the fan hub when tip! viewed from the floor. Remote Front Powering the fan To turn the fan on or off, press the On/Off button on the fan remote. -
Page 16: Operating The Light
OPERATION (CONT.) Operating the light The Haiku light accessory operates independently from the fan. Brightness is increased or decreased by pressing the Up or Down Light button on the remote. To turn the light on or off, press the Light On/Off button on the remote. The Up Light button increases brightness;... -
Page 17: General Troubleshooting
Check all mounting and fan hardware. If loose, tighten. The fan is noisy during operation. For Haiku Bamboo fans, remove the airfoil to ensure the colored sticker matches the sticker on the fan hub. For Haiku fans, remove the bottom cover and ensure the colored sticker on the bottom of the airfoil matches the sticker on the fan tab. -
Page 18: Annual Maintenance
Please take a few moments each year to perform the following preventative maintenance procedures on your fan to ensure its safe and efficient operation. If you have any questions, require assistance with your fan, or need replacement parts, contact Haiku Customer Service at www.haikufan.com/ service. -
Page 19: Limited Lifetime Warranty
Return Materials Authorization (RMA) number. You will be responsible for all shipping insurance, freight, or other transportation charges to our service center. Your Haiku fan should be properly packed to avoid damage in transit since we will not be responsible for such damage. - Page 20 LIMITED LIFETIME WARRANTY (CONT.) e) Any event beyond the control of Big Ass Fans and occurring after the Product is no longer in our control. Additionally, this warranty ceases to apply when: a) The original purchaser or user ceases to own the product; or b) The product is moved from its original point of installation.
- Page 24 www.haikufan.com ©2012 Delta T Corporation 002496...
