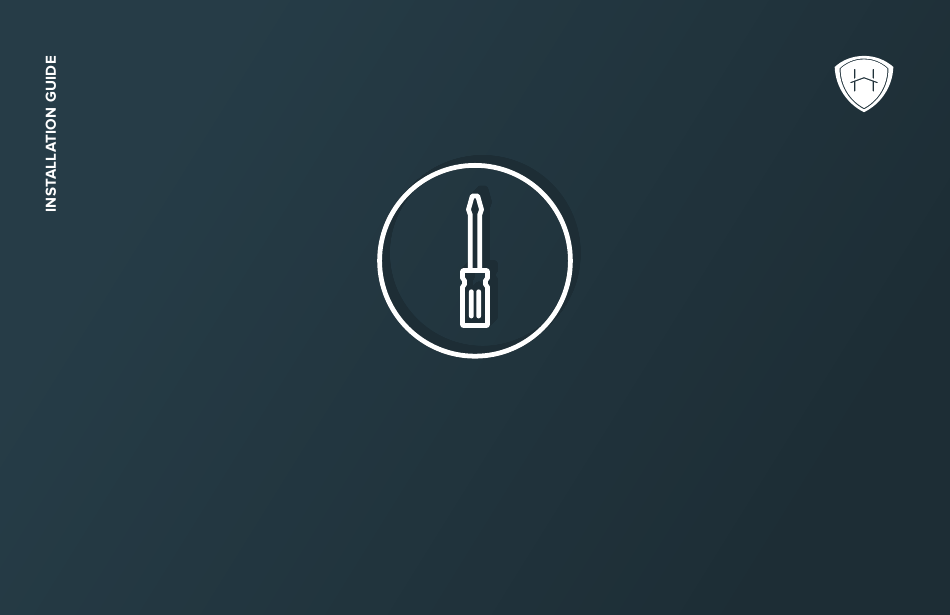

Page 1 INSTALLATION GUIDE...
Page 2 Unit 22, 1029 Manly Road 181 Johnston Road Tingalpa QLD 4173, Australia Wan Chai, Hong Kong 1 300 BIG ASS +852 2836 5808 Europe OBELIS S.A Bd. Général Wahis, 53 1030 Brussels, Belgium +32.2.732.59.54 Scan for online Haiku Home app help...
Page 3 Low Profile Mount Standard Mount Universal Mount Prepare the Fan Site Install Your Fan Airfoils Lower Cover Mounting Bracket Mounting: Low Profile Mounting: Standard Mounting: Universal Models: S3150-A2, S3150-S0, S3150-X2, S3127-A2, Test Your Fan S3127-S0, S3127-X2, B3213-X4 READ AND SAVE THESE INSTRUCTIONS...
Page 4 NOTES...
Page 5 Box Contents As you remove the fan from its packaging, make sure you are not missing any components required for assembly and operation. If you ordered multiple fans, be sure to keep the components of each fan together! HAIKU ® HOME...
Page 6 Use the two screw caps that match the color of your fan. †† If the EMI filter is included, please install it with your fan. ††† Safety cable not shown †††† Use for ground wires REV. D © 2015 HAIKU HOME. ALL RIGHTS RESERVED.
Page 7 (1) bolt and one (1) nut are needed. If installing the fan to a J-shaped ceiling hook, • 5-lever wire connector††††† two (2) bolts and two (2) nuts are needed. • Wire nut †††† Safety cable not shown • (2) Wiring cover screw ††††† Use for ground wires HAIKU ® HOME...
Page 8 5-lever wire connector††† † If the EMI filter is included, please install it with your fan. • Wire nut †† Safety cable not shown • Cable tie ††† Use for ground wires REV. D © 2015 HAIKU HOME. ALL RIGHTS RESERVED.
Page 9 Disconnect power to the fan location before wiring the fan! A readily accessible disconnect device shall be incorporated external to the equipment. HAIKU ® HOME...
Page 11 Make sure the stickers on the airfoils match the stickers on the fan hub. Hardware: a. M5 airfoil screw b. 5 mm lock washer c. Airfoil grommet Remove and recycle the plastic protective cover (d). STEPS COMPLETED HAIKU ® HOME...
Page 12 INSTALL THE LOWER COVER If you purchased the Haiku Light Kit, proceed to the instructions included with the kit. Return to these instructions once the kit is installed. REV. D © 2015 HAIKU HOME. ALL RIGHTS RESERVED.
Page 13 Align the four slots on the lower cover with the four small round tabs on the fan hub. Press and turn the lower cover clockwise to lock it into place. STEP COMPLETED HAIKU ® HOME...
Page 14 If installing your fan on a wood ceiling joist, ensure power wiring has been routed to the fan site. Attach the mounting plate or mounting bracket directly to the joist using two wood screws (not supplied). Haiku Home recommends using corrosion-resistant 12-11 x 45 mm hex head timber screws with seal.
Page 15 Outlet Box Concrete Ceiling Wood Ceiling Joist Page 14 Page 16 Page 18 HAIKU ® HOME...
Page 16 Standard Mount Universal Mount Installation may vary. Refer to the outlet Installation may vary. Refer to the outlet Installation may vary. Refer to the outlet box instructions. box instructions. box instructions. REV. D © 2015 HAIKU HOME. ALL RIGHTS RESERVED.
Page 17 Refer to the outlet box instructions. If installing a Universal Mount fan to a sloped ceiling, secure the mounting bracket so that the open side of the bracket is facing up the slope of the ceiling. HAIKU ® HOME...
Page 18 Install an anchor hook for the safety cable if required by your local building and safety code. Low Profile Mount Standard Mount Universal Mount Ø 6 mm Ø 12–12.5 mm 100 mm 35 mm 35 mm 45 mm 43 mm REV. D © 2015 HAIKU HOME. ALL RIGHTS RESERVED.
Page 19 If required by local building and safety codes, install an anchor hook (c) for the safety cable. Drill an Ø 8 mm hole for the anchor hook. The hole depth should not exceed 50 mm. Remove any dust from the hole, and then insert the anchor hook and fully tighten. HAIKU ®...
Page 21 Secure the mounting plate or mounting bracket (b) to the joist with two 12-11 x 45 mm hex head timber screws with seal (not supplied). If installing a Universal Mount fan to a sloped ceiling joist, secure the mounting bracket so that the open side of the bracket is facing up the slope of the joist. HAIKU ® HOME...
Page 22 The universal mount can be installed on sloped or flat ceilings ranging from 8.5–18 feet (2.5–5.5 meters) tall. This mount is available for fans with 52-inch (132-cm), 60-inch (152-cm), or 84-inch (213-cm) diameters. REV. D © 2015 HAIKU HOME. ALL RIGHTS RESERVED.
Page 23 Standard Mount Universal Mount Page 30 Page 42 HAIKU ® HOME...
Page 25 Slide the rubber bumpers (a) onto the extension tube brackets. STEP COMPLETED HAIKU ® HOME...
Page 27 While supporting the fan, loop the safety cable around the mounting plate or building structure, and then secure it with the shackle (b). Allow the fan to hang from the safety cable. Hardware: b. Shackle STEPS COMPLETED HAIKU ® HOME...
Page 28 Wiring Diagram Wiring Diagram (with EMI Filter) 100–240 VAC, 1 Φ, 100–240 VAC, 1 Φ, AC Hot/L1 AC Hot/L1 50–60 Hz 50–60 Hz AC Neutral/L2 AC Neutral/L2 PE/Earth Ground PE/Earth Ground BLUE BROWN GREEN/YELLOW BLUE BROWN GREEN/YELLOW REV. D © 2015 HAIKU HOME. ALL RIGHTS RESERVED.
Page 29 If the EMI filter (a) is included, install it with your fan. Test the connection by lightly tugging on the wires. PE/Earth Ground AC Hot/L1 AC Neutral/L2 (connected to fan chassis) Brown Blue Green with Yellow Tracer Australia Brown or Red Black or Light Blue Green with Yellow Tracer All other regions Brown Blue HAIKU ® HOME...
Page 31 (e). Slide the trim (f) up the extension tube, aligning the tabs on the inside with the slots on the bottom of the wiring cover. Twist clockwise to snap the trim into position. INSTALLATION COMPLETED HAIKU ® HOME...
Page 33 With the fan in the upright position, remove the protective covering from the extension tube. Slide the wiring cover (a) and wiring cover trim (b) over the extension tube, resting them on the fan hub. STEP COMPLETED HAIKU ® HOME...
Page 35 (b). Loosely install the mount brace brackets (c) with the provided hardware. One bolt should be inserted in the middle hole. Do not fully tighten the hardware. Hardware: d. M6 x 1 x 25 mm socket cap screw e. M6 x 1 nylock nut HAIKU ® HOME...
Page 37 Fully tighten all hardware so that the brackets are slightly bent. Hardware: b. M8 bolt c. 8 mm flat washer d. 8 mm lock washer e. M8 nut f. 2 mm x 2 mm split pin HAIKU ® HOME...
Page 39 (a). U-Shaped Ceiling Hook Loop the safety cable around the ceiling hook, and then secure it with the shackle (a). Hardware: a. Shackle HAIKU ® HOME...
Page 40 Wiring Diagram Wiring Diagram (with EMI Filter) 100–240 VAC, 1 Φ, 100–240 VAC, 1 Φ, AC Hot/L1 AC Hot/L1 50–60 Hz 50–60 Hz AC Neutral/L2 AC Neutral/L2 PE/Earth Ground PE/Earth Ground BLUE GREEN/YELLOW BROWN BROWN BLUE GREEN/YELLOW REV. D © 2015 HAIKU HOME. ALL RIGHTS RESERVED.
Page 41 If the EMI filter (a) is included, install it with your fan. Test the connection by lightly tugging on the wires. PE/Earth Ground AC Hot/L1 AC Neutral/L2 (connected to fan chassis) Brown Blue Green with Yellow Tracer Australia Brown or Red Black or Light Blue Green with Yellow Tracer All other regions Brown Blue HAIKU ® HOME...
Page 43 Slide the wiring cover trim (c) up the extension tube, aligning the tabs on the inside with the slots on the bottom of the wiring cover. Twist clockwise to snap into position. INSTALLATION COMPLETED HAIKU ® HOME...
Page 44 MOUNTING: UNIVERSAL Make sure the extension tube is oriented so that the wiring connector properly mates with the connector from the fan hub. INSTALL MOTOR BRACKETS CONNECT WIRING HARNESS REV. D © 2015 HAIKU HOME. ALL RIGHTS RESERVED.
Page 45 Securely tighten both bolts. Hardware: b. M6 x 28 mm bolt c. M6 x 32 mm bolt d. M6 nut Plug the wiring harness from the extension tube into the wiring harness from the fan. STEPS COMPLETED HAIKU ® HOME...
Page 47 Slide the wiring cover (f) down the extension tube, resting it on the fan hub. Make sure no wires are visible between the cover and fan hub. Slide the canopy (g) down the extension tube. STEPS COMPLETED HAIKU ® HOME...
Page 49 Insert the wedge (d) into the mounting ball and secure it with the screw (e). Tighten the screw enough to prevent movement between the mounting ball and extension tube, but do not overtighten. STEPS COMPLETED HAIKU ® HOME...
Page 50 Wiring Diagram (with EMI Filter) 100–240 VAC, 1 Φ, 100–240 VAC, 1 Φ, AC Hot/L1 AC Hot/L1 50–60 Hz 50–60 Hz AC Neutral/L2 AC Neutral/L2 PE/Earth Ground PE/Earth Ground GREEN/YELLOW BLUE BLUE GREEN/YELLOW BROWN BROWN GREEN/YELLOW GREEN/YELLOW REV. D © 2015 HAIKU HOME. ALL RIGHTS RESERVED.
Page 51 If the EMI filter (a) is included, install it with your fan. Test the connection by lightly tugging on the wires. PE/Earth Ground AC Hot/L1 AC Neutral/L2 (connected to fan chassis) Brown Blue Green with Yellow Tracer Australia Brown or Red Black or Light Blue Green with Yellow Tracer All other regions Brown Blue HAIKU ® HOME...
Page 53 Connect the wiring harnesses. Secure the green ground wire from the extension tube to the supply ground wire and the green ground wire on the mounting bracket. STEPS COMPLETED HAIKU ® HOME...
Page 55 Raise the canopy to the mounting bracket, lining up the four holes on the canopy with the holes on the bracket. Secure the canopy to the mounting bracket with the painted screws. Make sure no wires or the safety cable are showing. Hardware: b. M4 x 6 mm painted screws INSTALLATION COMPLETED HAIKU ® HOME...
Page 56 Turn on power to the fan location and test functionality Adjust fan speed Adjust light using the remote. Turn on the fan and test speed and light brightness. If you purchased the Haiku Wall Control, follow the Whoosh Timer ® instructions packaged with the wall control.
Page 59 © 2015 Haiku Home The information contained in this document is subject to change without notice. May be protected by one or more patents listed at www.bigasssolutions.com/patents Haiku is a trademark of Delta T Corporation, registered in the U.S. and/or other countries. www.haikuhome.com/warranties...
Page 60 HKU-INST-98-ENG-01...
