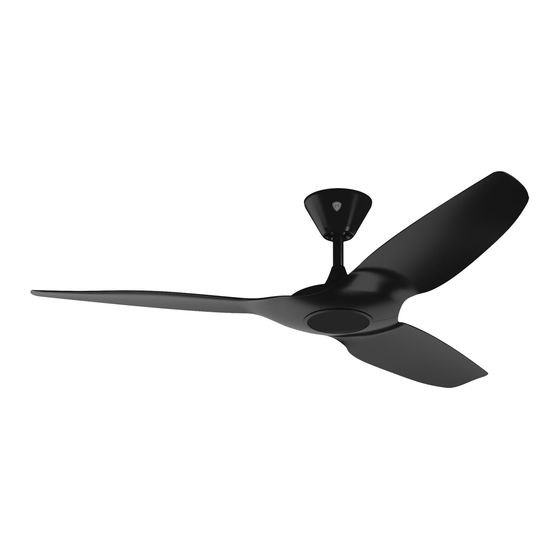

Haiku L3127-X5 Installation Manual

L series
Hide thumbs Also See for L3127-X5:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
INSTALLATION GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L3127-X5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Haiku L3127-X5

Summary of Contents for Haiku L3127-X5

  • Page 1 INSTALLATION GUIDE...

  • Page 2: Technical Specifications

    220/240 VAC, 1 Φ 52 in. (132 cm) 11 lb (5 kg) 50/60 Hz Tools Needed • Ladder • Wire Strippers • Phillips Screwdriver • Hex Key • Wrenches Scan for online Haiku Home app help Models: L3127-X5, L3127-X6, FR127C-U1EXX...
  • Page 3 Mounting Ball & Hardware Lower Cover Trim Lower Cover Ring Extension Tube Motor Unit (3) Airfoils Remote Control Hardware Pack Haiku Wi-Fi Module† † Provided if purchased as an accessory or with the Haiku Wall Control HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...

  • Page 4: Mounting Hardware

    (4) M4 Socket Head Cap Screws (6) M5 Screws with Tooth Washer Mounting Ball & Hardware Mounting Hardware Wedge 4 mm Self-Tapping Screw Mounting Ball Steel Pin M8 Bolt M8 Washer M8 Nylock Nut REV. E 11/20/17 © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...

  • Page 5: Prepare The Fan Site

    If you are installing your fan to an outlet box, it must be suitable for fan support. If there is not an outlet box at the fan location, install one on a ceiling joist or beam. HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ●...

  • Page 6: Install The Mounting Bracket

    INSTALL THE MOUNTING BRACKET Installation may vary. Refer to the outlet box instructions. REV. E 11/20/17 © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
  • Page 7 Secure the mounting bracket (a) to the outlet box (b) with the screws supplied with the outlet box (c). Outlet Box Hardware: c. Screw (supplied with outlet box) Sloped Ceilings If mounting to a sloped ceiling, install the mounting bracket so that the open side faces upward with the slope. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
  • Page 8 PREPARE THE AIRFOILS SELECT LENS (BLACK FANS WITH LIGHTS) MATCH AIRFOIL STICKERS REV. E 11/20/17 © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
  • Page 9 Black fans with lights: For softer lighting, remove the white lens and install the smoky lens before attaching the airfoils. a. Twist to uninstall white lens. b. Twist smoky lens to lock in place. Make sure the stickers on the airfoils match the stickers on the fan hub. HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...

  • Page 10: Install The Airfoils

    INSTALL THE AIRFOILS INSTALL AIRFOILS FANS WITHOUT LIGHTS REV. E 11/20/17 © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
  • Page 11 Fans without lights: Position the motor cover (d) over the motor, and then place both hands flat on the cover and turn it clockwise to lock it in place. DO NOT USE POWER TOOLS! STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ●...
  • Page 12 INSTALL THE LOWER EARTH/GROUND WIRE POSITION EXTENSION TUBE SECURE EARTH/GROUND WIRE REV. E 11/20/17 © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...

  • Page 13: Safety Cable Installation

    Acceptable building structures include a wooden beam or a metal mounting brace secured between two beams. In some cases it may be necessary to install additional structural material to provide attachment points. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
  • Page 14 CONNECT MOTOR WIRING AND SECURE EXTENSION TUBE INSTALL WIRING HARNESSES SECURE HARDWARE REMOVE SLACK REV. E 11/20/17 © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
  • Page 15 Mounting Hardware: c. M8 bolt d. M8 washer e. M8 nylock nut To remove slack, gently tug on the cables at the top of the extension tube. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
  • Page 16 SECURE THE LOWER COVER REV. E 11/20/17 © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
  • Page 17 Align the screw holes on the trim with the motor screw holes, and then secure the trim in place with the provided screws (c). Lower Cover Hardware: c. (2) Painted M3.5 screws White Black STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
  • Page 18 ARRANGE LED DIFFUSER RING, WIRING COVER, AND MOUNTING BALL Do not seat the LED diffuser ring in the wiring cover at this step! REV. E 11/20/17 © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
  • Page 19 Do not seat the LED diffuser ring in the wiring cover at this step! Slide the LED diffuser ring (a), wiring cover (b), and mounting ball (c) down the extension tube (in that order), resting them on the fan hub. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ●...
  • Page 20 ATTACH THE MOUNTING BALL SEAT MOUNTING BALL INSTALL WEDGE Inner slot REV. E 11/20/17 © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
  • Page 21 (c). Tighten the screw enough to prevent movement between the mounting ball and extension tube. Do not over-tighten the screw. Mounting Ball Hardware: b. Wedge c. 4 mm self-tapping screw STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
  • Page 22 HANG THE FAN Slot REV. E 11/20/17 © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
  • Page 23 Raise the fan to the mounting bracket. Align the slot in the mounting ball with the rib in the mounting bracket, insert the mounting ball, and let the fan hang freely. Gently twist the extension tube to ensure the mounting ball is properly seated and will not move during fan operation. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
  • Page 24 INSTALL THE UPPER EARTH/GROUND WIRE REV. E 11/20/17 © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
  • Page 25 Acceptable building structures include a wooden beam or a metal mounting brace secured between two beams. In some cases it may be necessary to install additional structural material to provide attachment points. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...

  • Page 26: Wire The Fan

    WIRE THE FAN BLACK GREEN WHITE REV. E 11/20/17 © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
  • Page 27 Tuck the power wiring and wire nuts into the outlet box. AC Hot/L1 AC Neutral/L2 PE/Earth Ground Black White Green North America Black White Green or Bare Copper 100–120 V system All other regions Brown Blue Green with Yellow Tracer HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
  • Page 28 INSTALL THE WI-FI MODULE LOCATE MODULE INSTALL MODULE Haiku L Series Wi-Fi Module REV. E 11/20/17 © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
  • Page 29 If you want to use the Haiku Home app or control your fan using voice commands, locate your Wi-Fi module. If you purchased the Haiku Wall Control, the module is included in the wall control packaging. † Note: Wi-Fi module is not required for use with L Series Wall Control.

  • Page 30: Install The Control Box

    INSTALL THE CONTROL BOX SEAT LED INDICATOR INSERT CONTROL BOX REV. E 11/20/17 © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
  • Page 31 Insert the control box (a) into the mounting bracket as illustrated. Be careful not to pinch the wires between the mounting bracket and control box! Snap the LED indicator (b) into the gap in the mounting bracket. Make sure it is securely seated. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ●...
  • Page 32 CONNECT THE CONTROL BOX CONNECT SUPPLY POWER HARNESS CONNECT WIRING HARNESSES REV. E 11/20/17 © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
  • Page 33 Peel the backing off the double-sided tape (c) on the mounting bracket, and then affix the harnesses to the tape. Connect the wiring harnesses from the extension tube (d) to the corresponding receptacles (e) on the control box. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
  • Page 34 INSTALL THE WIRING COVER ALIGN WIRING COVER INSTALL SCREWS INSTALL DIFFUSER RING View from below REV. E 11/20/17 © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
  • Page 35 Slide the LED diffuser ring (d) up the extension tube and plug the connector into the LED indicator receptacle through the opening (b) in the wiring cover. Make sure the tabs on the diffuser ring are securely snapped in place. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...

  • Page 36: Test The Fan

    Turn on power to the fan location and test functionality Adjust fan speed Adjust light* using the remote. Turn on the fan and test speed and light brightness*. If you purchased the Haiku Wall Control, follow the Whoosh Timer ® instructions packaged with the wall control to install...
  • Page 37 CONTACT US Please contact us with any questions you may have by calling 1-855-MY-HAIKU, or visit us at www.haikuhome.com to learn more about Haiku. United States 2348 Innovation Drive Lexington, KY 40511 855 694 2458 Canada 6300 Northwest Dr, Unit 3...
  • Page 38 NOTES...
  • Page 39 © 2015 Haiku Home The information contained in this document is subject to change without notice. May be protected by one or more patents listed at www.bigasssolutions.com/patents Haiku is a trademark of Delta T Corporation, registered in the U.S. and/or other countries. www.haikuhome.com/warranties...
  • Page 40 HKU-INST-63-ENG-01...
