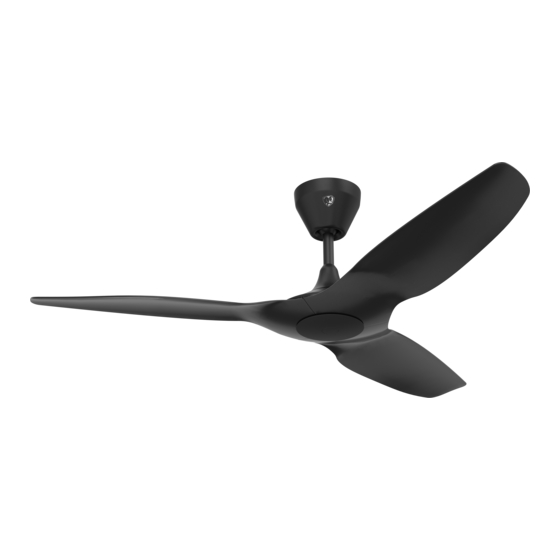

Haiku L3127-X6 Installation Manual
  1. Manuals
  2. Brands
  3. Haiku Manuals
  4. Fan
  5. L3127-X6
  6. Installation manual

Haiku L3127-X6 Installation Manual

Hide thumbs Also See for L3127-X6:
Table of Contents

Advertisement

Quick Links

INSTALLATION GUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L3127-X6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Haiku L3127-X6

Summary of Contents for Haiku L3127-X6

  • Page 1 INSTALLATION GUIDE...

  • Page 2: Technical Specifications

    60 Hz 220/240 VAC, 1 Φ 132 cm 5 kg 50/60 Hz Tools Needed • Ladder • Wire Strippers • Phillips Screwdriver • Hex Key • Wrenches Scan or visit resources.haikuhome.com/help for online Haiku mobile app help Models: L3127-X5, L3127-X6, FR127C-U1EXX...
  • Page 3 PARTS Mounting Bracket Control Box Wiring Cover LED Diffuser Ring Mounting Ball and Hardware Lower Cover Trim Lower Cover Ring Extension Tube Motor Unit (3) Airfoils Remote Control Hardware Pack HAIKU® BY BIG ASS FANS...

  • Page 4: Mounting Hardware

    HARDWARE Hardware and tools needed for installation are packaged in the hardware pack. Hardware below shown at actual size. Lower Cover Hardware Airfoil Hardware Wiring Cover Hardware White Black (2) Painted M3.5 Screws (6) M5 Screws with Tooth Washer (4) M4 Socket Head Cap Screws Mounting Ball and Hardware Mounting Hardware Wedge...

  • Page 5: Prepare The Fan Site

    If you are installing the fan directly to the building structure or to a ceiling-mounted outlet box, the structure or outlet box must be suitable for fan support. HAIKU® BY BIG ASS FANS...

  • Page 6: Install The Mounting Bracket

    If installing your fan on a wood ceiling joist, ensure power wiring has been routed to the fan site. Attach the mounting bracket directly to the joist using two wood screws (not supplied). Haiku Home recommends using corrosion-resistant 12-11 x 45 mm hex head timber screws with seal.
  • Page 7 Outlet Box Concrete Ceiling Wood Ceiling Joist Page 6 Page 8 Page 10 HAIKU® BY BIG ASS FANS...
  • Page 8 INSTALL THE MOUNTING BRACKET (OUTLET BOX) Installation may vary. Refer to the outlet box instructions. REV. F 06/08/2018 © 2015 BIG ASS FANS ALL RIGHTS RESERVED...
  • Page 9 Secure the mounting bracket (a) to the outlet box (b) with the screws supplied with the outlet box (c). Outlet Box Hardware: c. Screw (supplied with outlet box) STEP COMPLETED HAIKU® BY BIG ASS FANS...
  • Page 10 INSTALL THE MOUNTING BRACKET (CONCRETE CEILING) Ø 11–12 mm Install an anchor hook for the safety cable if required by your local building and safety code. Use the mounting bracket as a template to mark drill locations for the four mounting holes. REV.
  • Page 11 65 mm. Remove any dust from the hole, and then insert the anchor hook and fully tighten. Refer to the Safety Cable instructional sheet included with this guide. Concrete Ceiling Hardware: c. Ø 8 mm anchor hook (not supplied) STEP COMPLETED HAIKU® BY BIG ASS FANS...
  • Page 12 INSTALL THE MOUNTING BRACKET (WOOD CEILING JOIST) (not supplied) REV. F 06/08/2018 © 2015 BIG ASS FANS ALL RIGHTS RESERVED...
  • Page 13 Secure the mounting bracket (a) to the joist with two (2) 12-11 x 45 mm hex head timber screws with seal (b). Wood Ceiling Joist Hardware: b. (2) 12-11 x 45 mm hex head timber screws with seal (not supplied) STEP COMPLETED HAIKU® BY BIG ASS FANS...
  • Page 14 PREPARE THE AIRFOILS SELECT LENS (BLACK FANS WITH LIGHTS) MATCH AIRFOIL STICKERS REV. F 06/08/2018 © 2015 BIG ASS FANS ALL RIGHTS RESERVED...
  • Page 15 Black fans with lights: For softer lighting, remove the white lens and install the smoky lens before attaching the airfoils. a. Twist to uninstall white lens. b. Twist smoky lens to lock in place. Make sure the stickers on the airfoils match the stickers on the fan hub. HAIKU® BY BIG ASS FANS...

  • Page 16: Install The Airfoils

    INSTALL THE AIRFOILS INSTALL AIRFOILS FANS WITHOUT LIGHTS REV. F 06/08/2018 © 2015 BIG ASS FANS ALL RIGHTS RESERVED...
  • Page 17 Fans without lights: Position the motor cover (d) over the motor, and then place both hands flat on the cover and turn it clockwise to lock it in place. DO NOT USE POWER TOOLS! STEP COMPLETED HAIKU® BY BIG ASS FANS...
  • Page 18 INSTALL THE LOWER EARTH/GROUND WIRE POSITION EXTENSION TUBE SECURE EARTH/GROUND WIRE REV. F 06/08/2018 © 2015 BIG ASS FANS ALL RIGHTS RESERVED...

  • Page 19: Safety Cable Installation

    Acceptable building structures include a wooden beam or a metal mounting brace secured between two beams. In some cases it may be necessary to install additional structural material to provide attachment points. STEP COMPLETED HAIKU® BY BIG ASS FANS...
  • Page 20 CONNECT MOTOR WIRING AND SECURE EXTENSION TUBE INSTALL WIRING HARNESSES SECURE HARDWARE REMOVE SLACK REV. F 06/08/2018 © 2015 BIG ASS FANS ALL RIGHTS RESERVED...
  • Page 21 Mounting Hardware: c. M8 bolt d. M8 washer e. M8 nylock nut To remove slack, gently tug on the cables at the top of the extension tube. STEP COMPLETED HAIKU® BY BIG ASS FANS...
  • Page 22 SECURE THE LOWER COVER REV. F 06/08/2018 © 2015 BIG ASS FANS ALL RIGHTS RESERVED...
  • Page 23 Align the screw holes on the trim with the motor screw holes, and then secure the trim in place with the provided screws (c). Lower Cover Hardware: c. (2) Painted M3.5 screws White Black STEP COMPLETED HAIKU® BY BIG ASS FANS...
  • Page 24 ARRANGE LED DIFFUSER RING, WIRING COVER, AND MOUNTING BALL Do not seat the LED diffuser ring in the wiring cover at this step! REV. F 06/08/2018 © 2015 BIG ASS FANS ALL RIGHTS RESERVED...
  • Page 25 Do not seat the LED diffuser ring in the wiring cover at this step! Slide the LED diffuser ring (a), wiring cover (b), and mounting ball (c) down the extension tube (in that order), resting them on the fan hub. STEP COMPLETED HAIKU® BY BIG ASS FANS...
  • Page 26 ATTACH THE MOUNTING BALL SEAT MOUNTING BALL INSTALL WEDGE Inner slot REV. F 06/08/2018 © 2015 BIG ASS FANS ALL RIGHTS RESERVED...
  • Page 27 (c). Tighten the screw enough to prevent movement between the mounting ball and extension tube. Do not over-tighten the screw. Mounting Ball Hardware: b. Wedge c. 4 mm self-tapping screw STEP COMPLETED HAIKU® BY BIG ASS FANS...
  • Page 28 HANG THE FAN Slot REV. F 06/08/2018 © 2015 BIG ASS FANS ALL RIGHTS RESERVED...
  • Page 29 Raise the fan to the mounting bracket. Align the slot in the mounting ball with the rib in the mounting bracket, insert the mounting ball, and let the fan hang freely. Gently twist the extension tube to ensure the mounting ball is properly seated and will not move during fan operation. STEP COMPLETED HAIKU® BY BIG ASS FANS...
  • Page 30 INSTALL THE UPPER EARTH/GROUND WIRE REV. F 06/08/2018 © 2015 BIG ASS FANS ALL RIGHTS RESERVED...
  • Page 31 Acceptable building structures include a wooden beam or a metal mounting brace secured between two beams. In some cases it may be necessary to install additional structural material to provide attachment points. STEP COMPLETED HAIKU® BY BIG ASS FANS...

  • Page 32: Wire The Fan

    WIRE THE FAN BROWN GREEN BLUE REV. F 06/08/2018 © 2015 BIG ASS FANS ALL RIGHTS RESERVED...
  • Page 33 Tuck the power wiring into the outlet box or building structure. AC HOT/L1 AC NEUTRAL/L2 PE/EARTH GROUND BROWN BLUE GREEN AUSTRALIA Brown or Red Black or Light Blue Green with Yellow Tracer ALL OTHER REGIONS Brown Blue HAIKU® BY BIG ASS FANS...

  • Page 34: Install The Control Box

    INSTALL THE CONTROL BOX REV. F 06/08/2018 © 2015 BIG ASS FANS ALL RIGHTS RESERVED...
  • Page 35 Insert the control box (a) into the mounting bracket as illustrated. Be careful not to pinch the wires between the mounting bracket and control box! Snap the LED indicator (b) into the gap in the mounting bracket. Make sure it is securely seated. STEP COMPLETED HAIKU® BY BIG ASS FANS...
  • Page 36 CONNECT THE CONTROL BOX REV. F 06/08/2018 © 2015 BIG ASS FANS ALL RIGHTS RESERVED...
  • Page 37 Peel the backing off the double-sided tape (c) on the mounting bracket, and then affix the harnesses to the tape. Connect the wiring harnesses from the extension tube (d) to the corresponding receptacles (e) on the control box. STEP COMPLETED HAIKU® BY BIG ASS FANS...
  • Page 38 INSTALL THE WIRING COVER ALIGN WIRING COVER INSTALL SCREWS INSTALL DIFFUSER RING ceiling ceiling ceiling View from below REV. F 06/08/2018 © 2015 BIG ASS FANS ALL RIGHTS RESERVED...
  • Page 39 Slide the LED diffuser ring (d) up the extension tube and plug the connector into the LED indicator receptacle through the opening (b) in the wiring cover. Make sure the tabs on the diffuser ring are securely snapped in place. STEP COMPLETED HAIKU® BY BIG ASS FANS...

  • Page 40: Test The Fan

    TEST THE FAN Do not expose the remote control to rain or water. Before using the remote control, remove the plastic tab from the battery tray. Turn on power to the fan location and test functionality using the remote. Turn on the fan and test speed and light brightness*. Sets fan timer length of up to eight hours.
  • Page 41 CONTACT US Please contact us with any questions you may have. Asia Pacific United States 2348 Innovation Drive 18 Tampines Industrial Crescent #06-07 Lexington, KY 40511 Singapore 528 605 +65 6709 8500 855 694 2458 East Asia Australia/Oceania Unit 22, 1029 Manly Road Room 808, Tai Yau Building Tingalpa QLD 4173, Australia 181 Johnston Road...
  • Page 42 NOTES...
  • Page 43 The information contained in this document is subject to change without notice. May be protected by one or more patents listed at www.bigassfans.com/patents Haiku is a trademark of Delta T LLC, registered in the U.S. and/or other countries. For warranty information, visit haikuhome.com...
  • Page 44 HKU-INST-74-ENG-01...
