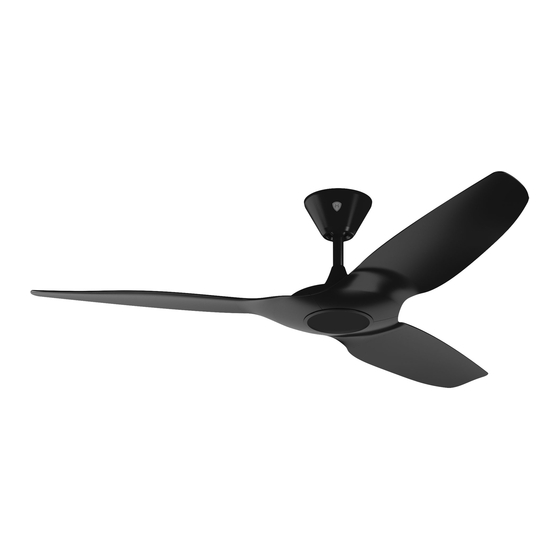

Page 1 INSTALLATION GUIDE...
Page 2 See your Owner's Manual to discover everything your fan can do. Please contact us with any questions you may have by calling 1-855-MY-HAIKU, or visit us at www.haikuhome.com to learn more about Haiku.
Page 3 Topic Page Installation Guide For maintenance and troubleshooting Technical Specifications procedures, see your Owner's Manual. Tools Needed Parts Hardware Prepare the Fan Site Install Your Fan READ AND SAVE THESE INSTRUCTIONS...
Page 4: Technical Specifications
As you remove the fan from its packaging, make sure you are not missing any components required for assembly and operation. If you ordered multiple fans, be sure to keep the components of each fan together! REV. A © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
Page 5 Mounting Ball & Hardware† Lower Cover Trim Lower Cover Ring Extension Tube†† Motor Unit (3) Airfoils Remote Control Hardware Pack Wiring Harness††† See Hardware page † †† Two lengths provided Packaged with control box ††† HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
Page 6: Mounting Hardware
(4) M4 Socket Head Cap Screws (6) M5 Screws with Tooth Washer Mounting Ball & Hardware Mounting Hardware Wedge 4 mm Self-Tapping Screw Mounting Ball Steel Pin M8 Bolt M8 Washer M8 Nylock Nut REV. A © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
Page 7 If there is not an outlet box at the fan location, install one on a 2. Twist smoky lens to lock in place. ceiling joist or beam. Disconnect power to the fan location before wiring fan! HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
Page 8 CONNECT THE WIRING HARNESS Do not connect the green (Earth/Ground) wire on the wiring harness at this step! PE/EARTH GROUND AC HOT/L1 AC NEUTRAL/L2 REV. A © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
Page 9 Tuck the power wiring and wire nuts into the outlet box so that only the harness and the supply Earth/ Ground wire hang through. AC Hot/L1 AC Neutral/L2 PE/Earth Ground Black White Green North America Black White Green or Bare Copper 100–120 V system All other regions Brown Blue Green with Yellow Tracer HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
Page 11 (f). Tuck the wiring and wire nuts into the junction box so that only the wiring harness hangs through. Sloped Ceilings If mounting to a sloped ceiling, install the mounting bracket so that the open side faces upward with the slope. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
Page 13 Rest the motor assembly (a) on your lap. Moving clockwise, install each airfoil (b) with the provided hardware. Securely tighten the screws. Airfoil Hardware: c. (6) M5 screws with tooth washer STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
Page 15 Acceptable building structures include a wooden beam or a metal mounting brace secured between two beams. In some cases it may be necessary to install additional structural material to provide attachment points. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
Page 17 Mounting Hardware: c. M8 bolt d. M8 washer e. M8 nylock nut To remove slack, gently tug on the cables at the top of the extension tube. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
Page 19 Align the screw holes on the trim with the motor screw holes, and then secure the trim in place with the provided screws (c). Lower Cover Hardware: c. (2) Painted M3.5 screws White Black STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
Page 21 Slide the LED diffuser ring (a), wiring cover (b), and mounting ball (c) down the extension tube (in that order), resting them on the fan hub. Do not seat the LED diffuser ring in the wiring cover at this step! STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ●...
Page 23 (c). Tighten the screw enough to prevent movement between the mounting ball and extension tube. Do not over-tighten the screw. Mounting Ball Hardware: b. Wedge c. 4 mm self-tapping screw STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
Page 25 Raise the fan to the mounting bracket. Align the slot in the mounting ball with the rib in the mounting bracket, insert the mounting ball, and let the fan hang freely. Gently twist the extension tube to ensure the mounting ball is properly seated and will not move during fan operation. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
Page 27 Acceptable building structures include a wooden beam or a metal mounting brace secured between two beams. In some cases it may be necessary to install additional structural material to provide attachment points. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
Page 28 INSTALL THE WI-FI MODULE Skip this step if you did not purchase the Haiku Wall Control! Wall Control Wi-Fi Module (Packaged with wall control) REV. A © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
Page 29 If you purchased the Haiku Wall Control, locate the Wi-Fi module included in the wall control packaging. Remove the plastic tray from the fan control box and discard it. Insert the Wi-Fi module into the control box, snapping it into place.
Page 31 Insert the control box (a) into the mounting bracket as illustrated. Be careful not to pinch the wires between the mounting bracket and control box! Snap the LED indicator (b) into the gap in the mounting bracket. Make sure it is securely seated. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ●...
Page 33 Peel the backing off the double-sided tape (c) on the mounting bracket, and then affix the harnesses to the tape. Connect the wiring harnesses from the extension tube (d) to the corresponding receptacles (e) on the control box. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
Page 35 Slide the LED diffuser ring (d) up the extension tube and plug the connector into the LED indicator receptacle through the opening (b) in the wiring cover. Make sure the tabs on the diffuser ring are securely snapped in place. STEP COMPLETED HAIKU® HOME WWW.HAIKUHOME.COM/SERVICE 1-855-MY-HAIKU ● ●...
Page 36 Turn on the fan and test speed and light brightness. For operating instructions and troubleshooting tips, see your Owner's Manual. If you purchased the Haiku Wall Control, follow the instructions packaged with the wall control to install and set up SenseME functionality.
Page 37 NOTES...
Page 38 NOTES...
Page 39 © 2015 Haiku Home The information contained in this document is subject to change without notice. May be protected by one or more patents listed at www.bigasssolutions.com/patents Haiku is a trademark of Delta T Corporation, registered in the U.S. and/or other countries.
