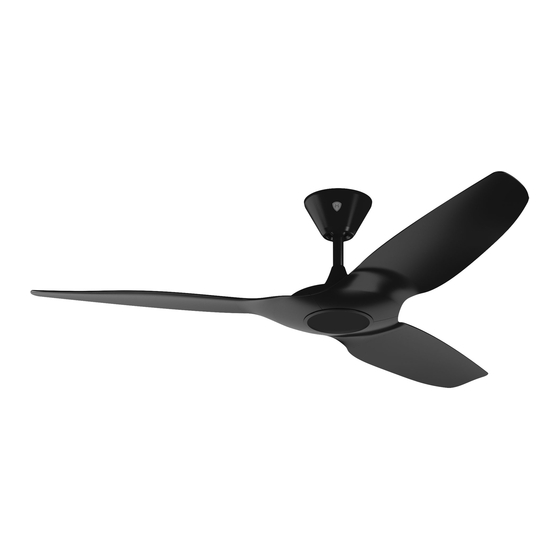

Haiku L3127-X5 Installation Manual

Hide thumbs Also See for L3127-X5:

Installation manual (41 pages)

Installation manual (40 pages)

Installation manual (44 pages)

Table Of Contents

Quick Links

INSTALLATION GUIDE

Table of Contents

Need help?

Do you have a question about the L3127-X5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Haiku L3127-X5

Page 1 INSTALLATION GUIDE...
Page 2 +65 6709 8500 Australia/Oceania East Asia Unit 22, 1029 Manly Road Room 808, Tai Yau Building Tingalpa QLD 4173, Australia 181 Johnston Road Wan Chai, Hong Kong 1 300 BIG ASS +852 2836 5808 Scan for online Haiku Home app help...
Page 3: Table Of Contents
Topic Page Installation Guide For operation, maintenance, and Technical Specifications troubleshooting information, visit haikuhome.com/help Tools Needed Parts Hardware Prepare the Fan Site Install Your Fan READ AND SAVE THESE INSTRUCTIONS...
Page 4: Technical Specifications
As you remove the fan from its packaging, make sure you are not missing any components required for assembly and operation. If you ordered multiple fans, be sure to keep the components of each fan together! REV. C © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
Page 5: Parts
Lower Cover Trim Lower Cover Ring Extension Tube†† Motor Unit (3) Airfoils Remote Control Hardware Pack Wiring Harness††† Wall Control Wi-Fi Module†††† See Hardware page † Two lengths provided †† Packaged with control box ††† Packaged with wall control †††† HAIKU® HOME...
Page 6: Hardware
(6) M5 Screws with Tooth Washer (4) M4 Socket Head Cap Screws Mounting Ball and Hardware Mounting Hardware Wedge 4 mm Self-Tapping Screw Mounting Ball Steel Pin M8 Bolt M8 Washer M8 Nylock Nut REV. C © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
Page 7: Prepare The Fan Site
Disconnect power to the fan location before wiring fan! A readily accessible disconnect device shall be incorporated external to the equipment. A means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. HAIKU® HOME...
Page 9 Tuck the power wiring into the outlet box or building structure so that only the harness and the supply Earth/Ground wire hang through. AC HOT/L1 AC NEUTRAL/L2 PE/EARTH GROUND BROWN BLUE GREEN AUSTRALIA Brown or Red Black or Light Blue Green with Yellow Tracer ALL OTHER REGIONS Brown Blue HAIKU® HOME...
Page 10 If installing your fan on a wood ceiling joist, ensure power wiring has been routed to the fan site. Attach the mounting bracket directly to the joist using two wood screws (not supplied). Haiku Home recommends using corrosion-resistant 12-11 x 45 mm hex head timber screws with seal.
Page 11 Outlet Box Concrete Ceiling Wood Ceiling Joist Page 10 Page 12 Page 14 HAIKU® HOME...
Page 13 Make sure power is disconnected before installing the mounting bracket! Secure the mounting bracket (a) to the outlet box (b) with the screws supplied with the outlet box (c). Outlet Box Hardware: c. Screw (supplied with outlet box) STEP COMPLETED HAIKU® HOME...
Page 14 Install an anchor hook for the safety cable if required by your local building and safety code. Use the mounting bracket as a template to mark drill locations for the four mounting holes. REV. C © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
Page 15 Refer to the Safety Cable instructional sheet included with this guide. Concrete Ceiling Hardware: c. Ø 8 mm anchor hook (not supplied) STEP COMPLETED HAIKU® HOME...
Page 17 Secure the mounting bracket (a) to the joist with two (2) 12-11 x 45 mm hex head timber screws with seal (b). Wood Ceiling Joist Hardware: b. (2) 12-11 x 45 mm hex head timber screws with seal (not supplied) STEP COMPLETED HAIKU® HOME...
Page 19 Secure the supply ground wire (a) to the ground wires from the wiring harness (b) and the mounting bracket (c) with the terminal strip (or other means of connection required by your local electrical code). Tuck the terminal strip into the mounting bracket so that only the wiring harness hangs through. STEP COMPLETED HAIKU® HOME...
Page 21 Tighten the screws to 2.5 N·m (22.1 in·lb). Do not use power tools to install the airfoils, and do not over- tighten the screws! Over-tightening the screws may cause the airfoils to warp and may void your warranty. Airfoil Hardware: c. (6) M5 screws with tooth washer Do not use power tools! STEP COMPLETED HAIKU® HOME...
Page 23 Acceptable building structures include a wooden beam or a metal mounting brace secured between two beams. In some cases it may be necessary to install additional structural material to provide attachment points. STEP COMPLETED HAIKU® HOME...
Page 25 Align the bolt holes on the extension tube with the holes on the motor shaft, and then secure the tube with the provided hardware and wrenches. Mounting Hardware: c. M8 bolt d. M8 washer e. M8 nylock nut To remove slack, gently tug on the cables at the top of the extension tube. STEP COMPLETED HAIKU® HOME...
Page 27 Align the screw holes on the trim with the motor screw holes, and then secure the trim in place with the provided screws (c). Lower Cover Hardware: c. (2) Painted M3.5 screws White Black STEP COMPLETED HAIKU® HOME...
Page 29 Do not seat the LED diffuser ring in the wiring cover at this step! Slide the LED diffuser ring (a), wiring cover (b), and mounting ball (c) down the extension tube (in that order), resting them on the fan hub. STEP COMPLETED HAIKU® HOME...
Page 31 (c). Tighten the screw enough to prevent movement between the mounting ball and extension tube. Do not over-tighten the screw. Mounting Ball Hardware: b. Wedge c. 4 mm self-tapping screw STEP COMPLETED HAIKU® HOME...
Page 33 Raise the fan to the mounting bracket. Align the slot in the mounting ball with the rib in the mounting bracket, insert the mounting ball, and let the fan hang freely. Gently twist the extension tube to ensure the mounting ball is properly seated and will not move during fan operation. STEP COMPLETED HAIKU® HOME...
Page 35 Acceptable building structures include a wooden beam or a metal mounting brace secured between two beams. In some cases it may be necessary to install additional structural material to provide attachment points. STEP COMPLETED HAIKU® HOME...
Page 36 INSTALL THE WI-FI MODULE Skip this step if you did not purchase the Haiku Wall Control! Wall Control Wi-Fi Module (Packaged with wall control) REV. C © 2015 HAIKU HOME. ALL RIGHTS RESERVED. ●...
Page 37 If you purchased the Haiku Wall Control, locate the Wi-Fi module included in the wall control packaging. Remove the plastic tray from the fan control box and discard it. Insert the Wi-Fi module into the control box, snapping it into place.
Page 39 Insert the control box (a) into the mounting bracket as illustrated. Be careful not to pinch the wires between the mounting bracket and control box! Snap the LED indicator (b) into the gap in the mounting bracket. Make sure it is securely seated. STEP COMPLETED HAIKU® HOME...
Page 41 Peel the backing off the double-sided tape (c) on the mounting bracket, and then affix the harnesses to the tape. Connect the wiring harnesses from the extension tube (d) to the corresponding receptacles (e) on the control box. STEP COMPLETED HAIKU® HOME...
Page 43 Slide the LED diffuser ring (d) up the extension tube and plug the connector into the LED indicator receptacle through the opening (b) in the wiring cover. Make sure the tabs on the diffuser ring are securely snapped in place. STEP COMPLETED HAIKU® HOME...
Page 44 Turn on power to the fan location and test functionality Adjust fan speed Adjust light using the remote. Turn on the fan and test speed and light brightness. If you purchased the Haiku Wall Control, follow the Whoosh Timer ® instructions packaged with the wall control to install...
Page 45 NOTES...
Page 47 © 2015 Haiku Home The information contained in this document is subject to change without notice. May be protected by one or more patents listed at www.bigasssolutions.com/patents Haiku is a trademark of Delta T Corporation, registered in the U.S. and/or other countries. www.haikuhome.com/warranties...
Page 48 HKU-INST-74-ENG-01...
