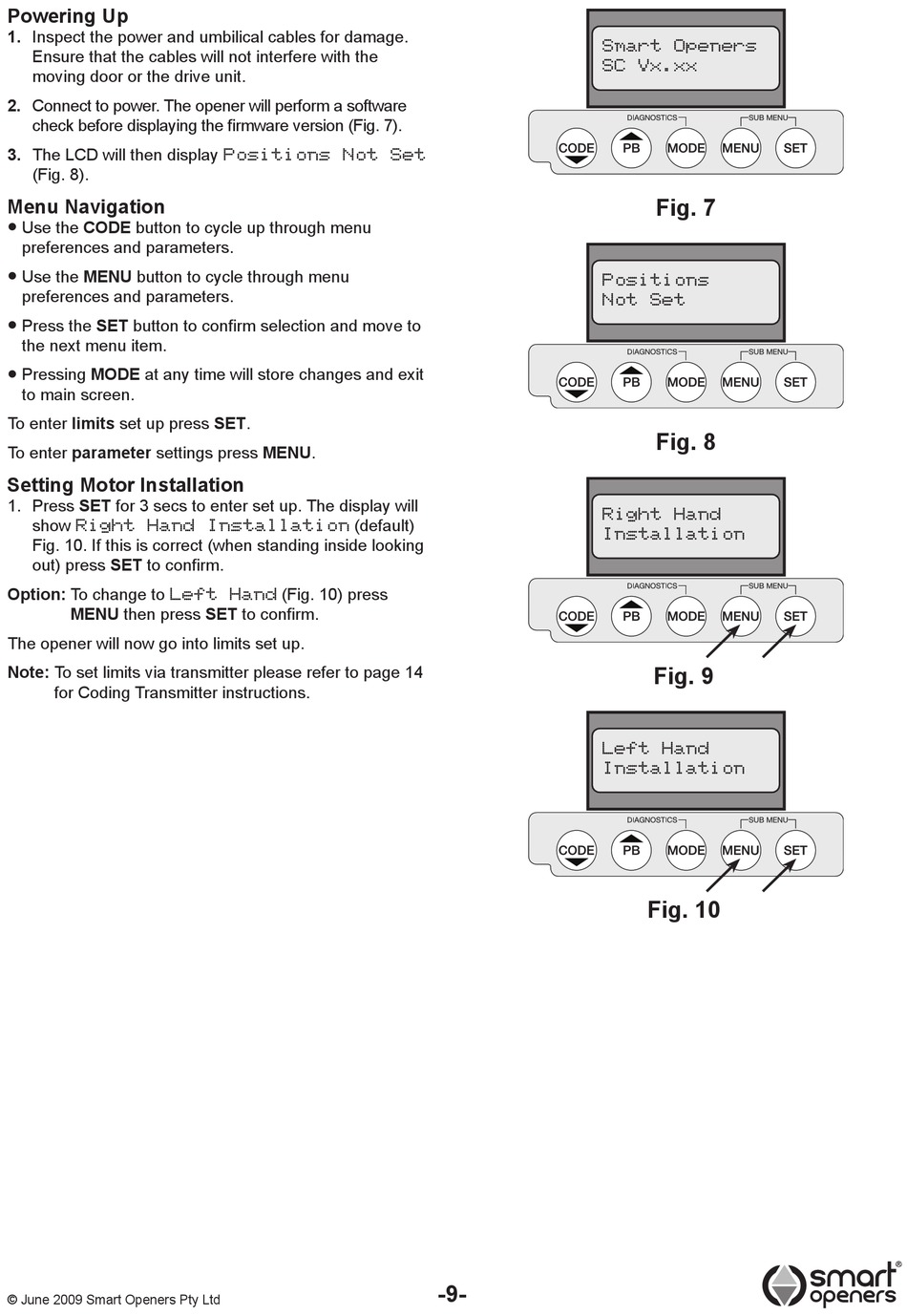

Initialising The Opener - Smart Openers Smart Roller Shutter Installation Manual

Powering Up
1. Inspect the power and umbilical cables for damage.
Ensure that the cables will not interfere with the
moving door or the drive unit.
2. Connect to power. The opener will perform a software
check before displaying the firmware version (Fig. 7).
3. The LCD will then display Positions Not Set
(Fig. 8).
Menu Navigation
Use the CODE button to cycle up through menu
l
preferences and parameters.
Use the MENU button to cycle through menu
l
preferences and parameters.
Press the SET button to confirm selection and move to
l
the next menu item.
Pressing MODE at any time will store changes and exit
l
to main screen.
To enter limits set up press SET.
To enter parameter settings press MENU.
Setting Motor Installation
1. Press SET for 3 secs to enter set up. The display will
show Right Hand Installation (default)
Fig. 10. If this is correct (when standing inside looking
out) press SET to confirm.
Option: To change to Left Hand (Fig. 10) press
MENU then press SET to confirm.
The opener will now go into limits set up.
Note: To set limits via transmitter please refer to page 14
for Coding Transmitter instructions.
© June 2009 Smart Openers Pty Ltd
Smart Openers
SC Vx.xx
Positions
Not Set
Right Hand
Installation
Left Hand
Installation
-9-
Fig. 7
Fig. 8
Fig. 9
Fig. 10
