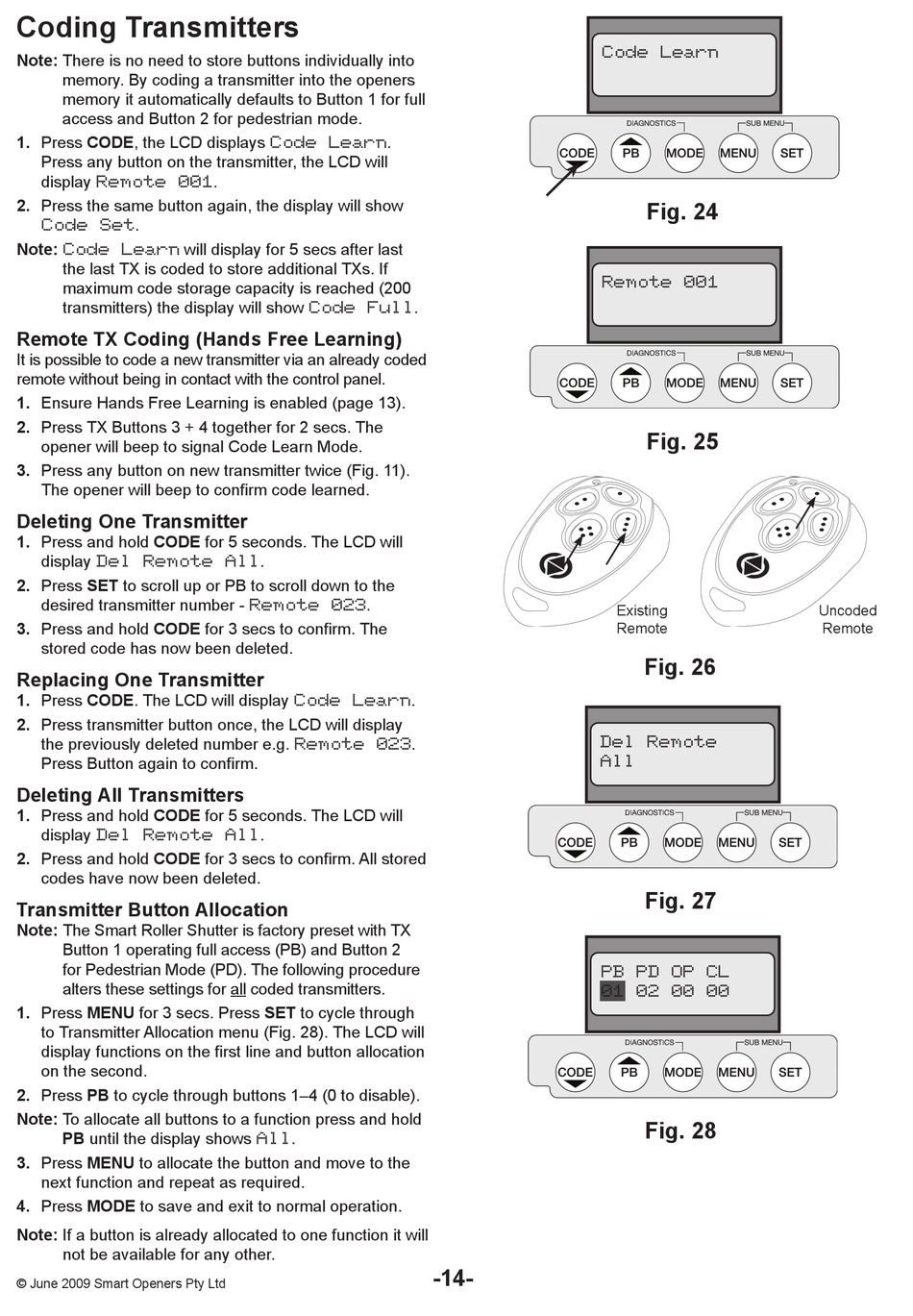

Coding Transmitters

Note: There is no need to store buttons individually into
memory. By coding a transmitter into the openers
memory it automatically defaults to Button 1 for full
access and Button 2 for pedestrian mode.
1. Press CODE, the LCD displays Code Learn.
Press any button on the transmitter, the LCD will
display Remote 001.
2. Press the same button again, the display will show
Code Set.
Note: Code Learn will display for 5 secs after last
the last TX is coded to store additional TXs. If
maximum code storage capacity is reached (200
transmitters) the display will show Code Full.
Remote TX Coding (Hands Free Learning)
It is possible to code a new transmitter via an already coded
remote without being in contact with the control panel.
1. Ensure Hands Free Learning is enabled (page 13).
2. Press TX Buttons 3 + 4 together for 2 secs. The
opener will beep to signal Code Learn Mode.
3. Press any button on new transmitter twice (Fig. 11).
The opener will beep to confirm code learned.
Deleting One Transmitter
1. Press and hold CODE for 5 seconds. The LCD will
display Del Remote All.
2. Press SET to scroll up or PB to scroll down to the
desired transmitter number - Remote 023.
3. Press and hold CODE for 3 secs to confirm. The
stored code has now been deleted.
Replacing One Transmitter
1. Press CODE. The LCD will display Code Learn.
2. Press transmitter button once, the LCD will display
the previously deleted number e.g. Remote 023.
Press Button again to confirm.
Deleting All Transmitters
1. Press and hold CODE for 5 seconds. The LCD will
display Del Remote All.
2. Press and hold CODE for 3 secs to confirm. All stored
codes have now been deleted.

Transmitter Button Allocation

Note: The Smart Roller Shutter is factory preset with TX
Button 1 operating full access (PB) and Button 2
for Pedestrian Mode (PD). The following procedure
alters these settings for all coded transmitters.
1. Press MENU for 3 secs. Press SET to cycle through
to Transmitter Allocation menu (Fig. 28). The LCD will
display functions on the first line and button allocation
on the second.
2. Press PB to cycle through buttons 1–4 (0 to disable).
Note: To allocate all buttons to a function press and hold
PB until the display shows All.
3. Press MENU to allocate the button and move to the
next function and repeat as required.
4. Press MODE to save and exit to normal operation.
Note: If a button is already allocated to one function it will
not be available for any other.
© June 2009 Smart Openers Pty Ltd
Code Learn
Remote 001
Del Remote
All
PB PD OP CL
01 02 00 00
-14-
Fig. 24
Fig. 25
Existing
Remote
Fig. 26
Fig. 27
Fig. 28
Uncoded
Remote
