Electrical Connection

Motor Connection
Your Smart Roller Shutter Opener is equipped with a
wiring harness with identical plugs at both ends. To
connect the motor to the control box simply connect each
end of the cable to the respective sockets on the drive
motor and control box. Also ensure that the battery back
up module is connected to the terminal under the main
control box (Fig. 6).
Note: If the control box included with your opener is fitted
with an open, "dead-man" close and emergency
stop switches and isolation lock as depicted in Fig.
6, these switches are prewired in the factory ready
to use.
Menu Quick Reference Guide
Use the table below as a reference to guide you through
the menu system and parameters.
1
2
3
4
5
6
7
7.1
7.2
8
8.1
8.2
8.3
9
10
© June 2009 Smart Openers Pty Ltd
Motor Connector Cable
Dead-man Close Switch
Emergency Stop Switch
Menu Item Factory Default
Pedestrian Mode On
Lock Pulse
Obstruction Setting 03
Open Speed 80%
Close Speed 80%
Motor Delay On (only for DualMotor)
Photo Beam Off
PE Close Off (only for Photo Beam Mode)
Sequence Mode Off (only for Photo Beam Mode)
Auto Close Off (only for Photo Beam Mode)
Time Delay 30 secs
PED Close Off
PED Time Delay 30 secs
Transmitter Button PB=1 PD=2
Hands Free Learn On
Open Switch
Power Cable
-8-
Isolation Lock

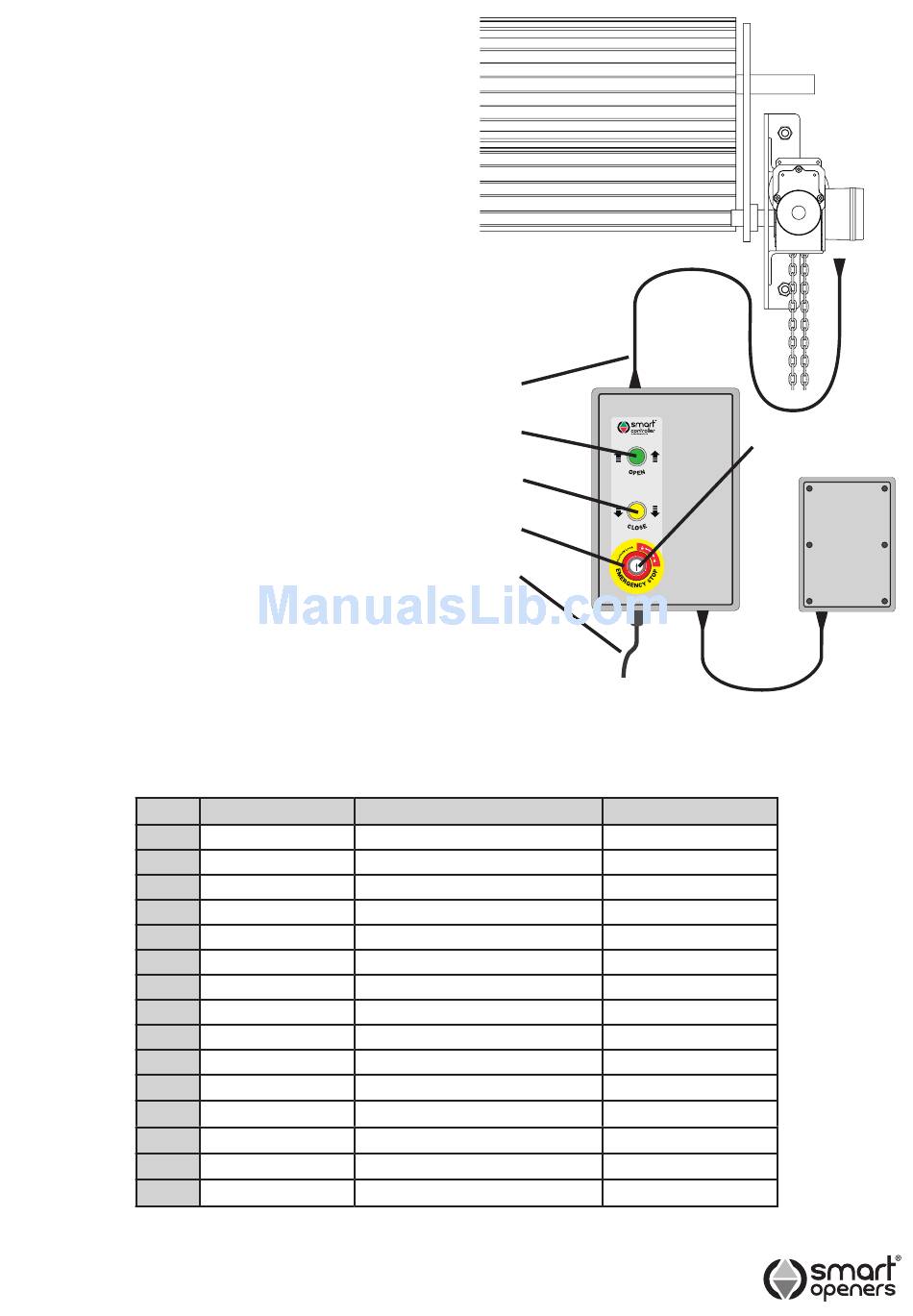

Fig. 6
Options
On/Off
Pulse/Hold (Magnetic)
00 – 09
50%-100% (by 5%)
50%-100% (by 5%)
On/Off
On/Off
On/Off
On/Off
On/Off
5-400 secs
On/Off
5-400 secs
PB, PD, OP, CL
On/Off
Battery
Back Up
