Designated use
The time switch can be used for lighting, bell
systems, ventilation etc.
The device is designed for installation on DIN
top hat rails (in accordance with EN 60715)
and corresponds to type 1 STU in accordance
with IEC/EN 60730-2-7 resp. 60730-1.
The professional installation of bus lines and
commissioning of devices requires compliance
6
with the provisions of EN 50428 for switches
or similar installation equipment for use in
building construction technology. Tampering
with, or making modifications to, the device
invalidates the guarantee.
Disposal
Dispose of device and batteries separately in
an environmentally sound manner.

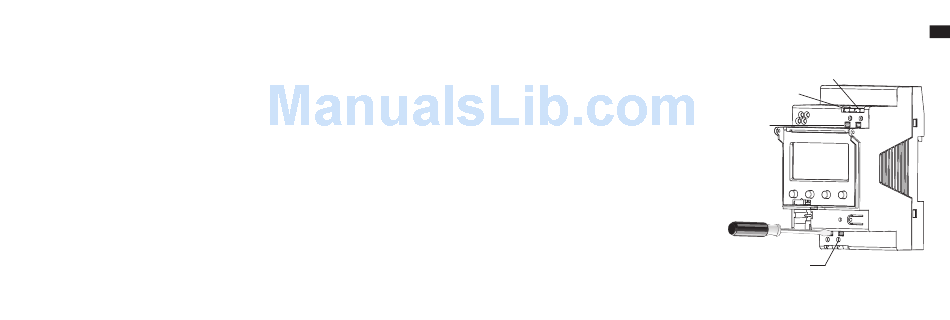

Connect cable

Strip cable by 8 mm (max. 9 mm).
Insert cable at 45° in the open terminal
(2 cables per terminal position possible).
Only with flexible wires: To open the
plug-in screwless terminal, press
screwdriver downwards.
45° cable
Plug-in terminal
Plug-in
screwless
terminal
NC
contact
Test tap
GB
7
