Stellar | Stellar GL | Stellar HD
M A N U A L T I L T W H E E L C H A I R
Owner's Operation and
Maintenance Manual
PDG PRODUCT DESIGN GROUP INC .
103 - 318 East Kent Avenue South Vancouver, BC Canada V5X 4N6
DEALER
For more information regarding
Ph: 604-323-9220 Fax: 604-323-9097 info@pdgmobility com
This manual must be given
PDG products, parts & service, please visit
to the user of the wheelchair .
www .pdgmobility .com
www pdgmobility com
USER
Before using this wheelchair,
© PDG Product Design Group Inc . January 2014 .
read this entire manual and
save for future reference .
Class 1 Medical Device Registration CA 004986
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PDG Mobility Stellar GL
Summary of Contents for PDG Mobility Stellar GL

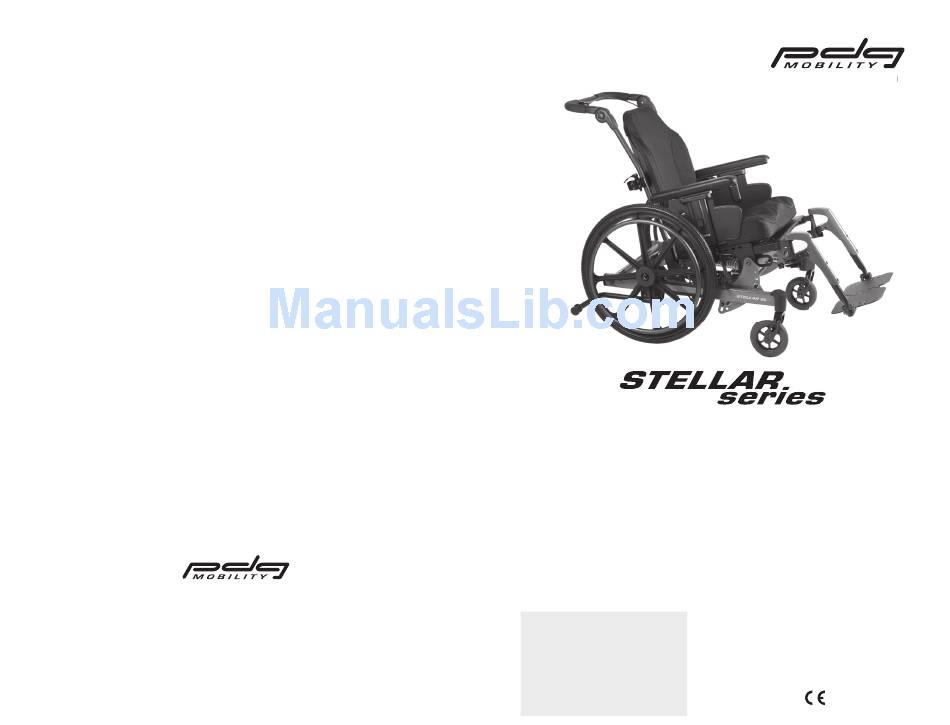

- Page 1 Stellar | Stellar GL | Stellar HD M A N U A L T I L T W H E E L C H A I R Owner’s Operation and Maintenance Manual PDG PRODUCT DESIGN GROUP INC . 103 - 318 East Kent Avenue South Vancouver, BC Canada V5X 4N6...
-
