Owner's Operation and
Maintenance Manual

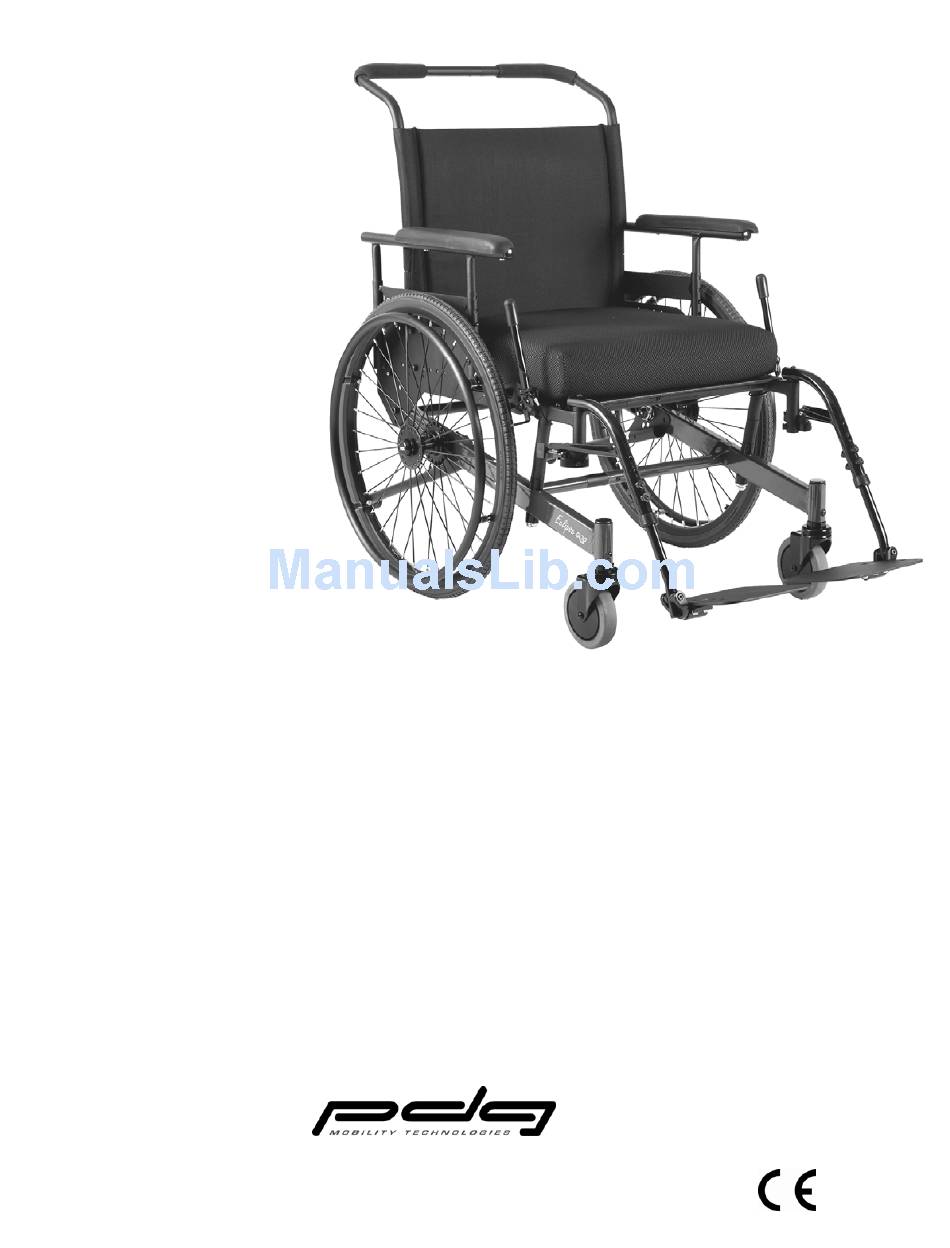

Eclipse Manual Wheelchair
DEALER: This manual must be given to the user of the wheelchair
USER: Before using this wheelchair, read this entire manual and
save for future reference
For more information regarding PDG products,
parts & service, please visit www.pdgmobility.com
US Patent # 5,957,474
Class 1 Medical Device
March 2008
Registration CA 004986

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eclipse Manual Wheelchair and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PDG Mobility Eclipse Manual Wheelchair

Summary of Contents for PDG Mobility Eclipse Manual Wheelchair

  • Page 1 DEALER: This manual must be given to the user of the wheelchair USER: Before using this wheelchair, read this entire manual and save for future reference For more information regarding PDG products, parts & service, please visit www.pdgmobility.com US Patent # 5,957,474...

  • Page 2: Table Of Contents

    NOTICE THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. WHEELCHAIR USER As a manufacturer of wheelchairs, PDG endeavors to supply wheelchairs to meet many needs of the end user. However, final selection of the type of wheelchair to be used by an individual rests solely with the user and his/her health care professional capable of making such a selection.

  • Page 3: Safety Summary

    NOT been designed or tested as a seat for any kind of weight training. If occupant uses said wheelchair as a weight training apparatus, PDG shall NOT be liable for bodily injury and the warranty will be voided immediately.
  • Page 4 Extreme caution is advised when it is necessary to move an occupied wheelchair up or down the stairs. PDG recommends using two (2) assistants and making thorough preparations. Make sure to use ONLY secure, non-detachable parts for...
  • Page 5 ESCALATORS? SORRY! DO NOT use an escalator to move a wheelchair between floors. Serious bodily injury may occur. TRANSFERRING TO AND FROM OTHER SEATS WARNING: BEFORE attempting to transfer in or out of the wheelchair, every precaution should be taken to reduce the gap distance.

  • Page 6: Wheelchair Terminology

    Backrest PACKAGING UNPACKING NOTE: Unless the PDG Eclipse is to be assembled immediately, retain cartons and packing materials for use in. storing the wheelchair until assembly is required. INSPECTION 1. Examine exterior of the PDG Eclipse for nicks, dents, scratches or other damages. Inspect all...

  • Page 7: Safety Inspection Checklist

    STORAGE 1. Store the repackaged PDG Eclipse in a dry area. 2. DO NOT place other objects on top of the repackaged wheelchair. SAFETY INSPECTION CHECKLIST NOTE: Twice a year take your wheelchair to a qualified dealer for a thorough inspection and servicing.

  • Page 8: Troubleshooting

    SUGGESTED MAINTENANCE PROCEDURES 1. Before using your PDG Eclipse, make sure all nuts and bolts are tight. Check all parts for damage or wear and replace. Check all parts for proper adjustment. 2. If applicable, keep quick-release axles free of dirt and lint to ensure positive locking and proper operation.

  • Page 9: Operation & Safety

    Replacing/Adjusting Upholstery PDG suggests that you study how the upholstery fastens to the chair prior to making alterations. Periodically check upholstery for signs of ripping and sagging. If these are present, check the inner liner to determine if it has also been damaged or weakened. Replace immediately if upholstery is damaged or liner shows sagging.

  • Page 10: Front Rigging

    FRONT RIGGING Attach hanger brackets to bracket receptacles on wheelchair. 1. Adjustment is made to desired length with individual sitting in wheelchair with feet on foot plates. Use wrench and hex head driver to loosen or tighten bolt on slide tube of foot plates. 2.
  • Page 11 • For a seat height of 17”, use the 7” bolt plus 1" urethane sleeve and a 2” spacer. Use only bolts and spacers provided by PDG. The 1/2” bolt must be threaded into the Upper Frame for a length of at least 1”.
  • Page 12 Frame Width Adjustment To adjust the frame width, you will need a width adjustment kit from PDG. The kit includes 6 spacers needed to establish the new width, a new width back upholstery, and a new width seat pan. Remove the backrest from the wheelchair. Remove the old back upholstery. Knock out the 2 roll pins (located in the cross-bar) used to maintain the backrest width.
  • Page 13 Center, visit our web site at www.pdgmobility.com and click on CONTACTS. If you are uncertain about which CONTACT is most appropriate for your needs, contact PDG directly using telephone, fax, or e-mail contact information. Supply the serial number from the product you are attempting to service and we will be happy to inform you of the supplier who initially provided your product.
  • Page 14 PDG warrants the products manufactured by it to be free from defects in materials and workmanship for a period of one (1) year from date of purchase, except frame is warranted for (5) five years. If within such warranty period any such product shall be proven to the Manufacturer’s satisfaction to be defective, such product shall be repaired or replaced, at PDG’s option.
