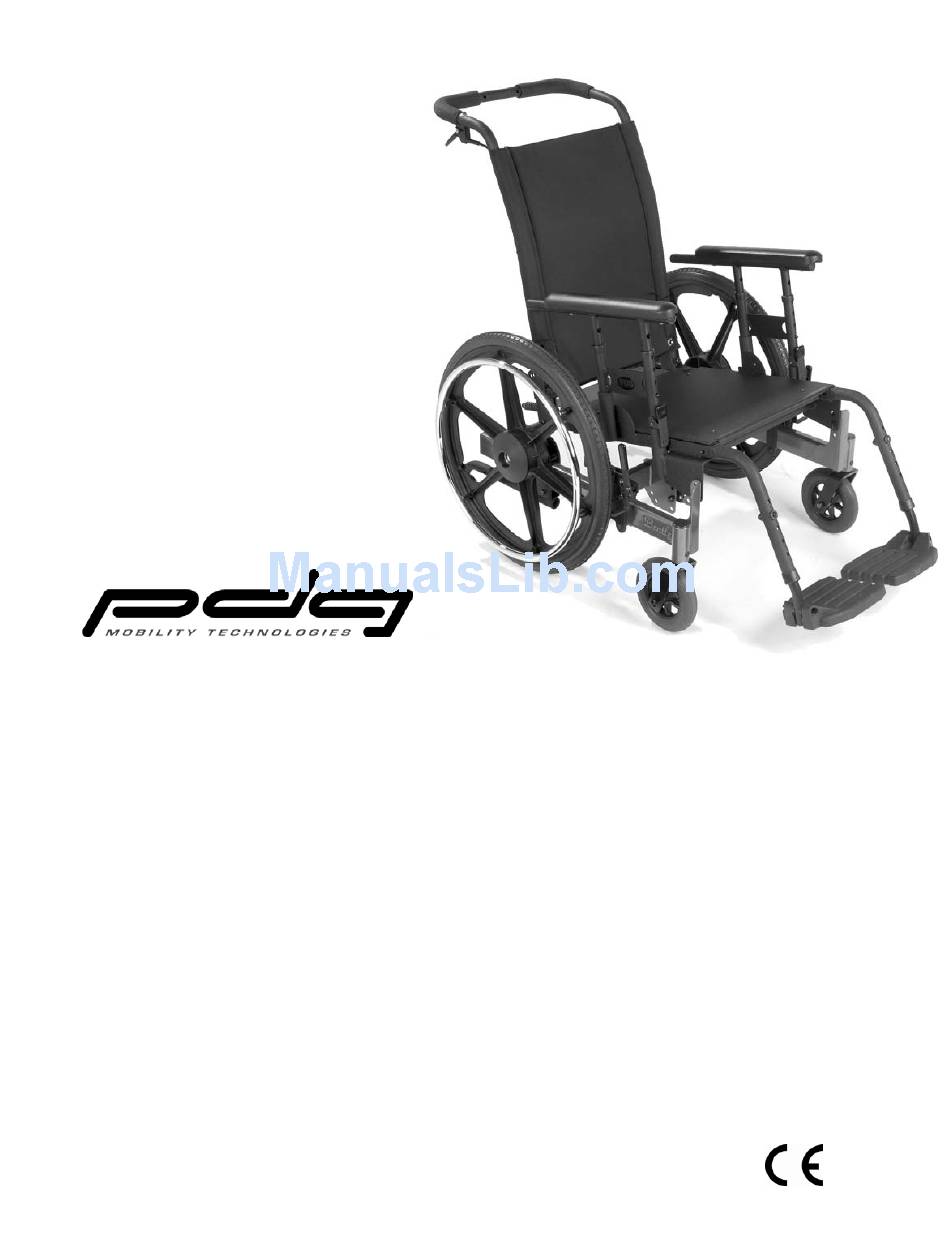

Owner's Operation & Maintenance Manual
BENTLEY Manual Tilt Wheelchair
With Transit Option
DEALER: This manual must be given to the user of the wheelchair
USER: Before using this wheelchair, read this entire manual and
save for future reference
For more information regarding PDG products,
parts and service, please visit www.pdgmobility.com
Class 1 Medical Device
March 2008
Registration CA 004986
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BENTLEY and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PDG Mobility BENTLEY

Summary of Contents for PDG Mobility BENTLEY

  • Page 1 DEALER: This manual must be given to the user of the wheelchair USER: Before using this wheelchair, read this entire manual and save for future reference For more information regarding PDG products, parts and service, please visit www.pdgmobility.com Class 1 Medical Device...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Label Locations ..........................3 1.0 Special Notes A. Warnings .............................4 B. Special Notes.............................4 C. Unpacking............................4 D. Out of the Box Assembly Instructions.....................5 E. Inspection............................5 F. Storage ...............................5 G. Contacting a Qualified Service Agent to Obtain Service ............5 H. Specifications ............................5 Additional Information ........................6 2.0 Indications for Use ..........................7...

  • Page 4: Special Notes

    1. The information contained in this document is subject to change without notice. As a manufacturer of wheelchairs, PDG endeavors to supply a wide variety of wheelchairs to meet many needs of the end user. However, final selection of the type of wheelchair to be used by an individual rests solely with the user and his/her health care professional capable of making such a selection.

  • Page 5: Out Of The Box Assembly Instructions

    G. Contacting a Qualified Service Agent to Obtain Service PDG has Qualified Service Agents in many locations. To find your nearest Qualified Service Agent, visit our web site at www.pdgmobility.com and click on CONTACTS. If you are uncertain as to which CONTACT is most appropriate for your need, contact PDG directly by telephone, fax, or e-mail to obtain the necessary information.

  • Page 6: Specifications

    Wheel Locks - Push to lock Tilt-in-Space Bentley - 20 degrees of tilt Weight Limitation - 250 pounds standard base - 450 pounds – heavy duty base I. Additional Information Additional information is available upon request. Please contact PDG at info@pdgmobility.com...

  • Page 7: Indications For Use

    A. Information for Health Care Professionals or Assistants WARNING 1. The Bentley wheelchair must be operated by a health care professional or assistant when in ANY tilt position only when client is unable to propel in a tilted position. 2. To maintain maximum stability, position the rear wheels in the most rearward position in the axle mounting plate.

  • Page 8: Weight Training

    This can be achieved by advancing the wheelchair and then reversing it in a straight line. 5. The PDG Bentley wheelchair should be operated by an assistant when the wheelchair is in any tilted position.

  • Page 9: Safety And Handling Of Wheelchairs

    Individual wheelchair users often develop skills to deal with daily living activities that may differ from those described in this manual. PDG recognizes and encourages each individual to try what works best for him/her in overcoming architectural obstacles that they may encounter, however ALL WARNINGS and CAUTIONS given in this manual MUST be followed.

  • Page 10: Stairs

    1. Extreme caution is advised when it is necessary to move an occupied wheelchair up or down the stairs. PDG recommends using two (2) assistants and making thorough preparations. Make sure to use ONLY secure, non-detachable parts for hand-held supports. Lifting by means of any removable (detachable) parts of a wheelchair may result in injury to the user or damage to the wheelchair.

  • Page 11: Motor Vehicle Use

    7. Do not alter or substitute wheelchair frame parts, components or seating. 8. The figures below show the locations of the wheelchair securement points, front and back. Bentley Front Tiedown Bently Rear Tiedown 9. Use only with Wheelchair Tie Down and Occupant Restraint Systems (WTORS) that have been installed in accordance with the manufacturer’s instructions and SAE J2249.

  • Page 12: Troubleshooting

    3.0 TROUBLESHOOTING You will need to adjust your chair from time to time for best performance. Use the chart provided below to troubleshoot and find a solution. 4.0 MAINTENANCE Every six (6) months take your wheelchair to a qualified technician for a thorough inspection and servicing.

  • Page 13: Cleaning

    C. Cleaning Periodic cleaning of all surfaces will help keep your wheelchair looking good and operating properly. All surfaces may be cleaned with warm water and a mild detergent. Do not use abrasive cleaners on any surfaces. D. Recommended Maintenance Schedule 5.0 Operation A.

  • Page 14: Armrests

    Swing-Away Footrest Assembly Installation 1. To mount swing-away style front rigging, slide front rigging on already existing “swing-away adaptors”. The front rigging should ‘click’ and lock into place. 2. To release and swing away, push button on front rigging and push front rigging aside. Footrest Height Adjustment Height adjustment is made to the desired length with individual sitting in wheelchair with feet on foot plates.

  • Page 15: Rear Wheels

    The seat-to back angle may be set to 90 – 108 degrees (114 and 120 degrees requires additional hardware – please contact the dealer). Use only PDG supplied parts when changing back angle. The backrest rotates about the 2 shoulder bolts located approximately 4" above the seat pan on the backrest support bracket.

  • Page 16: Front Casters

    measured from the rear of the lower frame members. There are measuring indicators on the bottom of the lower frame members. The anti-tip tubes slide into receivers at the back of the frame so that the rollers prevent the chair from overturning if the centre of gravity moves too far rearward.

  • Page 17: Adjustable Seat Tilt

    When tilting chair, attendant must hold push handle securely so that seat does not drop too quickly. Adjusting Seat ‘Lift’ Force. - See sketch - Bentley Gas Strut Set-up Guide This procedure may be used to increase or decrease the ‘lift’ force required to raise an occupant from a tilt position to a level seat position.

  • Page 18: Adjust The Gas Strut And Cable Assembly

    If the strut is in the most rearward position and still needs more uplift force, try shortening the seat depth, or add a second gas strut (available from PDG). Helpful Tips to Consider When Optimizing Uplift Force in the Gas Strut - The spring assembly will remain compressed and intact when the gas strut mounting bolts are removed.

  • Page 19: Operating The Floor Jacks

    I. Operating the Floor Jacks This procedure includes the following: Operation of the floor jacks Floor Jacks may be supplied with the Bentley wheelchair or may be retrofitted if needed. Floor Jacks are used when it is desirable to have a wheelchair that can quickly be made longer and more stable, or shorter and more maneuverable.

  • Page 20: Using Seat And Backrest Protective Padding

    'at risk' wheelchair users not be left unattended. K. Contacting Your Supplier to Obtain Service PDG has trained customer service representatives in many locations. To find your nearest Customer Service Center, visit our web site at www.pdgmobility.com and click on CONTACTS. If you are uncertain about which CONTACT is most appropriate for your needs, contact PDG directly using telephone, fax, or e-mail contact information.

  • Page 21: Set-Up Of 16" / 24" Rear Wheel Anti-Tippers

    The extra positions (1 through 3) can be used to make the chair more stable, but it will reduce the caster clearance when tipped backwards. 6.0 TESTING The Bentley wheelchair has been designed to meet the following standards: ANSI/RESNA WC.19 and ISO 7176. Upholstery specifications meet the State of California Technical Bulletin 117 Section D.

  • Page 22: Warranties

    PDG warrants its product, except for the seat cushion (which is not warranted), to be free from defects in materials and workmanship for a period of one (1) year from date of purchase. The side frames and cross-members are warranted for the lifetime of the original purchaser/user.
