Warranty Registration System
Help us to serve you better by registering
your product for Warranty
Web
Register at w
ww.onida.com
Telephone
Call Centre No. 0XX-39889000(0XX-STD Code of
State Capital)
Post / Visit
Post the Warranty Registration Card &
Copy or Visit the Nearest Service Centre.
As per Government of India's E-Waste (Management and Handling)
Rules, 2011(effective from May 1st, 2012) the product purchased by you
is to be considered as E-Waste and cannot be disposed off with your
general household waste. It should be disposed of through the company's
collection center so as to prevent any damage to environment
Collection Center address
Mirc Electronics Ltd.Village Kudus,Bhiwandi Wada road,
Taluka Wada., Dist. Thane - 421312,Tel no. 952525 220375/377
Visit at :
www.onida.com
We request you to make a note of the above details and support us
in our endeavour to ensure an environmental friendly nation.
Service Centre
for details about collection Centers.

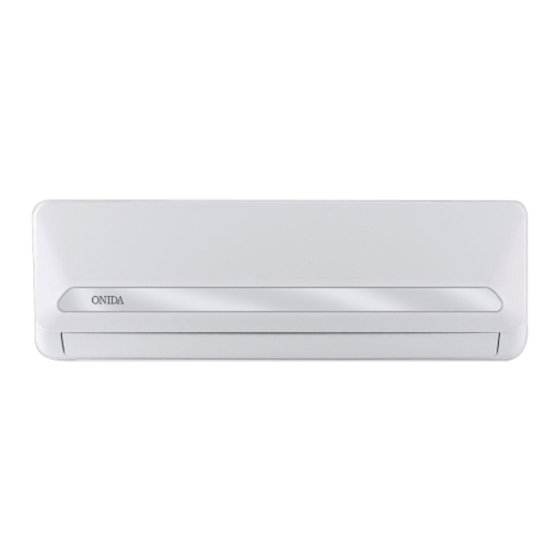

Model: INV18SMT7 / INV18SMT-S7
AIR CONDITIONERS
The unit displayed is for representational purposes only. Actual unit may vary.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Onida INV18SMT7
Summary of Contents for Onida INV18SMT7
- Page 1 Post / Visit Post the Warranty Registration Card & Service Centre Model: INV18SMT7 / INV18SMT-S7 Copy or Visit the Nearest Service Centre. As per Government of India’s E-Waste (Management and Handling) Rules, 2011(effective from May 1st, 2012) the product purchased by you is to be considered as E-Waste and cannot be disposed off with your general household waste.
- Page 2 Dear customer Congratulation on buying ONIDA Air Conditioner. Y our Air Conditioner comes with ONIDA Guarantee of Quality as detailed in the manual. ONIDA takes great pride in providing its customers with state- of-the-art products that adheres to international quality standards.
-
Page 3: Table Of Contents
CONTENTS Salient Features Inside Overview Indoor Unit Display Remote Overview Operations Operation Instructions Operation Tips General Instructions for Installation Installation Sketch Installation Take care of your Air Conditioner Precautions to be taken Trouble Shooting Chart Installation and Satisfaction Report Warranty Terms & Conditions Preventive Maintenance Service Coupon Warranty Card(Customer Copy) Warranty Card(service Center Copy) -
Page 4: Salient Features
SALIENT FEATURES Model Code : INV18SMT7 / INV18SMT-S7 • Aesthetics:- a) Unique Smart Model with High EER b) Sleek Indoor Unit • Performance:- a) Imported High BTU Tropicalised Compressor b) Trapezoidal Inner Grooved Tube c) Large L - Shaped Condenser Coil d) High RPM Fan Motor with High Static •... -
Page 5: Inside Overview
INSIDE OVERVIEW INDOOR UNIT DISPLAY INDOOR UNIT Display on the indoor unit. For the icon of LED windows, only relevant icons will light up with their displays on. Return warm Air in Signal receiver Front panel （A） Display SET TEMPERATURE( C) Signal receiver AUTO TURBO... -
Page 6: Remote Overview
REMOTE OVERVIEW OPERATIONS NOTE: Indicates optional button. 。 SET TEMPERATURE ( C) 14 and 15 buttons are not available for Models RG51M2/(C)E. AUTO 7 , 14 and 15 buttons are not available for Models RG51M3/(C)Eand RG51M3/BG(C)E. HIGH COOL 15 button is not available for Models R51M/(C)E and R51M/BG(C)E. HEAT 4 ,6 ,7 ,14 ,15 buttons are not available for Models RG51M9/(C)E. -
Page 7: Operations
REMOTE OVERVIEW OPERATIONS 9)ON/OFF Button: Special function Push this button to start operation, push the button again to stop operation. CLEAN AIR function(on some models) 10)TIMER ON Button: Improving the quality of indoor air is one of the mission of an air conditioner. This air Press this button to initiate the auto-on time sequence. - Page 8 OPERATIONS OPERATIONS Manual operation Anti-mildew function(on some models) Manual operation can be used temporarily in case the remote controller is disable or When turns off the unit on COOL, DRY, AUTO (Cool) mode, the air conditioner maintenance necessary. will continue operating for about 10 minutes(depending on models) at LOW fan speed. This will help to dry up the condensed water inside the evaporator, and prevent the breeding of mildew.
-
Page 9: Operation Instructions
OPERATING OPERATIONS INSTRUCTIONS Airflow direction control SLEEP operation SLEEP operation 7 h o u r s t i m e r o f f Adjust the air flow direction properly otherwise, it 7 h o u r s t i m e r o f f Ÿ... -
Page 10: Operation Tips
OPERATION TIPS OPERATION TIPS The following events may occur during normal operation. running. This is caused by heat expansion and cold contraction of the plastic parts in the 1. Protection of the air conditioner. unit when the temperature is changing. Compressor protection A noise may be heard due to louver restoring to its original position when power is first turned on. -
Page 11: General Instructions For Installation
Power failure during operation will stop the unit completely. your airconditioner. While your Onida / For the unit without Auto-restart feature, when the power restores, the OPERATION Dealer's Technician will be happy to guide you on the best location for your airconditioner, indicator on the indoor unit starts flashing. - Page 12 The heat removed from the room is expelled to the atmosphere through the outdoor unit. • Too long Once again, the Onida / dealer's Technician will ensure optimal installation of the ODU for • Too high you. However, the following information will •...
-
Page 13: Installation Sketch
INSTALLATION INSTALLATION SKETCH INDOOR UNIT 1. Fitment of mounting plate The mounting plate should be fitted on the structural part of wall on which indoor unit is to be installed. 2. Drill two holes at a distance of 450 mm between them for the expansion bolts. 150mm or more to ceiling Installation plate Indoor unit outline... -
Page 14: Installation
INSTALLATION INSTALLATION Discharge the air of the units: n Installation of indoor unit After putting the pipe assembly through It can used as vaccum pump. Liquid closing valve Liquid connecting pipe Cap the wall, attach the indoor unit to the Remove screw cap of closing valve and mounting plate on the wall as shown in gas charging hole;... -
Page 15: Take Care Of Your Air Conditioner
TAKE CARE OF YOUR PRECAUTIONS TO BE TAKEN AIR CONDITIONER Most of the maintenance work on your air Do's ( c o n d i t i o n e r, d u r i n g w a r r a n t y a n d subsequently under the maintenance •... -
Page 16: Trouble Shooting Chart
INSTALLATION & SATISFACTION TROUBLE SHOOTING CHART REPORT Customer Name : Troubleshooting Tips Address If one of the following faults occurs, s top the air conditioner immediately, disconnect the power and then connect it in again. If the problem still exists, disconnect the power and contact the nearest customer service center. -
Page 17: Warranty Terms & Conditions
WARRANTY TERMS AND CONDITIONS M/S. MIRC ELECTRONICS LTD, WARRANTS THIS ONIDA AIR CONDITIONER[(except the front grill, knobs, remote unit and add-on plastic parts) TO THE ORIGINAL PURCHASER TO BE FREE FROM DEFECTS IN MATERIALS AND WORKMANSHIP WITHIN ONE YEAR FROM THE DATE OF PURCHASE AS PROVIDED IN THE WARRANTY REGISTERATION CARD. -
Page 18: Preventive Maintenance Service Coupon
Preventive Maintenance Service Customer Identification 8. It shall be the absolute discretion of the company to a) effect the repairs or replacement of parts Number: whether at the site of installation or at any service centre, and b) have the job attended to either by the Preventive Maintenance Service 1 Date: ________ Company's service personnel or its authorised dealer... -
Page 19: Warranty Card(Customer Copy)
We welcome your Valuable Suggestions, if any, to Improve our Products and Services : FOR OFFICE USE ONLY Customer Code: Branch: Mirc Electronics Ltd. For Other Details on Our Products & Services Log On To www.onida.com Note: Company Will Not Be Responsible For The Loss Of This Form During Transit. -
Page 20: Warranty Card(Service Center Copy)
Mirc Electronics Ltd. Mirc Electronics Ltd. For Other Details on Our Products & Services Log On To www.onida.com For Other Details on Our Products & Services Log On To www.onida.com Note: Company Will Not Be Responsible For The Loss Of This Form During Transit. - Page 21 BUSINESS REPLY ENVELOPE ONIDA CUSTOMER RELATION CENTRE Adonis Electronics Pvt Ltd. Onida House - II Mukund Ground Floor, Mahal Industrial Estate, off. Mahakali Caves Road, Andheri East, Mumbai, Maharashtra, India - 400093...
