Warranty Registration System
Help us to serve you better by registering
your product for Warranty
Web
Register at w
ww.onida.com
Telephone
Call Centre No. 0XX-39889000(0XX-STD Code of
State Capital)
Post / Visit
Post the Warranty Registration Card &
Copy or Visit the Nearest Service Centre.
As per Government of India's E-Waste (Management and Handling)
Rules, 2011(effective from May 1st, 2012) the product purchased by you
is to be considered as E-Waste and cannot be disposed off with your
general household waste. It should be disposed of through the company's
collection center so as to prevent any damage to environment
Collection Center address
Mirc Electronics Ltd.Village Kudus,Bhiwandi Wada road,
Taluka Wada., Dist. Thane - 421312,Tel no. 952525 220375/377
Visit at :
www.onida.com
We request you to make a note of the above details and support us
in our endeavour to ensure an environmental friendly nation.
Service Centre
for details about collection Centers.

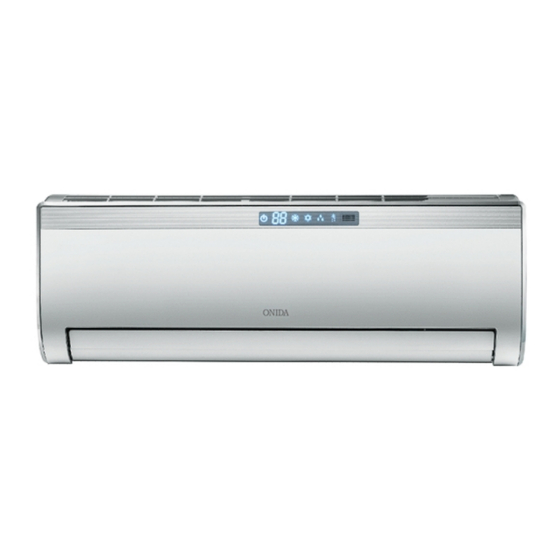

Model: INV18SLU-C8/INV18SLU-R8/INV18SLU-S8
AIR CONDITIONERS
The unit displayed is for representational purposes only. Actual unit may vary.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INV18SLU-C8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Onida INV18SLU-C8

  • Page 1 Post / Visit Post the Warranty Registration Card & Service Centre Model: INV18SLU-C8/INV18SLU-R8/INV18SLU-S8 Copy or Visit the Nearest Service Centre. As per Government of India’s E-Waste (Management and Handling) Rules, 2011(effective from May 1st, 2012) the product purchased by you is to be considered as E-Waste and cannot be disposed off with your general household waste.
  • Page 2 Dear customer Congratulation on buying ONIDA Air Conditioner. Y our Air Conditioner comes with ONIDA Guarantee of Quality as detailed in the manual. ONIDA takes great pride in providing its customers with state- of-the-art products that adheres to international quality standards.
  • Page 3: Table Of Contents

    CONTENTS Salient Features Inside Overview Indoor Unit Display Remote Overview Operations General Instructions for Installation Installation Sketch Installation Take care of your Air Conditioner Precautions to be taken Trouble Shooting Chart Installation and Satisfaction Report Warranty Terms & Conditions Preventive Maintenance Service Coupon Warranty Card(Customer Copy) Warranty Card(service Center Copy)
  • Page 4: Salient Features

    SALIENT FEATURES Model Code : INV18SLU-C8/INV18SLU-R8/INV18SLU-S8 • Aesthetics:- a) Unique Sleek Model with High EER • Performance:- a) Imported High BTU Tropicalised Compressor b) Trapezoidal Inner Grooved Tube c) Large L - Shaped Condenser Coil d) High RPM Fan Motor with High Static •...
  • Page 5: Inside Overview

    INSIDE OVERVIEW INDOOR UNIT DISPLAY INDOOR UNIT Display on the indoor unit. For the icon of LED windows, only relevant icons will light up with their displays on. Display Return warm Air in Front panel POWER SET TEMPERATURE( C) AUTO TURBO COOL HIGH...
  • Page 6: Remote Overview

    REMOTE OVERVIEW REMOTE OVERVIEW Replacement of Batteries 1) ON/OFF Press it to start or stop operation. 1) Remove the battery cover plate from the rear of the remote controller. (As shown in 2) ‘’ - ‘’ the figure) Press it to decrease temperature setting. 2) Take out the old batteries.
  • Page 7: Operations

    OPERATIONS OPERATIONS 1) ON/OFF This remote controller is universal . If any command is sent out, the unit Ÿ Press this button to turn on the unit. Press this button again to turn off the unit. will carry out the command as indicates the guide louver swings as 2) “...
  • Page 8 OPERATIONS OPERATIONS remote control will display "1hour ", the setting temperature "88" will display the 12) CLOCK corresponding temperature of last setting sleep curve and blink (The first Press CLOCK button, blinking . Within 5 seconds, pressing +or - button entering will display according to the initial curve setting value of original Ÿ...
  • Page 9 OPERATIONS OPERATIONS Emergency operation 17)Combination of "+" and "-" buttons: About lock Press "+ " and "-" buttons simultaneously to lock or unlock the keypad. If the remote controller is locked, is displayed. In this case, pressing any button, If the wireless remote control is lost or broken, please use the manual switch button. blinks three times.
  • Page 10: General Instructions For Installation

    Once again, the Onida / dealer's Technician will ensure optimal installation of the ODU for Locating the Indoor Unit you. However, the following information will •...
  • Page 11: Installation Sketch

    GENERAL INSTRUCTIONS FOR INSTALLATION SKETCH INSTALLATION • Avoid long and complicated routing between the IDU and ODU, as shown in the three adjacent figures. • Too long • Too high • Too many bends • The ODU must be placed on strong frame or support.
  • Page 12: Installation

    INSTALLATION INSTALLATION Connecting Indoor and Outdoor Electric Wires Installation of Indoor Unit 1.Open the front panel. 1) Mounting plate should be installed horizontally. As the water tray's outlet for the indoor 2.Remove the wiring cover and wire clamp.Make the power connection cord pass unit is two-way type, during installation, the indoor unit should slightly slant to water through the hole at the back of indoor unit.
  • Page 13 INSTALLATION INSTALLATION The piping can be output from right, right rear, Ÿ left or left rear. Installation of Out door Unit 1) When routing the piping and wiring from the left or 1) Remove the handle on the right side plate of outdoor unit. right side of indoor unit, cut off the tailings from the 2) Take off wire clamp.
  • Page 14: Take Care Of Your Air Conditioner

    TAKE CARE OF YOUR TAKE CARE OF YOUR AIR CONDITIONER AIR CONDITIONER Caution Installation and Maintenance for Healthy filter Disconnect the power supply before cleaning and maintenance. Ÿ 1) Press the clasp as shown by arrow (1) to loosen the Do not splash water on the units for cleaning, as electric shocks may occur.
  • Page 15: Precautions To Be Taken

    4) Make sure the installation support for outdoor unit is in good condition. If it’s • Don't change setting unnecessarily. damaged, please contact ONIDA appointed maintenance center. If there is rust on the outdoor unit, please apply some paint to the rusty spot to avoid spreading. BE CAREFUL when painting.
  • Page 16: Trouble Shooting Chart

    TROUBLE SHOOTING CHART TROUBLE SHOOTING CHART Caution The air conditioner is not expected to be serviced by users. Incorrect repair may Troubleshooting Phenomenon cause electric shock or fire, so please contact an authorized service center for professional service. The following checks prior to contact may save your time and Cooling/Heating effect is poor: Is temperature setting appropriate? Ÿ...
  • Page 17: Installation And Satisfaction Report

    INSTALLATION & SATISFACTION TROUBLE SHOOTING CHART REPORT Customer Name : Address Troubleshooting Phenomenon Indoor unit cannot deliver air. 4 In DRY mode, the indoor fan will stop Phone[O] Ÿ blowing air for 3-12 minutes in order to avoid condensate being vaporised again. Unit Model Unit Serial Number Dealer Name...
  • Page 18: Warranty Terms & Conditions

    WARRANTY TERMS AND CONDITIONS M/S. MIRC ELECTRONICS LTD, WARRANTS THIS ONIDA AIR CONDITIONER[(except the front grill, knobs, remote unit and add-on plastic parts) TO THE ORIGINAL PURCHASER TO BE FREE FROM DEFECTS IN MATERIALS AND WORKMANSHIP WITHIN ONE YEAR FROM THE DATE OF PURCHASE AS PROVIDED IN THE WARRANTY REGISTERATION CARD.
  • Page 19: Preventive Maintenance Service Coupon

    Preventive Maintenance Service Customer Identification 8. It shall be the absolute discretion of the company to a) effect the repairs or replacement of parts Number: whether at the site of installation or at any service centre, and b) have the job attended to either by the Preventive Maintenance Service 1 Date: ________ Company's service personnel or its authorised dealer...
  • Page 20: Warranty Card(Customer Copy)

    We welcome your Valuable Suggestions, if any, to Improve our Products and Services : FOR OFFICE USE ONLY Customer Code: Branch: Mirc Electronics Ltd. For Other Details on Our Products & Services Log On To www.onida.com Note: Company Will Not Be Responsible For The Loss Of This Form During Transit.
  • Page 21: Warranty Card(Service Center Copy)

    Mirc Electronics Ltd. Mirc Electronics Ltd. For Other Details on Our Products & Services Log On To www.onida.com For Other Details on Our Products & Services Log On To www.onida.com Note: Company Will Not Be Responsible For The Loss Of This Form During Transit.
  • Page 22 BUSINESS REPLY ENVELOPE ONIDA CUSTOMER RELATION CENTRE Adonis Electronics Pvt Ltd. Onida House - II Mukund Ground Floor, Mahal Industrial Estate, off. Mahakali Caves Road, Andheri East, Mumbai, Maharashtra, India - 400093...
