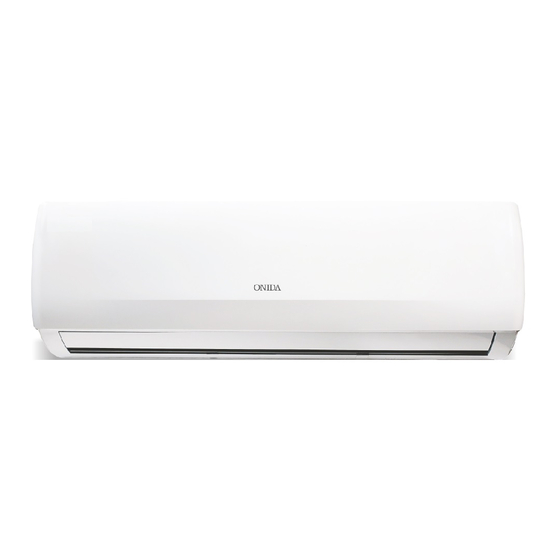

Model: INV18ELE7
AIR CONDITIONERS
The unit displayed is for representational purposes only. Actual unit may vary.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Onida INV18ELE7
Summary of Contents for Onida INV18ELE7
- Page 1 Post / Visit Post the Warranty Registration Card & Service Centre Model: INV18ELE7 Copy or Visit the Nearest Service Centre. As per Government of India’s E-Waste (Management and Handling) Rules, 2011(effective from May 1st, 2012) the product purchased by you is to be considered as E-Waste and cannot be disposed off with your general household waste.
- Page 2 Dear customer Congratulation on buying ONIDA Air Conditioner. Y our Air Conditioner comes with ONIDA Guarantee of Quality as detailed in the manual. ONIDA takes great pride in providing its customers with state- of-the-art products that adheres to international quality standards.
-
Page 3: Table Of Contents
CONTENTS Salient Features Inside Overview Indoor Unit Display Remote Overview Operations Notices for installation General Instructions for Installation Installation Sketch Installation Take care of your Air Conditioner Precautions to be taken Trouble Shooting Chart Installation and Satisfaction Report Warranty Terms & Conditions Preventive Maintenance Service Coupon Warranty Card(Customer Copy) Warranty Card(service Center Copy) -
Page 4: Salient Features
SALIENT FEATURES Model Code : INV18ELE7 • Aesthetics:- a) Unique Elegant Model with High EER b) Sleek Indoor Unit • Performance:- a) Imported High BTU Tropicalised Compressor b) Trapezoidal Inner Grooved Tube c) Large L - Shaped Condenser Coil d) High RPM Fan Motor with High Static •... -
Page 5: Inside Overview
INSIDE OVERVIEW INDOOR UNIT DISPLAY INDOOR UNIT Display on the indoor unit. For the icon of LED windows, only relevant icons will light up with their displays on. Return warm Air in Front panel Display SET TEMP SET TEMPERATURE( C) AUTO TURBO COOL... -
Page 6: Remote Overview
REMOTE OVERVIEW REMOTE OVERVIEW Replacement of Batteries 1) ON/OFF Press it to start or stop operation. 1) Remove the battery cover plate from the rear of the remote controller. (As shown in 2) MODE the figure) Press it to select operation mode(AUTO/COOL/DRY/FAN/HEAT) 3) ‘’... -
Page 7: Operations
OPERATIONS OPERATIONS 20) Up & down swing icon: is displayed when pressing the up & down swing button. Press this button again to clear the display. 21) Left & right swing icon: is displayed when pressing the left & right swing button. Press this button again to clear the display. - Page 8 OPERATIONS OPERATIONS 1) ON/OFF Press this button to turn on the unit. Press this button again to turn off the unit. 2) MODE Each time you press this button,a mode is selected in a sequence that goes from AUTO, COOL, DRY, FAN , and HEAT *, as the following: Ÿ...
- Page 9 OPERATIONS OPERATIONS to" ",displays the ambient temperature, 5s later or within 5s, it receives other remote Displayer indicator light control of indoor unit control signal that will return to display the setting temperature. if the users haven't Special selection button: for those users who do not want light at night. set up the temperature displaying status, that will display the setting temperature.
-
Page 10: Notices For Installation
Safety Requirements For Electric Appliances your airconditioner. While your Onida / Dealer's Technician will be happy to guide you 1. The power supply should be used the rated voltage and AC exclusive circuit, on the best location for your airconditioner, the power cable diameter should be satisfied. - Page 11 The heat removed from the room is expelled to the atmosphere through the outdoor unit. • Too long Once again, the Onida / dealer's Technician will ensure optimal installation of the ODU for • Too high you. However, the following information will •...
-
Page 12: Installation Sketch
INSTALLATION INSTALLATION SKETCH INDOOR UNIT 1. Fitment of mounting plate The mounting plate should be fitted on the structural part of wall on which indoor unit is to be installed. 2. Drill two holes at a distance of 450 mm between them for the expansion bolts. 150mm or more to ceiling Installation plate Indoor unit outline... -
Page 13: Installation
INSTALLATION INSTALLATION Discharge the air of the units: n Installation of indoor unit After putting the pipe assembly through It can used as vaccum pump. Liquid closing valve Liquid connecting pipe Cap the wall, attach the indoor unit to the Remove screw cap of closing valve and mounting plate on the wall as shown in gas charging hole;... - Page 14 INSTALLATION INSTALLATION...
-
Page 15: Take Care Of Your Air Conditioner
TAKE CARE OF YOUR PRECAUTIONS TO BE TAKEN AIR CONDITIONER Do's ( • Seal all air gaps in the room • Choose the right temperature to avoid over cooling • Ventilate the room regularly. • Switch off the power supply if not in use for long. •... -
Page 16: Trouble Shooting Chart
INSTALLATION & SATISFACTION TROUBLE SHOOTING CHART REPORT Customer Name : Address Troubleshooting Phenomenon Indoor unit cannot deliver air. In HEAT mode, when the temperature of Phone[O] Ÿ indoor heat exchanger is very low, that will stop deliver air in order to prevent cool air. Unit Model Unit Serial Number Dealer Name... -
Page 17: Warranty Terms & Conditions
WARRANTY TERMS AND CONDITIONS M/S. MIRC ELECTRONICS LTD, WARRANTS THIS ONIDA AIR CONDITIONER[(except the front grill, knobs, remote unit and add-on plastic parts) TO THE ORIGINAL PURCHASER TO BE FREE FROM DEFECTS IN MATERIALS AND WORKMANSHIP WITHIN ONE YEAR FROM THE DATE OF PURCHASE AS PROVIDED IN THE WARRANTY REGISTERATION CARD. -
Page 18: Preventive Maintenance Service Coupon
Preventive Maintenance Service Customer Identification 8. It shall be the absolute discretion of the company to a) effect the repairs or replacement of parts Number: whether at the site of installation or at any service centre, and b) have the job attended to either by the Preventive Maintenance Service 1 Date: ________ Company's service personnel or its authorised dealer... -
Page 19: Warranty Card(Customer Copy)
We welcome your Valuable Suggestions, if any, to Improve our Products and Services : FOR OFFICE USE ONLY Customer Code: Branch: Mirc Electronics Ltd. For Other Details on Our Products & Services Log On To www.onida.com Note: Company Will Not Be Responsible For The Loss Of This Form During Transit. -
Page 20: Warranty Card(Service Center Copy)
Mirc Electronics Ltd. Mirc Electronics Ltd. For Other Details on Our Products & Services Log On To www.onida.com For Other Details on Our Products & Services Log On To www.onida.com Note: Company Will Not Be Responsible For The Loss Of This Form During Transit. - Page 21 BUSINESS REPLY ENVELOPE ONIDA CUSTOMER RELATION CENTRE Adonis Electronics Pvt Ltd. Onida House - II Mukund Ground Floor, Mahal Industrial Estate, off. Mahakali Caves Road, Andheri East, Mumbai, Maharashtra, India - 400093...
