Assembly
Step 3: Seat

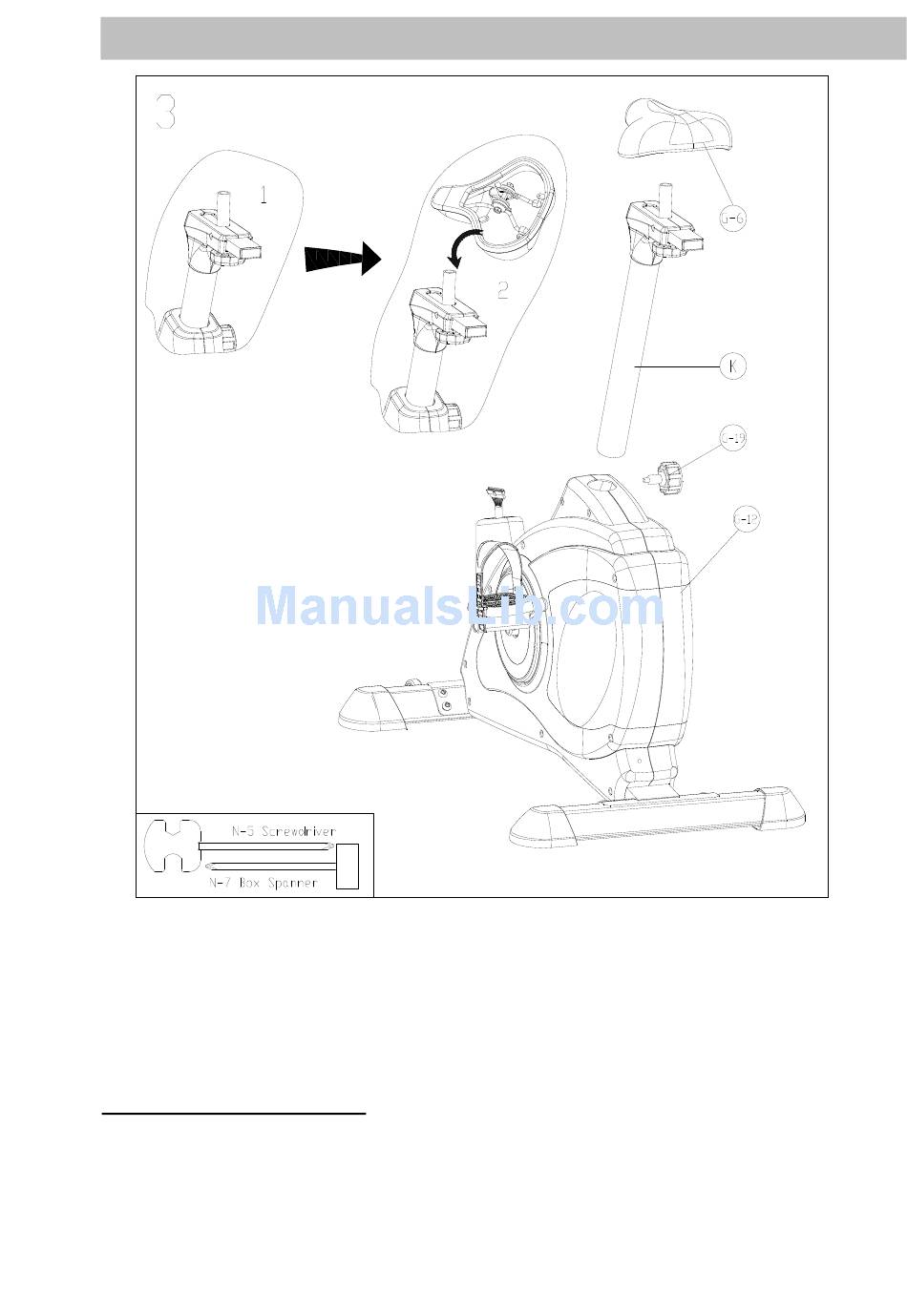

Fix the seat (G-6) onto the seat support tube (K) as per the drawing above.
The seat can be adjusted horizontally according to your personal need (arm- and leg-length) by
loosing and pulling out the knob (L-3), sliding the seat slider to the desired position and fixing the
knob (L-3) again properly. Loose the pop pin (G-19) on the main frame and slide the seat post (K)
onto the rear stem of the main frame (G-12) and secure with the pop pin (G-19) in a proper height.
The seat should be adjusted up and down, backward and frontward to fit the user's personal needs.
Properly fix the above connections in order to avoid injuries caused by a loose seat.
How to use the pop pin (G-19):
The seat support tube can be fixed at various heights by loosing and pulling out the pop pin (G-19),
adjusting the support tube to the desired height and then fix the pop pin again properly through one
of the drilled holes.
Always pay attention to the markings for min. and max. height adjustments on the seat post (K).
The seating height is correct when the knee is slightly bent with the pedal vertically downwards and
the foot parallel to the floor.
