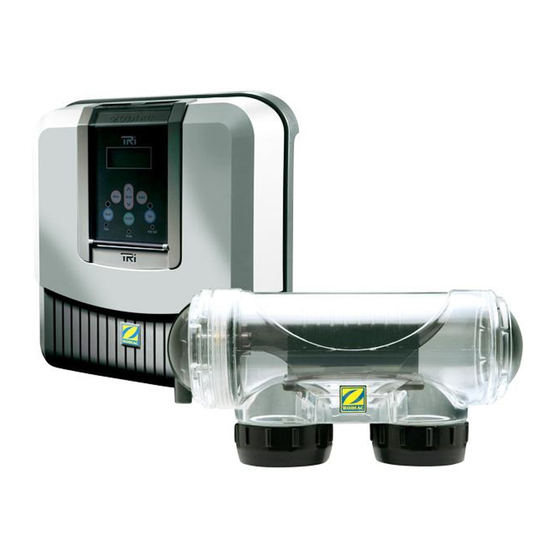

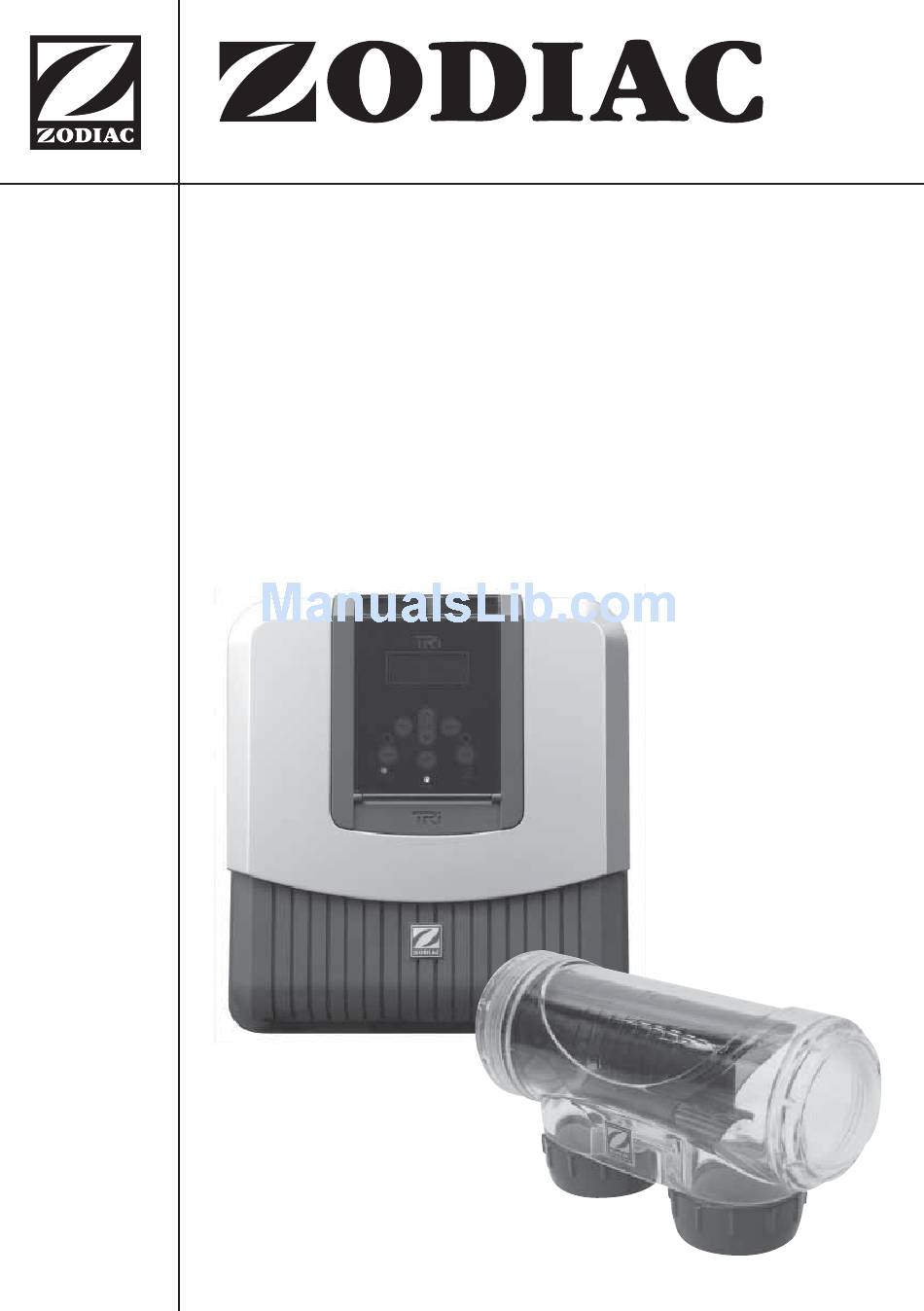

- Page 1 TRI CHLORINE GENERATOR INSTRUCTION MANUAL AND WARRANTY CARD...
- Page 2 THIS KIT CONTAINS: Part: Qty: Description: TRi Power pack Chlorine generating cell Power pack bracket Reducing bushes...
- Page 3 WELCOME TO ZODIAC Congratulations on your purchase of a product from the Zodiac range of pool care products. Zodiac products are designed to let you spend more time enjoying your pool and less on maintenance. IMPORTANT INFORMATION YOU MUST READ THIS INFORMATION BEFORE INSTALLATION.
- Page 4 (GFCI). For swimming pools, Australian standards recommend a minimum of 1 Part Per Million (ppm) of free available chlorine must be maintained at all times. Service to Zodiac equipment should only be carried out by qualified and authorized pool professionals.
- Page 5 To avoid accidental contact with lawn mowers and hedge trimmers, power cords should remain within sight and above ground at all times. The Zodiac TRi Power pack must not come into contact with water and should be installed at least 3 metres from the inside wall of your swimming pool.
- Page 6 INSTALLATION GUIDE The following steps will help you get up and running with your new Zodiac TRi Chlorine generator. POSITIONING THE POWER PACK 1. Locate a suitable space for the power pack bracket. It should be installed no further than 1.8 meters away from the cell - ideally in a filtration shed or close to the filtration equipment.
- Page 7 USING INBUILT CLOCK AND TIMERS When it comes to chlorination, every pool is different. To get what’s right for you, you will need to set the unit’s clock and timers. SETTING THE CLOCK 1. Switch power on. 2. Wait for the start-up sequence to complete. 3.
- Page 8 The output level can be set as described in ‘Setting the Chlorine Output.’ NOTE: For safety reasons, the TRi chlorine generator will continually dose chlorine for a maximum of 30 hours if left running with no ‘OFF’ time – unless connected to en external controller. After this time the TRi will switch to ‘OFF’.
- Page 9 USING INBUILT CLOCK AND TIMERS To program the timer: 1. Press the button. 2. Press button to move arrow to ‘SET TIMERS’. 3. Press to enter the ‘SET TIMERS’ menu. 4. Press to select the timer you wish to set. (Timer 1 or Timer 2) 5.
- Page 10 If the chlorine generator is turned ON, and the external timer fails to switch the mains power off within 24 hours, the Zodiac TRi will automatically stop chlorinating in order to prevent over chlorination. To set the chlorine generator to run from an external clock: 1.
- Page 11 CHLORINE OUTPUT LEVELS SETTING THE CHLORINE OUTPUT The amount of chlorine required by your pool is dependent on a number of factors including the size of the pool, the number of users and the climate. Output will appear as a percentage on the screen readout, monitor the level according to the reading over time will help ensure optimum output.
- Page 12 CORRECT SETTINGS FOR YOUR TRI CONTROLLED POOL...
- Page 13 CONNECTING TO A CONTROLLER If you use a Master Control Device (MCD) to control your pool you will need to configure your TRi Chlorine generator to allow “communication” between the two. You must set the controller type on the TRi before making the wiring connection.
- Page 14 Before any wiring connections/disconnections ensure mains power is removed from both the controller and the Zodiac TRi unit. When connected to a controller, the TRi Chlorine generator acts as the ‘slave’ - responding to requests. This means timer settings are ignored and the output settings cannot be changed, although all other ‘menu’...
- Page 15 CONNECTING TO A CONTROLLER 3. Remove the lower cover from the TRi unit. NOTE: If using either pH upgrade or PRO unit – carefully disconnect the ribbon cable from the TRi unit. 4. Remove the small white bung closest to the centre of the lower panel of the TRi unit.
- Page 16 CONNECTION TO CONTROLLER FOR POOL/SPA COMBINATIONS To connect a Zodiac TRi unit to Pool or Spa Valves, you will need to make a “splice” into the control lines from the Controller, located inside the controller itself. For further information, consult the installation manual of the Controller...
- Page 17 Note: Low or Winter mode cannot be selected when TRi is being controlled by an external controller. AUTOMATIC SETTING The Zodiac TRi can be connected to the valves of an automatic pool/spa system. When the input from the valves is set to ‘Low’ the TRi will automatically revert to ‘Low’...
- Page 18 THE BOOST SETTING At times your pool may require a larger than normal application of chlorine. The Boost function is used to rapidly add chlorine. In BOOST or “Superchlorinate” mode, output settings are temporarily overridden and the chlorine generator runs for 24 hours at 100% Chlorine Production.
- Page 19 HELP AND TROUBLESHOOTING The Zodiac TRi chlorine generator automatically provides a number of inbuilt warnings that can help identify problems and offer solutions. To access the HELP menu: 1. Press the button. 2. Using the buttons, scroll to the ‘HELP/DIAG’ menu.
- Page 20 MAINTENANCE To keep your TRi Unit in the best possible condition it is recommended regular maintenance should be performed. INSPECTING AND CLEANING THE ELECTRODE In areas that experience calcium hardness the TRi electrode will benefit from cleaning. To clean your electrode: 1.
- Page 21 ERRORS AND WARNINGS. WHAT THEY MEAN. NO FLOW Diagnosis: Insufficient water flow in the cell. This could mean the circulation pump has ceased to function, or the filter needs cleaning. The chlorine output will be turned off at this time. CHECK SALT Diagnosis: Salt level is between 3000 and 4000 ppm, depending on the water temperature.
- Page 22 TROUBLESHOOTING Additional information about this product can be found at zodiac.com.au For further information and assistance please consult your local pool professional. Your Local Dealer:...
- Page 23 WARRANTY TRi Saltwater Chlorine generator Warranty* Your Zodiac TRi Saltwater Chlorine generator has been manufactured with the greatest of care and from the best available materials. Please refer to the fine print should you need to make a warranty claim.
- Page 24 ZODIAC WARRANTY TERMS AND CONDITIONS Subject to the terms and conditions set out below, Zodiac Group Australia Pty Ltd (ABN 87 002 641 965) (“Zodiac”) agrees to repair or replace at Zodiac’s cost the Zodiac product which this warranty card accompanies (“the Product”), and any Zodiac component supplied with it, originally...
- Page 25 Replacement or repair of the Product or a part does not extend or restart the Warranty Period(s). Zodiac replacement parts come with separate warranties for the part itself. Alternatively Zodiac may, in its sole discretion, elect to refund the purchase price paid in lieu of replacing or repairing a defective Product via their authorized dealer network.
- Page 26 (except for a breach of section 69 of the Trade Practices Act 1974 ) is limited, at Zodiac’s option, to the repair or replacement of the Product or the payment of the cost of having the Product repaired or replaced.
- Page 27 WARRANTY Freight Charges 12. Zodiac may, in its sole discretion, accept responsibility for the payment of freight to and from your chosen delivery address within Australia. In the event that no-one is available to sign for the goods being collected or delivered, a delivery fee may be charged and must be paid prior to any goods being returned to you.
- Page 28 Zodiac is a registered trademark of Zodiac Group Australia Pty Ltd ABN 87 002 641 965 ZODIAC CUSTOMER SERVICE CENTRE Zodiac Group Australia: 219 Woodpark Rd, Smithfield, NSW 2164 Australia Tel: 1800 688 552 Fax: 1300 781 688 Fax: +61 (0) 2 8786 6800 Email: aftersales@zodiac.com.au...
Need help?
Do you have a question about the TRI CHLORINE GENERATOR and is the answer not in the manual?
Questions and answers
HI MY ZODIAC TRI HAS GONE INTO A DIFFERENT LANGUAGE HOW DO I FIX THIS
To change the language settings on a Zodiac Tri Chlorine Generator:
1. From the home screen, press the button.
2. Use the arrow buttons to navigate to the "LANGUAGES" line, then press to display the list of languages.
3. Use the arrow buttons to select the desired language.
4. Press the button to confirm and save the selection.
The system will automatically return to the main menu after the change.
This answer is automatically generated

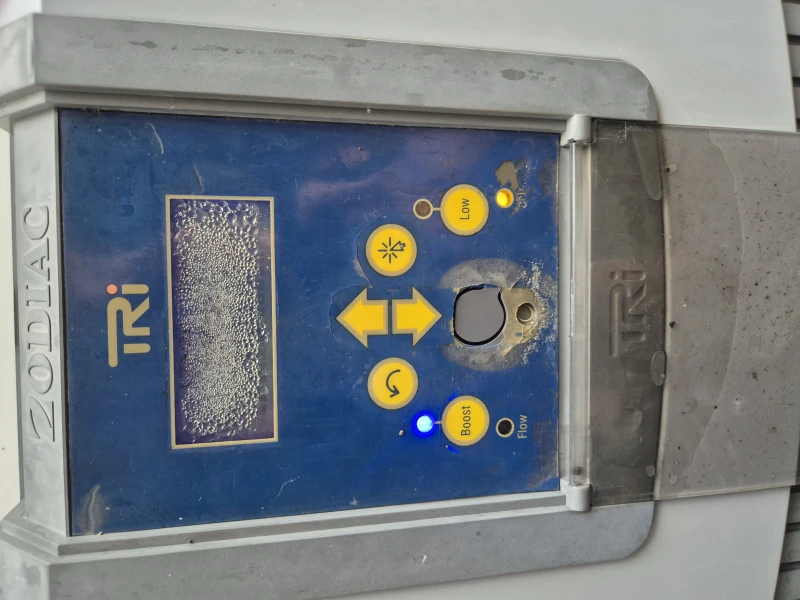

Hi There, the display on our Zodiac box has water droplets in it and we cannot read it, please refer to the picture. What should we do? Thank you
