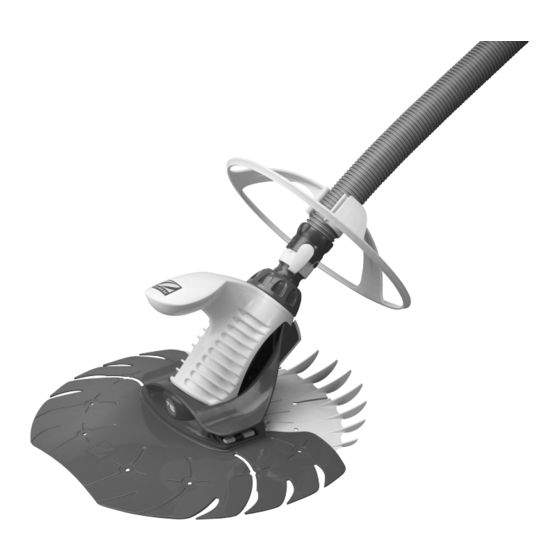

Summary of Contents for Zodiac Baracuda T5 duo

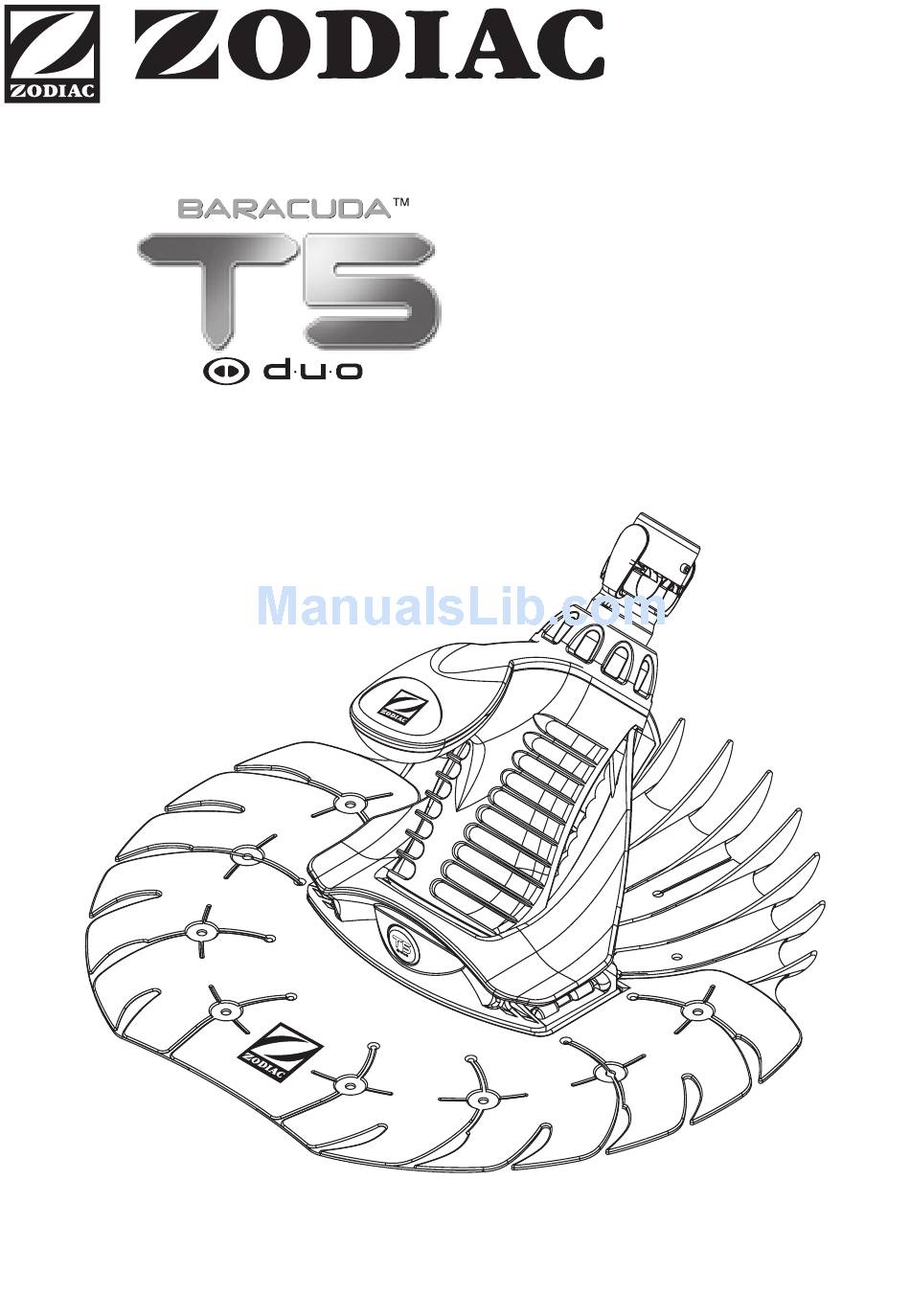

  • Page 1 Owner’s Manual...
  • Page 2 Backed by world famous Baracuda technology, the Zodiac T5 Duo is your assurance of top quality in terms of design and performance. All Zodiac products are designed so you can spend more time enjoying your pool and less on maintenance. The result is a simply sparkling pool.
  • Page 3 IMPORTANT INFORMATION YOU MUST READ THIS INFORMATION BEFORE INSTALLATION. ALWAYS READ THE OPERATION MANUAL BEFORE USING. REMEMBER TO REGISTER YOUR WARRANTY WITHIN FOURTEEN (14) DAYS FROM DATE OF PURCHASE.
  • Page 4 THIS KIT CONTAINS Qty: Description: Zodiac T5 Duo machine head, complete with disc set Hose protector mesh Genuine Zodiac long life Twist-Lock Hose Section Wheel Deflector Blue hose weight T5 Quick Connector AD Flow Valve Universal Weir Cuff Pool Pulse...

  • Page 5: Table Of Contents

    QUICK START INSTALLATION GUIDE PAGE SECTION 1 – INSTALLATION SECTION 2 – ACCESSORIES SECTION 3 – CARE AND MAINTENANCE SECTION 4 – POOL PULSE SECTION 5 – PARTS DIAGRAM SECTION 6 – TROUBLESHOOTING SECTION 7 – WARRANTY INFORMATION...

  • Page 6: Section 1 - Installation

    If return inlet directional fittings can’t be directed far enough down to prevent water flow affecting the natural movement of the Zodiac hose, you will need to install Zodiac return line diverters. These are available from your local Zodiac dealer.
  • Page 7 SECTION 1 – INSTALLATION With your preparation complete, you are ready to begin installation. If hoses are difficult to connect, soften and expand the plastic by dipping the end in a bucket of warm water. 1. Connect the first length of hose to the quick connector Step 1 joint male cuff.
  • Page 8 SECTION 1 – INSTALLATION WHEEL DEFLECTOR The Deflector ring can be used to help direct the T5 Duo around steps and other obstacles in the pool. Attach the ring by inserting the end of the cleaner hose through the outer ring and push the quick connector over the hose.
  • Page 9 SECTION 1 – INSTALLATION FINE TUNING CLEANER PERFORMANCE The T5 Duo™ cycles on/off with the pool filtration pump vacuuming and cleaning all surfaces randomly throughout the pool. The coverage of the cleaner is dependent on the pool’s shape and available water flow. In some applications, adjustments may be necessary to optimize cleaning coverage.
  • Page 10 You will only need to adjust the AD Flow Valve when and if a problem occurs. AD FLOW VALVE TROUBLE SHOOTING PROBLEM SOLUTION The Zodiac Pool Cleaner is performing too fast Reduce AD Flow Valve to Setting 1 and/or climbing above the level of the water. The Zodiac Pool Cleaner is performing slowly Increase AD Flow Valve to Setting 3 and/or is not climbing the pool walls.

  • Page 11: Section 2 - Accessories

    SECTION 2 – ACCESORIES ZODIAC ACCESSORIES: PART ILLUSTRATION PART NO. W22800 Return Line Diverter Use when no other return inlet directional fittings exist PART ILLUSTRATION PART NO. W70116 The Leaf Eater Use when heavy debris or leaf situations exist...

  • Page 12: Section 3 - Care And Maintenance

    SECTION 3 – CARE AND MAINTENANCE Sunlight, water and pool chemical create a harsh environment. With care and regular maintenance your Zodiac T5 Duo will remain in the best possible condition. To properly care for your unit: – 1. Remove the Zodiac T5 Duo from the pool before Super Chlorinating and reinstall at least four hours later.
  • Page 13 SECTION 3 – CARE AND MAINTENANCE CLEARING LARGE DEBRIS FROM THE DIAPHRAGM If the cleaner stops, turn off the suction pump for the cleaner, remove the cleaner from the water, and then check the diaphragm for blockage. 1. Turn cleaner over (see Figure 1). 2.
  • Page 14 SECTION 3 – CARE AND MAINTENANCE 4. Unscrew the outer extension tube from the cup assembly (see Figure 4). 5. Separate the inner extension Figure 4 tube and pull out the diaphragm (see Figure 5). Outer Extension Tube Cup Assembly 6.
  • Page 15 SECTION 3 – CARE AND MAINTENANCE 4. Insert the engine into the body and thread the handnut down tight (see Figure 9). Figure 9 5. Make sure the extension tube swivels freely by spinning it (see Figure 10). Figure 10...

  • Page 16: Section 4 - Pool Pulse

    SECTION 4 – POOL PULSE The Pool Pulse is a flow meter that measures the volume of water flowing ® through your Zodiac cleaner. It can be a useful diagnostic tool for when the cleaner isn’t running properly. The Pool Pulse can only be used if the filtration system is on.

  • Page 17: Section 5 - Parts Diagram

    SECTION 5 – PARTS DIAGRAM No. Part # Description 1 W78009 T5 Hand Nut 2 W78004 T5 Thrust Washer Upper/Lower 3 W78006 T5 Float Cover 4 W78014 T5 Float 5 W78003 T5 Main Body Cover 6 W78017 T5 Outer Extension Pipe Top 7 W78065 T5 Outer Extension Pipe Bottom 1 8 W78018...

  • Page 18: Section 6 - Troubleshooting

    SECTION 6 – TROUBLESHOOTING Note: If the automatic pool cleaner is climbing the walls excessively, that is an indication that the flow is too high. Review the installation procedures and ensure the AD Flow Valve is set at setting #1. For additional assistance contact our customer service department on 1800 688 552.

  • Page 19: Section 7 - Warranty Information

    5. Abrasion to the hose or damage caused by misuse or improper installation. 6. If parts other than ‘genuine’ parts as supplied by Zodiac have been used, or if repairs or alterations have been made without Zodiac’s authority.
  • Page 20 Zodiac is a registered trademark of Zodiac Group Australia Pty Ltd ABN 87 002 641 965 ZODIAC CusTOMER sERvICE CENTRE Zodiac Group Australia: 219 Woodpark Rd, Smithfield, NSW 2164 Australia Tel: 1800 688 552 Fax: 1300 781 688 Email: apac.aftersales@zmp-zodiac.com.
