SAS Connectors

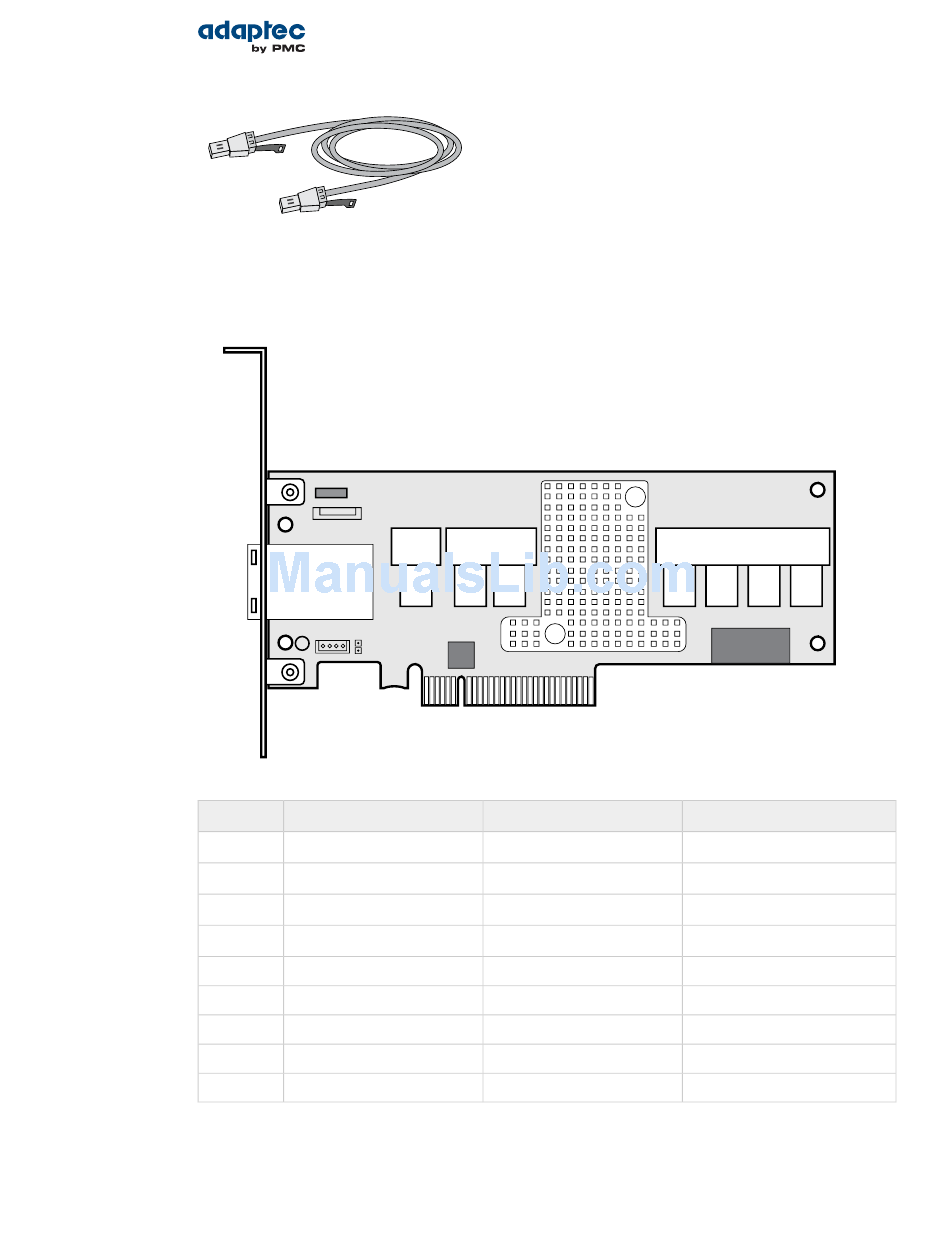

This section shows the internal and external SAS connectors.
I
H
Connector Wide-Port to Controller
A Yes
B Yes
C Yes
D Yes
E Yes
F Yes
G Yes
H Yes
I Yes
Proprietary and Confidential to PMC-Sierra, Inc.
Document No.: CDP-00301-01-A Rev A, Issue
Serial Attached SCSI (SAS) Expander Card Installation and User's Guide
A
B C
Wide-Port to Expander
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
D E F G
Direct-Attached to Disk
Yes – SAS ports 0-3
Yes – SAS ports 4-7
Yes – SAS ports 8-11
Yes – SAS ports 12-15
Yes – SAS ports 16-19
No
No
No
No
18
