Board Dimensions
This table shows lists the board dimensions of your SAS Expander Card AEC-82885T .
Dimension
Height
Length
PCB Thickness
Max Component Height, Top Side
Max Component Height, Bottom Side
Mechanical Information

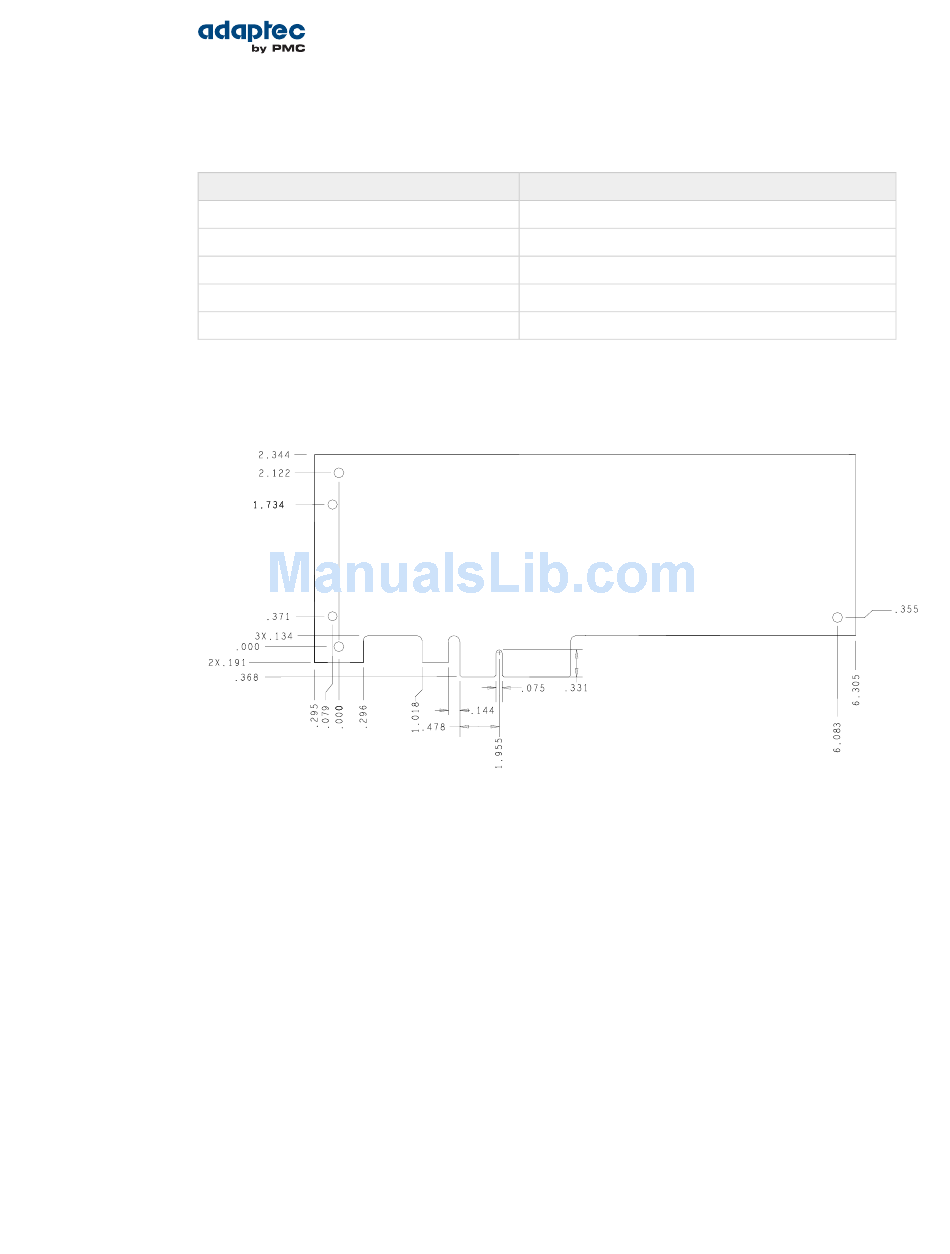

The figure below shows the physical layout of the SAS Expander Card AEC-82885T . All dimensions are
in inches.
Proprietary and Confidential to PMC-Sierra, Inc.
Document No.: CDP-00301-01-A Rev A, Issue
Serial Attached SCSI (SAS) Expander Card Installation and User's Guide
SAS Expander Card AEC-82885T
2.535"
6.00"
0.062"
0.570"
0.105"
14
