Installation & operating instructions
Isotherm INOX marine refrigerators

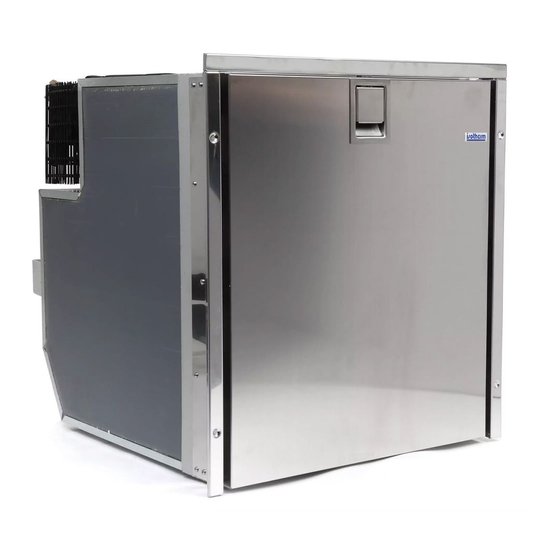

Type: DR 49 & DR 65
080429-LLG
Indel Webasto Marine S.r.l.
DRman.us.ind
Zona Artigianale
IT-61019 S. Agata Feltria (PU) - Italy
Tel +39 0541 848 030 Fax +39 0541 848 563
E-mail:info@indelwebastomarine.com
www.indelwebastomarine.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INOX DR 49 and is the answer not in the manual?

Questions and answers

Related Manuals for Isotherm INOX DR 49

Summary of Contents for Isotherm INOX DR 49

  • Page 1 Installation & operating instructions Isotherm INOX marine refrigerators Type: DR 49 & DR 65 080429-LLG Indel Webasto Marine S.r.l. DRman.us.ind Zona Artigianale IT-61019 S. Agata Feltria (PU) - Italy Tel +39 0541 848 030 Fax +39 0541 848 563 E-mail:info@indelwebastomarine.com...

  • Page 2: Table Of Contents

    Installation & operating instructions Table of contents Introduction General Safety and precautions Environmental markings Operation Temperature setting thermostat User tips Defrosting Maintenance Battery voltage sensor Installation instructions Ventilation Door front Electrical connections Electrical wire dimensions Inner light Wiring diagram Technical data Trouble shooting Installation dimensions...

  • Page 3: Introduction General

    They can withstand an angle of heel circuit interrupter”. up to 30°, for a short time. To ensure that your Isotherm Danger! Never touch bare electrical wiring fridge operates as effi ciently as possible, please follow connected to the AC power supply.

  • Page 4: Operation

    Many boats have a space which is intended for a fridge. - Load the food inside the refrigerator in such a way, air The Isotherm Cruise fridge has been designed to suit the can circulate to equalize the temperature. general dimensions normally used for this purpose.

  • Page 5: Door Front

    * Connect the red cable to the positive (+) terminal and the black to the negative (-) terminal. Use tab type terminals for the connection to the electronic unit and other cable connectors of suffi cient size for the cable size selected. * Do not connect the refrigerator direct to a battery charger.

  • Page 6: Technical Data

    R134a, fi lling amount is printed on the sticker inside the fridge. Fuse: 15 A for12 volt or 7,5 A for 24 volt respectively. Isotherm refrigerators fulfi l valid EMC directives and are CE-marked. 6 Fault fi nding Fault Possible cause...

  • Page 7: Installation Dimensions

    7 Installation dimensions Type D - AC/DC DR 49 INOX 15-3/4 20-7/8 19-7/8 20-7/8 DR 65 INOX 18-7/16 20-7/8 20-7/8 21-3/4 *) W x H = day opening, min dimensions More detailed drawings of the refrigerators can be seen on: www.indelwebastomarine.com...
  • Page 8 Notes: Indel Webasto Marine S.r.l. Indel Webasto Marine USA Inc. Zona Artigianale 3400 Gateway Drive, Unit # 107 IT-61019 S. Agata Feltria (PU) - Italy Pompano Beach, FL - 33069 Tel +39 0541 848 030 Fax +39 0541 848 563 Tel +1 954 984 8448 Fax +1 954 979 2533 E-mail:info@indelwebastomarine.com E-mail:info@indelwebastomarineusa.com...
