Isotherm CR 195 Installation And Operating Instructions Manual
Marine refrigerator/freezer
Hide thumbs
Also See for CR 195:
- Instruction manual (168 pages) ,
- Installation and usage instructions (248 pages) ,
- Installation and operating instructions (3 pages)
Advertisement
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Isotherm CR 195
Summary of Contents for Isotherm CR 195

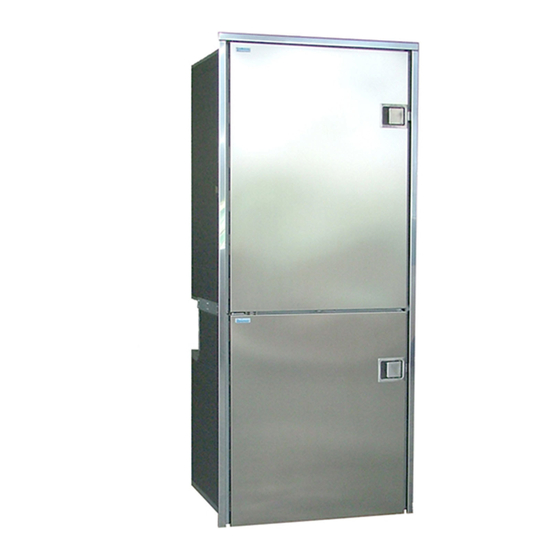

- Page 1 Marine Refrigerator/freezer CR 195 & CR 195 Stainless Steel-INOX Installation and operating instructions Indel Marine USA, Inc. 3400 Gateway Drive Unit 107 Pompano Beach, FL 33069 Tel +1 954 984 8448, +1 800 422 9711 Fax +1 954 979 2533 E-mail: info@indelmarineusa.com...
- Page 2 Contents Introduction General Safety and precautions Environmental markings Operation Temperature setting User tips Defrosting Maintenance Battery voltage sensor Installation instructions Ventilation Door front Electrical connections Electrical wire dimensions Inner light Technical data Trouble shooting Installation dimension drawings...
-
Page 3: Operation
They can withstand an angle of heel up to 30°, for a short time. anti-clockwise to both increase temperature and activate the To ensure that your Isotherm fridge operates as effi ciently as on-off switch at the end position, 0-position. A certain spring possible, please follow these general guidelines: resistance is recognized at the off position. -
Page 4: Maintenance
30° and for short periods in the foot for this purpose, use a 5/32” screw and nut and a ring even more. The compressors on CR 195 are attached by its rear cable shoe on the wire. -
Page 5: Technical Data
12 volt - 15 A, 24 volt - 7.5 A for each compressor Battery protection: Cut-out at 9.6 volt (21.3), cut-in at 10.9 volt (22.7) Isotherm refrigerators and freezers fulfi lls EMC directives, CE-marked 6 Fault fi nding chart Fault... - Page 6 Figures Fig. 1 Fig. 2 Fig. 3 Fig. 4 Ventilation principals Fig. 5 Fig. 6 Fig. 7 Wiring diagram for CR 195 - 12/24 VDC Note! No light in freezer compart- ment. 001084 Fig. 8...
- Page 7 Wiring diagram for CR 195 AC/DC Note! No light in freezer compart- ment. 000941-2 Fig. 9 7 Installation dimensions CR 195 & CR 195 INOX Fig. 10 2008-01-07/LLG CR195u...
