Installation & operating instructions

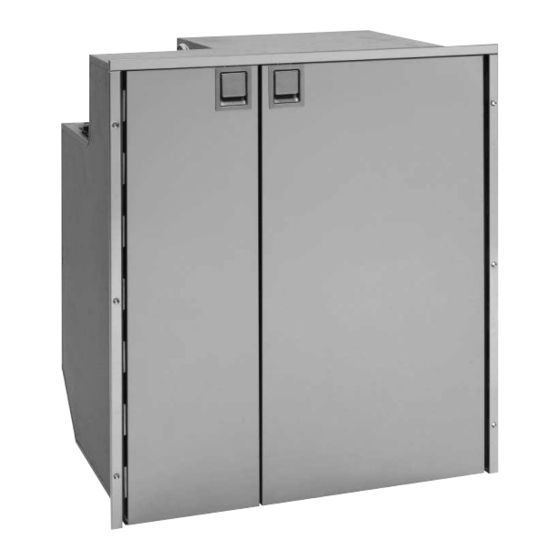

Isotherm Refrigerator/freezer CR 200
& CR 200 Stainless Steel-INOX
Indel Webasto Marine USA, Inc.
3400 Gateway Drive
Unit 107
Pompano Beach, FL 33069
Tel +1 954 984 8448, +1 800 422 9711
Fax +1 954 979 2533
E-mail: info@indelmarineusa.com
www.indelwebastomarineusa.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Isotherm CR 200
Summary of Contents for Isotherm CR 200

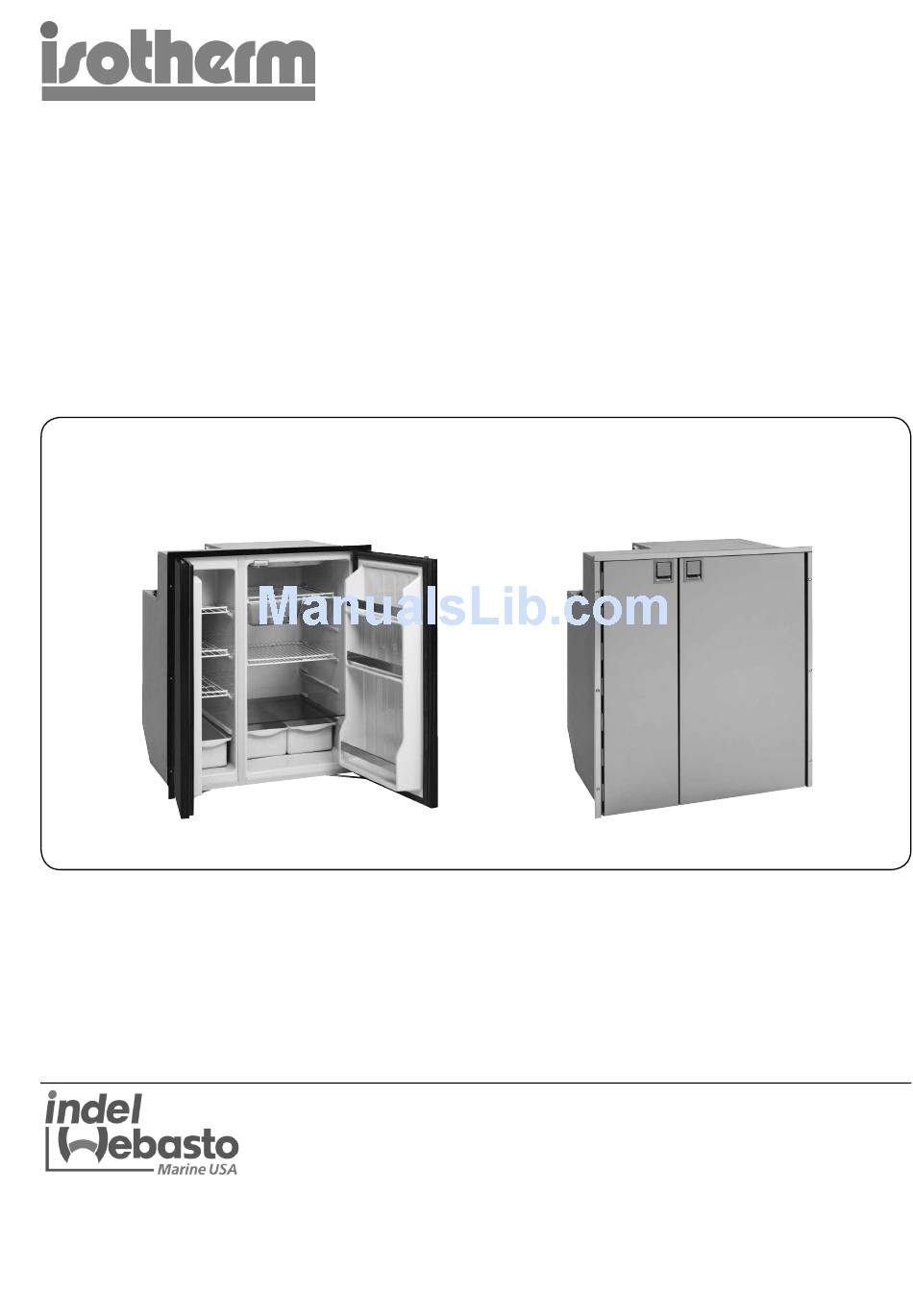

- Page 1 Installation & operating instructions Isotherm Refrigerator/freezer CR 200 & CR 200 Stainless Steel-INOX Indel Webasto Marine USA, Inc. 3400 Gateway Drive Unit 107 Pompano Beach, FL 33069 Tel +1 954 984 8448, +1 800 422 9711 Fax +1 954 979 2533 E-mail: info@indelmarineusa.com...
- Page 2 Contents Introduction General Safety and precautions Environmental markings Installation instructions Ventilation Electrical connections Wire dimensions Door panel Operation Temperature setting Defrosting Maintenance Battery voltage sensor Technical data Trouble shooting Installation dimension drawings...
-
Page 3: Installation Instructions
Isotherm refrigerators are specially designed to operate in tough The compressor should normally stand upright in the boat, but marine environments. They are fi tted with a fully hermetic, will operate at an angle of heel up to 30° and for short periods leak-free compressor, they offer the lowest possible power even more. -
Page 4: Operation
General AC/DC Both AC an DC power supply can be connected to the electronic When the refrigerator/freezer is switched on after it has been out unit at the same time. AC will be preferred power supply source of use, the freezer compartment will be cold rather quick but it will if that is the case. -
Page 5: Technical Data
5 Technical data Voltage: DC type 12/24 VDC AC/DC type 100-240VAC - 12/24VDC Current consumption: ~ 6 A on 12V (when the compressor is running) Average current consumption: 2.3 - 4.0 A on 12V (depending on ambient temperature 70 - 95°F) Current consumption in ”off”-pos.: 7 mA on 12 V Humidity:... - Page 6 Figures Fig. 1 Fig. 2 Fig. 3 Fig. 4 Ventilation principals Fig. 5 Fig. 6 Fig. 7 Wiring diagram for CR 200 - 12/24 VDC 001084 Fig. 8...
- Page 7 Wiring diagram for CR 200 AC/DC 000941-2 Fig. 9 7 Installation dimensions CR 200 & CR 200 INOX Fig. 10 2008-02-20/LLG CR200u-D...
