Bluetooth Connection Manual
SRP-350IIOBE
Thermal Printer
Rev. 1.00
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRP-350IIOBE and is the answer not in the manual?

Questions and answers

Related Manuals for BIXOLON SRP-350IIOBE

Summary of Contents for BIXOLON SRP-350IIOBE

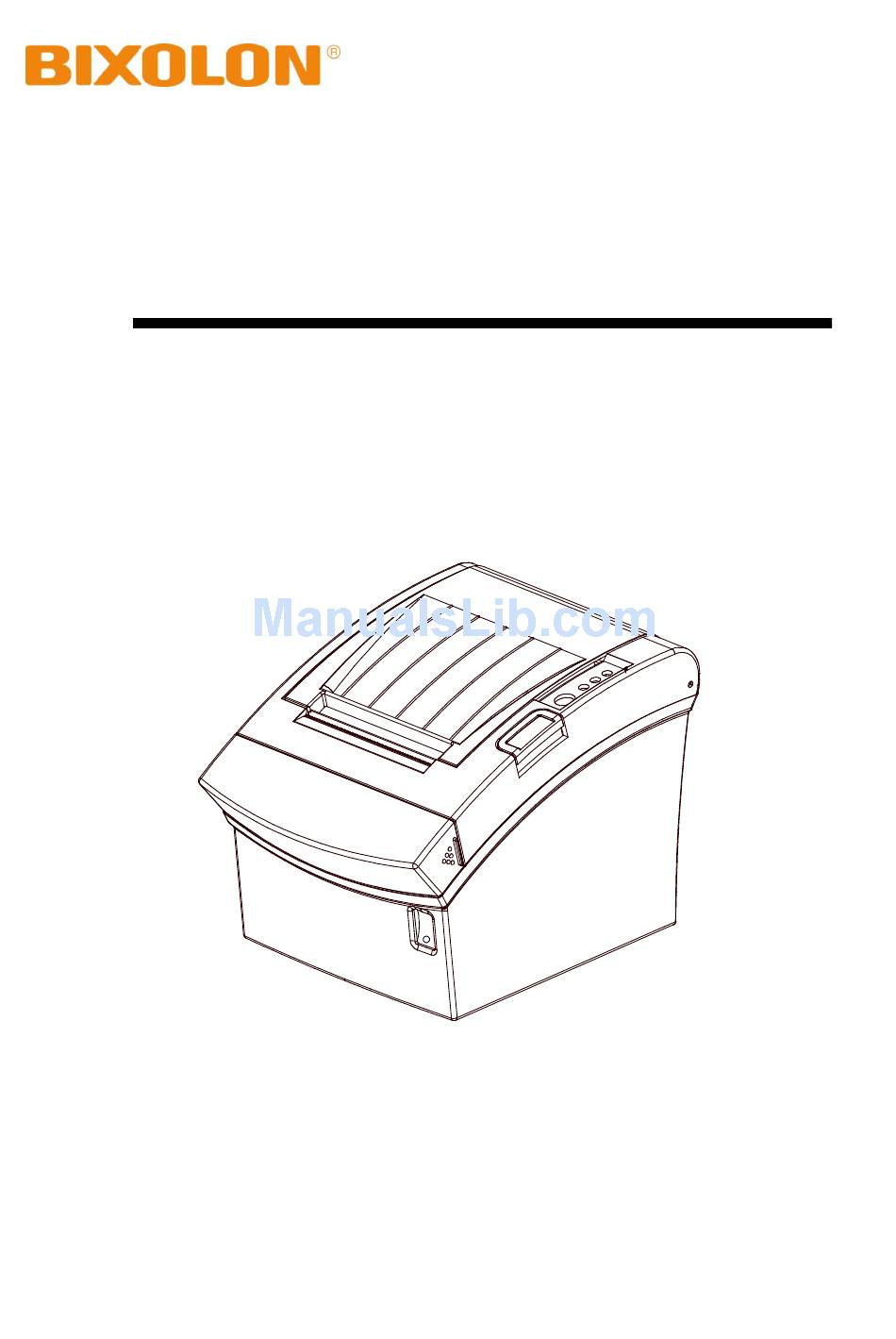

  • Page 1 Bluetooth Connection Manual SRP-350IIOBE Thermal Printer Rev. 1.00 http://www.bixolon.com...

  • Page 2: Table Of Contents

    SRP-350IIOBE ■ Table of Contents 1. Manual Information ......................3 2. Precautions ........................3 3. General Sequence for Bluetooth Connections ............3 4. Bluetooth Connection Instructions ................4 4-1 Connecting with an HP PDA (Device: iPAQ hx2700, OS: Windows Mobile 5.1.1702)4 4-2 Connecting with Bluetooth Dongle (BlueSoleil IVT Stack) .........

  • Page 3: Manual Information

    This Bluetooth Connection Manual provides information on the connection of Bluetooth- enabled devices (PDAs, PCs, etc.) with the printer. We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice.

  • Page 4: Bluetooth Connection Instructions

    SRP-350IIOBE 4. Bluetooth Connection Instructions This manual focuses on the use of the following devices. Please use this manual as a guide when using devices other than those listed here. - HP PDA (Device: iPAQ hx2700, OS: Windows Mobile 5.1.1702)
  • Page 5 SRP-350IIOBE 3) When activated, the Bluetooth button 4) Click “New”. turns green. Click the “Manager” button to connect to the printer. 5) Click “Explore a Bluetooth device”, 6) Click the printer icon from the Bluetooth devices displayed in the search results.
  • Page 6 SRP-350IIOBE 7) Select “Serial Port Profile” and click 8) Click “Finish”. “Next” 9) The printer shortcut is produced 10) Clicking the shortcut for 2 seconds brings up the function folder. Click “Connect”. - 6 - Rev. 1.00...
  • Page 7 SRP-350IIOBE 12) Input the Pass Key and click ”Enter” 11) The Pass Key window appears (if the printer security function is enabled). (Default Pass Key: 0000) 13) The shortcut changes to show a green indicator as shown below. - 7 -...

  • Page 8: Connecting With Bluetooth Dongle (Bluesoleil Ivt Stack)

    SRP-350IIOBE 4-2 Connecting with Bluetooth Dongle (BlueSoleil IVT Stack) 1) After purchasing Bluetooth Dongle, insert the CD in the PC and install BlueSoleil. 2) Connect Bluetooth Dongle to the USB port of the PC. 3) Click the BlueSoleil icon on the PC screen top.
  • Page 9 SRP-350IIOBE 6) Click right button of the mouse above the “Printer Icon” and select the “Pair Device”. 7) Enter the PIN Code in the Bluetooth Pass Key window. (Default Pass Key: 0000) 8) If the Pass Key (PIN Code) is correct and pairing is completed, a green check symbol appears next to the printer icon.
  • Page 10 SRP-350IIOBE 9) Click right button of the mouse above the “printer icon” and select “Connect -> Bluetooth Serial Port Service”. 10) When the connection is established, the icon turns green and a dotted line appears as shown in the image below.
