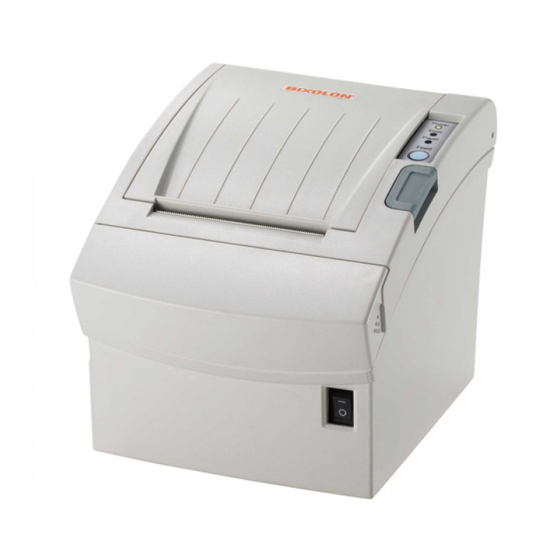

Bixolon srp-350ii thermal printer
Hide thumbs Also See for SRP-350II:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual , User Manual
Windows Driver Manual
SRP-350II
Thermal printer
Rev. 1.02
http://www.bixolon.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRP-350II and is the answer not in the manual?

Questions and answers

Related Manuals for BIXOLON SRP-350II

Summary of Contents for BIXOLON SRP-350II

  • Page 1 Windows Driver Manual SRP-350II Thermal printer Rev. 1.02 http://www.bixolon.com...

  • Page 2: Table Of Contents

    SRP-350II ■ Table of Contents 1. Manual Information ......................3 2. Operating System (OS) Environment ................3 3. Windows Driver Preparation ..................3 4. Windows Driver Installation ..................4 4-1 Installing on Windows XP / Server 2003 ..............4 4-1-1 Via Serial Port or Parallel Port ................4 4-1-2 Via USB Port ......................

  • Page 3: Manual Information

    Windows Driver according to PC operating system (OS). We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice.

  • Page 4: Windows Driver Installation

    4-1 Installing on Windows XP / Server 2003 4-1-1 Via Serial Port or Parallel Port 1) Double-click the Windows Driver installation file. 2) Click Next. 3) Select BIXOLON SRP-350II and a COM or LPT port to be used, and then click Next. Rev. 1.02 - 4 -...
  • Page 5 SRP-350II 4) Click Yes to reboot the PC. 5) Open the printer properties window in the Windows OS. ※ Control Panel – Printers and Faxes. 6) In the Ports tab, click Configure Port. ※ Pass this step if you selected a LPT port.
  • Page 6 SRP-350II 8) Click Print Test Page and check printing status. Proper installation of the driver is indicated if the test page is printed normally. Rev. 1.02 - 6 -...

  • Page 7: Via Usb Port

    SRP-350II 4-1-2 Via USB Port 1) Double-click the Windows Driver installation file. 2) Click Next. 3) Select BIXOLON SRP-350II and USB, and then click Next. Rev. 1.02 - 7 -...
  • Page 8 SRP-350II 4) Click OK. 5) Turn off the printer and then turn it on. The printer driver will be installed automatically. 6) Open the printer properties window in the Windows OS. ※ Control Panel – Printers and Faxes. 7) Click Print Test Page and check printing status.

  • Page 9: Installing On Windows Vista / Server 2008 / 7 / 8

    4-2 Installing on Windows VISTA / Server 2008 / 7 / 8 4-2-1 Via Serial Port or Parallel Port 1) Double-click the Windows Driver installation file. 2) Click Next. 3) Select BIXOLON SRP-350II and a COM or LPT port to be used, and then click Next. Rev. 1.02 - 9 -...
  • Page 10 SRP-350II 4) Click Yes to reboot the PC. 5) Open the printer properties window in the Windows OS. ※ Control Panel – Hardware and Sound – Device and Printers. 6) In the Ports tab, click Configure Port. ※ Pass this step if you selected a LPT port.
  • Page 11 SRP-350II 8) Click Print Test Page and check printing status. Proper installation of the driver is indicated if the test page is printed normally. Rev. 1.02 - 11 -...

  • Page 12: Via Usb Port

    SRP-350II 4-2-2 Via USB Port 1) Double-click the Windows Driver installation file. 2) Click Next. 3) Select BIXOLON SRP-350II and USB, and then click Next. Rev. 1.02 - 12 -...
  • Page 13 SRP-350II 4) Click OK. 5) Turn off the printer and then turn it on. The printer driver will be installed automatically. 6) Open the printer properties window in the Windows OS. ※ Control Panel – Hardware and Sound – Device and Printers.

  • Page 14: Windows Driver Settings

    SRP-350II 5. Windows Driver Settings The following functions can be configured after installing the Windows driver. 5-1 Layout 1) Open the Printer Properties window for the corresponding OS. 2) Click the “Preferences” button in the “General” tab. 3) Click “Paper” Tab.

  • Page 15: Paper Size

    SRP-350II 5-1-1 Paper Size Paper size of 80 x 297 mm is selected by default, and the following sizes can be selected. 80  40 mm 80  160 mm 80  3276 mm 80  80 mm 80  200 mm 80 ...

  • Page 16: Paper Type

    SRP-350II 5-1-2 Paper Type You can choose Receipt or Ticket as paper types. Receipt allows flexible paper length according to the data length. Ticket print in fixed length even the print data is short. Default setting is “Receipt”. Receipt Receipt allows flexible paper length according to the data length.

  • Page 17: Image Rotation

    SRP-350II 5-1-5 Image Rotation Image rotation is available for image data only and available in “Monochrome” mode. Rotation for device fonts or barcodes font is not supported. The color type will be changed to “Monochrome” mode automatically if this function is used in the color mode.

  • Page 18: Document Settings

    SRP-350II 5-2 Document Settings 1) Open the Printer Properties window for the corresponding OS. 2) Click the “Preferences” or “Printing Preferences” button in the “General” tab. 3) Click “Document Settings” Tab. 5-2-1 Send Command The Windows driver serves to receive the content for print from an application and send it to the printer.

  • Page 19: Cash Drawer / Internal Beep

    SRP-350II 5-2-2 Cash Drawer / Internal Beep To open a cash-drawer before printing, tick “Open before printing #1” or “Open before printing #2” and then click OK. To open a cash-drawer after printing, tick “Open after printing #1” or “Open after printing #2”...

  • Page 20: Nv Image

    SRP-350II 5-3 NV Image 1) Open the Printer Properties window for the corresponding OS. 2) Click the “Preferences” or “Printing Preferences” button in the “General” tab. 3) Click “NV Image” Tab. The position to print NV image stored in the printer can be set at the beginning and/or end of the document and beginning and end of each page.

  • Page 21: Barcode

    SRP-350II 5-4 Barcode 1) Open the Printer Properties window for the corresponding OS. 2) Click the “Preferences” or “Printing Preferences” button in the “General” tab. 3) Click “Barcode” Tab. Rev. 1.02 - 21 -...

  • Page 22: Barcode

    SRP-350II 5-4-1 1d Barcode Windows driver supports one-dimensional barcode fonts as shown in the following table. Barcodes can be printed on the printer by using following font names. Font Name Type (Symbology) Size (Point) Supported Characters Barcode1 UPC-A 20 / 40 / 60 / 80...

  • Page 23: Barcode

    SRP-350II 5-4-2 2d Barcode Windows driver supports two-dimensional barcode fonts as shown in the following table. Barcodes can be printed on the printer by using following font names. Font Name Type (Symbology) Size (Point) 2D-Code1 PDF417 2D-Code2 QR Code Detailed settings for two-dimensional barcode Select a Font Name and Type of two-dimensional barcode, and then click Properties.

  • Page 24: Utilities

    SRP-350II 5-5 Utilities 1) Open the Printer Properties window for the corresponding OS. 2) Click the “Preferences” or “Printing Preferences” button in the “General” tab. 3) Click “Utilities” Tab. Rev. 1.02 - 24 -...

  • Page 25: Vmsm

    SRP-350II 5-5-1 VMSM Refer to the VMSM manual contained in the CD for details. 5-5-2 Special Font Edit Utility The purpose of FontControlA font is not for text printing. It is used to define the printer command, assign the defined printer command to a specific ASCII character, and send it to the printer.

  • Page 26: Journal Viewer

    SRP-350II 5-5-3 Journal Viewer Journal is a function to save a copy of printed receipts. Copies can be saved without using journal printer with this function. Journal saves each printed document in a file and the saved file can be viewed by using this utility.

  • Page 27: Text Macro

    SRP-350II 5-5-4 Text Macro Text Macro is a utility to replace specific text with other text for printing. This function can be used only when using Device Fonts and it has no effect when using True Type Fonts. Detailed instructions are shown below.

  • Page 28: Image Macro

    SRP-350II 5-5-5 Image Macro Image Macro is a utility to replace certain text with a specified image for printing. This function is applicable only when using Device Fonts and it has no effect when using TrueType Fonts. Detailed instructions are shown below.
  • Page 29 SRP-350II 2) Click Add Image, select a bitmap file (*.bmp), and click Open. 3) Enter the name to be added to the list, select a dithering type, and click OK. Rev. 1.02 - 29 -...
  • Page 30 SRP-350II 4) Click Add Text Key and set the image to replace the text key. Enter the text in Change- Text and select the image to replace the corresponding text in Replace-Image. Rev. 1.02 - 30 -...

  • Page 31: Nv Image Download

    SRP-350II 5) Click OK. 5-5-6 NV Image Download Refer to the NV Image manual contained in the CD for details. Rev. 1.02 - 31 -...

  • Page 32: Windows Driver Specifications

    SRP-350II 6. Windows Driver Specifications 6-1 Font This Windows driver supports various fonts in the following table. Printing using these fonts is faster than using Windows fonts provided by the operating system. Printer Font (Device Fonts) Name Font Size (dot)
  • Page 33 SRP-350II Printer Fonts are defined as follows. 1) FontA1x2 - ANSI Character code support (Code Page 1252) - Character size (dot): 12 x 24 (double height) - Sizes (point): 19 2) FontA1x2[Ext.] - IBM expansion Character code support (Code Page 437)

  • Page 34: Special Functions

    SRP-350II 6-2 Special functions This Windows driver supports the special functions as shown in the following table. Select FontControl font first and use the characters in the table to use the special functions. Take care as this function is not for printing general texts.
  • Page 35 SRP-350II 1) Example Select FontControl font and send 6 for “LF” (Line Feed) operation (instead of printing character “6”). 2) FontControl font functions. Font Name Special Functions Font Size (point/dot) Open Drawer 1/2 Cut receipt Cut receipt(without paper feeding) FontControl Justification (Left/Center/Right) (9.5 / 12x24)

  • Page 36: Use Of Windows Driver

    SRP-350II 7. Use of Windows Driver 7-1 Use of Visual Basic This section contains example codes to control the printer (BIXOLON SRP-350II) using Windows driver with Visual Basic. Sample codes contained in the CD. 7-1-1 Windows Driver Selection The following example code explains how to select “BIXOLON SRP-350II” Windows driver.

  • Page 37: Text Printing

    SRP-350II 7-1-2 Text Printing The following example code explains how to print texts using Windows Fonts and Device Fonts. ‘Print in Windows font Printer.FontSize = 9 Printer.FontName = “Arial” Printer.Print “Arial Test” ‘Print in printer font Printer.FontSize = 9.5 Printer.FontName = “FontA1x1”...

  • Page 38: Use Of Wordpad

    Launch WordPad, set the printing related options as follows, and test the printer with WordPad. - Select printer Select “Print” from the “File” menu, and select the printer (BIXOLON SRP-350II). - Set paper size, orientation, margin, etc. Select the “Page Setting” from “File” menu, and set paper size, orientation, and margin.
