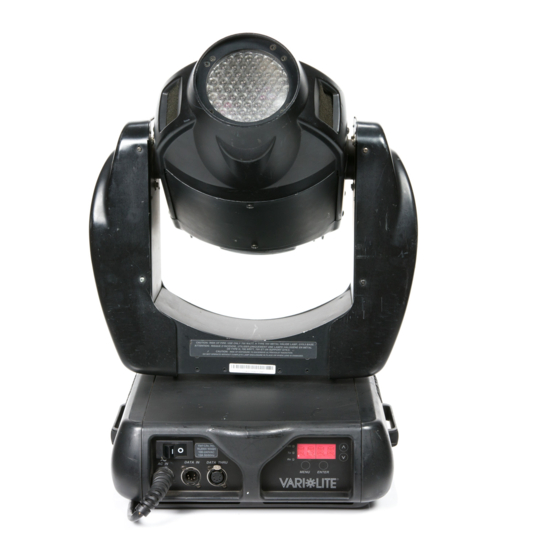

Vari Lite VL2000 User Manual

Wash luminaire
Hide thumbs Also See for VL2000:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
VL2000
™
Wash Luminaire
02.9671.0001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VL2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Vari Lite VL2000

Summary of Contents for Vari Lite VL2000

  • Page 1 VL2000 ™ Wash Luminaire 02.9671.0001...
  • Page 2 , and the Vari-Lite Asterisk are also trademarks owned by Vari-Lite, Inc. VARI LITE® products are protected by one or more of the following patents, and other pending patent applications worldwide: US Patents No. 5,959,758; 5,728,994; 5,590,954;5,367,444; 5,329,431; 5,209,560; 5,186,536; 5,073,847; 5,010,459; 4,980,806;...
  • Page 3 How To Obtain Warranty Service A copy of the Vari-Lite, Inc. Limited Warranty was included in the shipping package for this VARI LITE® product. To obtain warranty service, please contact customer service at 1-877-VARI-LITE (1-877-827-4548) or customerservice@vlint.com and request a Return Material Authorization (RMA) for warranty service.
  • Page 4 VARI LITE - VL2000™ W ’ UMINAIRE ANUAL Compliance Notice This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial environment.
  • Page 5 WARNING: INSTRUCTIONS FOR CONTINUED PROTECTION AGAINST FIRE 1. VARI LITE® luminaires have been designed for use only with certain Philips and Osram HID lamps. Note lamp type (MSR400, MSR575HR etc.) before replacing lamps. Installing another type of lamp may be hazardous.
  • Page 6 INSTRUCTIONS FOR CONTINUED PROTECTION AGAINST EXCESSIVE EXPOSURE TO UV RADIATION 1. Many VARI LITE® luminaires use an HID type lamp that produces UV radiation. DO NOT look directly at lamp. 2. It is hazardous to operate luminaires without lens or shield. Shields, lenses, or ultraviolet screens shall be changed if they have become visibly damaged to such an extent that their effectiveness is impaired.
  • Page 7 1. VARI LITE®-Scheinwerfer eignen sich ausschließlich für trockene Standorte. Regen oder Feuchtigkeit können die Scheinwerfer beschädigen. 2. Unterbrechen Sie die Stromzufuhr, bevor Sie mit der Arbeit an VARI LITE®-Geräten beginnen. 3. Die Geräte sollten nur von qualifiziertem Personal gewartet werden.
  • Page 8 ANUAL WARNUNG: HINWEISE ZUM SCHUTZ GEGEN ÜBERHÖHTE UV-STRAHLUNG 1. Viele VARI LITE®-Scheinwerfer verwenden einen HID-Lampentyp, der UV-Strahlen abgibt. SCHAUEN SIE NICHT direkt in die Lampe. 2. Es ist gefährlich, Leuchten ohne Linsen oder Blenden zu bedienen. Blenden, Linsen oder Ultraviolettschirme müssen ausgetauscht werden, sofern deren Schutzwirkung durch sichtbare Beschädigung (z.
  • Page 9 AVERTISSEMENT: DIRECTIVES POUR SE PROTÉGER CONTRE LES INCENDIES 1. Les luminaires VARI LITE® ont été conçus pour être utilisés uniquement avec certaines lampes Philips et Osram HID. Vérifier le type de lampe (MSR400, MSR575HR etc.) avant de remplacer les lampes. L’installation d’un autre type de lampe peut poser un danger.
  • Page 10 DIRECTIVES POUR SE PROTÉGER CONTRE UNE EXPOSITION EXCESSIVE AUX RAYONS UV 1. Plusieurs luminaires VARI LITE® utilisent une lampe de type HID qui produit des rayons UV. NE PAS fixer son regard sur la lampe. 2. L’utilisation des luminaires sans lentille ou blindage pose des risques. Tous blindages, lentilles ou écrans ultraviolet visiblement endommagés au point que leur efficacité...
  • Page 11 ADVERTENCIA: INSTRUCCIONES PARA PROTECCIÓN CONTINUA CONTRA INCENDIO 1. Las luminarias VARI LITE® han sido diseñadas para ser usadas solamente con algunas lámparas HID Philips y Osram. Tome nota del tipo de lámpara (MSR400, MSR575HR etc.) antes de reemplazarla. Instalación de otro tipo de lámpara puede ser peligroso.
  • Page 12 INSTRUCCIONES PARA PROTECCIÓN CONTINUA CONTRA LA EXPOSICIÓN EXCESIVA DE RADIACIÓN ULTRA VIOLETA 1. Muchas luminarias VARI LITE® usan un tipo de lámpara HID que produce radiación UV. NO mire directamente a la lámpara. 2. Es peligroso operar luminarias sin lentes o protectores. Debe cambiar los protectores, lentes o pantallas ultravioletas si se aprecia que han sido dañadas, y que su efectividad...
  • Page 13 _KHæ2Ô0ç2Ä ÎÎæ¿Ðá¿~  ÒÁ'ê”ùÕÄQ>X^Åîƒ ûéQ>X^é_KHæPÔ±Žã[ÿ ÔôáÅ\úÊÛп•ù Ú”sÙæÄ~  ƒÌÚöªÔÙæê”Ôôáé0çPÄÅ î TæÐçÒáÞ:ÒáÊÛп• ÄQ>X^âꔏé_KQo" öªÒá¿ùÔ• 0ç ~ æÊÍ Ã¾HǽùÔ• qŠPæßåǾHǽùÔ• õ”+4” |¿æ»ÔŠ é:´”ÅîqŠP ËÚüé ûN›å±Žæß¿áꔏé[ÿ Å\úÊÛп• +4é\¢ ZËÚüéEf; –ÿzUê” Åî é \fJ öªÔÁæ 1. VARI LITE® Philips Osram 3Ðá¿ùÔ•\fJ dµÔÙê”\fJé³Ô ” MSR400 åäÕ ÕzÔÁæÒáÊÛп•é³é\fJ  MSR575HR ƒÌã¾âÔ• –ÿzUê”ÄQ>X^é0æåÞá2ÞÔÆÉ”äéÁå2 Jé+YæâýƒÌÎãÇâÈùÔ•f¦æß¿áê”ÄQ>X^ ó–ÒáÊÛп• EXo- dµÔ'ê”+ÓEXo-Ô+Ó³”+Ó"\,Õ öª ÒáÊÛп• –ÿzUê”»0°ùÚêé6.ÆÐå ÛÌ 4. VARI LITE® ÒáÎÒáÊÛп• õ ZËÚüéEf;...
  • Page 14 VARI LITE - VL2000™ W ’ UMINAIRE ANUAL Š é |¿æÐÐå¿ÚüéEf; –ÿzUéÊê” |¿ ¢Õ 2Jé\fJ öª 1. VARI LITE® Òá¿ùÔ•\fJ åÞÔÎãê±ÌáÊÛп• _f-ùÚê*o^< ö Õæ–ÿzU P.Ôã¾âÔ•_f-” *o^<”¡"¹Yê”íî ÿÓ¿ÞÆÈÍåäæ”Øé2 ÇÊå ÁæåÞÚ§ÃÁæÒùÔ• GŠ2 ZËÚüéEf; –ÿzUÇP.Òá¿ãÈê”Øé¥Ç²ÊåùÔ•²ÊåÞÚzU ÿ&fPo@f; ÒÁÙæꔡ¾åUÔ»<ÿ;ª ÜÕ ö ªÒáÊÛп• –ÿzUÇP.Òá¿ãÈê”Øé\fJDzÊåùÔ•\fJ dµ Ԑ'ê”–ÿzUé. ¾”\fJé÷2ÇÇùâÙÞáÊÛ Ð¿•\fJécñÚ ½Ì㔤¿,64ÇÛ¿á”\fJé.Ç ¾'ǽùÔ• o".ê¡" |¿ÒùÔ•Îé¡"æÞá”íä¿+Í vÞÚ ”áé; àÎÔÎãǽùÔ•Ðæ”o".ê”ö÷é) â6 ’ÒùÔ•ØéÚü”ûo".Ç_ÊÔã”î”ÞÚ_ âqŠPÿ+4Ç’¢Ô¾0ǽùÔ• cP.ÔãÈæê”;ª Ü ªÒáÊÛп• ÊÍÒÚ\fJ ÒÁ'ꔡ¾åUÔ»<ÿ;ª ÜÕ ª ÒáÊÛп• »< ªÖÕæå’»â\fJ Þڐ'ê” 0^&o^ öÞá \fJ È¿æÒ”{ÊÕé´å¿Óâ¿áÆ–ÿzU ƒÌ” . IÁæÒùÔ•...

  • Page 15: Table Of Contents

    Additional Documentation................... 1 Text Conventions ......................2 Customer Service ......................2 Chapter 1. Description Features Overview........................4 Components VL2000 Wash Luminaire..................... 5 Menu Display....................... 6 LED Indicators......................6 Accessories Replacement Items/Accessories................... 7 Chapter 2. Installation Power and Data Cabling Requirements Power .........................
  • Page 16 VARI LITE - VL2000™ W ’ UMINAIRE ANUAL Chapter 3. Operation Color Control Color Mixing ......................26 Snap Colors......................26 Color Wheel........................ 27 DMX Modes 8-Bit and 16-Bit Modes ....................28 DMX Mapping Color Wheel........................ 29 Beam Control......................33 Strobe ........................33 Color Control......................
  • Page 17 ABLE OF ONTENTS Appendix A. Troubleshooting and Maintenance Troubleshooting Protecting Your Warranty ..................84 Troubleshooting Guide ....................85 Routine Maintenance Lamp Replacement ....................90 Color Filter Replacement................... 92 Cleaning Optical Lenses and Filters ................94 Appendix B. Technical Specifications Mechanical......................... 95 Optical........................
  • Page 18 VARI LITE - VL2000™ W ’ UMINAIRE ANUAL Notes xvii i 17-Sep-02 02. 9671. 0001 E...

  • Page 19: About This Manual

    Additional Documentation A service manual is available for extended maintenance of the VL2000 Wash Luminaire. This manual is available in both printed and electronic (PDF) formats.

  • Page 20: Text Conventions

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Text Conventions The following styles and meanings are used throughout this manual: [Button] Front panel button. Example: Press [Menu]. [Up] / [Down] arrows Press either [Up] or [Down] arrow button at Menu Display.

  • Page 21: Chapter 1. Description

    HAPTER Description Description Description Description This chapter contains descriptions of luminaire features and components, along with a list of accessories which are available. • Features • Components • Accessories 02.9 671.00 01 E 17-Sep-02...

  • Page 22: Features Overview

    VARI LITE® - VL2000™ ’ WASH LUMINAIRE ANUAL Features Overview The VL2000 wash luminaire features zoomable beam spreader optics, color mixing, a separate fixed color wheel and a high performance dimmer/strobe mechanism. The VL2000 wash luminaire contains the following standard features: •...

  • Page 23: Components

    ESCRIPTION OMPONENTS Components VL2000 Wash Luminaire The following illustration shows the major luminaire components and controls. Truss Hook Removable Lamp Assembly Bracket Assembly (to access lamp for replacement) Upper Enclosure Assembly AC Input Cable Yoke Assembly Beam Adjustment Controls Head Assembly...

  • Page 24: Menu Display

    VARI LITE® - VL2000™ ’ WASH LUMINAIRE ANUAL Menu Display The Menu System Display is used to access the menu system, which is a programmable set of commands used to address, operate, and test the luminaire. The menu system is controlled by four buttons. These buttons function as follows:...

  • Page 25: Accessories

    ESCRIPTION CCESSORIES Accessories Replacement Items/Accessories The following optional and/or replacement items can be ordered directly from Vari-Lite. (Please order by Vari-Lite part number.) Vari-Lite Part No. Accessory 20.9625.0132 Road Case, Plastic (Two hole) 22.9620.0194 Safety Cable Assembly 23.9623.0177 DMX Termination Connector Assembly 25.9661.0056 Loopback Connector Assembly 25.9661.0057...
  • Page 26 VARI LITE® - VL2000™ ’ WASH LUMINAIRE ANUAL Notes 17-Sep-02 02. 9671. 0001 E...

  • Page 27: Chapter 2. Installation

    HAPTER Installation Installation Installation Installation This chapter contains instructions for installation of the luminaire. It includes connecting power and data, along with instructions for powering up the luminaire for the first time and addressing it within your system. • Power and Data Cabling Requirements •...

  • Page 28: Power And Data Cabling Requirements

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Power and Data Cabling Requirements Power The luminaire requires standard AC power distribution from 90-264 VAC, 50/60 Hz. Four amps to twelve amps will be required depending on the AC supply voltage and product model.

  • Page 29: Current Vs. Voltage

    NSTALLATION OWER AND ABLING EQUIREMENTS Current vs. Voltage The following table provides the luminaire’s current draw at specific voltages. Current is calculated with the lamp on and all motors sequencing. Table 2-1: Current vs. Voltage Voltage @ 60Hz Current 90.0 11.8 100.0 10.6...

  • Page 30: Data Cables

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Data Cables The luminaire is equipped with two, 5-pin XLR connectors for DATA IN and DATA THRU (out) applications. DATA IN requires a 5-pin, female XLR connector and DATA THRU requires a 5-pin, male XLR connector. When purchasing or constructing data cables, it is important that not only the correct cable type be used, but also quality cable to ensure a reliable DMX512 system.

  • Page 31: Recommended Cable Types/Manufacturers

    NSTALLATION OWER AND ABLING EQUIREMENTS Recommended Cable Types/Manufacturers These are only a few of the suitable cable types. Any quality EIA485, twisted pair, 120 ohm, shielded cable will also work. ∗ Type Pairs Jacket Temp (F) ZΩ Belden Cables 1215A IBM Type 6 Office cable 1269A...

  • Page 32: Male Termination Connector

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Male Termination Connector A male XLR termination connector is required at the last luminaire (or "far end of the line") to prevent signal reflections. Signal reflections may cancel out the signal at certain line lengths, resulting in errors.

  • Page 33: Installation Procedures

    NSTALLATION NSTALLATION ROCEDURES Installation Procedures Installing Lamp In the event the lamp was packed separately during shipment, it will be necessary to install in the luminaire before use. WARNING: Ensure that power is removed from luminaire when installing lamp. CAUTION: Wear cotton gloves or other covering while installing lamp. Touching lamp glass with bare fingers will leave oil and may cause the lamp to explode or reduce lamp life.

  • Page 34: Hanging The Luminaire

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Hanging the Luminaire The luminaire can be hung horizontally or vertically from any structure designed to work with the type of load created by this moving luminaire. Two truss hook bracket assemblies (provided) are used to attach truss hooks or other mounting hardware as required.
  • Page 35 NSTALLATION NSTALLATION ROCEDURES Step 3. While pulling up on locking mechanism release, fit keyed holes onto raised mounting buttons at bottom of enclosure. Slide forward and release locking mechanism to lock in place. Ensure brackets are locked securely. (Always face brackets in same direction as shown.) WARNING: Ensure that the bracket locking mechanism is fully seated after the bracket is installed on the luminaire.
  • Page 36 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Installing in Truss: Step 1. Using two people, lift luminaire into mounting position. Step 2. Secure in place with truss hook. Ensure truss hook hardware that locks hook in place (e.g. wing bolt) is properly tightened and that luminaire is fully supported.

  • Page 37: Floor Mounting The Luminaire

    NSTALLATION NSTALLATION ROCEDURES Floor Mounting the Luminaire The luminaire enclosure is sufficient to stabilize the luminaire in a floor installation, provided that the mounting surface is flat and sturdy. Connecting Data and Power A maximum of 32 luminaires may be connected in any one DMX data link. Note: This maximum limit applies to the luminaire "daisy chain"...

  • Page 38: Powering Up

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Powering Up Power-Up Procedure Since Lamp On is the default state, the lamp will strike when the luminaire is powered up for the first time. When AC power is applied, the luminaire will immediately begin a calibration sequence that steps it through full pan and tilt movements.

  • Page 39: Align Lamp For Flat Field

    OWERING Align Lamp for Flat Field The design of the VL2000 wash luminaire optical system is based on a flat field. A flat field is one where there is no detectable hot spot. After a new lamp is installed, it will be necessary to align the lamp to optimize the beam.

  • Page 40: Set Dmx Mode

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Set DMX Mode The Series 2000 luminaires provide four modes for DMX operation. The mode is set using the luminaire’s Menu Display. • 8-bit Standard - provides one 8-bit DMX channel for control of each luminaire function.

  • Page 41: Addressing

    NSTALLATION DDRESSING Addressing Program Starting Address The address setting for DMX console or Virtuoso console controlled systems is entered using the Menu Display. (Refer to “Menu System” chapter on page 49 detailed instructions.) The luminaire retains the DMX and Virtuoso addresses that are stored even if power is removed.
  • Page 42 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Notes 17-Sep-02 02. 9671. 0001 E...

  • Page 43: Chapter 3. Operation

    HAPTER Operation Operation Operation Operation This chapter contains instructions for operating the luminaire using DMX control and for updating the internal software. • Color Control • DMX Modes • DMX Mapping • Luminaire Timing • Updating Software 02.9 671.00 01 E 17-Sep-02...

  • Page 44: Color Control

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Color Control Color Mixing The color mixing mechanism is made up of three graduated color disks: blue, amber and magenta. These disks provide full-spectrum color crossfades from pastel to saturated color. Amber Color Disk...

  • Page 45: Color Wheel

    PERATION OLOR ONTROL Color Wheel The color wheel is capable of rapid and timed changes, as well as half and full frame positions. The color wheel has 12 positions, one being open.It Color Wheel (Behind plate) offers partial frame control and various spin rates in either direction.

  • Page 46: Dmx Modes

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL DMX Modes 8-Bit and 16-Bit Modes These tables assume a DMX start address of 1. When a different starting address is used, this address becomes channel 1 function and other functions follow in sequence.

  • Page 47: Dmx Mapping

    : DMX M PERATION APPING DMX Mapping Color Wheel Table 3-1: DMX Map for Color Wheel Wheel DMX (0-100) DMX (0-255) Wheel Position DMX (0-100) DMX (0-255) Position Open Frame 1 Full Frame 3 Half Frame Half Frame Full Frame 2 Full Frame 4 Half Frame 02.9 671.00 01 E...
  • Page 48 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Table 3-1: DMX Map for Color Wheel (Continued) Wheel DMX (0-100) DMX (0-255) Wheel Position DMX (0-100) DMX (0-255) Position Half Frame Half Frame Full Frame 5 Full Frame 7 Half Frame...
  • Page 49 : DMX M PERATION APPING Table 3-1: DMX Map for Color Wheel (Continued) Wheel DMX (0-100) DMX (0-255) Wheel Position DMX (0-100) DMX (0-255) Position Full Frame 8 Full Frame 10 Half Frame Half Frame Full Frame 9 Full Frame 11 Half Frame Half Frame 02.9 671.00 01 E...
  • Page 50 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Table 3-1: DMX Map for Color Wheel (Continued) Wheel DMX (0-100) DMX (0-255) Wheel Position DMX (0-100) DMX (0-255) Position Spin M CCW Full Frame 12 Spin S CCW Stop Stop Stop...

  • Page 51: Beam Control

    : DMX M PERATION APPING Beam Control Strobe Table 3-2: DMX Map for Strobe % Value DMX Value Action Open Closed Slow Random 8-10 Med Random 11-12 Fast Random 5-100 13-255 Speed Range Color Control Blue Table 3-3: DMX Map for Blue % Value DMX Value Action...

  • Page 52: Luminaire Timing

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Luminaire Timing Luminaire Timing Channel Information Timing channel control has been developed to improve the timed moves of certain groups of parameters. We provide three timing channels, one for Focus (Pan and Tilt), one for color parameters and one for beam parameters.
  • Page 53 PERATION UMINAIRE IMING Note: Avoid changing timing channel values in a fading cue. This can cause unexpected behavior in the luminaire as the timing channel value is updated over time. Timing channel values and the final destination of the parameters affected by the timing channel should always be sent in a zero count.
  • Page 54 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Table 3-7: Timing Channels Map (Continued) % Value = Seconds 10.2 10.4 10.6 17-Sep-02 02. 9671. 0001 E...
  • Page 55 PERATION UMINAIRE IMING Table 3-7: Timing Channels Map (Continued) % Value = Seconds 02.9 671.00 01 E 17-Sep-02...
  • Page 56 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Table 3-7: Timing Channels Map (Continued) % Value = Seconds 17-Sep-02 02. 9671. 0001 E...
  • Page 57 PERATION UMINAIRE IMING Table 3-7: Timing Channels Map (Continued) % Value = Seconds 02.9 671.00 01 E 17-Sep-02...
  • Page 58 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Table 3-7: Timing Channels Map (Continued) % Value = Seconds 17-Sep-02 02. 9671. 0001 E...
  • Page 59 PERATION UMINAIRE IMING Table 3-7: Timing Channels Map (Continued) % Value = Seconds Follows Cue Data 02.9 671.00 01 E 17-Sep-02...

  • Page 60: Control Channel Functions

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Control Channel Functions The following control actions must be accomplished with zero time transition or with timing disabled. Discrete values must be used and not manual controls such as faders or encoders.

  • Page 61: Updating Software

    PERATION PDATING OFTWARE Updating Software Reprogramming Luminaires In some cases, it may be desirable to upgrade the luminaire’s operating software. This process will require a Windows PC, the Luminaire Programming Kit (28.9661.0054), and the VLDownload.exe program. The VLDownload.exe program is available on the VL Download Installer Disk (87.7303.00xx)* or by downloading the Series 1000™...

  • Page 62: Install And Reprogramming Procedure

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Install and Reprogramming Procedure This procedure will install the VLDownload.exe program onto the PC and then allow you to reprogram the luminaires. Note: If running Windows NT, you must be working from an account in the Administrators group to install the VLDownload.exe program onto the computer.
  • Page 63 This button can be used when any combination of VL1000 or VL2000 luminaires are connected to the PC. Note: Version dates shown in this graphic are for illustration purposes only and may not correspond to the version you are downloading.
  • Page 64 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Step 4. Download will proceed. One of the following will occur: Luminaire’s green Rx LED will blink rapidly and its menu will display Correct number of blocks received (this number will vary depending on software version being downloaded).

  • Page 65: Transferring Software From Luminaire To Luminaire

    19), however a maximum of 32 luminaires can be updated at once. The transfer process can be used to download an earlier or later version of the VL2000 Luminaire Software to other connected luminaires of the same type. Hardware Requirements Data cables used in this process must have two twisted pairs and a shield.
  • Page 66 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL The receiving luminaire’s green Rx LED will blink rapidly and its menu will Correct display number of blocks received (this number will vary depending on software version being downloaded). This indicates that data is being sent from luminaire to luminaire.

  • Page 67: Chapter 4. Menu System

    HAPTER Menu System Menu System Menu System Menu System This chapter contains instructions for operating the luminaire using the Menu Display feature. • Operation • Mapping • Cues and Sequences • Self Tests 02.9 671.00 01 E 17-Sep-02...

  • Page 68: Operation

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Operation What Is the Menu System? The menu system is a programmable set of commands used to configure, address, operate, and test the luminaire. The menu system is controlled at the Menu Display available at the enclosure input panel.

  • Page 69: Display Orientation

    YSTEM PERATION To enter the menu system, first press [Menu]. The functions displayed will be 1st level functions. Scroll through the 1st level functions by pressing [Up] / [Down] arrows. Once the desired function appears in the display, press [Enter]. You are now at the 2nd level.

  • Page 70: Default State

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Default State The menu display’s default state during normal operation is to display the address (Virtuoso or DMX). After 10 seconds of inactivity at the display, it will change to the default state.

  • Page 71: Display Test

    YSTEM PERATION Display Test The Display Test will display every character on the menu display to check for missing characters. The following procedure is used to test the display. Step 1. Press [Menu]. Step 2. Press [Up]/[Down] until Test appears. Press [Enter]. Step 3.

  • Page 72: Error Messages

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Error Messages If a problem occurs during luminaire calibration, at the end of the calibration sequence the Menu Display will cycle through any applicable error message(s), one at a time until the end of the list is reached. To review the error messages again, it will be necessary to access them using the Status function.
  • Page 73 YSTEM PERATION Table 4-1: Error Messages Display Message... WAIT Retrieving Current Status WRNG / SW / Wrong Software Program PROG 02.9 671.00 01 E 17-Sep-02...

  • Page 74: Mapping

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Mapping Menu System Overview The following is a graphic representation of the entire menu system. value Addr value Tilt value VIRT value Dimm value Strb value CWhl value LAMP POWR Blue value...

  • Page 75: Menu System Functions

    YSTEM APPING Menu System Functions Table 4-2: Menu System Functions 1st Level 2nd Level 3rd Level 4th Level 5thLevel Addr DMX DMX Address XXX Address value Address VIRT Virtuoso Address XXXX. Address value LAMP Lamp Options POWR Lamp Power ON (default) System Configuration P UP Lamp Power-up State...
  • Page 76 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Table 4-2: Menu System Functions (Continued) 1st Level 2nd Level 3rd Level 4th Level 5thLevel Fixt STAT Status/Error Display Scrolls error messages * or displays OK Cal Recalibrate Modl Luminaire Model Type...
  • Page 77 YSTEM APPING Table 4-2: Menu System Functions (Continued) 1st Level 2nd Level 3rd Level 4th Level 5thLevel Test* MOVE Pan/Tilt Control Dis Disable Press [Menu] to stop System Test tests Enab Enable ALL Test All Motors ALL1 All Synchronized Test ALL2 All Test P/T Pan/Tilt PT 1 Min/Max Fast Pan/TIlt test...
  • Page 78 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Table 4-2: Menu System Functions (Continued) 1st Level 2nd Level 3rd Level 4th Level 5thLevel Test (cont.)* Sens Sensors Pan EOT Sensor STST Sensor Test in PASS Progress FAIL Tilt EOT Sensor...

  • Page 79: Function Definitions

    YSTEM APPING Function Definitions Each menu item is listed in the first column by its display abbreviation. The abbreviations appear in alphabetical order. Display Definition Purpose ⇓⇓ Display Orienta- Shows upside-down orientation (for hanging luminaires) tion ⇑⇑ Display Orienta- Shows upright orientation. tion Standard 8-bit Configures luminaire for operation in standard DMX 8-bit...
  • Page 80 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Display Definition Purpose Cue Processing Accesses cue store, modify, delete, and playback com- mands. Cue Data Specifies cue number for display of current data value. cXXX DMX Channel Specifies DMX channel for display of current data value.
  • Page 81 YSTEM APPING Display Definition Purpose ISEQ Individual A sequence playback mode which will play the cues from Sequence each individual luminaire, if any. (In ISEQ, if the number of cues is different, it will only play as many as each luminaire has stored.
  • Page 82 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Display Definition Purpose PCue Play Cue Accesses cue list for play back of cues by number. POWR Lamp Power Accesses function to turn lamp on or off. PROG Programming Currently programming the new version of software.

  • Page 83: Cues And Sequences

    YSTEM UES AND EQUENCES Cues and Sequences Overview The luminaire has the ability to store and playback cues independent of a console. Cues are stored as numbers from 1 to 99 by using the Cue (Cue Processing) functions available in the menu system. This also allows you to create your own test sequences to be played back on a group of luminaires.

  • Page 84: Cue Operations

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Cue Operations The following section provides instructions for performing cue, sequence, and playback operations. Note: The Mod, Del, PCue, PSEQ commands will all display "C--" or "Sc--" if no cues have been stored.
  • Page 85 YSTEM UES AND EQUENCES Set follow time between cues: The following procedure is used to set the follow time between each cue. The value can be different for each cue. The range is 0.0 to 365.9 seconds. Step 1. Press [Menu]. Step 2.
  • Page 86 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL To edit or modify a cue: Step 1. Recall cue to be changed from PCue. Step 2. Change luminaire data to desired levels using Man (Manual Command) functions. Step 3. Press [Up] / [Down] arrows until Cue appears. Press [Enter].
  • Page 87 YSTEM UES AND EQUENCES Choose Sequence Mode: MSEQ will replay the cues from the master luminaire. ISEQ will play the cues from each individual luminaire, if any. In ISEQ, if the number of cues is different, it will only play as many as each luminaire has stored. The follow time is taken from the master luminaire.

  • Page 88: Self Tests

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Self Tests Running Parameter Tests The luminaire is capable of running self tests by using the TEST menu functions. For complete details and values for each test refer to “Diagnostic Tests” on page Note: After 10 seconds of inactivity, the menu display will change to the default state showing the address.
  • Page 89 YSTEM ESTS WARNING: Backcap and adjustment knobs will be HOT during lamp operation. Wear gloves and/or use tools to prevent burns. Lamp The Lamp option has been added to the test menu. This option sets the lamp intensity to 100% and will adjust the diffusion to produce a tight beam. See “Align Lamp for Flat Field”...

  • Page 90: Diagnostic Tests

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Diagnostic Tests The following diagnostic tests are available in the test menu. Time is specified for each action in the test, and the total time equals the time it takes to complete each action.
  • Page 91 YSTEM ESTS Table 4-3: Diagnostic Tests Parameters Test Name Pan* Tilt* Diff CWhl Blue** Ambr** MAG** Strb time/total time ALL1 65535 65535 ALL2 65535 65535 65535 65535 7/7 (P/T only) 65535 65535 7/7 (P/T only) 7/7 (P/T only) 65535 65535 7/7 (P/T only) 45167 27000...
  • Page 92 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Table 4-3: Diagnostic Tests (Continued) Parameters Test Name Pan* Tilt* Diff CWhl Blue** Ambr** MAG** Strb time/total time ALL2 45167 27000 (cont.) 45167 27000 45167 27000 45167 27000 45167 27000 45167 27000...
  • Page 93 YSTEM ESTS Table 4-3: Diagnostic Tests (Continued) Parameters Test Name Pan* Tilt* Diff CWhl Blue** Ambr** MAG** Strb time/total time 33511 54957 22227 54957 35511 54957 22227 54957 44423 54957 39401 54957 44423 54957 34901 54957 65535 54957 54957 45167 0/2.2 45167 65535...
  • Page 94 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Table 4-3: Diagnostic Tests (Continued) Parameters Test Name Pan* Tilt* Diff CWhl Blue** Ambr** MAG** Strb time/total time Dim3 45167 27000 0/0.5 45167 27000 0/0.5 45167 27000 0/0.5 45167 27000 0/0.5 45167 27000 0/0.5...
  • Page 95 YSTEM ESTS Table 4-3: Diagnostic Tests (Continued) Parameters Test Name Pan* Tilt* Diff CWhl Blue** Ambr** MAG** Strb time/total time 45167 27000 (cont.) 45167 27000 45167 27000 0/1.65 45167 27000 45167 27000 0/1.9 45167 27000 0/1.9 45167 27000 45167 27000 45167 27000 0/0.4...
  • Page 96 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Table 4-3: Diagnostic Tests (Continued) Parameters Test Name Pan* Tilt* Diff CWhl Blue** Ambr** MAG** Strb time/total time Bl 3 45167 27000 0/0.4 (cont.) 45167 27000 0/0.4 45167 27000 0/0.4 45167 27000 0/0.4...
  • Page 97 YSTEM ESTS Table 4-3: Diagnostic Tests (Continued) Parameters Test Name Pan* Tilt* Diff CWhl Blue** Ambr** MAG** Strb time/total time MAG3 45167 27000 0/0.4 45167 27000 0/0.4 45167 27000 0/0.4 45167 27000 0/0.4 45167 27000 0/0.4 45167 27000 0/0.4 45167 27000 0/0.4 45167...
  • Page 98 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Table 4-3: Diagnostic Tests (Continued) Parameters Test Name Pan* Tilt* Diff CWhl Blue** Ambr** MAG** Strb time/total time MiX3 45167 27000 0/0.7 45167 27000 0/0.7 45167 27000 0/0.7 45167 27000 0/0.7 45167 27000 0/0.4...
  • Page 99 YSTEM ESTS Table 4-3: Diagnostic Tests (Continued) Parameters Test Name Pan* Tilt* Diff CWhl Blue** Ambr** MAG** Strb time/total time DiF3 45167 27000 45167 27000 45167 27000 45167 27000 45167 27000 45167 27000 45167 27000 45167 27000 45167 27000 45167 27000 45167 27000...
  • Page 100 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Notes 17-Sep-02 02. 9671. 0001 E...

  • Page 101: Appendix A. Troubleshooting And Maintenance

    PPENDIX Troubleshooting and Troubleshooting and Troubleshooting and Troubleshooting and Maintenance Maintenance Maintenance Maintenance This appendix provides instructions for troubleshooting and performing routine maintenance which may be necessary during the life of the luminaire. • Troubleshooting • Routine Maintenance WARNING: All maintenance procedures are to be performed with power removed from the luminaire.

  • Page 102: Protecting Your Warranty

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Troubleshooting Protecting Your Warranty When performing procedures outlined in the “Troubleshooting Guide” on page observe the following guidelines in order for your luminaire to remain covered by the Vari-Lite Limited Warranty (included in product shipping container).

  • Page 103: Troubleshooting Guide

    ROUBLESHOOTING AND AINTENANCE ROUBLESHOOTING Troubleshooting Guide If a problem is suspected, try recalibrating the luminaire to prompt an error message. Refer to “Error Messages” on page 54 for more information. The chart below provides possible causes and remedies for each message. CAUTION: Some troubleshooting is included for reference only.
  • Page 104 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Table A-1: Troubleshooting Guide (Continued) Error Display Description Possible Cause and Remedy B1M2 Aux Board 1, Motor 2, Dimmer power not connected and Dimm Dimmer, dimmer aligned with sensor SAct Sensor Always Active...
  • Page 105 ROUBLESHOOTING AND AINTENANCE ROUBLESHOOTING Table A-1: Troubleshooting Guide (Continued) Error Display Description Possible Cause and Remedy B2M1 Aux Board 2, Motor 1, Blue power not connected and Blue Blue Blue, aligned with sensor SAct Sensor Always Active - Connect Blue power at motor B2M2 Aux Board 2, Motor 2, Amber power not connected, motor...
  • Page 106 VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Table A-1: Troubleshooting Guide (Continued) Error Display Description Possible Cause and Remedy Encoder faulty Replace pan end-of-travel/encoder sensor assembly Pan Sensor Not Found EOT flag attached to large pulley is not engaging the EOT sensor...
  • Page 107 ROUBLESHOOTING AND AINTENANCE ROUBLESHOOTING Table A-1: Troubleshooting Guide (Continued) Error Display Description Possible Cause and Remedy TILT Tilt Sensor Not Found EOT flag attached to large pulley is not engaging the EOT sensor SENS - Ensure flag is attached to the large pulley - Ensure that flag passes through the sensor at a depth sufficient...

  • Page 108: Routine Maintenance

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Routine Maintenance Lamp Replacement WARNING: Remove power from luminaire before performing maintenance. Parts: 700 WATT SHORT-ARC LAMP (Vari-Lite part: 71.2528.0700) Tools: Screwdriver, slotted Cotton gloves To replace lamp: Step 1. Remove power from luminaire.
  • Page 109 ROUBLESHOOTING AND AINTENANCE OUTINE AINTENANCE CAUTION: Wear cotton gloves or other covering while servicing lamp. Touching lamp glass with bare fingers will leave oil and may cause the lamp to explode or reduce lamp life. If required, use alcohol and cotton cloth to thoroughly clean glass portion of lamp.

  • Page 110: Color Filter Replacement

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Color Filter Replacement WARNING: Remove power from luminaire before performing maintenance. Tools: Screwdriver, Phillips #2 Cotton gloves To remove and replace a color filter: Step 1. Remove power from luminaire. Step 2. At removable cover, using #2 Phillips screwdriver, turn two captive screws one-quarter turn and remove cover.
  • Page 111 ROUBLESHOOTING AND AINTENANCE OUTINE AINTENANCE CAUTION: Do not touch color filters with bare fingers. Wear cotton gloves or other covering while replacing. Clean with glass cleaner and soft cloth if required. Note: In some cases it is easier to slide bulkhead partially out of head assembly to access color filters.

  • Page 112: Cleaning Optical Lenses And Filters

    VARI LITE® - VL2000™ W ’ UMINAIRE ANUAL Cleaning Optical Lenses and Filters WARNING: Remove power from luminaire before performing maintenance. The front lens and color filters may require cleaning after extended use. A common glass cleaner can be used along with a soft, lint-free cloth to clean these components.

  • Page 113: Appendix B. Technical Specifications

    HAPTER Technical Specifications Technical Specifications Technical Specifications Technical Specifications Mechanical Color Mixing A fully crossfading color system is included. Intensity Control Full field dimming that allows for smooth timed fades, fast blackouts, and variable strobe effects. Fixed Color Wheel Provides 11 easily loaded positions for fixed dichroic color choices. Beam Size Control A zoomable beam spreader mechanism provides continuous beam size control for both rapid changes and smooth timed beam angle changes.

  • Page 114: Operational

    Operational Power Requirements All VL2000 models are powered through standard AC power distribution and require three amps to twelve amps depending on the AC supply voltage and product model. All VL2000 models operate from 90-263 +/- 10% VAC, 50/60 Hz Operational Temperature -20°...
  • Page 115 2. Request Return Material Authorization (RMA) number. 3. If returning VL2000 Series Color/Gobo Bulkheads, remove color and gobo wheel hubs. (Do not remove glass color discs from VL2000 wash luminaire subassemblies). 4. Package all parts being shipped. Please take great care in packing your items for return.
