VARI❋LITE®, Artisan®, VL2® and VLD® are trademarks owned by Vari-Lite, Inc., 201 Regal Row, Dallas TX 75247 USA and are registered in the United States and other countries. VL1000™, VL2000™, VL2201™, VL2202™, VL2400™ (and the individual product designations), VL3000™, Virtuoso™, ™...
Page 3
OREWORD How To Obtain Warranty Service A copy of the Vari-Lite, Inc. Limited Warranty was included in the shipping package for this VARI❋LITE® product. To obtain warranty service, please contact customer service at 1-877-VARI-LITE (1-877-827-4548) or customerservice@vari-lite.com and request a Return Material Authorization (RMA) for warranty service.
Page 4
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Compliance Notice This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when this equipment is operated in a commercial environment.
OREWORD Safety Notice It is extremely important to read ALL safety information and instructions provided in this manual and any accompanying documentation before installing and operating the products described herein. Heed all cautions and warnings during installation and use of this product. Safety symbols used throughout this manual are as follows: CAUTION advising of potential damage to product.
Page 6
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Sicherheitshinweise Es ist äußerst wichtig, ALLE Sicherheitsinformationen und -hinweise in diesem Handbuch und dem beiliegenden Informationsmaterial zu lesen, bevor Sie die hierin beschriebenen Produkte installieren bzw. bedienen. Halten Sie bei der Installation und dem Einsatz dieses Produkts alle Warnhinweise und Vorsichtsmaßnahmen ein.
Page 7
OREWORD Notes de sécurité Avant de procéder à l’installation des produits décrits dans ce guide et de les mettre en marche, il est extrêmement important de lire TOUS les renseignements et TOUTES les directives de sécurité contenues dans ce guide ainsi que toute documentation jointe. Tenir compte de tous les avertissements et suivre toutes les précautions pendant l’installation et l’utilisation de cet appareil.
Page 8
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Aviso sobre Seguridad Es muy importante leer TODA la información e instrucciones sobre seguridad que se indica en este manual así como en los documentos adjuntos antes de instalar y operar los productos descritos. Se debe prestar atención a todos los avisos y advertencias durante la instalación y uso de este producto.
Customer Service ......................2 Technical Bulletins and Notices................2 Chapter 1. Description Features Standard Features......................4 Major Components VL2000 Wash Luminaire..................... 5 Menu Display....................... 6 LED Indicators......................6 Head Components......................7 Yoke Components ......................8 Enclosure Components ....................9 Principles of Operation Power and Data Flow Diagrams ................
Page 12
Main Controller PCB Assembly Replacement ............ 48 DMX Input PCB Assembly Replacement ............50 Cleaning Lens......................51 Chapter 3. Illustrated Parts Breakdown Drawing Tree VL2000 Wash Luminaire (20.9671.0001)..............54 Top Assembly Included Items Kit ...................... 56 Top Assembly VL2000 Wash Luminaire ................... 57 Head Head Assembly......................
About This Manual This manual provides descriptions, repair procedures, and illustrated parts breakdowns for all configurations of the VL2000™ Wash Luminaire. The manual is intended for use by Vari-Lite personnel and by Vari-Lite’s customers/clients. WARNING: It is important to read ALL accompanying safety and installation instructions to avoid damage to the product and potential injury to yourself or others.
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Customer Service Our Goal At Vari-Lite, we are committed to providing you the highest quality in customer service. Our comprehensive resources are available to help your business succeed and ensure you get the full benefit of being a Vari-Lite customer. Whether your needs are telephone/troubleshooting assistance, product training or technical service, our full- time staff of experienced professionals are on-hand to provide support.

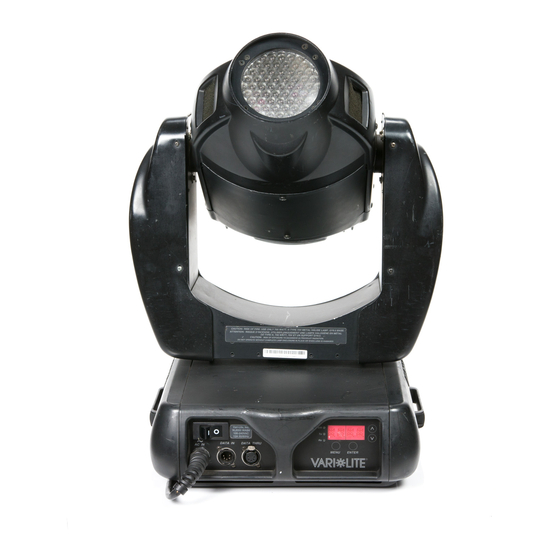

HAPTER Description This chapter provides an overview of luminaire features, components and operations. • Features • Major Components • Principles of Operation 02.9 671.00 10 C 24-March-2004...
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Features Standard Features The VL2000 wash luminaire features zoomable beam spreader optics, CYM color mixing, a separate fixed color wheel and a high performance dimmer/strobe mechanism. The VL2000 wash luminaire contains the following standard features: •...
Selects the current menu option or enters current data value Note: Refer to the VL2000 Wash Luminaire User’s Manual for more detailed instructions regarding display operation. LED Indicators The LED indicators report the status of power and data to the luminaire.
ESCRIPTION AJOR OMPONENTS Head Components The following illustration shows the major sub-assemblies which are located in the luminaire head assembly. Dimmer Bulkhead Assembly Color Bulkhead Assembly Removable Cover Rear Assembly (Contains Lamp Assembly) Fan Assembly Front Internal Assembly (Contains lens assemblies and front color assembly.) Nose Cover 02.9 671.00 10 C...
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Yoke Components The following illustration shows the major sub-assemblies which are located in the luminaire yoke assembly. (Head and enclosure not shown for clarity.) Ignitor PCB Assembly Relay Assembly Auxiliary Controller PCB Assembly...
ESCRIPTION AJOR OMPONENTS Enclosure Components The following illustration shows the major sub-assemblies which are located in the luminaire enclosure assembly. (Yoke and head assemblies not shown for clarity.) Input Panel Inside View Enclosure Covers DMX Input PCB Assembly Main Controller PCB Ballast Module Assembly Main Controller...
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Principles of Operation Power and Data Flow Diagrams The following diagram shows how data and power are distributed in the luminaire. HEAD HEAD CHASSIS AMBER COLOR DIMMER USED TILT MOTOR MOTOR BLUE MAGENTA...
HAPTER Maintenance This chapter contains test, service, and standard maintenance procedures. • Testing • Special Considerations • Maintenance Procedures WARNING: All maintenance procedures are to be performed with power removed from the luminaire. Never remove cover or backcap while lamp is in operation. 02.9 671.00 10 C 24-March-2004...
Testing software is available in all Series 2000 luminaires through the luminaire’s menu system TEST function. For information on specific tests and test parameters, see the VL2000 Wash Luminaire User’s Manual (VL Part no. 02.9671.0001). When running tests on multiple luminaires, a loopback connector is required at the first luminaire in the link and a male termination connector is required at the last luminaire.
The jumper at J11 configures the luminaire type between VL2000 spot, VL2000 wash and VL2416 wash. For VL2000 spot or VL2416 wash luminaires, it is fitted to non- active pins. (This inactive setting is the default or shipping configuration.) For VL2000 wash luminaires, it is fitted to the active pins.
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Jumper Configuration To configure jumper: Determine which type luminaire the MCB is to be installed in, and configure jumper according to Figure 2-2. Note: If luminaire will not calibrate or operate after MCB replacement, check jumper setting and download new software.
AINTENANCE AINTENANCE ROCEDURES Maintenance Procedures Head Assembly This section provides removal and replacement procedures for components found in the luminaire head assembly. Lamp Replacement Parts: LAMP, 700 WATT ARC - PHILLIPS MSR700 (71.2528.0700) Tools: #2 Phillips Screwdriver, Cotton gloves To remove and replace lamp: WARNING: All maintenance procedures are to be performed with power removed from the luminaire.
Page 30
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Step 3. Slide backcap away from head assembly (it will remain attached by tether). CAUTION: Wear cotton gloves or other covering while servicing lamp. Touching lamp glass with bare fingers will leave oil and cause the lamp to explode or burn out early.
Wear gloves and/or use tools to prevent burns. To align lamp: Step 1. Using internal menus select Lamp test to set beam. Refer to VL2000 Wash Luminaire User’s Manual for more information. (If using console, set intensity to 100% and adjust diffusion to produce a tight beam.) Step 2.
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Color Bulkhead Assembly Replacement Parts: BULKHEAD ASSEMBLY, COLOR (22.9671.0077) Tools: Screwdriver, #2 Phillips To remove and replace color bulkhead assembly: WARNING: All maintenance procedures are to be performed with power removed from the luminaire.
Page 33
AINTENANCE AINTENANCE ROCEDURES Step 4. Slide color bulkhead assembly partially out of head assembly and disconnect wiring harness connectors from color motor assembly connector and color motor assembly sensor, magenta motor assembly connector, and two crossfade color sensor PCB assembly connectors. Step 5.
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Color Filter Replacement Parts: Standard Color Filter, as required Tools: Screwdriver, #2 Phillips, Cotton gloves To remove and replace a standard color filter: WARNING: All maintenance procedures are to be performed with power removed from the luminaire.
AINTENANCE AINTENANCE ROCEDURES Magenta Color Wheel Glass Assembly Parts: GLASS ASSEMBLY, MAGENTA COLOR WHEEL (21.9671.0161) Tools: Screwdriver, #2 Phillips Cotton gloves To remove and replace magenta color wheel glass assembly: WARNING: All maintenance procedures are to be performed with power removed from the luminaire.
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Crossfade Color Sensor PCB Assembly Replacement Parts: PCB ASSEMBLY, CROSSFADE COLOR SENSOR (24.9671.0175) Tools: Screwdriver, #1 Phillips To remove and replace crossfade color sensor PCB assembly: CAUTION: Always use anti-static precautions when working with PCBs.
AINTENANCE AINTENANCE ROCEDURES Dimmer Bulkhead Assembly Replacement Parts: DIMMER BULKHEAD ASSEMBLY (21.9673.0205) Tools: Screwdriver, #2 Phillips To remove and replace dimmer bulkhead assembly: WARNING: All maintenance procedures are to be performed with power removed from the luminaire. Step 1. Disconnect luminaire AC input cable from power source. Step 2.
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Front Internal Head Assembly Replacement Parts: FRONT INTERNAL HEAD ASSEMBLY (21.9671.0006) Tools: Screwdriver, #2 Phillips, long handle Screwdriver, #2 Phillips To remove and replace front internal head assembly: WARNING: All maintenance procedures are to be performed with power removed from the luminaire.
AINTENANCE AINTENANCE ROCEDURES Blue/Amber Color Wheels Assembly Replacement Parts: ASSEMBLY, BLUE/AMBER COLOR WHEELS (21.9671.0150) Tools: Screwdriver, #1 Phillips Screwdriver, #2 Phillips Pick and hook tool Cotton gloves To remove and replace blue/amber color wheels assembly: WARNING: All maintenance procedures are to be performed with power removed from the luminaire.
Page 40
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Timing Belts C-clip Flat Washer Block/Shaft Assembly Blue/Amber Color Wheels Assembly Figure 2-12: Blue/Amber Color Wheels Assembly Replacement Step 5. Using pick and hook tool, remove c-clip securing blue/amber color wheels assembly on block/shaft assembly.
AINTENANCE AINTENANCE ROCEDURES Small Stipple Glass Replacement Parts: SMALL STIPPLE GLASS (12.9671.0408) Tools: Screwdriver, #2 Phillips Cotton gloves To remove and replace small stipple glass: WARNING: All maintenance procedures are to be performed with power removed from the luminaire. Step 1. Disconnect luminaire AC input cable from power source. Step 2.
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Concave Lens Assembly Replacement Parts: ASSEMBLY, CONCAVE LENS (22.9671.0413) Tools: Screwdriver, #2 Phillips Cotton gloves To remove and replace concave lens assembly: WARNING: All maintenance procedures are to be performed with power removed from the luminaire.
AINTENANCE AINTENANCE ROCEDURES Convex Lens Assembly Replacement Parts: ASSEMBLY, CONVEX LENS (22.9671.0414) Tools: Screwdriver, #2 Phillips Allen wrench, 1/4" Nutdriver, 1/4" Cotton gloves To remove and replace convex lens assembly: WARNING: All maintenance procedures are to be performed with power removed from the luminaire.
Page 44
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL CAUTION: Do not touch lens with bare fingers. Wear cotton gloves or other covering while replacing. Step 5. Remove convex lens assembly from lens shafts. Step 6. In replacement convex lens assembly, using 1/4" Allen Wrench, adjust 8-32 X 2"...
AINTENANCE AINTENANCE ROCEDURES 100MM Condenser Lens Assembly Replacement Parts: 100MM CONDENSER LENS (22.9671.0402) Tools: Allen wrench, 5/64" Cotton gloves Loctite, #242 To remove and replace 100MM condenser lens assembly: WARNING: All maintenance procedures are to be performed with power removed from the luminaire.
Page 46
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Step 11. Apply Loctite #242 to threads of setscrews, and using 5/64" Allen wrench, tighten setscrews to secure shaft collet to base of lens shaft. Step 12. Repeat steps 10 and 11 for remaining three shaft collets.
AINTENANCE AINTENANCE ROCEDURES Beam Spreader Motor Assembly Replacement Parts: ASSEMBLY, MOTOR-BEAM SPREADER (22.9671.0468) Tools: Pliers, 3" channel lock Screwdriver, #1 Phillips Screwdriver, #2 Phillips Wrench, open-ended, 1/3" To remove and replace beam spreader motor assembly: WARNING: All maintenance procedures are to be performed with power removed from the luminaire.
Page 48
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Step 5. Remove two 4-40 X 1/4" PPZ screws and two 4-40 KEPS nuts securing beam spreader motor assembly to bulkhead, and remove motor. Step 6. Install replacement beam spreader motor assembly in bulkhead.
AINTENANCE AINTENANCE ROCEDURES Yoke Assembly This section provides removal and replacement procedures for components found in the luminaire yoke assembly. Tilt Motor Replacement Parts: ASSY, TILT MOTOR (22.9661.0665) Tools: Screwdriver, #2 Phillips Nutdriver, 1/4" To remove and replace tilt motor assembly: WARNING: All maintenance procedures are to be performed with power removed from the luminaire.
Page 50
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Step 3. At pan/tilt encoder PCB (mounted behind tilt motor mounting plate), disconnect two cable connectors. Step 3. At tilt motor, disconnect motor wire connector. Step 4. At cable anchor/standoff, remove one 6-32 X 5/16" PPZ screw, and remove free cable.
AINTENANCE AINTENANCE ROCEDURES Auxiliary Controller PCB Assembly Replacement’ Parts: PCB ASSY, AUX CONTROLLER (24.9661.1400) Tools: Screwdriver, #2 Phillips Nutdriver, 1/4" Wrench, open-ended, 1/4" To remove and replace auxiliary controller PCBs: CAUTION: Always use anti-static precautions when working with PCBs. WARNING: All maintenance procedures are to be performed with power removed from the luminaire.
AINTENANCE AINTENANCE ROCEDURES Ignitor PCB Assembly Replacement Parts: PCB ASSY, IGNITOR (24.9661.1125) Tools: Screwdriver, #2 Phillips To remove and replace ignitor PCB assembly: CAUTION: Always use anti-static precautions when working with PCBs. WARNING: All maintenance procedures are to be performed with power removed from the luminaire.
Page 54
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL cover to yoke, and remove cover. (These screws are accessible from inside yoke legs.) Step 4. At Ignitor PCB assembly, remove two accessible 6-32 X 5/16" PPZ screws and two #6 lock washers which secure ignitor PCB assembly to yoke leg.
AINTENANCE AINTENANCE ROCEDURES Enclosure Assembly This section provides removal and replacement procedures for components found in the luminaire enclosure assembly. Removing Enclosure Covers To gain access to enclosure components, it will be necessary to remove the top and bottom covers. Tools: Screwdriver, #2 Phillips Allen Wrench, 3/16"...
Page 56
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL CAUTION: Be careful not to damage lens during next step. Step 4. Carefully lay luminaire on its side, ensuring that lens does not come into contact with any surface (Figure 2-23). Figure 2-23: Laying Luminaire on Its Side Step 5.
AINTENANCE AINTENANCE ROCEDURES Power Supply Replacement Parts: POWER SUPPLY, 130W +24V/5.4A (12.3126.1103) Tools: Screwdriver, #2 Phillips, stubby To remove and replace power supply: CAUTION: Always use anti-static precautions when working with PCBs. WARNING: All maintenance procedures are to be performed with power removed from the luminaire.
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Pan Motor Assembly Replacement Parts: ASSY, PAN MOTOR (22.9661.0664) Tools: Screwdriver, #2 Phillips To remove and replace pan motor assembly: WARNING: All maintenance procedures are to be performed with power removed from the luminaire.
Page 61
AINTENANCE AINTENANCE ROCEDURES Step 6. Slip belt off pan motor pulley. Step 7. Pull pan motor assembly part way out of enclosure, and disconnect sensor and motor wire connectors. Step 8. Remove pan motor assembly. CAUTION: Ensure no wire will be pinched between mounting plates before securing replacement pan motor assembly with screws.
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Main Controller PCB Assembly Replacement Parts: PCB ASSY, MAIN CONTROLLER 3-PHASE (24.9661.1225) Tools: Screwdriver, #2 Phillips To remove and replace main controller PCB assembly: CAUTION: Always use anti-static precautions when working with PCBs.
Page 63
AINTENANCE AINTENANCE ROCEDURES Step 4. At top of PCB, remove two 6-32 X 5/16" PPZ screws and remove PCB (Figure 2-28). 6-32 X 5/16" PPZ Screw (2) Main Controller PCB Note: Some components not shown for clarity. Side View PCB fits into card guide on rail Input Panel Figure 2-28: Main Controller PCB Assembly Replacement...
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL DMX Input PCB Assembly Replacement Parts: PCB ASSY, DMX INPUT (24.9661.1251) Tools: Screwdriver, #2 Phillips To remove and replace DMX Input PCB assembly: CAUTION: Always use anti-static precautions when working with PCBs. WARNING: All maintenance procedures are to be performed with power removed from the luminaire.
AINTENANCE AINTENANCE ROCEDURES Cleaning Lens Tools: 99% Isopropyl alcohol (commercial grade) Clean, white, lint-free cloth Cotton gloves To clean lens: WARNING: All maintenance procedures are to be performed with power removed from the luminaire. Step 1. Disconnect AC input cable from power source. CAUTION: Use caution when handling lens.
HAPTER Illustrated Parts Breakdown This chapter contains illustrated parts breakdowns for all VL2000 wash luminaire assemblies. • Drawing Tree • Top Assembly • Head • Yoke • Enclosure • Cables 02.9 671.00 10 C 24-March-2004...
LLUSTRATED ARTS REAKDOWN Head Head Assembly 21.9671.0005 Rev E Refer to Figure 3-3. Item Qty. Description 21.9667.0023 ASSY, FRONT COVER 10.9660.0332 PANEL, VENT COVER 10.9660.0333 FILTER, AIR FRONT COVER 12.9667.0020 MACHINED, FRONT COVER 53.6534.0004 RIVET, 3/32" OD POP 3/16 GRIP L STEEL 53.6633.0002 SCREW, #4 X 3/8"...
LLUSTRATED ARTS REAKDOWN Front Internal Head Assembly 21.9671.0006 Rev E Refer to Figure 3-4. Item Qty. Description 10.9671.0223 SHAFT COLLET 10.9671.0313 LENS SUPPORT ARM 21.9671.0007 FRONT COLOR ASSY 21.9671.0492 ASSEMBLY, FRONT LENS (added 11-08-02) 22.9671.0402 100MM CONDENSER LENS 22.9671.0414 ASSY, CONVEX LENS 53.2200.0004 NUT, 4-40 KEPS SS 53.5558.0188...
LLUSTRATED ARTS REAKDOWN Front Color Assembly 21.9671.0007 Rev F Refer to Figure 3-5. Item Qty. Description 10.9671.0219 LENS SHAFT 10.9671.0347 MOUNTING BRACKET, HEAD, FRONT 21.9671.0150 ASSY, BLUE/AMBER COLOR WHEELS 21.9671.0173 ASSY, BLOCK/SHAFT 10.9671.0171 SHAFT, BLUE/AMBER COLOR WHEELS 10.9671.0172 BLOCK, MOUNTING, SHAFT 21.9671.0183 MOTOR ASSY, BLUE 21.9671.0184...
LLUSTRATED ARTS REAKDOWN Blue/Amber Color Wheels Assembly 21.9671.0150 Rev D Refer to Figure 3-6. Item Qty. Description 10.9671.0190 BUSHING, BLUE/AMBER 10.9671.0191 HUB ASSY, BLUE WHEEL 10.9671.0194 PULLEY, BLUE COLOR WHEEL 10.9671.0198 GASKET, COLOR WHEELS 10.9671.0199 SPRING, COLOR WHEELS 21.9671.0158 ASSY, AMBER COLOR WHEEL 21.9671.0162 GLASS ASSY, BLUE COLOR WHEEL 53.5558.0376...
LLUSTRATED ARTS REAKDOWN Amber Color Wheel Pulley Assembly 22.9671.0506 Rev 0 Refer to Figure 3-8 Item Qty. Description 10.9671.0193 PULLEY, AMBER COLOR WHEEL 54.1251.0001 BEARING, FLANGED 5/16" ID X 3/8" LG SINTERED BRONZE Figure 3-8: Amber Color Wheel Pulley Assembly 02.9 671.00 10 C 24-March-2004...
LLUSTRATED ARTS REAKDOWN Back Cap Assembly 22.9671.0404 Rev D Refer to Figure 3-17. Item Qty. Description 10.9638.0117 KNOB, KNURLED, VL6 BACK CAP/LAMP ASSY. 10.9638.0128 BRACKET, IGNITOR CABLE 10.9638.0130 SPRING, BULB WIRE SHEATH 10.9638.0164 WASHER, FELT 10.9638.0188 COUNTERWEIGHT 10.9667.0411 LAMP CARRIAGE 10.9667.0412 LAMP TILT PLATE 22.9638.0129...
Page 92
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Item Qty. Description 55.3303.0004 WASHER, #4 LOCK INT.TOOTH SS 55.6540.0001 WASHER, #10 FLAT BRASS 55.6568.0017 SPRING, CPRSN .480" OD 1.500" LG SS 55.6568.0036 SPRING, CPRSN .360" OD .690" LG .032" WIRE DIA SS 55.6568.0048...
LLUSTRATED ARTS REAKDOWN Fan Cover Assembly 21.9673.0024 Rev C Refer to Figure 3-18. Item Qty. Description 12.9671.0192 BAFFLE COVER, MOLDED, PLASTIC 21.9667.0510 ASSY, FAN DUCT 10.9667.0511 DUCT, SMALL FAN 10.9667.0512 CABLE MOUNT, SMALL DUCT 53.6534.0002 RIVET, 3/32" OD POP 3/16 GRIP RNG ALUM 21.9671.0058 DUCT ASSY, FAN, LARGE 10.9671.0051...
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Color Bulkhead Assembly 22.9671.0077 Rev C Refer to Figure 3-21. Item Qty. Description 10.9671.0121 HEAT SHIELD, COLOR BULKHEAD 10.9671.0196 SPACER, CLAMP 10.9671.0198 GASKET, COLOR WHEELS 10.9671.0199 SPRING, COLOR WHEELS 21.9671.0124 BULKHEAD ASSY, COLOR W/O COLOR WHEELS 21.9671.0161...
Page 99
LLUSTRATED ARTS REAKDOWN Color Bulkhead Assembly (cont.) 10 (2 pl) 12 (2 pl) 13 (2 pl) 10 (4 pl) Figure 3-21: Color Bulkhead Assembly 02.9 671.00 10 C 24-March-2004...
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Color W/O Color Wheels Bulkhead Assembly 21.9671.0124 Rev 0 Refer to Figure 3-22. Item Qty. Description 10.9671.0125 LIGHT SHIELD, COLOR BULKHEAD 10.9671.0181 BULKHEAD, COLOR 10.9671.0195 BRACKET, MOUNTING SENSOR 21.9667.0119 ASSY, COLOR MOTOR 21.9671.0182 MOTOR ASSY, MAGENTA 24.9671.0175...
LLUSTRATED ARTS REAKDOWN Color Motor Assembly 21.9667.0119 Rev D Refer to Figure 3-23. Item Qty. Description 10.9621.0097 STABILIZER, STEPPER, GOBO WHEEL 10.9667.0120 COLOR MOTOR BULKHEAD 24.9638.0113 PCB ASSY, SENSOR 44.9667.0116 MOTOR, GOBO/COLOR WHEEL 53.6597.0001 SCREW, 4-40 X 3/16" PPZ 53.6599.0001 SCREW, 4-40 X 3/8"...
LLUSTRATED ARTS REAKDOWN Magenta Motor Assembly 21.9671.0182 Rev A Refer to Figure 3-25. Item Qty. Description 10.9671.0120 MOTOR PLATE, MAGENTA COLOR WHEEL 10.9671.0185 HUB, MAGENTA COLOR WHEEL 44.9667.0116 MOTOR, GOBO/COLOR WHEEL 53.5554.0250 SCREW, 4-40 X 1/4" LG SOCKET SET CUP POINT 55.2203.0001 SCREW, 4-40 X 1/4"...
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL Main Controller 3-Phase PCB Assembly 24.9661.1225 Rev R Refer to Figure 3-34. Item Qty. Description 10.9661.1275 HEATSINK, MAIN CONTROLLER 11.9661.1225 PCB, MAIN CONTROLLER 3PHASE 52.6284.0001 HEADER, 4POS MTA FRCT LOK STRT POST 52.6296.0001 HEADER, 8POS MTA FRCT LOK STRT POST 52.6297.0001...
Page 121
LLUSTRATED ARTS REAKDOWN NCLOSURE Item Qty. Description 60.9461.7323 RES, .1W 1% 7.32 K 100V CHIP THK FLM R26 & R32 SMT0805 60.9471.0200 RES, 2W 1% 0.2 OHM POWER METAL STRIP R34 & R42 SUR MT 62.2104.3826 CAP, 82UF 35V RAD ALUM 6.3 X 15MM 20% LOW ESR 62.4000.0105 CAP, .1UF 50V 20% CER CHIP SUR MT Z5U...
LLUSTRATED ARTS REAKDOWN NCLOSURE Pan Tube Assembly 21.9661.1208 Rev K Refer to Figure 3-36. Item Qty. Description 10.9661.1247 TOGGLE STOP 10.9661.1290 PAN TUBE 10.9661.1291 FLANGE, PAN TUBE 21.9661.1207 ASSY, PAN SUPPORT PLATE - 10.9661.1297 PLATE, PAN SUPPORT - 55.2139.0003 STANDOFF, 1/4" RND 8-32 .188"LG FF ALUM 21.9661.1212 ASSY, PAN BEARING CUP, FLANGE SIDE - 10.9661.0611.2...
VARI❋LITE® - VL2000™ W UMINAIRE ERVICE ANUAL 700W Arc Power Supply Ballast Module 23.9671.1250 Rev D Refer to Figure 3-39. Item Qty. Description 06.6032.0009 CABLE MARKER TIE, WHITE 19 X 7.4" 10.9661.1260 HEAT SINK, LEFT 1200 WATT POWER SUPPLY 10.9661.1261 HEAT SINK, RIGHT 1200 WATT POWER SUPPLY 10.9661.1262...
ECHNICAL ULLETIN PPENDIX Technical Bulletins VL2000 Wash Luminaire Technical Bulletin List The following table identifies the current technical bulletins associated with the VL2000 wash luminaire. These improvements have been incorporated into this manual. Technical Bulletin Description V24-008 Thermal switch upgrade.
