Dynamix DW-01 User Manual

Fxs sip gateway
Hide thumbs Also See for DW-01:
Table of Contents

Advertisement

Quick Links

DYNAMIX DW-01/S
DYNAMIX DW-02/S
DYNAMIX DW-04/S
FXS SIP Gateway

User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DW-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dynamix DW-01

Summary of Contents for Dynamix DW-01

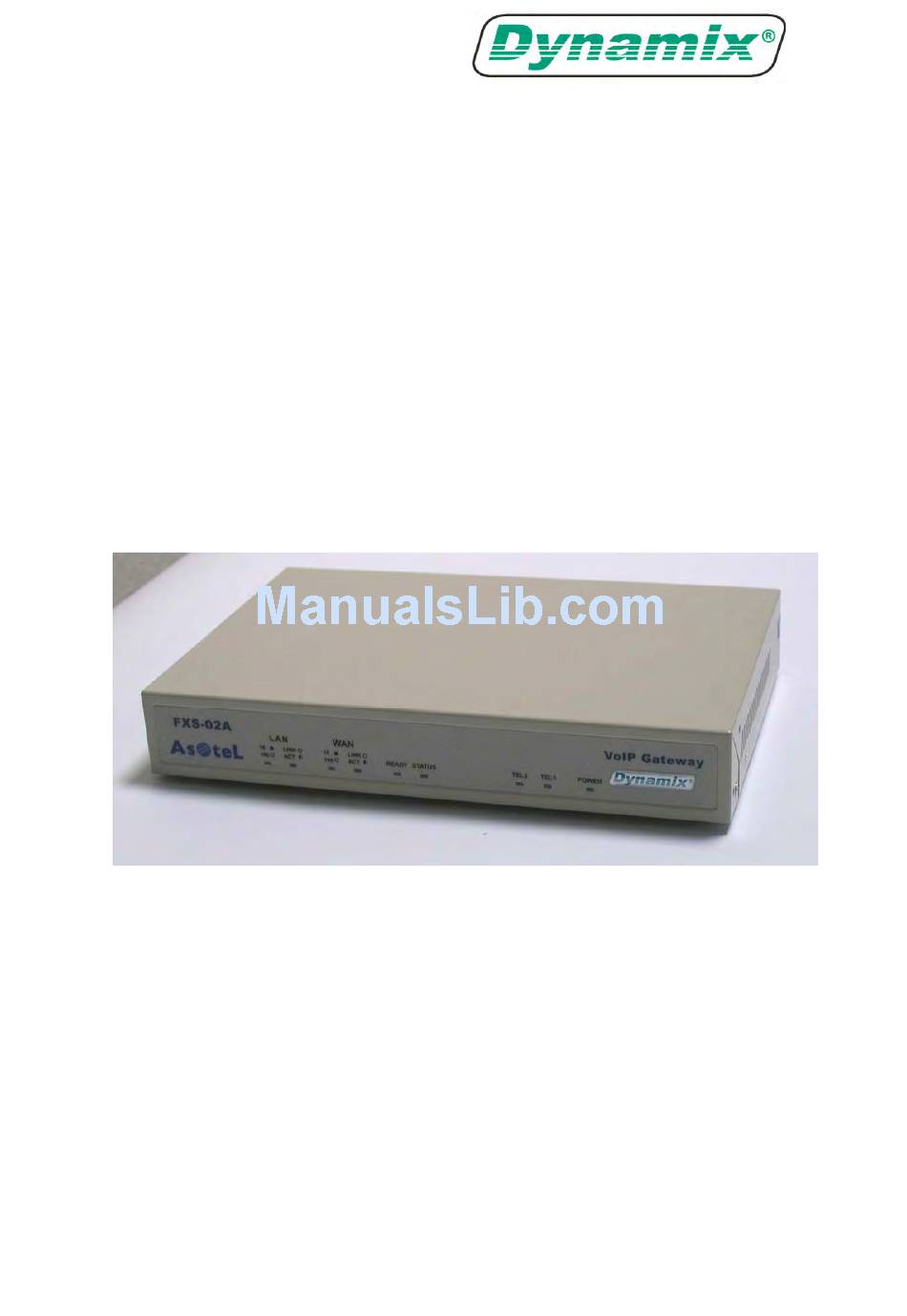

  • Page 1: User Manual

    DYNAMIX DW-01/S DYNAMIX DW-02/S DYNAMIX DW-04/S FXS SIP Gateway User Manual...

  • Page 2: Table Of Contents

    Table of Contents ........................II ABLE OF ONTENTS ..........................V IST OF IGURES .......................... VII IST OF ABLE ..........................VIII REFACE FXS GATEWAY OVERVIEW ..................9 1 FXS G ..................1-1 HAPTER ATEWAY VERVIEW 1.1 FXS Gateway Overview....................1-1 1.2 Features of The FXS Gateway ..................1-1 1.3 Default Settings......................
  • Page 3 5.1 Before you start downloading..................5-1 5.2 Update Application Version ................... 5-1 ................6-1 HAPTER ETWORK NTERFACE CREEN 6.1 Network Interface Overview ..................6-1 6.2 Network Interface Screen....................6-1 7 SIP I ..................7-1 HAPTER NFORMATION CREEN 7.1 SIP Information Overview ..................... 7-1 7.2 SIP Information Screen....................
  • Page 4 18 R .................. 18-1 HAPTER EBOOT YSTEM CREEN 18.1 Reboot FXS Gateway Overview................. 18-1 18.2 Reboot FXS System screen..................18-1 COMMAND WITH FXS GATEWAY ..............2 19 C ....................19-1 HAPTER OMMAND 19.1 Hyper Terminal Setting....................19-1 19.2 Power Up Your FXS Gateway..................19-2 19.3 Command Structure with FXS Gateway ..............

  • Page 5: List Of Figures

    List of Figures Figure 1-1 2FXS Front Panel................... 1-3 Figure 1-2 2AFXS Front Panel..................1-3 Figure 1-3 4AFXS Front Panel..................1-3 Figure 1-4 2FXS Gateway Back Panel Ports..............1-3 Figure 1-5 2AFXS Gateway Back Panel Ports..............1-3 Figure 1-6 4AFXS Gateway Back Panel Ports..............1-3 Figure 2-1 Login Screen ..........Ошибка! Закладка...
  • Page 6 Figure 19-3 Connect To ...........Ошибка! Закладка не определена. Figure 19-4 Com Properties ..................19-2 Figure 19-5 Initial Screen ....................19-3 Figure 19-6 Login Screen ....................19-3 Figure 19-7 Change password Screen ................19-4 Figure 19-8 quit commend List ................... 19-14 Figure 19-9 debug commend list .................
  • Page 7 List of Table Table 1-1 2FXS LEDs Descriptions ................1-4 Table 1-2 2AFXS LEDs Functions.................. 1-4 Table 1-3 LEDs Functions ....................1-5 Table 2-1 Navigation Panel Links ................... 2-2 Table 6-1 H323 Configuration..................6-1 Table 7-1 SIP Information ....................7-1 Table 8-1 System Configuration..................

  • Page 8: Preface

    Preface Congratulations on your purchase of the FXS Gateway. About this User’s Manual This user’s guide gives hardware specifications and explains web configurator and command line configuration for the FXS Gateway 2, 2A, and 4A. General Syntax Conventions Mouse action sequences are denoted using a comma. For example, click start, Settings, Control Panel, Network means first you click Start, Click or move the mouse pointer over Settings the click or move the mouse pointer over Control Panel and finally click (or double-click) Network.

  • Page 9: Fxs Gateway Overview

    FXS Gateway Overview Part I: FXS Gateway Overview This part introduces the general features default settings and hardware of the FXS Gateway.

  • Page 10: Fxs Gateway Overview

    FXS Gateway Overview Chapter 1 FXS Gateway Overview The chapter introduces the FXS Gateway general feature, factory default settings and hardware. FXS Gateway Overview FXS Gateway integrated data and voice in one device, which based on IETF RFC 2543 bis-09 compliance, provides voice and fax over IP networks.

  • Page 11: Default Settings

    FXS Gateway Overview CNG (Comfort Noise Generate) G.168/165-compliant adaptive echo cancellation Dynamic Jitter Buffer Bad Frame Interpolation Voice/DTMF Gain Settings Interface Four 10/100 Base-T Ethernet RJ45 ports (Auto LAN MDI/MDIX). One DB-9 RS232 COM Port. One RJ11 Telephone Port (FXS). DC 12V input.

  • Page 12: Front Panels

    FXS Gateway Overview Front Panels The LEDs on the front panel indicate the operational status of the Gateway. Figure 1-1 2FXS Front Panel Figure 1-2 2AFXS Front Panel Figure 1-3 4AFXS Front Panel Back Panel Ports Figure 1-4 2FXS Gateway Back Panel Ports Figure 1-5 2AFXS Gateway Back Panel Ports Figure 1-6 4AFXS Gateway Back Panel Ports Hardware Specifications...

  • Page 13: Table 1-1 2Fxs Leds Descriptions

    FXS Gateway Overview Table 1-1 2FXS LEDs Descriptions LEDs Functions Indicator Active Description Status Power Power Green The Power adapter is connected to the Gateway. The system is off or not receiving power. TEL(1-2) The Telephone is Off-Hook. The Telephone is On-Hook. Status Status Green...

  • Page 14: Table 1-3 Leds Functions

    FXS Gateway Overview LEDs Functions Indicator Active Description Status 10/100M Green The 10M LAN is connected. The 100M LAN is connected. Uplink to the HUB/Router directly. Link/ACT Link/ACT Green Blinking While plugging on the Ethernet cable, it must light on and the flash if some data is being TX/RX.
  • Page 15 FXS Gateway Overview LEDs Functions Indicator Active Description Status is being TX/RX. The Ethernet cable is not connected. 10/100M Green The 10M LAN is connected. The 100M LANis connected. Uplink to the HUB/Router directly. Link/ACT Link/ACT Green Blinking While plugging on the Ethernet cable, it must light on and the flash if some data is being TX/RX.

  • Page 16: Ethernet Port

    FXS Gateway Overview PINOUTS Pin Name Dir Description Receive Data Transmit Data System Ground 1.6.4 Back Panel Port Ethernet Port: Ethernet port is for connecting FXS Gateway to network, transmit rate supports 10/100 Base-T. Ethernet connector LAN TEL Port: RJ-11 connector, FXS interface. To connect analog phone sets or trunk line of PABX. 12V DC Port: DC Power supply.

  • Page 17: Additional Installation Requirements

    FXS Gateway Overview threaded coaxial cable connect on the back of the cable modem. Step 1. Connecting the Console Port For the initial configuration of your FXS Gateway, you need to use terminal emulator software on a workstation and connect it to the FXS Gateway the console port. Connect the 9-pin end of the console cable to the console port of the FXS Gateway and the other end to a serial port (COM1, COM2 or other COM port) of your workstation.

  • Page 18: Setting Up The Tcp/Ip Protocol

    FXS Gateway Overview After the FXS Gateway is properly set up, you can make future changes to the configuration through telnet connections Setting Up the TCP/IP Protocol If you are not sure whether the TCP/IP Protocol has been installed, follow these setups to check, and if necessary, install TCP/IP onto your PCs.

  • Page 19: Power Up Your Fxs Gateway

    FXS Gateway Overview Step 11. Click “OK”, Restart your PC to complete the TCP/IP installation. Power Up Your FXS Gateway At this point, you should have connected the console port, the LAN Port, the WAN port and th power port to the appropriate devices or lines. Plug the power adapter into a wall outlet. The Power LED should be on.

  • Page 20: Web Configuration With Fxs Gateway

    FXS Gateway Overview Part II: Web Configuration with FXS Gateway This part tells how to access and navigate the web configurator and perform initial configuration. It also describes the Getting Started web configuration when you use the FXS Gateway.

  • Page 21: Chapter 2 Web Configuration With Fxs Introduction

    FXS Gateway Overview Chapter 2 Web Configuration with FXS Introduction This Chapter describes how to login into the WEB and navigate through it. Web Configuration with FXS Overview The embedded web configuration allows you to use a web browser to manage the FXS Gateway.

  • Page 22: Table 2-1 Navigation Panel Links

    FXS Gateway Overview Figure 2-1 FXS Gateway web configuration welcome screen The following table describes the screen. Table 2-1 Navigation Panel Links LABEL DESCRIPTION Network Interface This link takes you to a screen where you can configure the FXS Gateway Network Interface Information.

  • Page 23: Saving Your Configuration

    FXS Gateway Overview LABEL DESCRIPTION information and configuration. Commit Data This link takes you to a screen where you can click save your changes to the non-volatile memory. Reboot System This link takes you to a screen where you can click to reboot FXS Gateway.

  • Page 24: Chapter 3 Initial Configuration

    FXS Gateway Overview Chapter 3 Initial Configuration This Chapter covers the basic configuration needed to set up and use the FXS Gateway. Refer to the other part describes about individual fields within screens. Initial Configuration Overview This chapter describes the procedure for the initial configuration of the FXS Gateway. Refer to the relevant chapters in this User’s Guide for descriptions of the fields and buttons within individual screens.

  • Page 25: Figure 3-3 Reboot Fxs System

    FXS Gateway Overview screen, click the Commit button. In the Commit Configuration Data screen to Display Commit to Flash OK!, When the Commit Data Ok. Figure 3-2 Commit Data Step 3. Click Reboot Data on the navigation panel. In the Reboot FXS System screen, click the Reboot button.

  • Page 26: Dhcp Mode

    FXS Gateway Overview DHCP mode Step 1. Configuration the FXS Gateway IP address for DHCP Mode. Click Network Interface on the navigation panel. In the Network Interface screen, enable the DHCP function if you are using the cable modem or DHCP server and click the OK button.
  • Page 27 FXS Gateway Overview The WAN IP Address obtained from ADSL has two kinds of methods. One is fixed IP Address, while user applies for one or more fixed IP Addresses. Another is dynamic IP Address while user applies for dial-up connection way. The LAN IP Address of User’s PC can be set as DHCP client in order to gain a valid one.

  • Page 28: Figure 3-5 Enable The Ip Sharing Function

    FXS Gateway Overview Activate DMZ DMZ Host IP : Step 1. Configuration the FXS Gateway IP address for IP Sharing Mode. Click Network Interface on the navigation panel. In the Network Interface screen, enter the IP address, Subnet mask and the default gateway in the network table. Please follow up your IP Sharing device Step 2.
  • Page 29 FXS Gateway Overview Step 5. Close the current browser windows and launch your web browser again. Enter the new IP address in the Location or Address field. Press [Enter]. 3.5.2 Two sets attached to IP Sharing Device(Router) Assign a IP address to each set using DHCP or fixed address. Enable the IP Sharing function for each set using following command.
  • Page 30 FXS Gateway Overview 26384 192.168.1.11 26384 26394 192.168.1.11 26394 Note: Different Vendor’s Router will have different appearance of setting. Once you set the DMZ Host, you don’t need to configure the Port Forwarding and vice versa. If there is only one FXS Gateway attached to the IP Sharing device, it is recommended to use DMZ Host setting to enable the NAT traverse and disable the Port Forwarding.

  • Page 31: Chapter 4 Making A Voip Call

    FXS Gateway Overview Chapter 4 Making a VoIP Call This Chapter covers the basic configuration the gateway for making VoIP calls. One is the Peer-to-Peer mode, another is Proxy routed mode. The configurations and functions are different. Please make sure about the mode you want and follow up the step to configure your gateway.

  • Page 32: Figure 4-2 Phone Book

    FXS Gateway Overview Figure 4-2 Phone Book Step 3. E.g. enter the Index: 1, Name: test1, IP address: 192.168.4.72 and e164: 200 of the destination and click the Add Data button. Figure 4-3 Phone Book – New Record Step 4. On table will display on the first index.

  • Page 33: Configure The Gateway Into The Proxy Routed Mode

    FXS Gateway Overview Figure 4-4 Phone Book Step 5. Click Commit Data on the navigation panel. In the Commit Data screen, click the Commit button. In the Commit Data screen to Display Commit to Flash OK!, When the Commit Data Ok. Step 6.

  • Page 34: Figure 4-5 Configure The Proxy Info

    FXS Gateway Overview Figure 4-5 Configure the Proxy info Step 3. Click Commit Data on the navigation panel. In the Commit Data screen, click the Commit button. In the Commit Data screen to Display Commit to Flash OK!, When the Commit Data Ok. Step 4.

  • Page 35: Chapter 5 Upgrade Rom Version

    FXS Gateway Overview Chapter 5 Upgrade ROM Version This Chapter covers the basic how to upgrade FXS Gateway ROM Version. Before you start downloading Please confirm Host PC, which is installed as TFTP / FTP server and device is in available network.

  • Page 36: Figure 5-2 Rom File Upgrade Ok

    FXS Gateway Overview Figure 5-2 ROM File Upgrade ok Step 3. Click Flash Clean on the navigation panel. In the Flash Clean screen, click the CLEAN button. In the Flash Clean screen to Display Flash cleaned!! Please reboot your system!!, When the Flash Clean Ok. Figure 5-3 Flash Clean Step 4.
  • Page 37 FXS Gateway Overview click the Reboot button. It will take 40 seconds to reboot. Step 5. Close the current browser windows and launch your web browser again. Enter the IP address in the Location or Address field. Press [Enter]. Upgrade ROM Screen...

  • Page 38: Chapter 6 Network Interface Screen

    FXS Gateway Overview Chapter 6 Network Interface Screen This Chapter covers setup Network Interface identification information for FXS Gateway. Network Interface Overview The web configurator provides Network Interface screen. Network Interface Screen Click Network Interface in the navigation panel and open the Network Interface Screen. Use this screen to setup Network Interface identification information for the FXS Gateway.
  • Page 39 FXS Gateway Overview LABEL DESCRIPTION DNS primary Enter the DNS IP Address in dotted decimal notation for e.g. 168.95.1.1 DNS Secondary Enter the DNS secondary IP Address in dotted decimal notation for e.g. 168.95.1.1 SNTP Select enable/disable Simple Network Time Protocol. SNTP Server Address Set specify a SNTP Server as network time source in dotted decimal notation for e.g.

  • Page 40: Sip Information Screen

    FXS Gateway Overview Chapter 7 SIP Information Screen This Chapter covers setup SIP related parameters. SIP Information Overview The web configurator provides SIP Configuration screen. SIP Information Screen Click SIP Configuration in the navigation panel and open the SIP Information Screen. Figure 7-1 SIP Information The following table describes this screen.
  • Page 41 FXS Gateway Overview LABEL DESCRIPTION RTP Port Set RTP port number, example 16384. Expire Used to inform proxy server the valid duration of the registration information. Click OK to save your changes back to the FXS Gateway volatile memory. H323 Information Screen...

  • Page 42: Chapter 8 System Configuration Screen

    FXS Gateway Overview Chapter 8 System Configuration Screen This Chapter covers System Information and configuration. System Configuration Overview The web configurator provides System Configuration screen. System Configuration Screen Click System conf in the navigation panel and open the System Configuration Screen. Figure 8-1 System Configuration The following table describes this screen.
  • Page 43 FXS Gateway Overview LABEL DESCRIPTION Click OK to save your changes back to the FXS Gateway volatile memory. System Configuration Screen...

  • Page 44: Chapter 9 Voice Setting Screen

    FXS Gateway Overview Chapter 9 Voice Setting Screen This Chapter covers voice is associated with the audio setting information. Voice Setting Overview The web configurator provides Voice Configuration screen. Voice Setting Screen Click Voice Setting in the navigation panel and open the Voice Setting Screen. Figure 9-1 Voice Configuration The following table describes this screen.
  • Page 45 FXS Gateway Overview LABEL DESCRIPTION Jitter Buffer Max. Setting of jitter buffer max delay. Delay Optimized Factor Setting Optimized Factor (Jitter). (Jitter): Click OK to save your changes back to the FXS Gateway volatile memory. Note: Well the application before you change voice parameters, because this might cause incompatibility .

  • Page 46: Chapter 10 Phone Pattern Screen

    FXS Gateway Overview Chapter 10 Phone Pattern Screen This Chapter covers FXS Gateway progress tone is configurable. Default tone value is set according to U.S. tone specification. Users may adjust the values according to their own country’s tone specification or users-defined tone specification. 10.1 Phone Pattern Overview The web configurator provides Phone Configuration screen.
  • Page 47 FXS Gateway Overview LABEL DESCRIPTION Click OK to save your changes back to the FXS Gateway volatile memory. Phone Patterm Screen 10-2...

  • Page 48: Chapter 11 Support Function Screen

    FXS Gateway Overview Chapter 11 Support Function Screen This Chapter provides some extra functions that might be needed by users. 11.1 Support Function Overview The web configurator provides Support Configuration screen. 11.2 Support Function Screen Click Support Function in the navigation panel and open the Support Function Screen. Figure 11-1 Support Function The following table describes this screen.

  • Page 49: Chapter 12 Phone Book Screen

    FXS Gateway Overview Chapter 12 Phone Book Screen This Chapter covers Phone Book function allows users to define their own numbers, which mapping to real IP address. It is effective only in peer-to-peer mode. When adding a record to Phone Book, users do not have to reboot the machine, and the record will be effective immediately.
  • Page 50 FXS Gateway Overview LABEL DESCRIPTION e164 The field displays the descriptive e164 number. New Record Index Set up an Index number. Name Set up a descriptive name. IP Address Set up IP Address or Domain Name. e164 No. Set up e164 (telephone) number Add Data Add a record to Phone Book.

  • Page 51: Dscp Configuration Screen

    FXS Gateway Overview Chapter 13 DSCP Configuration Screen IP Packet ToS(type of Service)/Differentiated Service configuration. 13.1 DSCP Configuration The web configurator provides DSCP Configuration screen. 13.2 DSCP Configuration Screen Click DSCP Configuration in the navigation panel and open the DSCP Configuration Screen. Figure 13-1 DSCP Configuration The following table describes this screen.

  • Page 52: Chapter 14 Password Screen

    FXS Gateway Overview Chapter 14 Password Screen This Chapter explains how to change the FXS Gateway password. 14.1 Password Configuration Overview The Password screen allows you to configure the administrator password. 14.2 Password Configuration Screen Click Password in the navigation panel to open the Password Configuration screen. Use the Password Configuration to set root and administrator password for the FXS Gateway.
  • Page 53 FXS Gateway Overview LABEL DESCRIPTION CHANGE Click CHANGE to save your change back to the FXS Gateway volatile memory. ABORT Click ABORT to begin configuring this page afresh. Password Screen 14-2...

  • Page 54: Rom Upgrade Screen

    FXS Gateway Overview Chapter 15 ROM Upgrade Screen This Chapter explains how to Update FXS Gateway Version. 15.1 ROM Configuration Overview The web configurator provides Update FXS Gateway ROM Version. 15.2 ROM Configuration Screen Click ROM Upgrade in the navigation panel and open the ROM Configuration Screen. Figure 15-1 ROM Configuration The following table describes this screen.
  • Page 55 FXS Gateway Overview LABEL DESCRIPTION Click OK to save your change back to the FXS Gateway volatile memory. ROM Upgrade Screen 15-2...

  • Page 56: Chapter 16 Flash Clean Screen

    FXS Gateway Overview Chapter 16 Flash Clean Screen This Chapter covers save change and clean all the user defined value in factory default mode. 16.1 Flash Clean Overview The web configurator provides Flash Clean screen. 16.2 Flash Clean Screen Click Flash Clean in the navigation panel and open the Flash Clean Screen. Figure 16-1 Flash Clean The following table describes this screen.

  • Page 57: Chapter 17 Commit Data Screen

    FXS Gateway Overview Chapter 17 Commit Data Screen This Chapter covers save change after configuring FXS Gateway. 17.1 Commit Data Overview The web configurator provides Commit Data screen. 17.2 Commit Data Screen Click Commit Data in the navigation panel and open the Commit Data Screen. Figure 17-1 Commit Data The following table describes this screen.

  • Page 58: Chapter 18 Reboot System Screen

    FXS Gateway Overview Chapter 18 Reboot System Screen This Chapter covers reboot to reload FXS Gateway in new configuration. 18.1 Reboot FXS Gateway Overview The web configurator provides Reboot FXS System screen. 18.2 Reboot FXS System screen Click Reboot System in the navigation panel and open the Reboot FXS System screen. Figure 18-1 Reboot FXS System The following table describes this screen.

  • Page 59: Command With Fxs Gateway

    Command with FXS Gateway Part III: Command with FXS Gateway This part gives information on commands to use.

  • Page 60: Chapter 19 Command List

    Command with FXS Gateway Chapter 19 Command List This section introduces the command line interface and lists all of the commands. 19.1 Hyper Terminal Setting A terminal emulator is needed when using RS-232 port to configure FXS Gateway. There are kinds of terminal emulator software.

  • Page 61: Power Up Your Fxs Gateway

    Command with FXS Gateway Step 4. Configure the COM Port Properties as following: Bits per second: 9600, Flow control: None, Press OK button, and then start to configure FXS Gateway. Figure 19-2 Com Properties 19.2 Power Up Your FXS Gateway At this point, you should have connected the console port, the LAN Port, the WAN port and the power port to the appropriate devices or lines.

  • Page 62: Set Password

    Command with FXS Gateway successful 1 2 Initialize OSS libraries...OK! VP v1.40 stack open sucessfully. login: Figure 19-3 Initial Screen Entering Login For you first login, enter the login root and default password “Null”. As you type the password, the screen displays and (*) for each character you type. AC4804[0] is ok successful Initialize OSS libraries...OK!

  • Page 63: Command Structure With Fxs Gateway

    Command with FXS Gateway Figure 19-5 Change password Screen 19.3 Command Structure with FXS Gateway You can use text command lines for software configuration. The rules of the commands are listed next. The command keywords are in courier new font. 1.

  • Page 64: Application Modes

    Command with FXS Gateway command to save any configuration that you make, otherwise the FXS Gateway will return to its default setting when it is restarted. Do not turn off your FXS Gateway or remove the FXS Gateway While saving your configuration. 19.4 Application modes This Chapter will introduce the four application modes users often use.
  • Page 65 Command with FXS Gateway number as “0507” The line number of line1 and line2 depends on what you get from your service provider. Step 3. Confirming the values, type commit and press enter to save all the changes you have done. Step 4.
  • Page 66 Command with FXS Gateway login: 19.4.2 Peer-to-Peer Mode Peer-to-Peer Mode allows users to call other VoIP devices without the proxy server. When in Peer-To-Peer mode, FXS Gateway will send INVITE message directly to the destination IP address once the dial is finished. One can use PhoneBook, which will dial predefined phone number, and press “#”...
  • Page 67 Command with FXS Gateway 1. The WAN IP Address obtained from ADSL has two kinds of methods. One is fixed IP Address, while user applies for one or more fixed IP Addresses. Another is dynamic IP Address while user applies for dial-up connection way. 2.
  • Page 68 Command with FXS Gateway Activate DMZ DMZ Host IP : Two Sets FXS Gateway 1. The WAN IP Address obtained from ADSL has two kinds of methods. One is fixed IP Address, while user applies for one or more fixed IP Addresses. Another is dynamic IP Address while user applies for dial-up connection way.
  • Page 69 Command with FXS Gateway 5. Use the Port Forwarding or Port Redirection function provided by IP Sharing device (Router). See following for example. >Advanced setting > NAT setting > Port Redirection Active Configuration Items Service name Protocol Actual Port Virtual IP Virtual Port Enable 5060...

  • Page 70: Pppoe Mode

    Command with FXS Gateway 19.4.4 PPPoE Mode ATU-R ADSL Modem User ID: Password: FXS-4B Gateway Press [?] or [help] to list all commands, including PPPoE one. Step 1. pppoe –dev 1 : switch the IP configurations to PPPoE Step 2. pppoe –open : open the connection Step 3.

  • Page 71: How To Upgrade

    Command with FXS Gateway 19.5 How to upgrade Before you start downloading 1. Please confirm Host PC, which is installed as TFTP / FTP server and device is in available network. 2. Remember the current configuration, such as [pbook], [SIP]. Upgrade steps: Step 1.

  • Page 72: Commands With Fxs Gateway

    Command with FXS Gateway There are 12 digits on label on the back panel of the device, or command as usr/config$ ifaddr –ifshow (find the list information of Ethernet address, it is MAC Address. usr/config$ setmac (set as 2 digits as a group) if confirm, press y Steps 4.2: Set IP Address...

  • Page 73: System Commands Overview

    Command with FXS Gateway Command DESCRIPTION time show current time. ping test that a remote host is reachable. pbook Phonebook information and configuration. pppoe PPPoE stack manipulation. sysconf System information manipulation. This command is to configure SIP related parameters. security This command is used to configure the account information included username and password obtained from the service provider.
  • Page 74 Command with FXS Gateway Debug message information and configuration Usage: debug [-add type1 [[type2]...]] | -open | -close | -status -status Display the enabled debug flags. -add Add debug flag. -delete Remove specified debug flag. -open Start to show debug messages. -close Stop showing debug messages.
  • Page 75 Command with FXS Gateway 19.7.3 [reboot] After commit command, type reboot to reload FXS Gateway in new configuration. The procedure is as below: usr/config$ reboot . Rebooting...It will take 40 seconds..Attached TCP/IP interface to cpm unit 0 Attaching interface lo0...done HTTPD initialized...
  • Page 76 Command with FXS Gateway -clean clean all the user defined value, and reboot FXS Gateway in factory default mode. Note: It is recommended that use “flash –clean” after application firmware id upgraded. Warning: It is only executed by user whose login name is root. All configurations in command [ifaddr], [pppoe] will be kept usr/config$ flash -clean Flash clean start...

  • Page 77: Command List

    Command with FXS Gateway Figure 19-12 commit commend list Note: Users shall use commit to save modified value, or they will not be activated after system reboot. 19.7.6 [ifaddr] Configure and display FXS Gateway network information. usr/config$ ifaddr LAN information and configuration Usage: ifaddr [-print]|[-dhcp used]|[-sntp mode [server]] ifaddr [-ip ipaddress] [-mask subnetmask] [-gate defaultgateway]...
  • Page 78 Command with FXS Gateway usr/config$ Figure 19-13 ifaddr commend list Parameter Usages: -print print current IP setting and status assigned IP address for FXS Gateway -mask internet subnet mask -gate IP default gateway -dhcp Dynamic Host Configuration (1 = ON; 0 = OFF) -sntp Simple Network Time Protocol (1 = ON;...
  • Page 79 Command with FXS Gateway Primary DNS Server : 168.95.1.1 Secondary DNS Server : 168.95.1.1 usr/config$ Figure 19-14 ifaddr –print commend list 19.7.7 [time] When SNTP function of FXS Gateway is enabled and SNTP server can be found as well, type time command to show current network time.
  • Page 80 Command with FXS Gateway users do not have to reboot the machine, and the record will be effective immediately. usr/config$ pbook Phonebook information and configuration Usage: pbook [-print [start_record] [end_record]] pbook [-add [ip ipaddress] [name Alias] [e164 phonenumber]] pbook [-search [ip ipaddress] [name Alias] [e164 phonenumber]] pbook [-insert [index] [ip ipaddress] [name Alias] [e164 phonenumber]] pbook [-delete index] pbook [-modify [index] [ip ipaddress] [name Alias] [e164 phonenumber]]...
  • Page 81 Command with FXS Gateway Parameter Usages: -print print out current contents of Phone Book. Users can also add index number, from 1 to 100, to the parameter to show specific phone number. Note: <index number> means the sequence number in phone book. If users do request a specific index number in phone book, FXS Gateway will give each record a automatic sequence number as index.
  • Page 82 Command with FXS Gateway -print Display PPPoE device information. -dev Enable(=1) or Disable(=0) device. -open Open PPPoE connection. -close Disconnect PPPoE connection. Connection user name. -pwd Connection password. -reboot Reboot after remote host disconnection. usr/config$ Figure 19-19 pppoe commend list Parameter Usages: -print print PPPoE status.
  • Page 83 Command with FXS Gateway Usage: sysconf [-idtime digit] [-bf digit] [-keypad dtmf] [-faxtype type][-2833type type][-lcdrop ON/OFF] [-droptime digit][-eod digit] sysconf -print -print Display system overall information and configuration. -idtime Inter-Digits time.(1~10 sec) BusyForward.(ON:1 / OFF:0) -keypad Select DTMF type: 0=In-band, 1=RFC2833.
  • Page 84 Command with FXS Gateway usr/config$ sysconf -print System information Inter-Digits time BusyForward : OFF Keypad DTMF type : In-band End of Dial Digit RFC2833 Payload Type : 96 FAX Payload Type : 101 Disconnect Supervision : OFF Loop Current Drop Time(ms) : 500 usr/config$ Figure 19-22 sysconf –print commend list 19.7.12 [sip]...
  • Page 85 Command with FXS Gateway -rtp RTP port number (2326~65534), Default: 16384 Example: sip -px 210.59.163.171 -line1 70 usr/config$ Figure 19-23 sip commend list Parameter Usages: -mode Configure as Proxy mode or Peer-to-Peer mode (0: Peer-to-Peer mode, 1: Proxy mode). to specify Proxy address when FXS Gateway is in proxy mode. Proxy address can be IPv4 address or DNS name.
  • Page 86 Command with FXS Gateway Figure 19-24 sip –print commend list 19.7.13 [security] This command is used to configure the account information included username and password obtained from the service provider usr/config$ security Secuirty information and configuration Usage: security [-name username] [-pwd password] security -print -print Display system account information and configuration.
  • Page 87 Command with FXS Gateway 19.7.14 [voice] The voice command is associated with the audio setting information. There are four voice codecs supported by FXS Gateway. usr/config$ voice Voice codec setting information and configuration Usage: voice [-send [G723 ms] [G711U ms] [G711A ms] [G729 ms] ] [-volume [voice level] [input level] [dtmf level]] [-nscng [G711U used1] [G711A used2] [G723 used3]] [-echo used] [-mindelay t1] [-maxdelay t2] [-optfactor f]...
  • Page 88 Command with FXS Gateway Figure 19-27 voice commend list Parameter Usages: -print print current voice information and configurations. -send to define packet size for each codec. 20/40/60ms means to send a voice packet per 20/40/60 milliseconds. The smaller the packet size, the shorter the delay time. If network is in good condition, smaller sending packet size is recommended.
  • Page 89 Command with FXS Gateway Sending packet size : G.729A : 40 ms G.723.1 : 60 ms G.711U : 40 ms G.711A : 40 ms Priority order codec : g729a g7231 g711u g711a Volume levels voice volume : 25 input gain : 25 dtmf volume : 23 No sound compress &...
  • Page 90 Command with FXS Gateway Parameter Usages: -print print current settings in support command. -t38 to switch ON/OFF (1 = ON; 0 = OFF) T.38 fax ability. When T.38 ability is ON, FXS Gateway will automatically defer codec (G.723 or G.729a) to T.38 when FAX signal is detected.
  • Page 91 Command with FXS Gateway It’s working if it supported by your network. usr/config$ tos -print IP Packet ToS information: Signalling Packet: DSCP Code Media Packet: DSCP Code usr/config$ Figure 19-32 tos –print commend list 19.7.17 [phone] FXS Gateway progress tone is configurable. Default tone value is set according to U.S. tone specification.
  • Page 92 Command with FXS Gateway -ring ringing configuration set . -rbt ringback tone configuration set . busy tone configuration set . dial tone configuration set . -flash flash configuration set . -level Loop Current and On-Hook Line Voltage level set . Note: ringing frequency : 15 ~ 100...
  • Page 93 Command with FXS Gateway Ringback Tone tone1 on : 2000 Ringback Tone tone1 off : 4000 Ringback Tone tone2 on : 2000 Ringback Tone tone2 off : 4000 usr/config$ Figure 19-34 phone –print rbt commend list Note: For tone simulation, FXS Gateway adopts dual frequencies as traditional telephone does.
  • Page 94 Command with FXS Gateway -dspapp update DSP application code(optional) IP address of TFTP/FTP server (mandatory) file name(mandatory) -method download via TFTP/FTP (TFTP: mode=0, FTP: mode=1) -ftp specify username and password for FTP Note: This command can run select one option in 'app', 'boot', 'dsptest', 'dspcore', and 'dspapp'.
  • Page 95 Command with FXS Gateway Figure 19-36 rom –print commend list 19.7.19 [passwd] For security concern, users have to input the password before entering configuration mode. “passwd” command is for password setting purpose. usr/config$ passwd Password setting information and configuration Usage: passwd -set Loginname Password passwd -clean Note:...
