1999 F-150/250 Workshop Manual
SECTION 303-01B: Engine — 4.6L and 5.4L
IN-VEHICLE REPAIR
Crankshaft Rear Seal with Retainer Plate
Special Tool(s)
Rear Crankshaft Adapter
303-518 (T95P-6701-DH)
Rear Crankshaft Seal Remover
303-519 (T95P-6701-EH)
Rear Crankshaft Seal Replacer
303-516 (T95P-6701-BH)
Rear Crank Slinger Remover
303-514 (T95P-6701-AH)
Rear Crankshaft Slinger Replacer
303-517 (T95P-6701-CH)
Slide Hammer
100-001 (T50T-100-A)
Removal
1. Remove the oil pan (6675). For additional information, refer to
2. Remove the flexplate or the flywheel (6375). For additional information, refer to

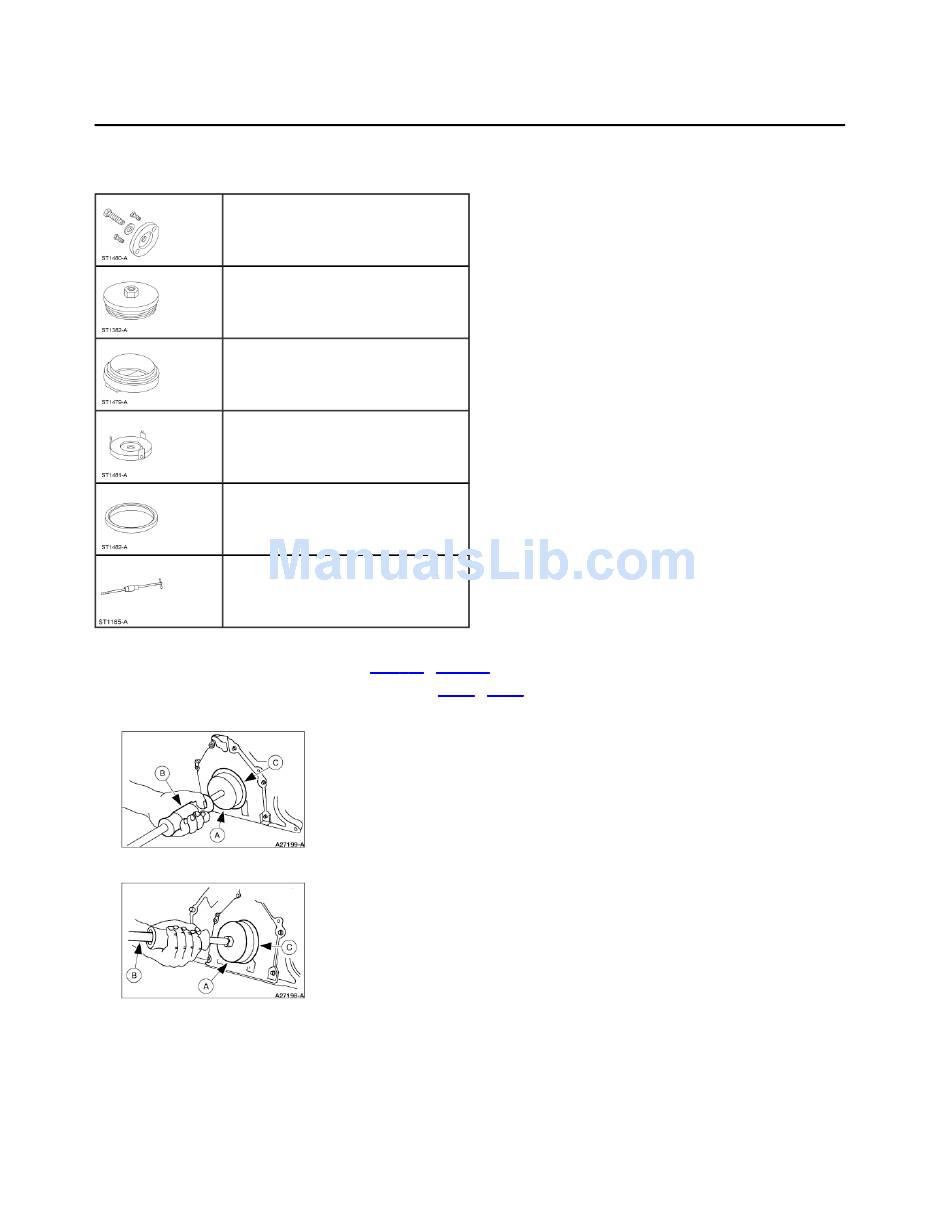

3. Use the (A) Rear Crank Slinger Remover and the (B) Slide Hammer to remove the (C) rear oil seal slinger.
4. Use the (A) Rear Crankshaft Seal Remover and the (B) Slide Hammer to remove the (C) rear main seal.
5. If the oil dye leak test reveals a leak behind the retainer, remove the six bolts and the crankcase rear oil seal retainer.
http://www.fordtechservice.dealerconnection.com/pubs/content/~WSX1/~MUS~LEN/20/S...
Oil Pan—4x2
or
Oil Pan—4x4
in this section.
Flexplate
or
Flywheel
in this section.
3
1999 F-150/250 Workshop Manual
Procedure revision date: 02/03/1999
