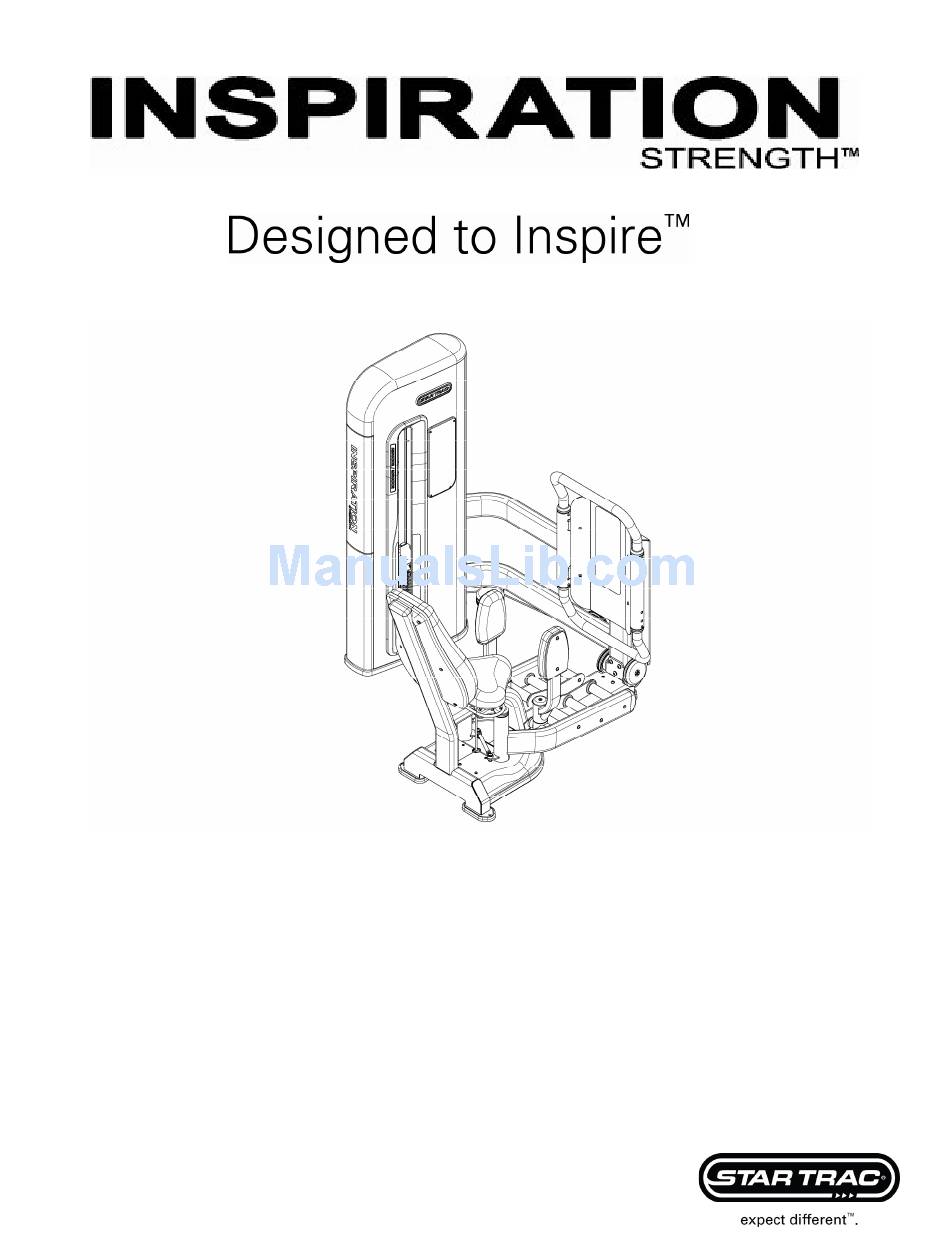

ABDUCTOR / ADDUCTOR
IP-S1316
INSTALLATION INSTRUCTIONS

Advertisement

loading
Need help?

Need help?

Do you have a question about the Inspiration Strenght IP-S1316 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Star Trac Inspiration Strenght IP-S1316

Summary of Contents for Star Trac Inspiration Strenght IP-S1316

  • Page 1 ABDUCTOR / ADDUCTOR IP-S1316 INSTALLATION INSTRUCTIONS...
  • Page 2 Copyright 2009. Star Trac by Unisen, Inc. All rights reserved, including those to reproduce this book or parts thereof in any form without first obtaining written permission from Star Trac. Every effort has been made to keep this information current; however, periodically, changes are made to the information herein, and these changes will be incorporated into new editions of this publication.

  • Page 3: Installation Instructions

    • All Star Trac Strength equipment MUST be secured to the floor using either 10mm or 3/8in. (grade 5 minimum) bolts. To accommodate this there are four mounting points inside the weight stack and one in either of the small feet.
  • Page 4 REMOVE THE SHROUDS: Using a 4MM hex key remove the (M6,30MM,Button Head Bolt) from the rear of the weight stack. Save this bolt as you will need it to re-install later. After the bolt has been removed rotate the black TOP BUMPER towards the front of the weight stack then lift it off and set aside.
  • Page 5 REMOVE THE SEAT FRAME SHROUD: Remove the CAM SHROUDS underneath the SEAT. Use a 4MM hex key to remove the (M6, 16MM, Button Head Screws) and (M6, Washers) and retain for later use. Right Shroud Left Shroud w/ Center Cap INSTALLING THE CROSS SUPPORT Seat Frame FRAME...
  • Page 6 INSTALLING THE CAM / RIGHT LEG ASSEMBLY: Install the RIGHT LEG with the CAM ASSEMBLY into the SEAT FRAME. Align the flat on the shaft with the D- shape slot in the SEAT FRAME and secure with one (M8, 20MM, Socket Head Bolt) and one (M8, Washer).
  • Page 7 INSTALLING THE LEFT LEG ASSEMBLY (cont): Secure the LEFT LEG ASSEMBLY to the SEAT FRAME using three (M8, 25MM, Button Head Screws) and three (M8, Washers) Hand tighten the screws only. Adjust the TUBE SHAFT to align vertically. Bring the LEFT LEG and RIGHT LEG ASSEMBLY together and make sure they are parallel.

  • Page 8: Install The Weight Stack Cable

    INSTALL THE REAR PULLEY Angle Bracket BRACKETS: Install two PULLEY ASSEMBLIES and an ANGLE BRACKET. Use three (M8, 25MM, Button Head Screws) and three (M8, Washers) per PULLEY ASSEMBLY. Use two (M8, 25MM, Button Head Pulley Screws) and two (M8, Washers) to Assemblies install the ANGLE BRACKET.
  • Page 9 INSTALL THE LOWER CABLE (cont.): Loop the CABLE from the CAMS and route around the LOWER PULLEYS, then up and around the upper PULLEY as shown. NOTE: You will have to partially disassemble the PULLEY BRACKET by removing the lower (M10, 45MM, Button Head Screw).

  • Page 10: Install The Lower Cover

    INSTALL THE LOWER COVER: Install the lower cable COVER using four (M8, 25MM, Button Head Screws) and four (M8, Washers). Tighten with a 5MM hex key. TOP PLATE & CABLE ADJUSTMENT: Engage pin at maximum weight and actuate arms 3 to 4 times to Jam Nut (2X) fully seat the weight stacks.
  • Page 11 INSTALL THE VANITY SHIELD: Bolt on the VANITY SHIELD FRAME onto the MAIN FRAME vertical rear tube using four (M8, 45MM, Button Head Screw) and four (M8, Washers). Note FRAME orientation – the top handle should protrude towards the user. Tighten with a 5MM hex key.
  • Page 12 INSTALLING THE SHROUDS: Insert the SHROUDS from the top sliding downward. The SHROUDS have seven hooks for mounting. Before the shroud can be slide down into place the SHROUD hooks need to be aligned with the corresponding mounting slots found on the weight frame of the equipment.
  • Page 13 Page 13...
  • Page 14 Page 14...
  • Page 15 MACHINE CLEARANCE AND SPACING For the safe operation of Inspiration Strength™ Star Trac recommends that a clearance of 24 inches (60.96cm) be maintained between and behind machines including moving arms and levers. To insure safe entry and exit to each unit a walkway of at least 36 inches (91.44cm) inches is recommended front of, or on the entry side of each machine.
  • Page 16 STAR TRAC 14410 Myford Road Irvine, California 92606 Telephone: (800) 228-6635, (714) 669-1660 Fax: (714) 508-3303 www.startrac.com Part No. 620-7930, Rev B., 21 Aug 09...
