Summary of Contents for Star Trac INSPIRATION STRENGTH IP-S6331

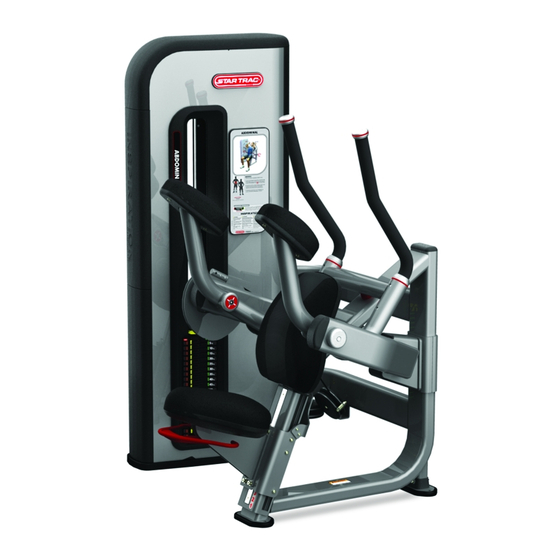

- Page 1 ABDOMINAL MACHINE IP-S6331 INSTALLATION INSTRUCTIONS...
- Page 2 Copyright 2009. Star Trac by Unisen, Inc. All rights reserved, including those to reproduce this book or parts thereof in any form without first obtaining written permission from Star Trac. Every effort has been made to keep this information current; however, periodically, changes are made to the information herein, and these changes will be incorporated into new editions of this publication.
-
Page 3: Installation Instructions
• All Star Trac Strength equipment MUST be secured to the floor using either 10mm or 3/8in. (grade 5 minimum) bolts. To accommodate this there are four mounting points inside the weight stack and one in either of the small feet. - Page 4 REMOVE THE SHROUDS: Using a 4MM hex key remove the (M6,30MM,Button Head Bolt) from the rear of the weight stack. Save this bolt as you will need it to re-install later. After the bolt has been removed rotate the black TOP BUMPER towards the front of the weight stack then lift it off and set aside.
- Page 5 INSTALLING THE ARM PIVOT BRACKET: Cross Locate the six (M12,70MM,Button Head Brace Bolts), six (M12,Washers), ARM BRACKET, & ARM PIVOT BACK PLATE. Align components and tighten bolts using an 8MM hex key. Back Plate Secure the ARM BRACKET CROSS Arm Pivot BRACE to the FRONT TUBING with four Bracket (M8, 20MM, Button Head Screw) and...
- Page 6 INSTALLING THE ARM PIVOT (CAM SIDE): Arm Pivot Pivot Bracket Install the CAM/SHAFT assembly thru the bearings in the ARM PIVOT BRACKET and into the ARM PIVOT. Install END CAP as shown with a M8 Washer and (M8, 20MM, Socket Head Screw).
- Page 7 GUIDE ROD LUBRICATION: Apply a general purpose lubricant (such as 3-in-1 oil) that does not contain Teflon to a cotton cloth, then run the cotton cloth up and down the guide rods as needed. Also apply oil to the incremental weight guide tracks.
- Page 8 INCREMENTAL WEIGHT ADJUSTMENT: Check to make sure the gap between the TOP PLATE pin and the 20mm hole of the INCREMENTAL WEIGHT plate is 3mm or less when engage. If gap is greater than 3mm, loosen but do not remove the two BUTTON HEAD SCREWS (M6) using a 4MM hex key.
- Page 9 1.0 N-m max. MACHINE CLEARANCE AND SPACING For the safe operation of Inspiration Strength™ Star Trac recommends that a clearance of 24 inches (60.96cm) be maintained between and behind machines including moving arms and levers. To insure safe entry and exit to each unit a walkway of at least 36 inches (91.44cm) inches is recommended...
- Page 10 Page 10...
- Page 11 Page 11...
- Page 12 STAR TRAC 14410 Myford Road Irvine, California 92606 Telephone: (800) 228-6635, (714) 669-1660 Fax: (714) 508-3303 www.startrac.com Part No. 620-7938, Rev B., 21 Aug 2009...
