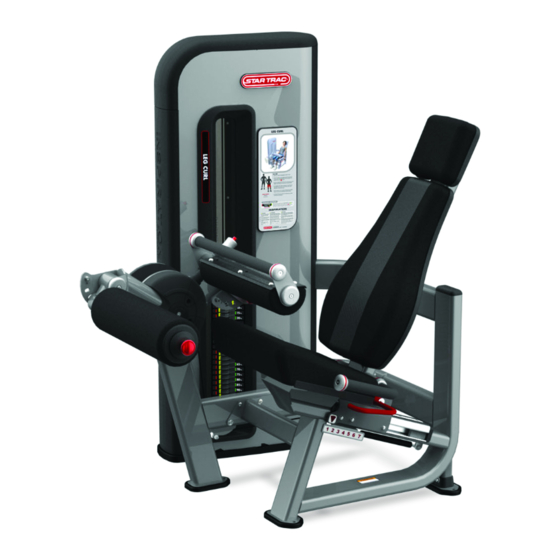

Page 1: Leg Curl
LEG CURL IP-S1315 INSTALLATION INSTRUCTIONS... - Page 2 Copyright 2009. Star Trac by Unisen, Inc. All rights reserved, including those to reproduce this book or parts thereof in any form without first obtaining written permission from Star Trac. Every effort has been made to keep this information current; however, periodically, changes are made to the information herein, and these changes will be incorporated into new editions of this publication.
-
Page 3: Installation Instructions
• All Star Trac Strength equipment MUST be secured to the floor using either 10mm or 3/8in. (grade 5 minimum) bolts. To accommodate this there are four mounting points inside the weight stack and one in either of the small feet. - Page 4 REMOVE THE SHROUDS: Using a 4MM hex key remove the (M6,30MM,Button Head Bolt) from the rear of the weight stack. Save this bolt as you will need it to re-install later. After the bolt has been removed rotate the black TOP BUMPER towards the front of the weight stack then lift it off and set aside.
- Page 5 INSTALLING THE WELDED CROSS SUPPORT: Locate the CROSS SUPPORT and align the holes as shown. INSTALLING THE WELDED CROSS SUPPORT, FRONT SCREWS: Use three ( M8, 25MM, Button Head Bolt), three (M8, Nyloc Nut), and six (M8,Washers) to install and tighten the WELDED CROSS SUPPORT, as shown.
- Page 6 INSTALLING THE ROM ADJUST AND CAM ASSEMBLY: Locate (from left to right) one (M8, 20MM, Socket Head Cup screw), one (M8, Washer), two (Taper Bearings) and the ROM ADJUST ASSEMBLY as shown. Insert a taper bearing to the shaft of the ROM ADJUST ASSEMBLY until it bottoms all the way against the ROM PLATE.
- Page 7 INSTALLING THE CAM ASSEMBLY : Align the flat on the shaft with the D- Shaped slot on the CAM ASSEMBLY. Use one (M8, 20MM, Socket Head Cap screw), one (M8, Washer), one (End Cap Without a Groove) to install the CAM ASSEMBLY to the ROM ADJUST ASSEMBLY using a 6mm hex key socket.
- Page 8 INSTALLING THIGH PAD SUPPORT: Install the THIGH PAD SUPPORT along with one (M8, 20MM Socket Head Screw), one (M8, 1MM Thick Washer), (End Cap Without Groove), and two (25MM ID Machine Washers). Use a 6mm hex key socket to tighten. INSTALLING THE SEAT BACK: Install the SEAT BACK WELDMENT with UPHOLSTERY using four (M8,...
- Page 9 INSTALLING THE SEAT BOTTOM: Using four (M8,25MM,Button Head Bolts) and four (M8,washers) install and tighten the SEAT BOTTOM using a 5mm hex key socket. INSTALL THE CABLE: Locate the loose cable end and loop around the pulley as shown making sure not to fray the stranded wire.
- Page 10 GUIDE ROD LUBRICATION: Apply a general purpose lubricant (such as 3-in-1 oil) that does not contain Teflon to a cotton cloth, then run the cotton cloth up and down the guide rods as needed. Also apply oil to the incremental weight guide tracks.
- Page 11 INCREMENTAL WEIGHT ADJUSTMENT: Check to make sure the gap between the TOP PLATE pin and the 20mm hole of the INCREMENTAL WEIGHT plate is 3mm or less when engage. If gap is greater than 3mm, loosen but do not remove the two BUTTON HEAD SCREWS (M6) using a 4MM hex key.
- Page 12 1.0 N-m max. MACHINE CLEARANCE AND SPACING For the safe operation of Inspiration Strength™ Star Trac recommends that a clearance of 24 inches (60.96cm) be maintained between and behind machines including moving arms and levers. To insure safe entry and exit to each unit a walkway of at least 36 inches (91.44cm) inches is recommended...
- Page 13 Page 13...
- Page 14 STAR TRAC 14410 Myford Road Irvine, California 92606 Telephone: (800) 228-6635, (714) 669-1660 Fax: (714) 508-3303 www.startrac.com Part No. 620-7929, Rev B., 21 Aug 09...
