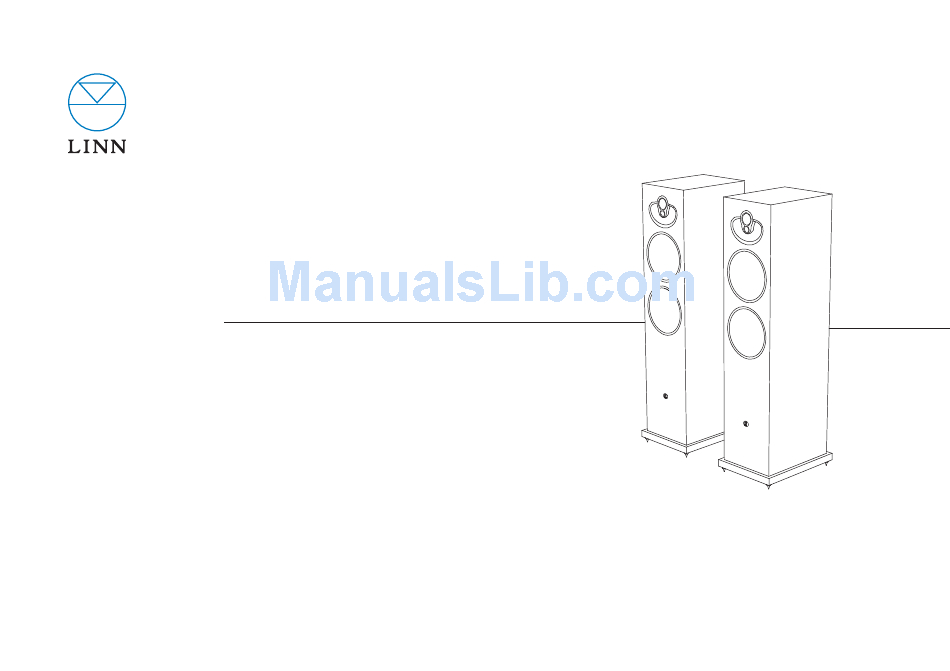

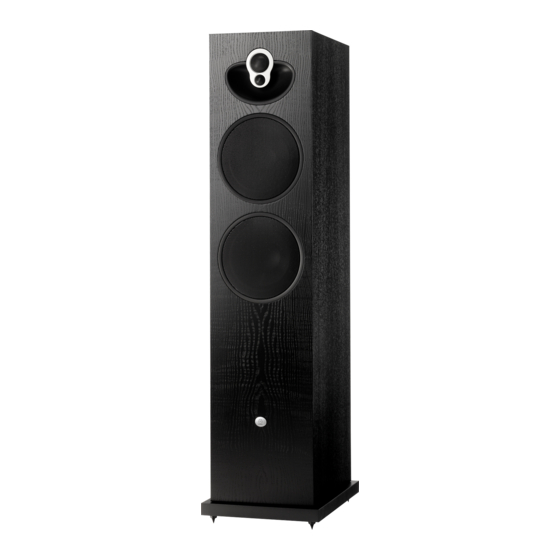

  • Page 1 MAJIK 140 LOUDSPEAKER OWNER’S MANUAL...

  • Page 3: Important Safety Instructions

    Replace the mains fuse in the plug with one of the same type and rating. • Disconnect supply cord before changing fuse. WARNING To reduce the risk of fire or electric shock do not expose this apparatus to rain or moisture. Shock hazard - do not open. Majik 140...

  • Page 4: General Safety Instructions

    23. The apparatus has been designed for use in moderate and tropical climates. 12. Use only with the stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. Majik 140...

  • Page 5: Ce Declaration Of Conformity

    CE Declaration of Conformity FCC notice Linn Products Ltd declare that this product is in conformance with the Low Voltage Note: This equipment has been tested and found to comply with the limits for Directive 73/23/EEC and Electromagnetic Compatibility 89/336/EEC as amended a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 6 The content of this manual is furnished for information use only, is subject to change without notice, and should not be construed as a commitment by Linn If you wish to dispose of this product and the product still functions, please Products Limited.

  • Page 7: Table Of Contents

    CONTENTS INTRODUCTION INSTALLATION Unpacking Cleaning Accessories Positioning and levelling Positioning Bass reduction Levelling Connecting General Terminals Configuration options Wiring and amping configurations Fitting and levelling the upgrade stand TECHNICAL SPECIFICATIONS GUARANTEE AND SERVICE Majik 140...

  • Page 9: Introduction

    flexibility to meet your future requirements. The Majik 140 loudspeakers are the perfect partner for the other products in Linn’s Majik range. Whether as part of a complete Majik system or as the loudspeakers in your current hi-fi, we’re sure the Majik 140s will...

  • Page 10: Installation

    2 loudspeaker stands (factory fitted) • 4 terminal link strips (2 factory fitted to each loudspeaker) An upgrade stand for the Majik 140, providing greater stability and improved audio • stand spike kit performance, is available from your Linn retailer. Fabric grilles are also available •...

  • Page 11: Positioning And Levelling

    Positioning and levelling To get the best from your Linn Majik 140 loudspeakers, it is important that they are positioned and levelled correctly. The acoustics of a room are dependent on many factors, including volume, shape and even furniture. The information below will assist in helping you find the best position in your room for your loudspeakers and...

  • Page 12: Levelling

    When the loudspeaker is level and does not rock, tighten the lock nuts using the tool provided. Note: To protect wooden or tiled floors, the spikes can be placed on Linn Skeets, which are available from your Linn retailer. Majik 140...

  • Page 13: Connecting

    Connecting Configuration options The Majik 140 loudspeakers offer an array of configuration options, as described General below. Connections for each of the methods are shown in the Wiring and amping IMPORTANT: configurations section, page 8. Before making any connections, switch off your power amplifier(s).

  • Page 14: Aktiv Operation

    Aktiv operation Link strip information The term ‘Aktiv’ refers to the proprietary Linn active crossover and loudspeaker To remove / fit the link strips: configuration, whereby a loudspeaker’s internal passive crossover is replaced • Loosen the outer section of each binding post on both rows of terminals.
  • Page 15 When multi-amping, ensure that the link strips do not short-circuit amplifier channels together. Shorting the outputs of separate amplifier channels together can damage the amplifier(s) and loudspeaker drive units. • Do not connect more than one strip per terminal. Majik 140...

  • Page 16: Wiring And Amping Configurations

    (i.e. using two from one power amplifier channel) or quad-amping (i.e. using four power amplifier power amplifier channels. channels). For optimum sound quality, connect the cables from the power amplifier(s) to the terminals shown. Majik 140...
  • Page 17 Aktiv configuration IMPORTANT NOTES ON AKTIV SYSTEMS Aktiv operation requires a modification to your Majik 140s and your Linn amplifiers, Do not use your amplifiers with any other loudspeakers – which must be carried out by an authorised Linn retailer.

  • Page 18: Fitting And Levelling The Upgrade Stand

    Use the handholds in the base to raise the loudspeaker onto its top. (b) • Place the upgrade stand on to the loudspeaker, carefully – it is very heavy. • The stand’s spikes are sharp; be careful not to cause injury or damage. Majik 140...
  • Page 19 Screw the four floor spikes through the stand so that they just protrude through the other side. • Insert the four screws removed from the original stand. • Carefully turn the loudspeaker the right way up. • Tighten the screws with the Allen key. • Open the spike kit. Majik 140...
  • Page 20 • Screw a locknut on to each spike. The procedure for levelling a Majik 140 fitted with the upgrade stand, should be as follows: • Leave finger tight to make adjusting easier later. • Use a spirit level on the top of the loudspeaker to check if it is sitting level. If it is, gently rock the speaker from front to back, side to side and diagonally to check for any movement.

  • Page 21: Technical Specifications

    Optional bass reduction 2 dB Overall sizes (with supplied 975 mm (H) x 250 mm (W) x 335 mm (D) stand) 38 3/8” (H) x 9 3/4” (W) x 13 1/8” (D) Weight (with supplied stand) 21.3 kg 47 lbs Majik 140...

  • Page 22: Guarantee And Service

    In addition to any statutory Glasgow Road, Waterfoot, Eaglesham, Glasgow G76 0EQ, Scotland, UK rights you may have, Linn undertake to replace any parts which have failed due Phone: +44 (0)141 307 7777 to faulty manufacture.
  • Page 24 Pack 1320...
