Majik 109 Loudspeaker Quickstart Guide
IMPORTANT:
This sheet contains guidance on unpacking and setting up your loudspeakers.
Please refer to the printed Safety Information booklet for important safety
information and the online Owner's Manual for full instructions on using your
loudspeakers.

Unpacking

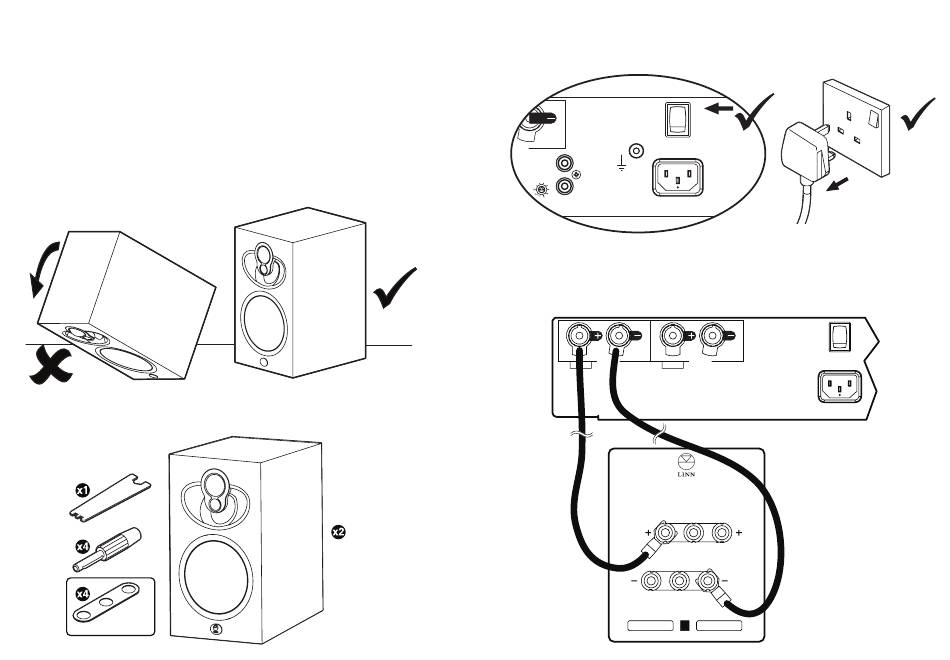

• The Majik 109 loudspeakers come packaged as a pair; take care when
removing them from their packaging to avoid damage.
• Do not lay the loudspeakers on their face as this will damage the 2K Array.
Contents
Factory fitted to speaker

Connecting

IMPORTANT:
Before making any connections, switch off your power amplifier(s).
POWER
HANNEL 2
SPEAKER
IN
EARTH
GROUND
GAIN
OUT
CHANNEL 2
MAINS INPUT
AUDIO
Ensure the positive (+) or red coloured connectors from your amplifier(s)
connect to the positive (+) connectors on your loudspeakers, and that the
negative (-) or black coloured connectors from your amplifier(s) connect to the
negative (-) connectors on your loudspeakers.
CHANNEL 1
SPEAKER
LINN MAJIK 109
BASS
TWEETER
OFF
ON
OFF
ON
POWER
CHANNEL 2
SPEAKER
MAINS INPUT
SUPER TWEETER
