ENGINE BOTTOM END REASSEMBLY

CRANKSHAFT AND CONNECTING RODS

Install Crankshaft

A. Clean the crankshaft and crankcase thoroughly,
especially at the bearing contact surfaces.
B. Pack grease to 60% volume between the lips of the
oil seal on the crankcase. Press in the new oil seal 0
~1 mm (0 ~ 0.04 in.) below the crankcase surface.
C. Apply molybdenum disulfide grease to the alternator
side journal.
D. Apply engine oil to the crank pin and bearing.
E. Insert the crankshaft into the crankcase.

Install Connecting Rod

A. Refer to Install Piston.

CYLINDERS AND PISTONS

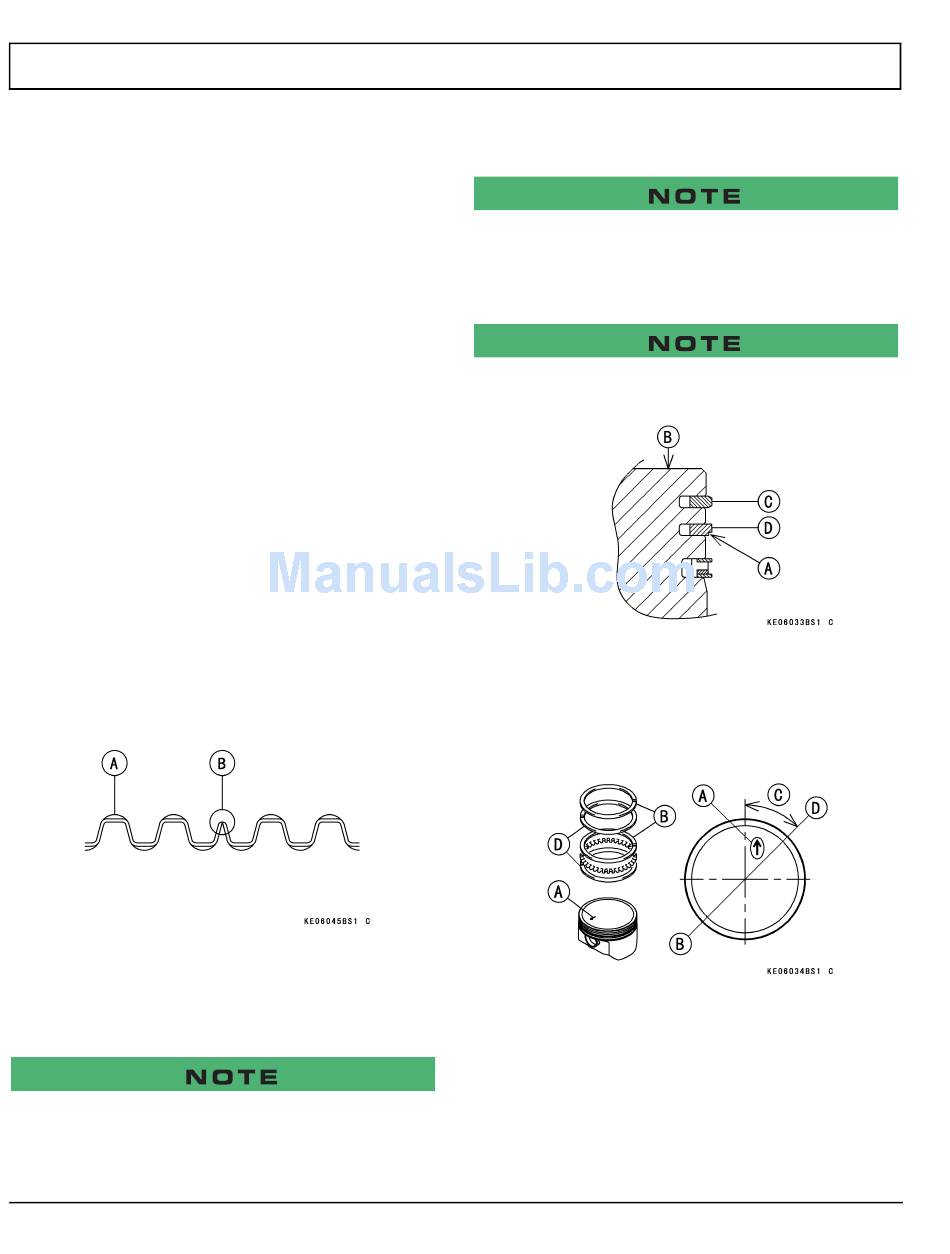

Install Piston

A.
Install the expander [A] in the piston oil ring groove so
that the expander ends [B] touch; never overlap.
B.
There is no up or down to the rails. They can be installed either
way.
Install the upper and lower steel rails.
Page D-2
C.
Do not mix up the top and second rings.
Install the second ring so that the notched edge [A] faces
down.
The rings should turn freely in the grooves.
D. Install the top ring.
Piston Head [B]
Top Ring [C]
Second Ring [D]
E.
Arrow Match Marks [A]
Top Ring End Gap, Upper Steel Rail End Gap [B]
About 45° [C]
Second Ring End Gap, Lower Steel Rail End Gap [D]
F. Apply engine oil to the piston pins.
Kawasaki Engine Shop Rebuild Manual
Align the piston and rings with the piston ring end gap
as shown.
