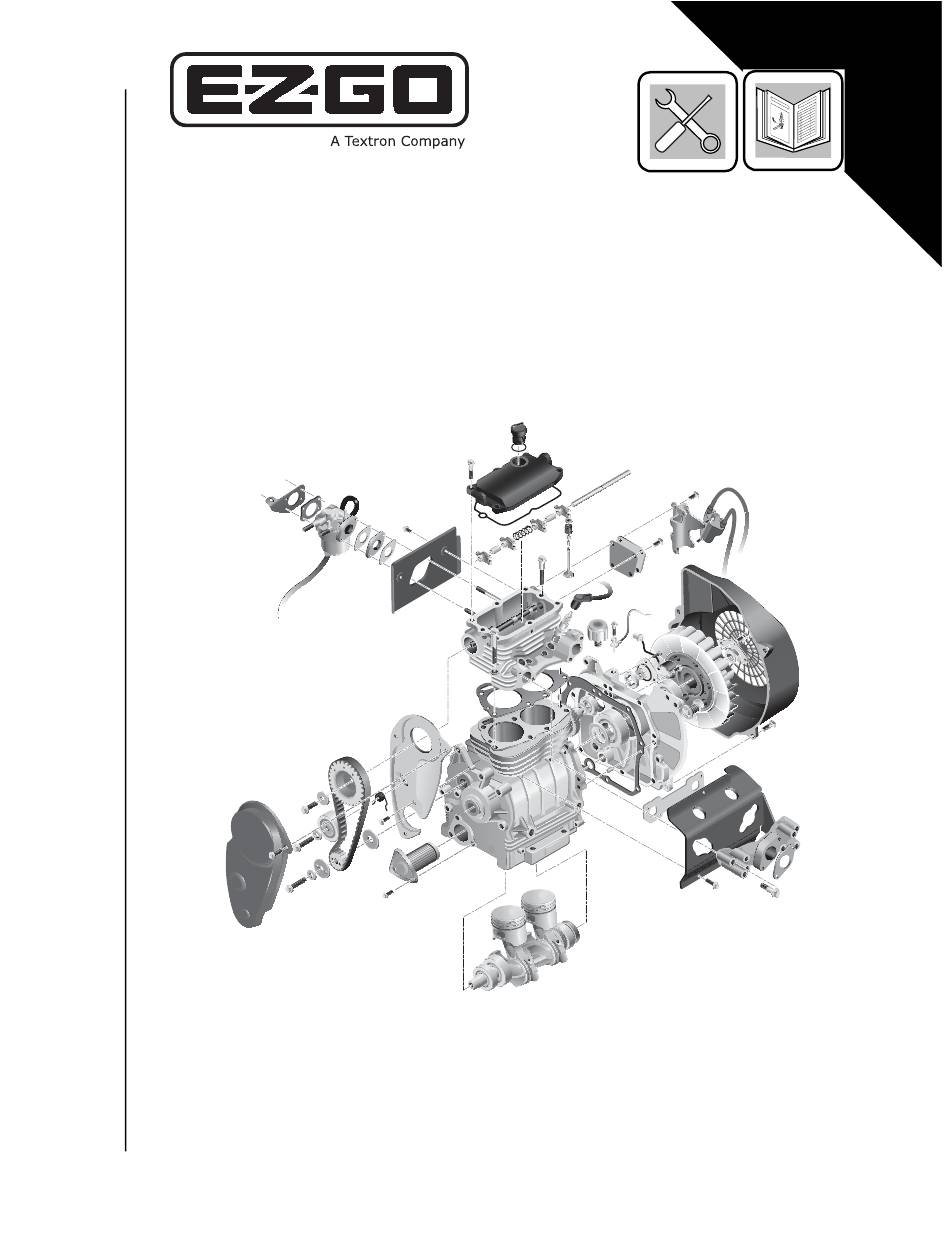

ENGINE SHOP REBUILD
SERVICE PARTS MANUAL
295cc and 350cc 4 CYCLE ENGINE
STARTING MODEL YEAR: 1992
&
REVISED: 08/04
27615-G01
