CRANKSHAFT AND CONNECTING RODS

Remove Connecting Rod

A. Refer to Remove Piston.

Remove Crankshaft

A. Drain the engine oil.
B. Remove alternator rotor, camshaft (see Remove
Camshaft, Tappet), balancer shaft (see Remove Bal-
ancer Shaft), and connecting rod cap (see Remove
Piston).
C.

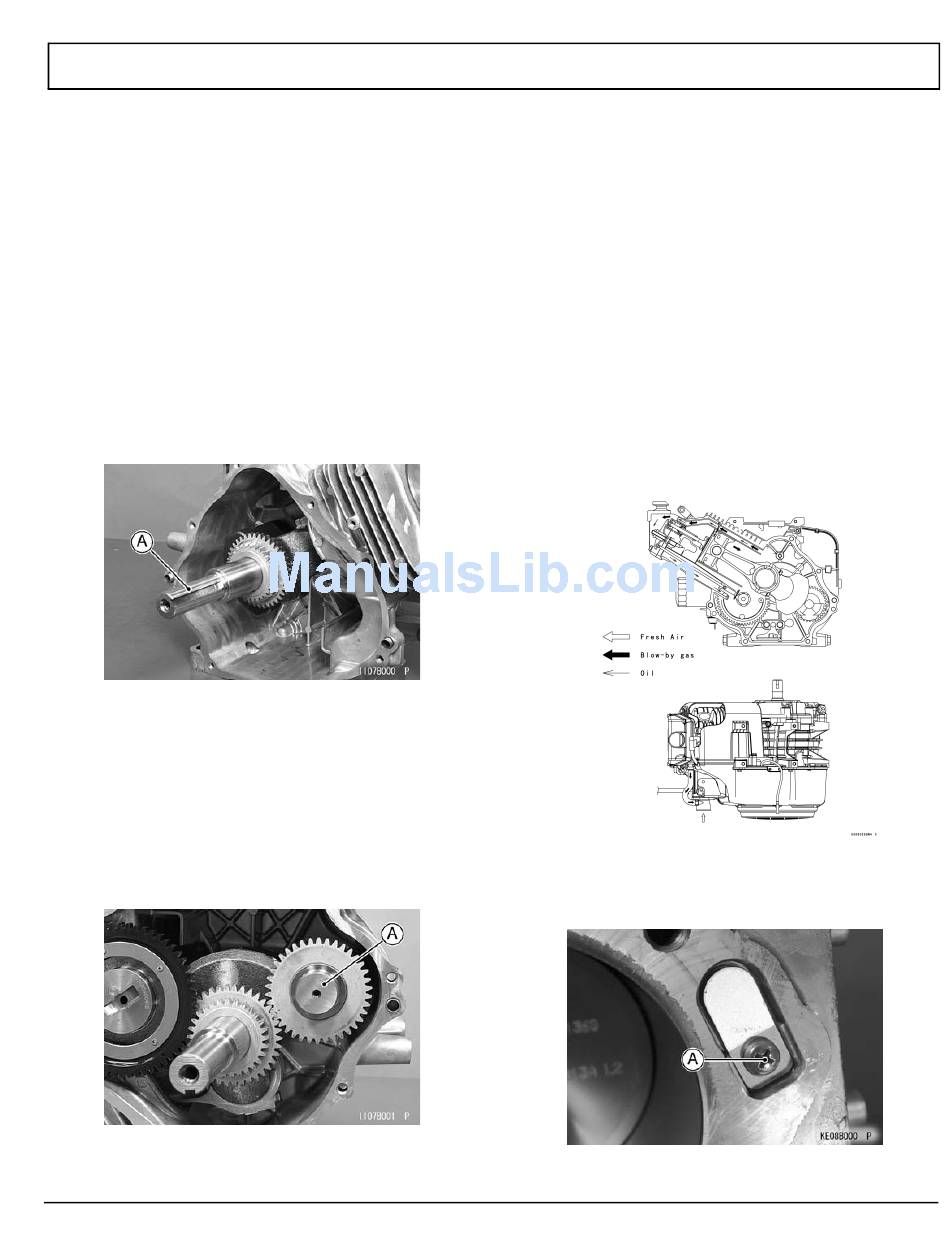

Pull the crankshaft [A] out of the crankcase. Tap gen-
tly with a wooden or plastic mallet if necessary to
loosen the crankshaft.

BALANCER SHAFT

Remove Balancer Shaft

A.
Remove crankcase cover (see Remove Crankcase
Cover) and balancer shaft [A].
ENGINE BOTTOM END DISASSEMBLY
Kawasaki Engine Shop Rebuild Manual

BREATHER VALVE

Remove Breather Valve

The function of the breather is to create a negative pres-
sure in the crankcase, which prevents oil from being
forced out of the engine through the piston rings, oil seals
or gaskets. A sealed-type crankcase emission control
system is used to prevent blow-by gases from emitting in
the air. The blow-by gases are drawn into the clean side
of the air cleaner through the crankcase and the cylinder
head and mixed with the clean airflow, and subsequently
come into the combustion chamber through the carbure-
tor. Oil is primarily separated from the gases while pass-
ing through the inside of the rocker chamber from the
crankcase, and secondly separated from the gases in the
breather chamber, and then brought back to the crank-
case.
A. Remove the cylinder head assembly (see Remove
Cylinder Head in Section A).
B.
Unscrew the breather valve screw [A].
Page B-3
