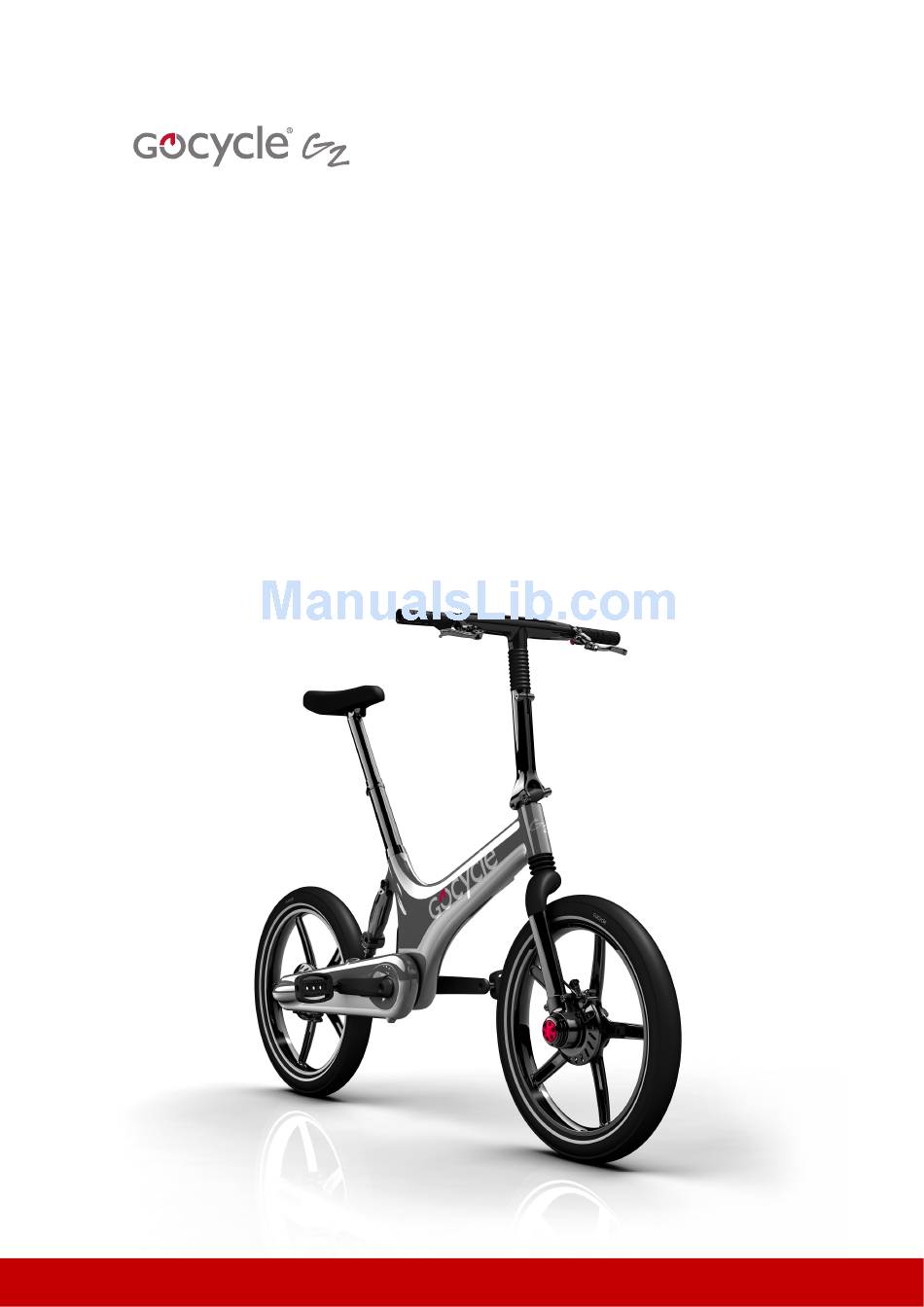

  • Page 1 Owner’s Manual ® for Gocycle (Frame Numbers 210001–220199) Version 1 www.gocycle.com...

  • Page 2: Table Of Contents

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) ONTENTS     Disclaimer, Copyrights and Trademarks ....................  1     Disclaimer  ............................... 1     Copyright Notice ........................... 1     Trademarks ............................ 1     Safety ................................  2     General Warning ........................... 2     Intended Use ............................ 2     Modifications and Refinishing ...................... 2  ...
  • Page 3 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199)     Understanding Electronic Gear Shifting .................. 23     Riding Modes  ............................ 24     Energy Consumption Meter ...................... 29     Maximising Your Gocycle’s Motor Performance and Reliability .......... 29     Heat ............................... 30     Maintenance and Adjustments .......................  3 2     Cleaning and Preventing Corrosion .................... 32     Lubrication ............................ 33    ...

  • Page 4: Disclaimer , Copyrights And Trademarks

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) ISCLAIMER OPYRIGHTS AND RADEMARKS 1.1 Disclaimer The specifications, information and performance of the Gocycle and other products manufactured by  or sold under license granted by Karbon Kinetics Limited and featured in this document may change  without notice. The use of this information or products and the conditions under which the products  are used are the sole responsibility of the buyer and/or the rider. It is the buyer’s and/or rider’s  responsibility to determine the correct and safe selection of settings and conditions of use of the  products and to periodically check the products for secure and proper operation. To the extent that  the law permits, any liability which may be incurred as a result of the use of a product manufactured  by or sold under license granted by Karbon Kinetics Limited is limited to the cost of repairing or  replacing the failed product or component at the discretion of Karbon Kinetics Limited, either within  or outside of warranty periods, and does not extend to any loss or damage which may be caused as a  consequence of misuse or failure of the products. Damages to the product, other property or any  persons are the responsibility of the buyer and/or rider. By using this product manufactured by or  sold under license granted by Karbon Kinetics Limited, you are stating that you have read this  disclaimer and agree to hold Karbon Kinetics Limited, its owner/s and any of its employees or  directors free from all liabilities, that you agree you are using and operating the product at your own  risk, and that no warrantees or guarantees are made by Karbon Kinetics Limited, expressed or  implied, on performance or operation.  1.2 Copyright Notice © Copyright Karbon Kinetics Limited. All rights reserved.  This material provided by Karbon Kinetics Limited is the property of Karbon Kinetics Limited and is  protected by copyright, trademark and other intellectual property laws. You may view this material  and print this material only for personal use, provided that you maintain all copyright, trademark ...

  • Page 5: Safety

    Riding any bicycle involves the risk of product damage, serious injury or even death. Such risks are increased in busy, urban environments with moving traffic. By choosing to ride a Gocycle, you assume the responsibility for these risks, and it is important that you know how to ride responsibly and to exercise proper maintenance to minimise such risks and potential damage.

  • Page 6: Maximum Design Limit

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) Modifications can cause damage which can increase the risk of failure and accident which may result  in serious injury or death. Refinishing can hide structural damage, such as fatigue cracks or structural  problems which may also result in an accident.   2.4 Maximum Design Limit WARNING! This product has been designed with a maximum weight limit of 100kg (220lbs) for the rider, clothing and all luggage. Do not exceed this weight limit at any time. Exceeding this limit will void all warranties, may reduce the fatigue life of the product and may result in the product being unsafe for operation.

  • Page 7: Limited Life Span

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) We do not recommend riding in heavy rain or standing water, but we do understand that this is not  always avoidable. If your Gocycle gets wet, clean and dry it within 15 minutes of heavy wet weather  riding. See 7.1 Cleaning and Preventing Corrosion for more information.  2.7 Limited Life Span WARNING! Bicycles have a limited life span for safe operation and are not indestructible. As with all mechanical components, bicycle components are subject to wear and high stresses.  Different materials and components may react to wear, stress or fatigue in different ways. Exceeding  the useful life of your Gocycle may be hazardous.  The expected life span of a Gocycle or Gocycle component will vary with the material and  construction of the frame and components, the maintenance that is received over its life and the type  and amount of riding. Any unusual or abusive riding style, such as off‐road cycling, competitive  riding, stunt cycling, jumping or riding at excessive speed and braking hard, can accelerate wear and  fatigue of components to the point where premature and sudden failure of a component may occur  without warning and risk of injury is increased.  ...

  • Page 8: Pre-Ride Checklist

    Gocycle and seek advice. If you have any reason to believe that your Gocycle is not functioning properly, or that you are aware that your Gocycle has been damaged in any way, do not ride it.

  • Page 9: Warranty

    3.1 Warranty Registration For your continued satisfaction and safety whilst riding your Gocycle, we strongly encourage you to  register your Gocycle with us. Doing so will enable us to contact you with important product safety‐ related information, should the need arise.  In the event that you wish to make a warranty claim, you must provide your original proof of  purchase (sales receipt or order confirmation). Keep this information in a safe place. Before we can  process a warranty claim, you must have registered your Gocycle.  Please visit www.gocycle.com/safety to register your Gocycle in order to stay informed of important safety notices. 3.2 Gocycle Frame Number Your Gocycle comes with a unique identifier called a frame number, positioned on the rear of the  Gocycle. An example is shown below:    Frame number   Safety standards coding Minimum leg height with...

  • Page 10: Recommended Assembly Sequence

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) ECOMMENDED SSEMBLY EQUENCE         © Karbon Kinetics Limited. All Rights Reserved.
  • Page 11 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199)   © Karbon Kinetics Limited. All Rights Reserved.

  • Page 12: Warning! Take Care During Assembly

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) Warning! Take Care During Assembly When folding the handlebar stem there is potential for the internal cabling to be pinched by the  folding mechanism. Severe pinching may compromise the integrity of the cabling, which in the worst  case may cause the product to not function correctly.  Location Correct cable positioning Caution! Incorrect positioning   Thoroughly inspect the handlebar folding mechanism when folding/unfolding, taking care not the  pinch any internal cabling (pictured). Never force the handlebar stem. If a cable is positioned  incorrectly, STOP and ensure the cable is repositioned before continuing.    © Karbon Kinetics Limited. All Rights Reserved.

  • Page 13: Assembling The Front And Rear Reflectors

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) 4.2 Assembling the Front and Rear Reflectors Front and rear reflectors are supplied as standard with your Gocycle and can be found in the small  parts bag.  To install the rear reflector:  Mount the rear reflector on the upper seat  post  Preferred CAUTION! Do not assemble the rear range reflector too close to the saddle as it may be obscured by clothing  ...
  • Page 14 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) Mount the rear (red) reflector onto the  bracket and listen for a “click”    Adjust the bracket to ensure that the  reflector is vertical    Fix the assembled reflector in a vertical  position as shown      To install the front reflector:  Lift the rubber stem cover to expose the  upper handlebar stem    © Karbon Kinetics Limited. All Rights Reserved.
  • Page 15 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) Open the reflector bracket    Place the bracket around the upper stem  and tighten, using a screwdriver, to secure  in the position as shown    Mount the front (white) reflector onto the  bracket and listen for a “click”    Adjust the bracket to ensure that the  reflector is vertical    © Karbon Kinetics Limited. All Rights Reserved.

  • Page 16: Assembling The Bell

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) Fix the assembled reflector in a vertical  position as shown    4.3 Assembling the Bell Bell     O‐Ring for mounting bell    (Supplied in small parts bag)    Loop the rubber O‐ring over the bell as  shown    © Karbon Kinetics Limited. All Rights Reserved.
  • Page 17 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) Insert the base of the bell through the gap  between the brake hose and handlebar, as  shown    Stretch the rubber O‐ring over the base of  the bell to secure it in place    Assembled bell    Check that the bell is orientated such that it  can be easily rung whilst riding    © Karbon Kinetics Limited. All Rights Reserved.

  • Page 18: Gocycle Lithium Battery

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) OCYCLE ITHIUM ATTERY 5.1 Important Information: Lithium-Ion Batteries The following important information applies to your Gocycle lithium battery. Read carefully to  ensure the proper and safe operation and storage of the battery.   Your battery has been designed for use only with a generation‐two (G2) Gocycle. Do not use  the battery with any other product.   Your battery is intended to remain within the Gocycle frame at all times and should be  removed only by a Gocycle‐approved service centre or with the assistance and approval of a  Gocycle technical support executive.   Do not short circuit, disassemble, damage or modify the battery.   Do not expose the battery to fire or high temperatures over 40°C (104°F).   Do not expose the battery to water or moisture. Water can corrode or damage the internal  battery safety devices and cause the battery to overheat, ignite, rupture or leak.   Do not drop or subject the battery to strong impacts. Impacts can damage the internal battery  safety devices and cause the battery to overheat, ignite, rupture or leak.   Only use the specified charger. An inappropriate charger may cause damage or injury through  fire or electric shock. ...

  • Page 19: Gocycle Lithium Battery: Usage

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) 5.3 Gocycle Lithium Battery: Usage 5.3.1 Proper Charging Sequence Plug the charger power lead into mains  electricity    Open the rubber charging port cover, as    shown   While holding open the rubber charging  port cover, insert the charging lead as    shown   © Karbon Kinetics Limited. All Rights Reserved.
  • Page 20 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) Turn on the mains electricity    The charger light will turn orange to  indicate charging       Charge time up to 5.5 hours   The battery charge level is displayed on the  Gocycle dashboard. (See 6.1 Familiarising  Yourself with Gocycle Dashboard Display  for more information). When fully charged,    the dashboard will display 10 LEDs on the  left side.    © Karbon Kinetics Limited. All Rights Reserved.
  • Page 21 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) Turn off the mains electricity    Remove the charging lead and replace the  rubber charging port cover    Ensure that the rubber charging port cover is in place before riding   5.3.2 Battery Operation Mode (Wakes the Battery for Use) The battery must be in Operation Mode before you can use your Gocycle. If the battery is not in  Operation Mode, the Gocycle will not function, the gears will not shift and the motor will not work.  To wake the battery for use: ...
  • Page 22 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) Press the button until the LEDs begin to  flash    The two left LEDs (1,2) will begin to flash  while the battery is waking up    The LEDs on the dashboard will light up to  confirm that the Gocycle is on and ready to  use       5.3.3 Checking Your Battery Charge Level The battery charge level will show on the dashboard display during riding and when on charge.     Red power button Electronic gear shift Battery charge indicator/mode reference Gear selection display Speed display The battery charge level is displayed in area C, shown above. Each LED represents approximately ...
  • Page 23 5.3.4 Returning the Battery to Sleep Mode Operation Mode BEST PRACTICE: The Gocycle will use power when stationary and in , or while the Sleep Mode charger light is green. This will drain the battery. Best practice is to enter to conserve battery—when not in use and the battery is fully charged.

  • Page 24: Gocycle Lithium Battery: Care And Maintenance

    Sleep When you are not using the Gocycle, we strongly recommend that you put the battery into Mode . See 5.3.4 Returning the Battery to Sleep Mode for more information. 5.5 Shipping and Handling of Lithium Batteries Like any lithium‐ion battery over 100Wh, the Gocycle lithium‐ion battery is classified as ...
  • Page 25 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199)  When your battery no longer holds a charge, contact your local waste disposal or  environmental agency for advice on disposing of a lithium‐ion battery.   Lithium‐ion batteries are classified as Miscellaneous Class 9 Dangerous Goods. Consult your  local authority for further advice on storage, handling and shipping.  © Karbon Kinetics Limited. All Rights Reserved.

  • Page 26: Operation

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) PERATION 6.1 Familiarising Yourself with Gocycle Dashboard Display   Red power button Electronic gear shift Battery charge indicator/mode reference/energy consumption meter Gear selection display Speed display 6.2 Understanding Electronic Gear Shifting Your Gocycle is equipped with electronic shifting. Whilst riding, single click button B to shift up a ...

  • Page 27: Riding Modes

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–220199) 6.2.1 Turning Predictive Shifting ON/OFF     Select mode 17      Press button B to select between  ON/OFF    (Predictive shift ON‐ represented  by a “+” as shown)    (Predictive shift OFF‐ represented  by a “‐“ as shown)    Save your preference by  pressing and holding button  A—the riding mode will flash to    confirm exit    Mode Predictive Shift ON/OFF LED Mode Display...
  • Page 28 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) 6.3.1 Riding Modes Reference Table Starting and Stopping the Motor Motor Operating Speed (No. of LEDs) (E) Controlling Motor Speed Power Reduces Red Button Continuously above this Speed Set Speed on...
  • Page 29 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) 6.3.2 Selecting a Riding Mode Refer to the table in 6.3.1 Riding Modes Reference Table.  To view current mode of operation, press and hold buttons A and B. The current mode of operation,  displayed by a number of LEDs, will show on the dashboard display (C).   To select a riding mode, press and hold buttons A and B until all LEDs flash, then release both  buttons. The mode will then be shown on the dashboard display (C). Click button B repeatedly until  you reach the number of LEDs which represent your desired mode (C). To save the mode, press and  hold button A until LEDs flash and then release the button.  6.3.2.1 Pedelec Auto Mode  In Pedelec Auto mode, the motor will start automatically and will continue to operate until the  maximum speed is reached, all the time that the pedals are turning and you are travelling within the  motor operating speed. There is no need to press the red power button. When the pedals cease to  rotate, the motor will stop.   WARNING! The motor will continue to operate all the time the pedals are turning and you are travelling within the motor operating speed.
  • Page 30 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) 6.3.2.3 Pedelec Torque Mode  Pedelec Torque mode utilises your Gocycle’s torque sensor, with the motor assistance level controlled  by rider pedal input. (Hard pedalling = high motor assistance, soft pedalling = less motor assistance).     In this mode, within the motor operating speed and whilst the rider is providing pedal input, the  motor will start automatically and will continue to operate until the maximum speed is reached.  There is no need to press the red power button. When the pedals cease to rotate, the motor will stop.     WARNING! The motor will continue to operate all the time the rider continues to pedal with force. To stop the motor, cease pedalling.
  • Page 31 Power Save WARNING! If you have ridden your Gocycle at a low voltage, in mode, charge your battery within 12 hours. Failure to do so may result in permanent damage to your battery and will void your warranty.

  • Page 32: Energy Consumption Meter

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) 6.4 Energy Consumption Meter The energy consumption meter is available in all riding modes. Whilst riding and when the motor is  in operation, the consumption of the battery is interactively displayed in place of the battery charge  level (section C of your dashboard display).   More consumption Less consumption (Least efficient) (Most efficient)   The higher the number of LEDs displayed, the more power is being used by the motor and the faster  your battery will drain. To maximise efficiency and reduce the amount of power that your motor is  consuming, increase your pedal input.  When the motor is not in use, or if you are pedalling above the motor speed, the dashboard display  will default to battery charge level.  6.5 Maximising Your Gocycle’s Motor Performance and Reliability Gocycle’s electric motor is designed to boost performance in terms of getting you from point A to ...

  • Page 33: Heat

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) 4. Riding style: Where rough terrains (e.g., poor road surfaces, potholes, speed bumps, etc.) are  unavoidable, you should adapt your riding style accordingly.   WARNING! Never use the motor when passing over obstacles such as ruts in the road or speed bumps, etc. Doing so will increase the stresses on the drive components and will reduce the service life of the product, possibly invalidating your warranty.
  • Page 34 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) When your motor reaches a temperature higher than for reliable operation, the power level will  automatically cut down to allow the motor to cool down. When this occurs, all standard operation of  the motor will cease, and you will have to press and hold the red button in order to get the motor to  operate.  The motor will operate at reduced power and the LEDs will flash when in over‐temperature  mode. We recommend pedalling more and using the motor less to avoid this and to speed the time  until the motor cools down when you can resume normal operation.  © Karbon Kinetics Limited. All Rights Reserved.

  • Page 35: Maintenance And Adjustments

     To clean the rim and tyre, remove the PitstopWheel, soak the rim and tyre in a bucket of soapy  water and then dry with a towel.  WARNING! Keep your Gocycle clean and dry at all times, where possible. Never spray the Gocycle with a hose or high-pressure cleaning system. Never use polishes, waxes or solvents to clean your Gocycle. © Karbon Kinetics Limited. All Rights Reserved.

  • Page 36: Lubrication

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) 7.2 Lubrication There is no need to regularly inspect,  clean and lubricate the internal  components of the Cleandrive   ® ® Cleandrive   The gearbox, rear hub, hub bearings and chain drive system (Cleandrive) are lubricated during  production, and unless the Gocycle is regularly exposed to a high‐humidity, corrosion‐enhancing  environment, these components will last the lifetime of the product.  7.3 Checking for Cracking and Fatigue Failures As with a conventional bicycle, your Gocycle will not last forever. It is a mechanical item that under  normal riding will be stressed, and eventually the parts will fatigue, cracks will develop and it will  become unsafe to ride. The number of miles of riding a bicycle will endure cannot be predicted since  there are many variables that affect product life including:   Rider weight   Riding style   Tyre pressure and type ...
  • Page 37 Owner’s Manual for G2R, Version 2 (Frames 210001–215000) this, clean the Gocycle thoroughly with a damp cloth. Wipe away all dust or dirt. Look carefully at all  the components under good lighting.   Important sites where cracking may initiate are shown in the images below. If a crack is more than  3mm long, do not ride the Gocycle and immediately contact techsupport@gocycle.com. Under normal  conditions, items under warranty will be replaced.   WARNING! Failure to inspect the Gocycle thoroughly may have serious consequences and could result in serious bodily injury or even death. Check for fatigue cracks where the  spokes join the rim of the wheel  Check for cracking here  ...
  • Page 38 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) Check the head tube junction for fatigue  cracking  Check for cracking here   Remove the handlebar rotation stop to  check the head tube junction for fatigue  cracking  Check for cracking here   © Karbon Kinetics Limited. All Rights Reserved.
  • Page 39 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) Check under the head tube junction for  fatigue cracking  Check for cracking here   Check the Lockshock plunger for signs  of fatigue cracking    © Karbon Kinetics Limited. All Rights Reserved.

  • Page 40: Adjusting The Shifting

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) WARNING! When not properly assembled, the Lockshock plunger (the grey part as indicated at left) is susceptible to impact damage from a side load, for example when folding to take in or out of a car, transporting inside a building or through a doorway.
  • Page 41 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) Once in mode 15, the display will  show the gear selection and  calibration either side of the  factory default  Keeping the pedals still, select the    gear that you are aiming to adjust  with the gear select button B  Now take your Gocycle for a  ride—whilst pedalling, adjust the  gearing by pressing buttons A or  B as necessary until the gear    remains in place, with no noise  from the rear hub  Press button A to move the servo  position towards the lower gear    Press button B to move the servo  position towards the higher gear      When a gear is properly adjusted  and you are confident that you  have  successfully calibrated the  gear, stop pedalling   If there is no further calibration  necessary, go to the last step   If it is necessary to recalibrate  other gears, repeat from the ...

  • Page 42: Adjusting The Brakes

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) 7.5 Adjusting the Brakes For information on how to bleed your Gocycle hydraulic brakes, please read carefully the brake  manufacturer’s instructions, included with your Operation Guide and Assembly Guide.  NOTE: The brakes will increase in power over the first 50 to 100 uses. 7.5.1 Bleeding the Brakes As with all hydraulic brakes, for the best possible performance, we recommend that the hydraulic  brakes on your Gocycle are bled every 12 months. We advise that your Gocycle brakes are bled by a  skilled bicycle mechanic with experience with bleeding hydraulic cycle brakes.  WARNING! DOT 4 brake fluid can be an irritant when it comes into contact with human tissue. For skin contact, wash off the brake fluid in flowing clean water.
  • Page 43 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) Remove the motor cover    Locate and remove the two calliper  securing bolts    Slide the calliper off the disk rotor    © Karbon Kinetics Limited. All Rights Reserved.
  • Page 44 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) Remove the brake pads using needle‐nose  pliers in the direction as shown    You cannot remove the pads from this side Replace the brake pads  Remove from this side   Ensure that the brake pads are properly  aligned before reassembly    © Karbon Kinetics Limited. All Rights Reserved.
  • Page 45 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) Replace the front brake calliper. Tighten  the calliper securing bolts to a torque of 6– 8Nm.    Replace the motor cover    Replace the six motor cover securing  screws. Tighten to a torque of 3–4Nm.  WARNING! The braking performance of new brake pads will increase over time. Ensure that you “bed-in” your brakes by performing a number of stops.
  • Page 46 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) 7.5.2.2 Replacing the Rear Brake Pads  Locate the two rear calliper securing bolts,  shown    Remove the forward calliper securing bolt  with an Allen key, as shown    Remove the rear calliper securing bolt with  an Allen key, as shown    © Karbon Kinetics Limited. All Rights Reserved.
  • Page 47 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) Slide the calliper off the disk rotor    Narrow exit out of front side of calliper— the brake pads will not exit from this side    Wide exit from rear of calliper—remove the  brake pads from this side    © Karbon Kinetics Limited. All Rights Reserved.
  • Page 48 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) Remove brake pads using needle‐nose  pliers    Replace both brake pads    Ensure that the brake pads are properly  aligned before reassembly    © Karbon Kinetics Limited. All Rights Reserved.

  • Page 49: Adjusting The Pitstopwheel Cam Levers

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) Replace both calliper securing bolts.  Tighten to a torque of 6–8Nm.    Ensure that the brake calliper is parallel to  the disk rotor when tightened.  WARNING! The braking performance of new brake pads will increase over time. Ensure that you “bed-in” your brakes by performing a number of stops  ...
  • Page 50 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) 3. You will need to tighten all of the studs at least two times since the tightness of one stud may  affect the next. We recommend that you tighten in a clockwise direction and through 720  degrees; i.e., 2 times for each stud.  WARNING! Never tighten more than 3–4Nm. Over-tightening may lead to premature failure of the components, which may result in injury to the rider 4. Replace the red grommets.  Remove the red dust grommets. ...
  • Page 51 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) 7.6.2 Checking for and Minimising Wear on the Front and Rear Hubs Periodically remove the rear  wheel to check for hub wear    Periodically remove the front  wheel to check for hub wear    Pay particular attention to the  area indicated      © Karbon Kinetics Limited. All Rights Reserved.

  • Page 52: Tyres

    Operating the Gocycle with a front tyre pressure greater than 30psi and/or using the motor assistance on rough terrain, against these recommendations, will invalidate the warranty.

  • Page 53: Adjusting The Headset

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) Forwards Fitting the tyres and tyre tread  orientation  Centreline grooves Note orientation of tyre tread     7.8 Adjusting the Headset From time to time it may be necessary to tighten the headset if it becomes loose. This process is  explained by the following steps:  Open the quick release lever    Undo (anticlockwise) and  remove the quick release lever    © Karbon Kinetics Limited. All Rights Reserved.
  • Page 54 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) Loosen the top securing screw    Loosen the bottom securing  screw    © Karbon Kinetics Limited. All Rights Reserved.
  • Page 55 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) Tighten the headset until there  is no “play” felt in the steerer  assembly—not less than 3Nm  torque    Tighten the bottom securing  screw to a torque of 6–8Nm    © Karbon Kinetics Limited. All Rights Reserved.
  • Page 56 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) Tighten the top securing screw  to a torque of 6–8Nm    Insert and tighten the quick  release (clockwise)    Close the quick release    © Karbon Kinetics Limited. All Rights Reserved.

  • Page 57: Adjusting The Bearings On The Rear Hub

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) 7.9 Adjusting the Bearings on the Rear Hub It is unlikely that you will need to adjust the bearings on the rear hub. However, in the event that the  rear wheel develops play (more than 1mm at the rim) or it feels heavy to pedal (i.e., the hub is too  tight), you may need to tighten the bearing cone.   To check if adjustment is required, turn the Gocycle upside down. Using gentle pressure, move the  wheel at the rim side to side. Some flex in the wheel is normal, but if you feel that the wheel is loose,  you will need to adjust the bearing cone as shown below:      Remove the hub cap   Adjusting the rear hub gear    bearing cups   First, loosen the Second, tighten the inner adjuster nut.
  • Page 58 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) Between adjustments, check  that the rear hub rotates in the  freewheel direction. The bearing  cup nuts should be tightened  until the wheel does not have  more than 1mm of “free” play  at the rim, and the wheel is able  to rotate freely. This is a matter  of compromise and feel. If in  doubt, consult Gocycle Tech    Support for advice.   Retighten the Hold the inner nut Retighten the outer lock nut.  outer lock nut stationary Note: after tightening the outer  lock nut, the hub may need re‐ adjusting due to the nature of  the tightening process. You may  need to repeat this process until  you have the desired freeness of ...

  • Page 59: Troubleshooting

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) ROUBLESHOOTING 8.1 Unknown Gear State: Gears Will Not Shift Symptom: No gear shift LEDs are visible on the dashboard display and it is not possible to shift  between gears. The gears remain in the last selected gear.  No LEDs visible       Resolution: To return to normal shifting, stop riding and remain stationary for up to 5 seconds with  both brakes applied. The Gocycle will reset to first gear and the gear shift LEDs will return to the  dashboard.    © Karbon Kinetics Limited. All Rights Reserved.

  • Page 60: Diagnosis Modes

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) 8.2 Diagnosis Modes Your Gocycle is pre‐programmed with a number of modes to assist in fault diagnosis, should an issue  occur. Should an issue arise, a Gocycle technical support executive may request you to perform a  number of checks in an attempt to properly diagnose a problem. The following section is for  reference.   Reminder! To select a mode, press and hold buttons A and B until all LEDs flash, then release both buttons. The mode will then be shown on the dashboard display (C). Click button B repeatedly until you reach the number of LEDs which represent your desired mode (C).
  • Page 61 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) Now rotate the pedal cranks in  a backwards direction, as  shown    When movement of the pedal  cranks is detected, two LEDs  will light on the left hand side  of the dashboard display  Note: When functioning   correctly, in a full rotation of the pedal cranks, the two LEDs will flash eight times Exit by pressing and holding  buttons A and B—the riding ...
  • Page 62 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) 8.2.2 Motor Check To check operation of red power button and motor:  Select Motor Check, mode 13    Lift the front wheel so that is it  off the ground    Press red power button (A) to  initiate the motor  Note: In some cases you may  have to repeatedly press and  hold the power button to get  the motor to drive continuously    CAUTION! The motor will operate when the red power button is pressed Exit by pressing and holding  buttons A and B—the riding ...
  • Page 63 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) 8.2.3 Pedal Torque Sensor Present Check To check the presence and operation of the pedal torque sensor:  Select Motor Check, mode 14    With both brakes held, apply  pressure to the left hand (non‐ drive side) pedal crank    When pressure is applied to the  left‐hand (non‐drive side) pedal  crank, the level of force  detected will be represented on  the dashboard display—    applying greater pressure will  turn off more LEDs  Exit by pressing and holding  buttons A and B—the riding  mode will flash to confirm exit      Mode Pedal Torque Sensor Present Check...
  • Page 64 ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) 8.2.4 Pedal and Wheel Sensor Ratio Check Follow the next steps to check function of the wheel and pedal sensors in all gears:    Place the Gocycle in a cycle  stand, so the rear wheel and  pedal cranks are free to turn    Select Motor Check, mode 16  One LED will flash to confirm  that the Gocycle is ready for the  test to begin     Whilst applying light braking  pressure to the rear brake, pedal  forward at a recommended 40– 60 rpm (revolutions per minute)  The Gocycle will automatically  shift up from 1  to 2  gear and  from 2  to 3  gear.  Continue to rotate the pedals at ...

  • Page 65: Led Reference Tables

    ® Gocycle Owner’s Manual for G2R, Version 2 (Frames 210001–215000) 8.3 LED Reference Tables   8.3.1 Dashboard Display Battery Charge Level Gear (Displayed when motor is Speed Selection OFF) Energy Consumption Meter Gear (Displayed when motor is Speed Selection  ...
